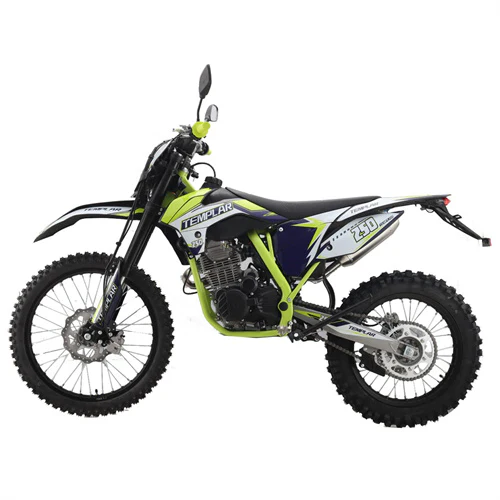

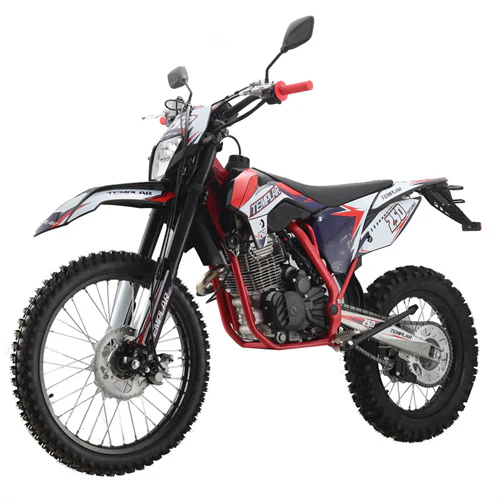

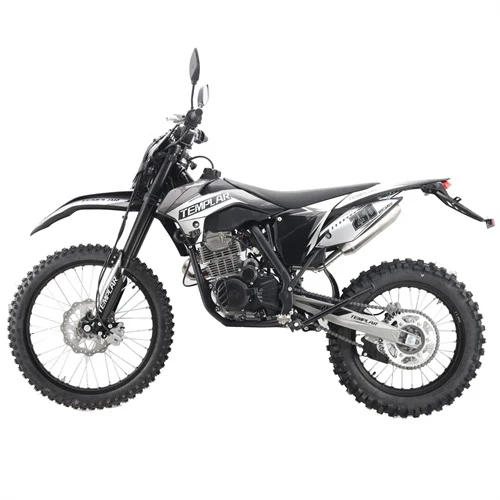

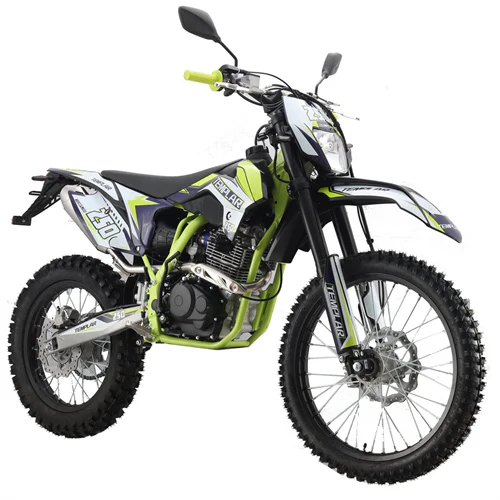

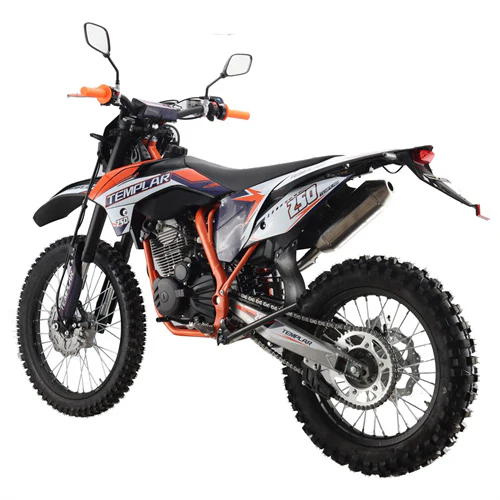

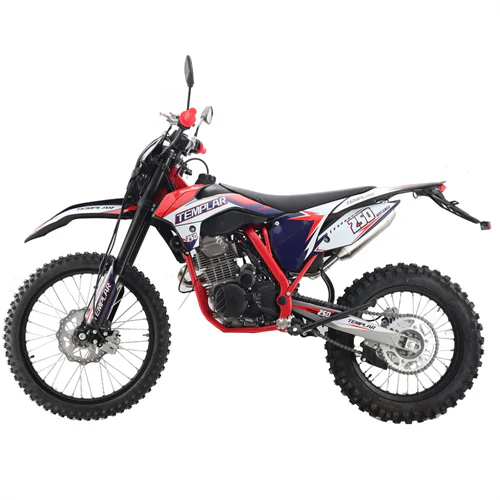

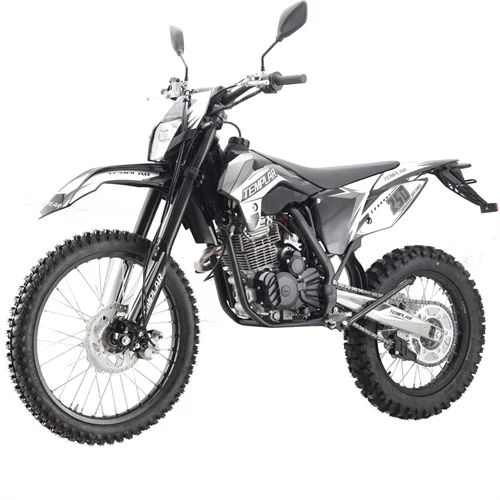

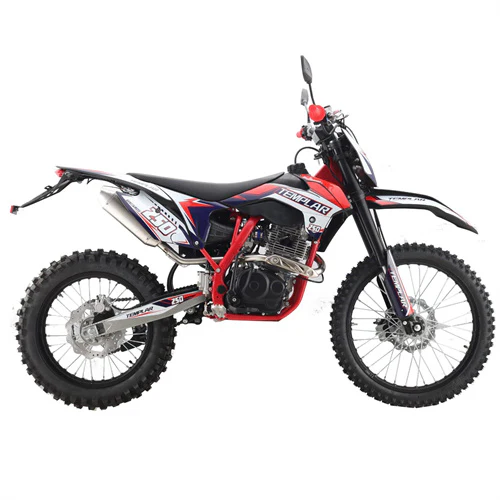

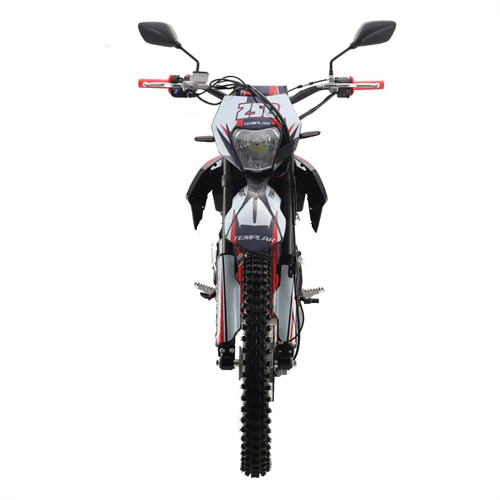

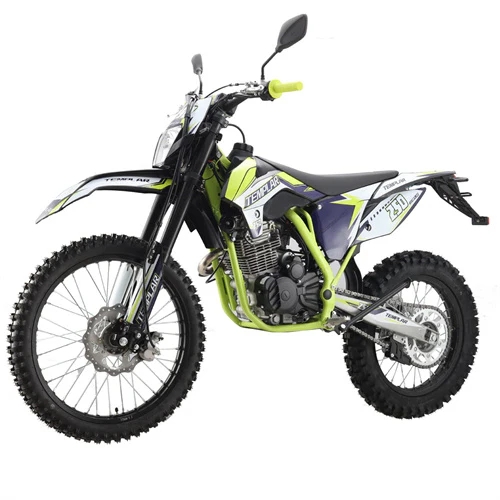

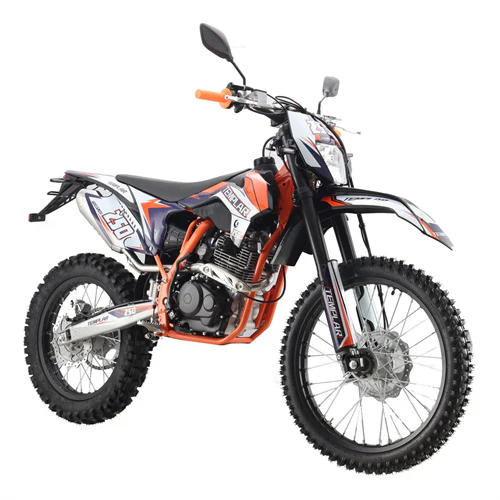

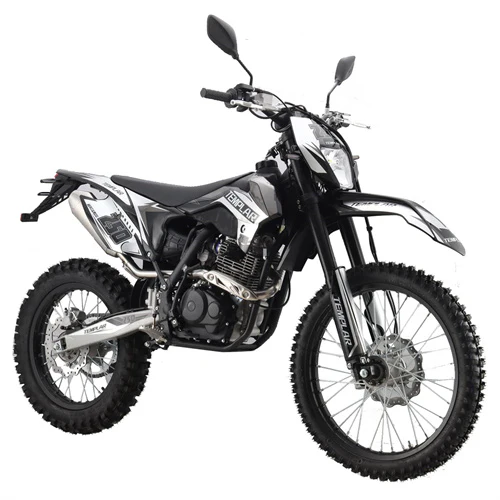

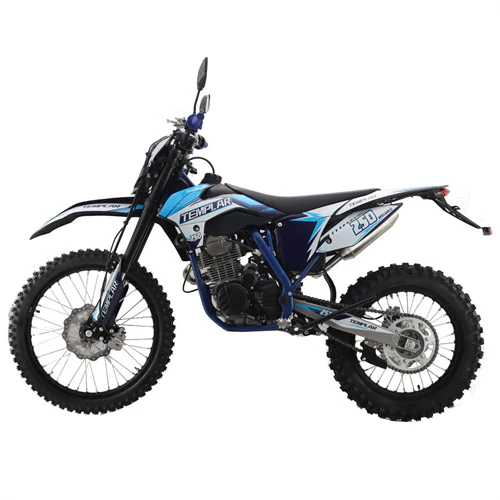

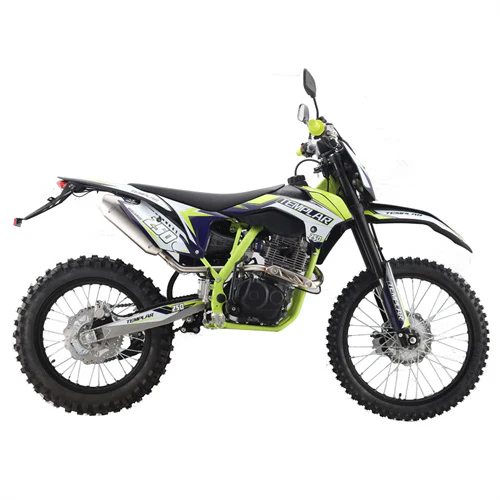

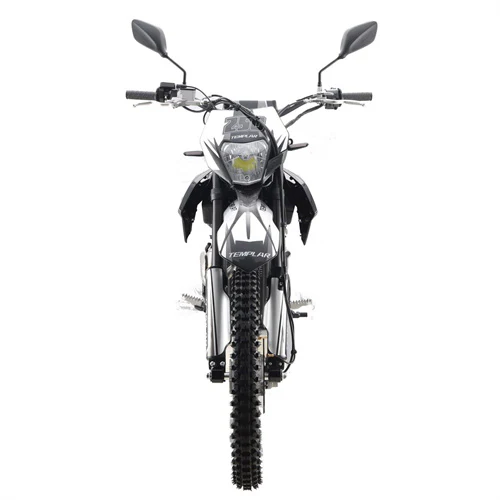

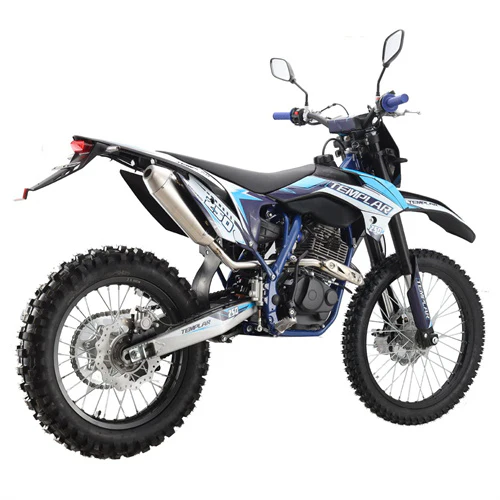

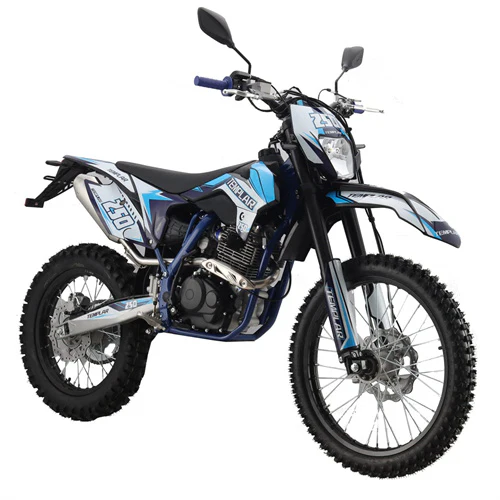

New Upgraded X-PRO TEMPLAR 250 Dirt Bike with All Lights.

• Main Features:
1. Free Upgraded Good Quality Zongshen Brand Engine($250 value): Comes with Real 249.9cc Zongshen engine, which is expensive, reliable, powerful and long life span.
2. Free Upgraded Inverted Front Shock Absorption($100 value): Has the advantages of favorable shock insulating effect, long service life, safety and better stability.
3. Free Upgraded Better Quality Muffler ($100 value): Reduce engine exhaust noise and enable high-temperature exhaust gas to be discharged safely and effectively!
4. Free Upgraded Digital Dashboard, LED Headlight, LED Tail Light, and LED Turn Signal Indicator($150 value) There are some good chance for this dirt bike to be registered for on road use in many states, please check with your local DMV for details, we do not make any gurantee on this.

• X-PRO Newest Design Model on the market! 249.9cc Design for Adults!
• 249.9cc Zongshen Brand Engine! High Quality Zongshen Brand Engine, which is expensive, reliable, powerful and long life span.
• 5-Speed Manual Transmission Take fully control of the dirt bike, Pro's Choice!
• Electric & Kick start Electric start for easy starting well the kick start is being used as a back uo plan in any unexpected situations.
• Big 21"/18" knobby wheels get ready for great traction on a variety of tracks and terrain.
• With Digital Dashboard, LED Headlight, LED Tail Light, and LED Turn Signal Indicator.
• Front and Rear Hydraulic Disc Brakes provide strong, linear stopping power.
• 52 inch great Wheel-base, which provides great rider control and comfort.
• High Performance Muffler
• Oversized Foot Pegs
• Off Road Use Only
• Some Assembly Required.





Specifications

Model Number	DB-K012
Engine/Drive Train
Engine	Zongshen ZS172FMM 249.9cc, 4 stroke
Cylinder Arrangement	Single
Cooling System	Air Cooled
Compression Ratio	9.25:1
Bore x Stroke	72x61.4
Max Power	14kw / 8500rpm - 19 Hp
Max Torque[N.m/r/m]	18/6500 N.m/r/min
Transmission	5-Speed Manual
Final Drive	Chain 520#
Start System	Kick / Electric
Max Speed (MPH)	60+ (Depending on Riders Weight and Road Conditions)
Ignition Type	CDI
Carburetor	PE28
Battery	12V/5AH
Frame /Body/ Suspension / Brakes
Front Suspension	Inverted, L=830mm, None-Adjustable
Rear Suspension	L=450mm, None-Adjustable
Front Brakes	Hydraulic Disc Brake, 240mm Disc
Rear Brakes	Hydraulic Disc Brake, 240mm Disc
Front Tires	80/100-21
Rear Tires	110/100-18
Seat	Strengthen Sponge
Exhaust	Stainless Steel
Capacities / Dimensions
Weight Capacity(lbs)	441
Net Weight (lbs)	232
Gross Weight (lbs)	278
Overall Length	81"
Overall Width	34.2"
Overall Height	54.7"
Carton dimension (L*W*H/in)	68" x 18" x 34"
Seat Height	35.4"
Wheelbase	52"
Min Ground Clearance	13"
Fuel Capacity	1.72 gal.
Safety / Control
Engine Kill Switch	Yes
Foot Brake	Yes
Horn	Yes
Headlight	Yes, LED
Tail Light	Yes, LED
Turn Signal Indicator	Yes, LED
Speedometer	Yes, Digital Speedometer
Others
EPA Approved	Yes
CARB Information	This bike is not legal for sale in California.
