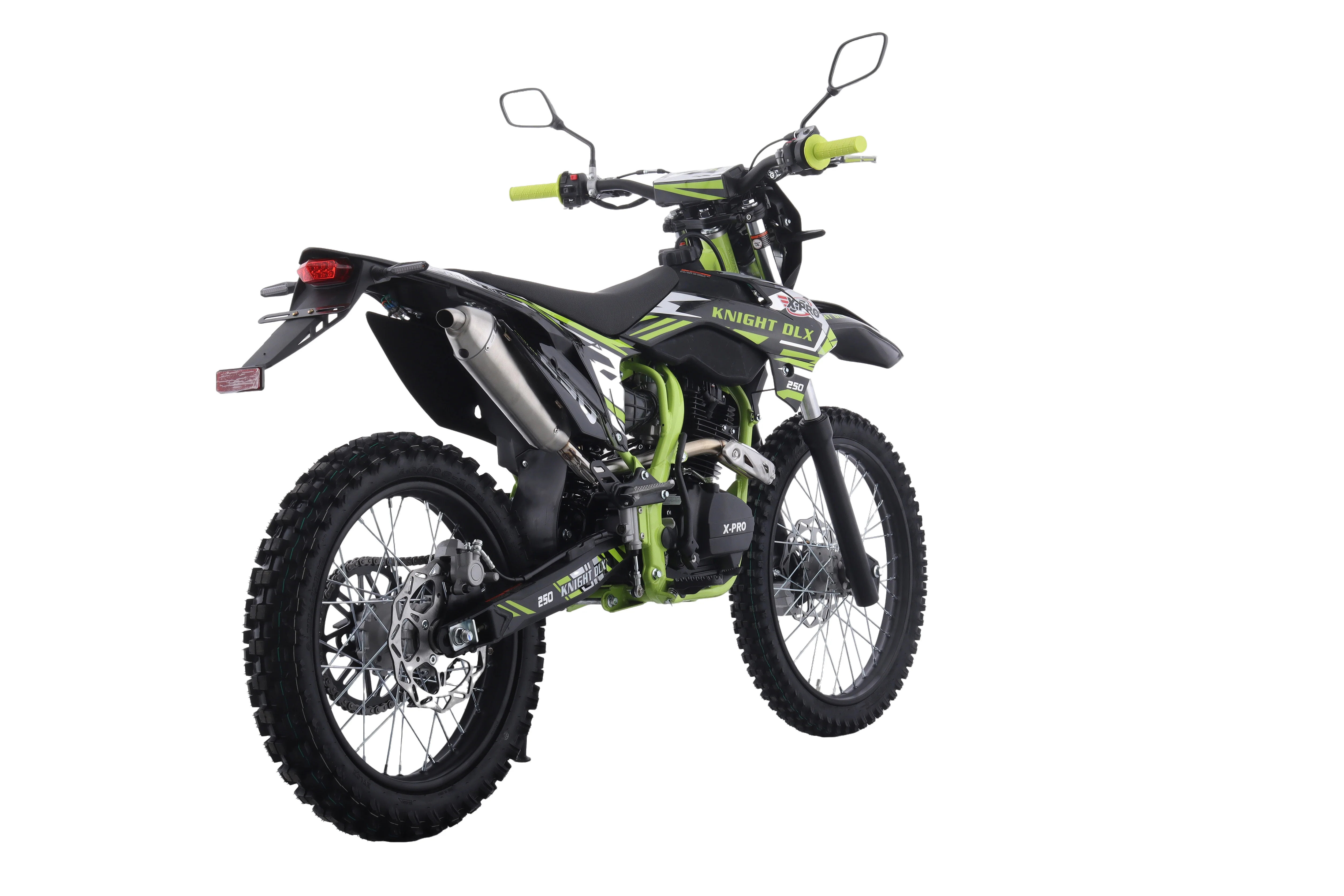

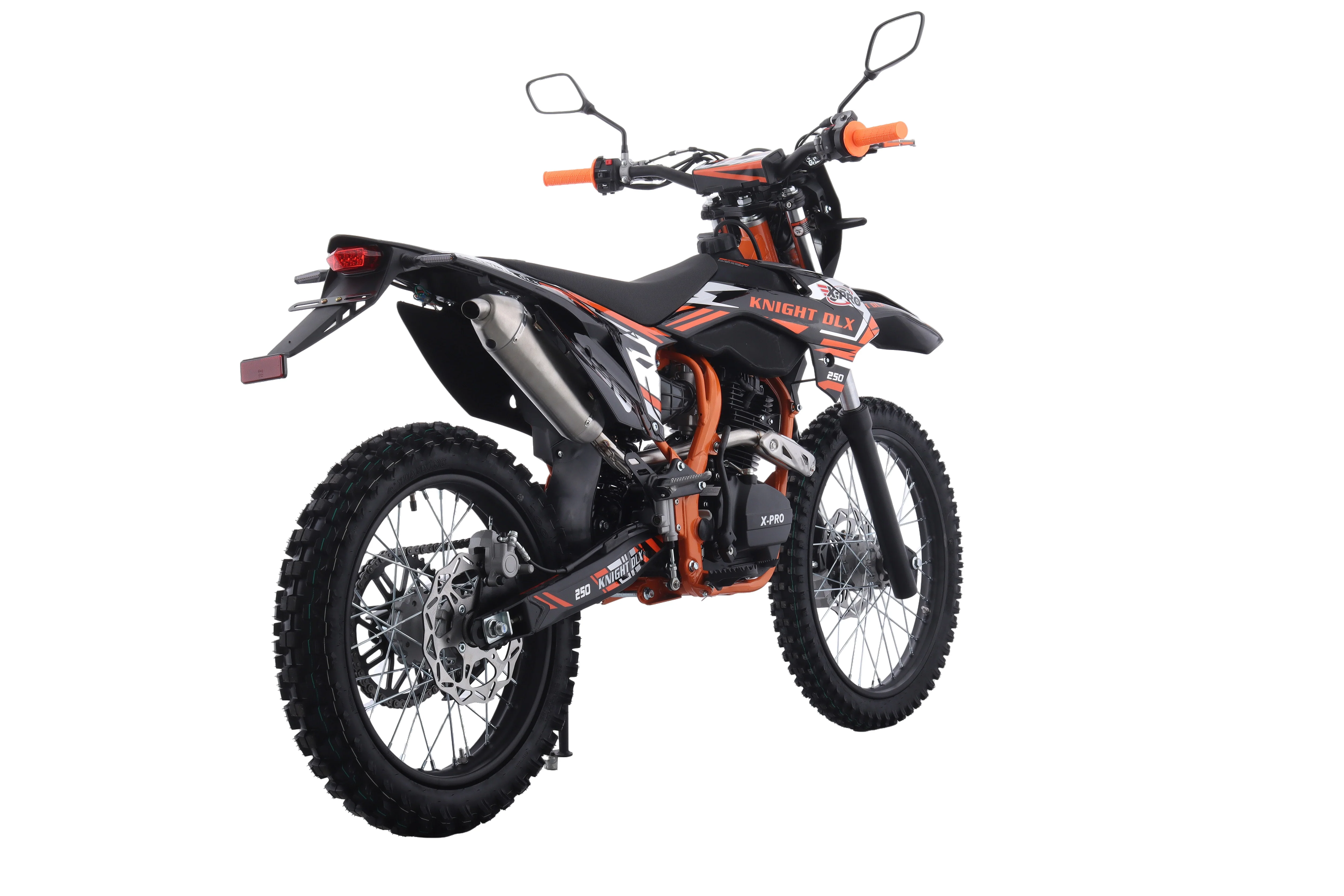

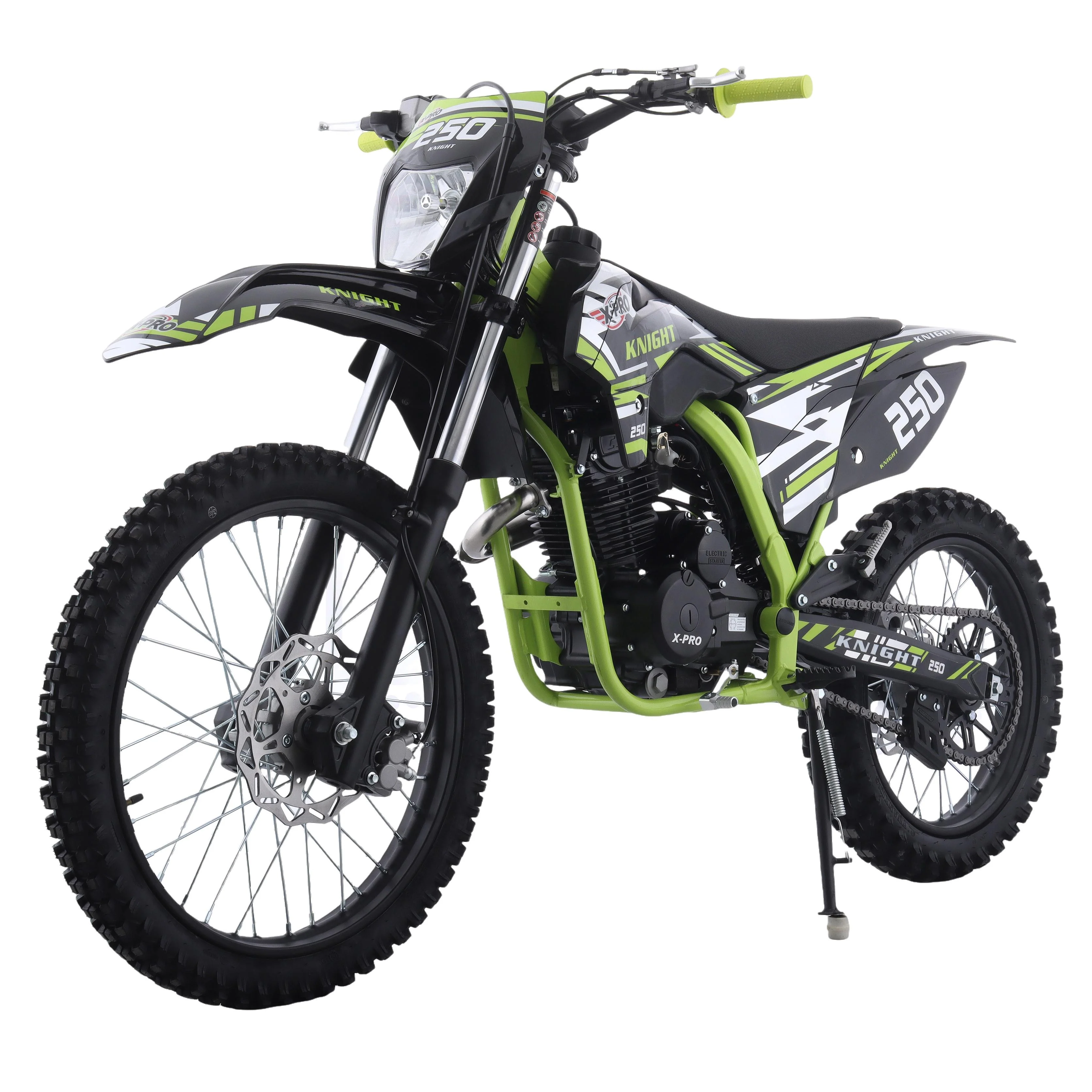

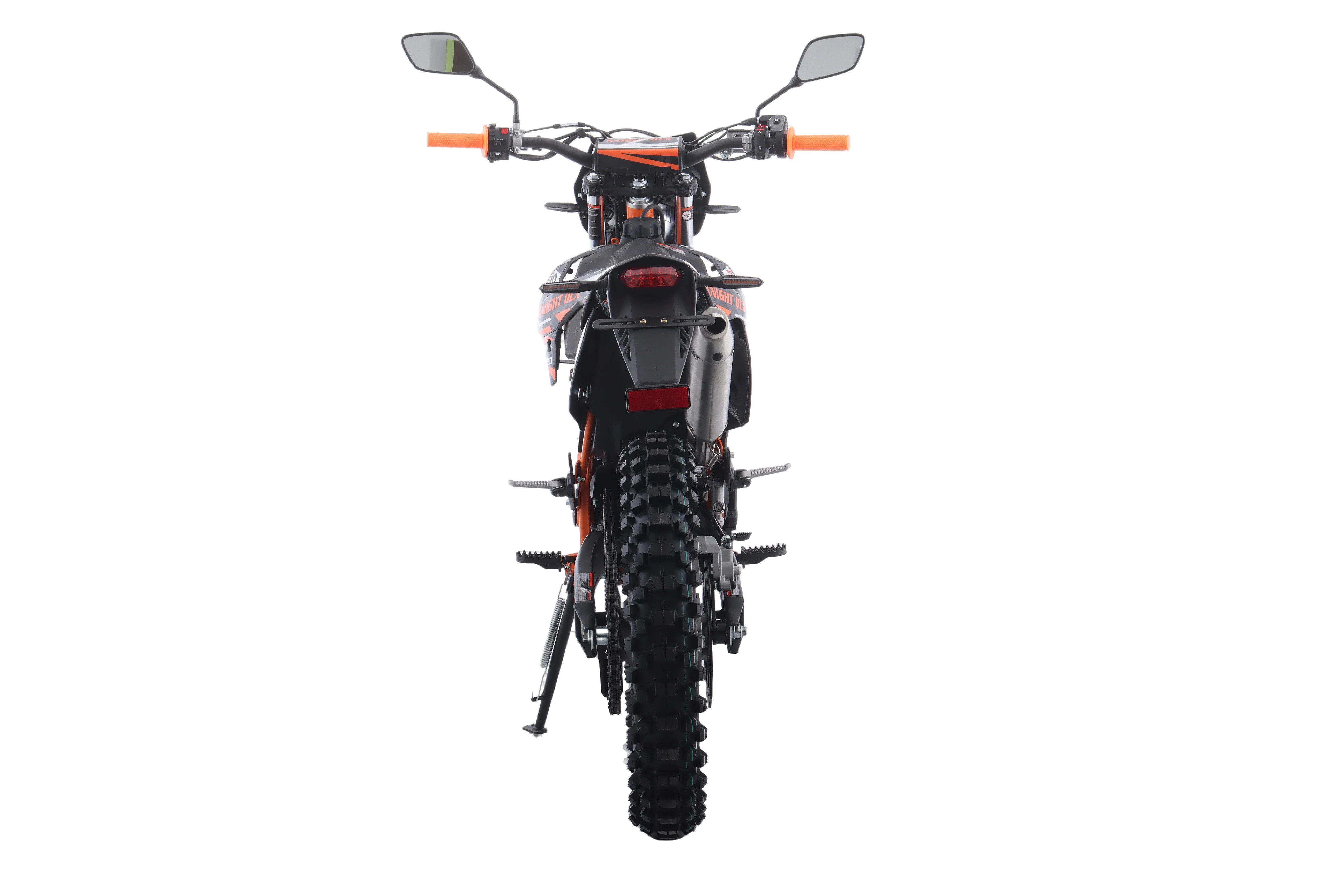

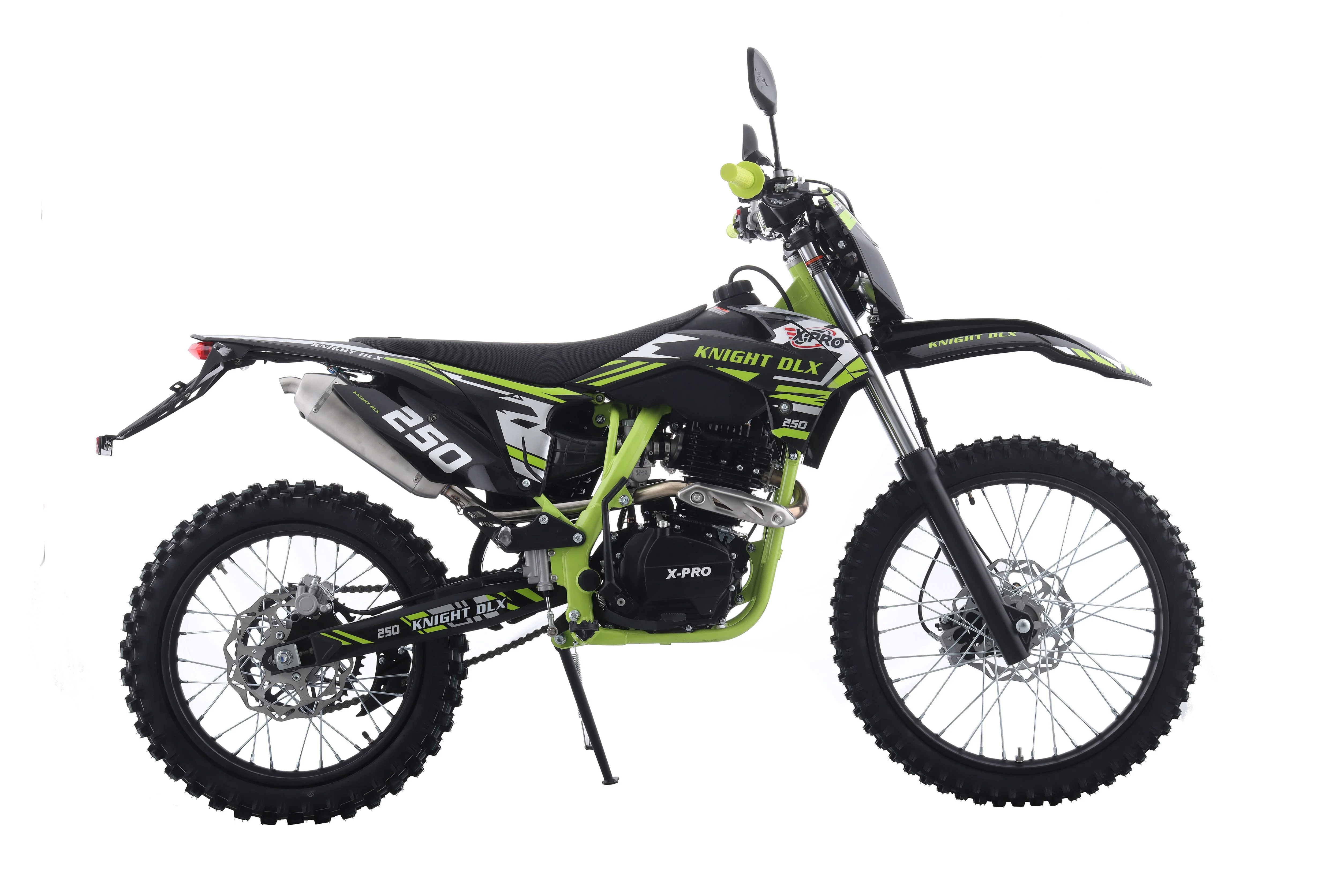

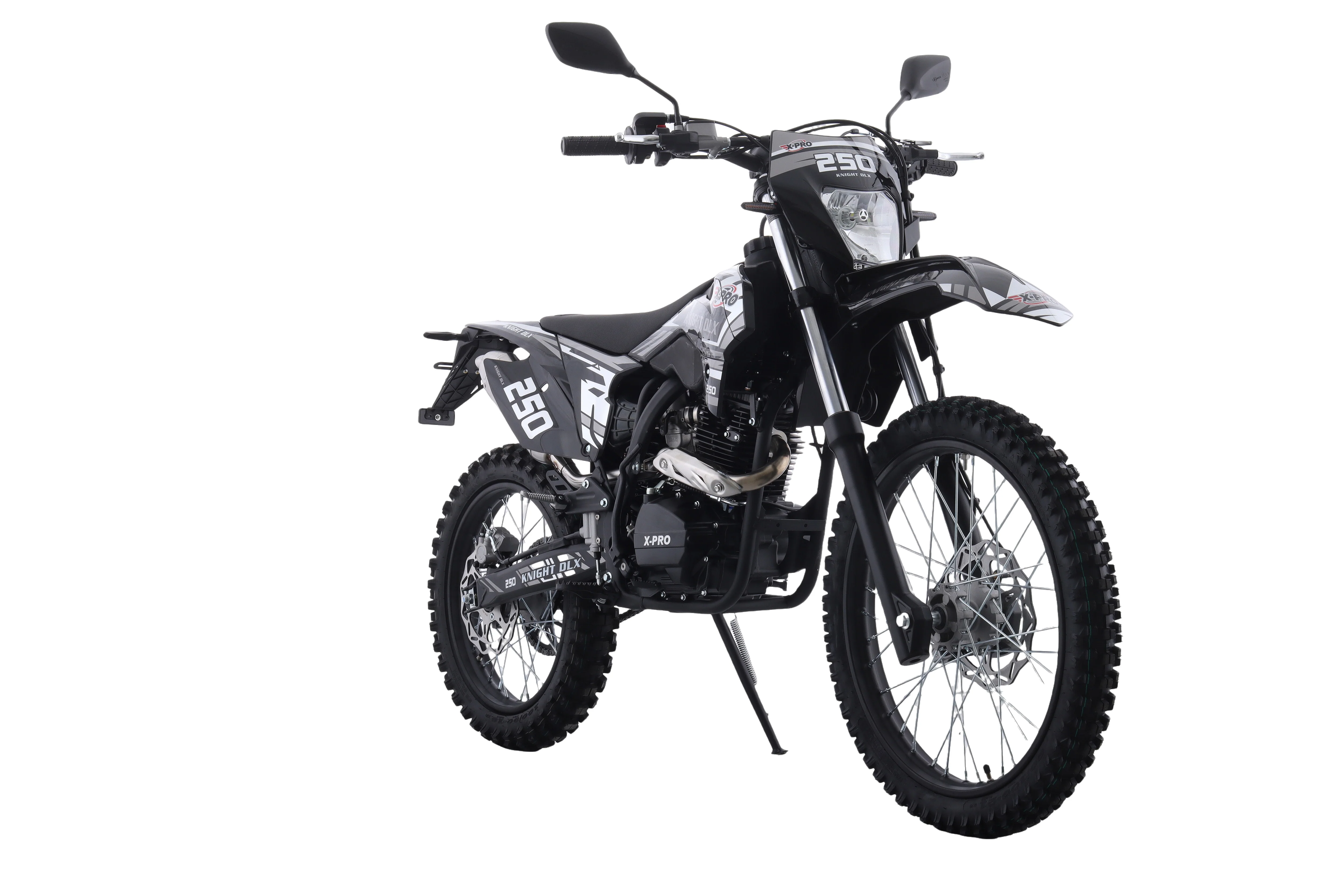

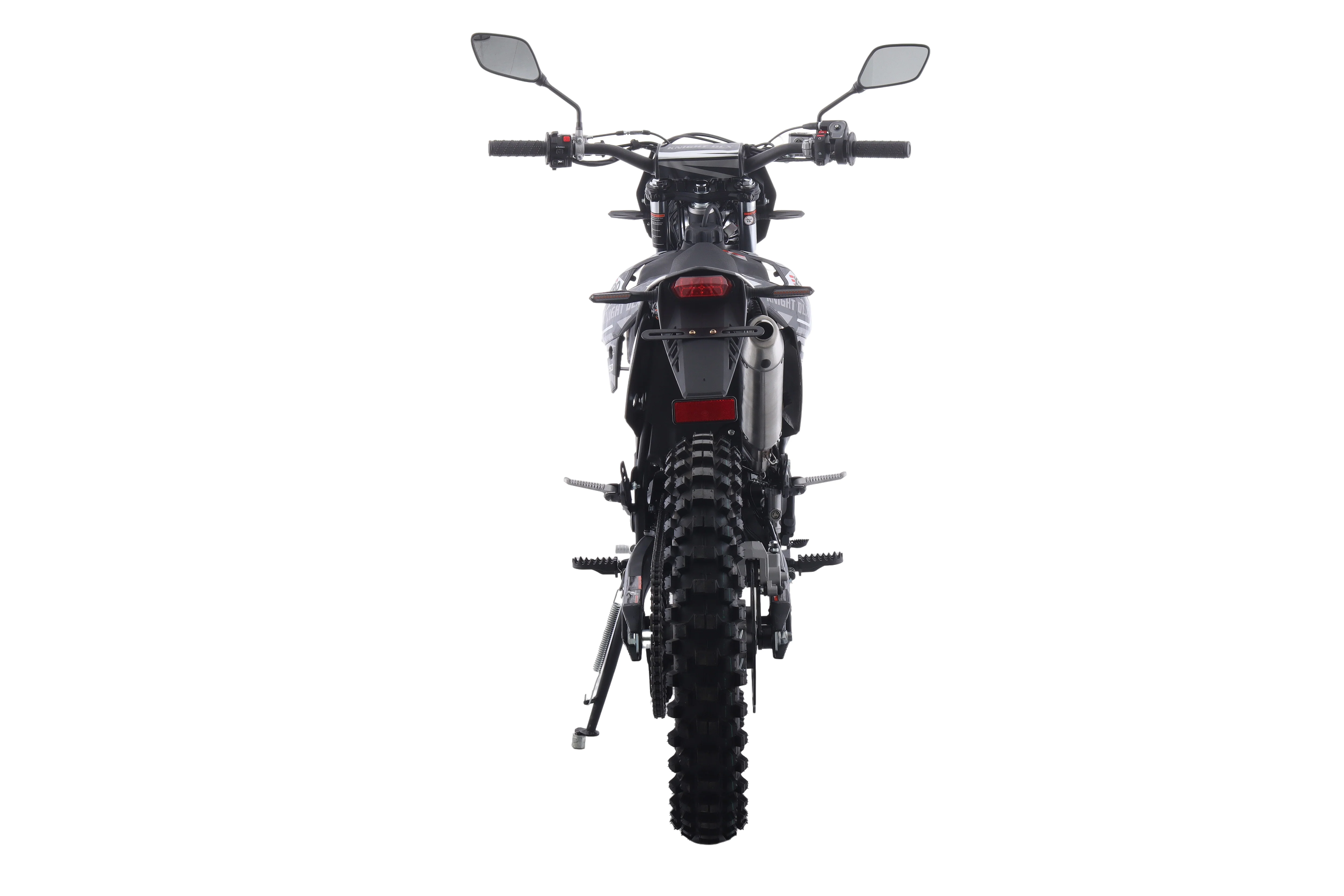

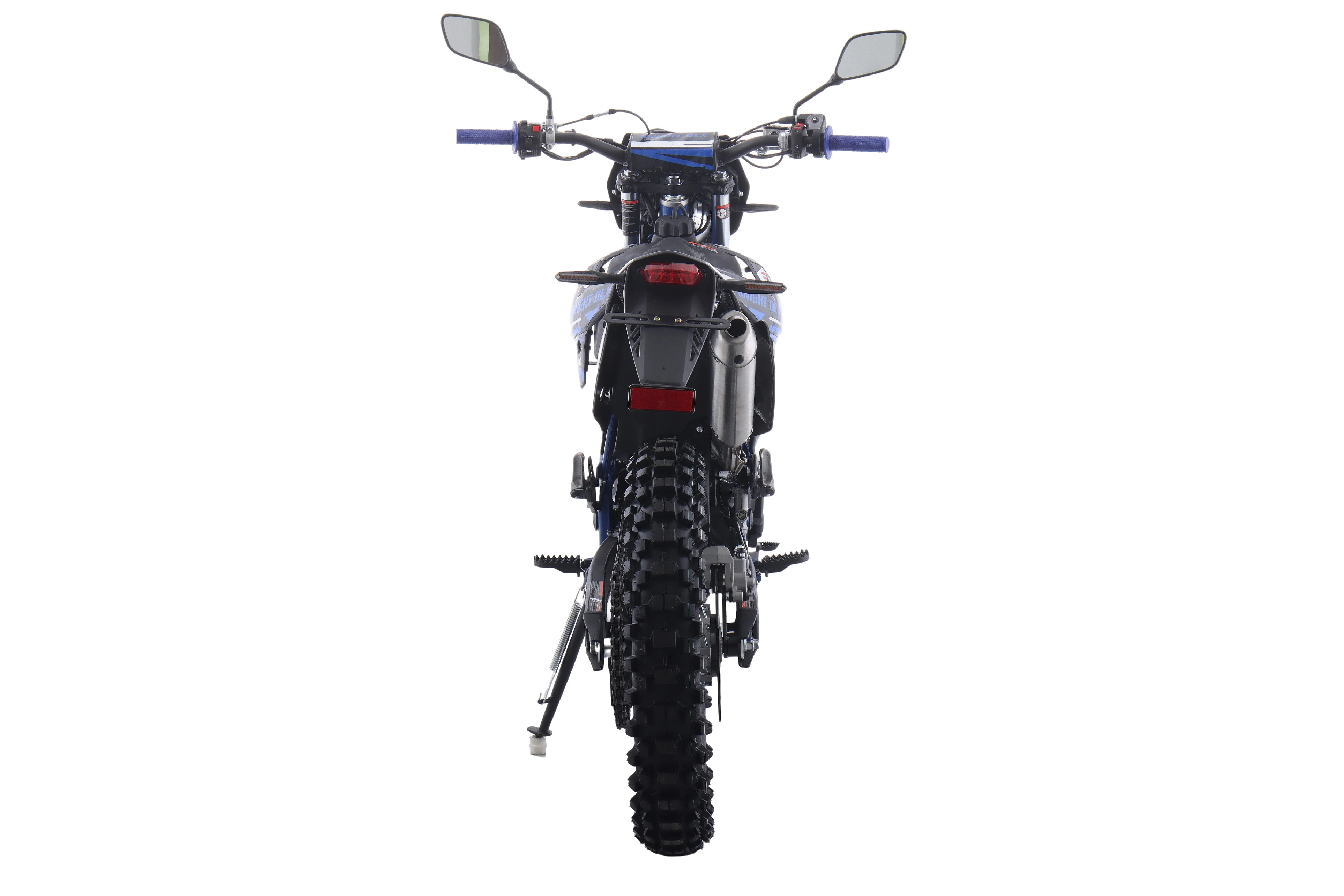

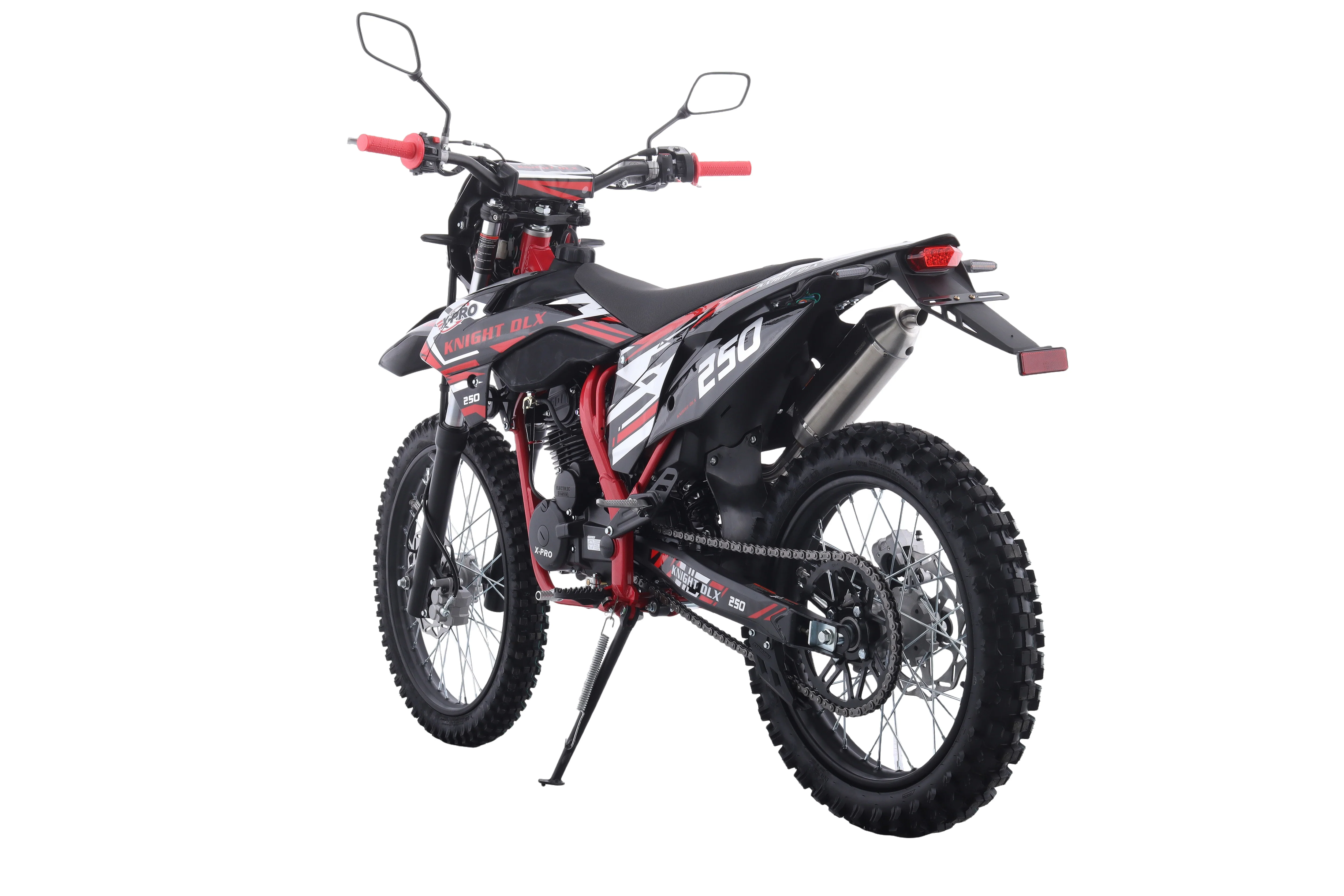

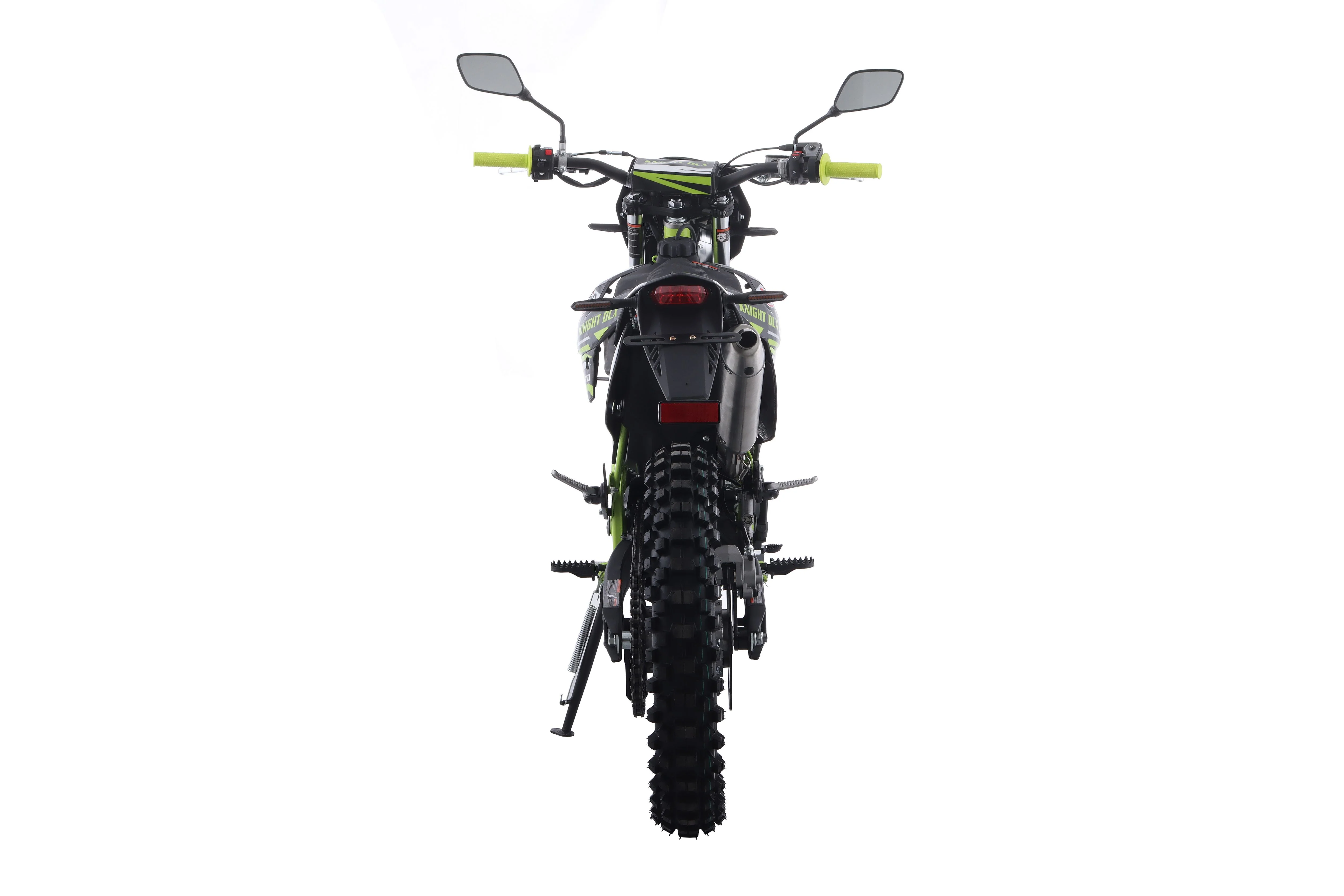

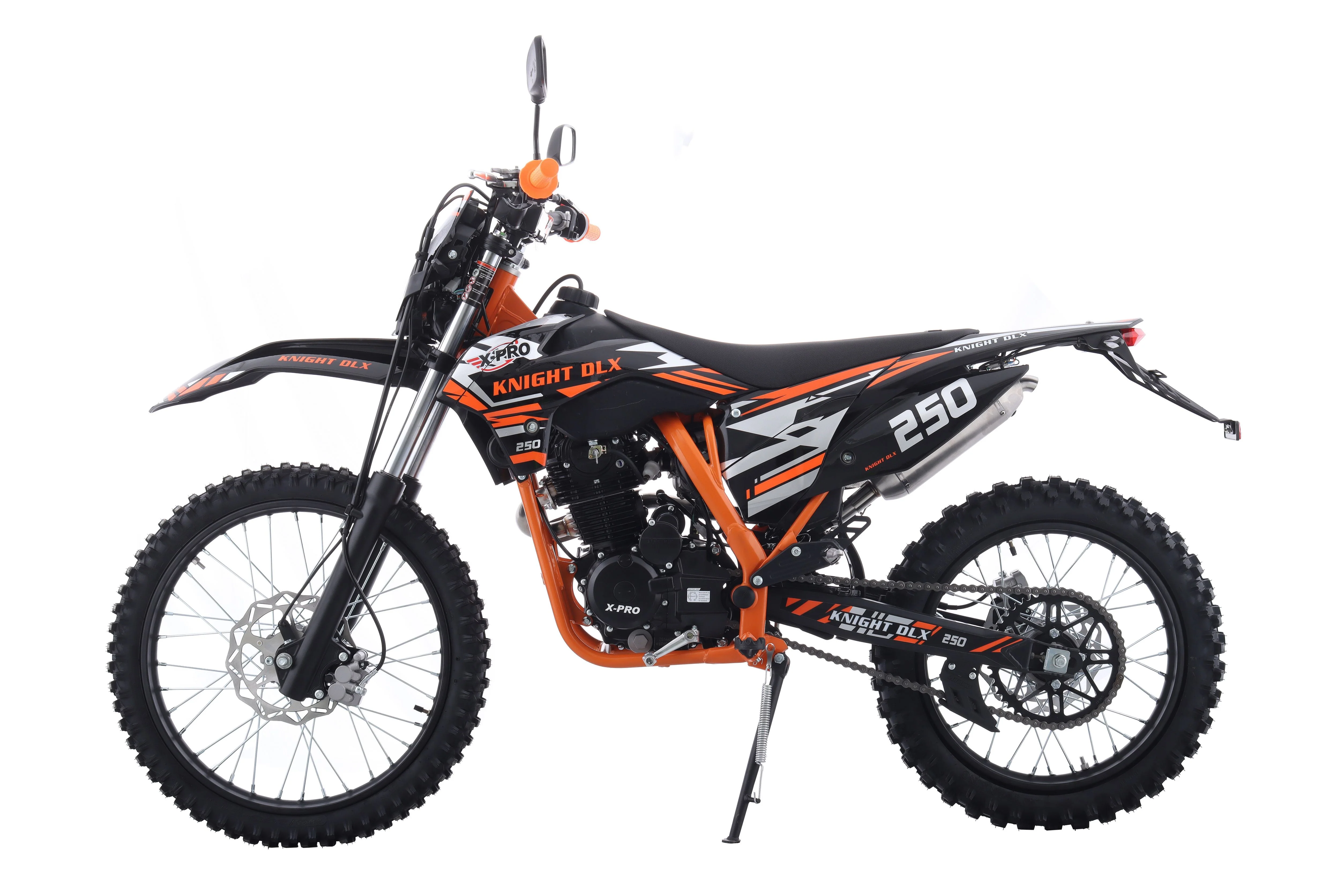

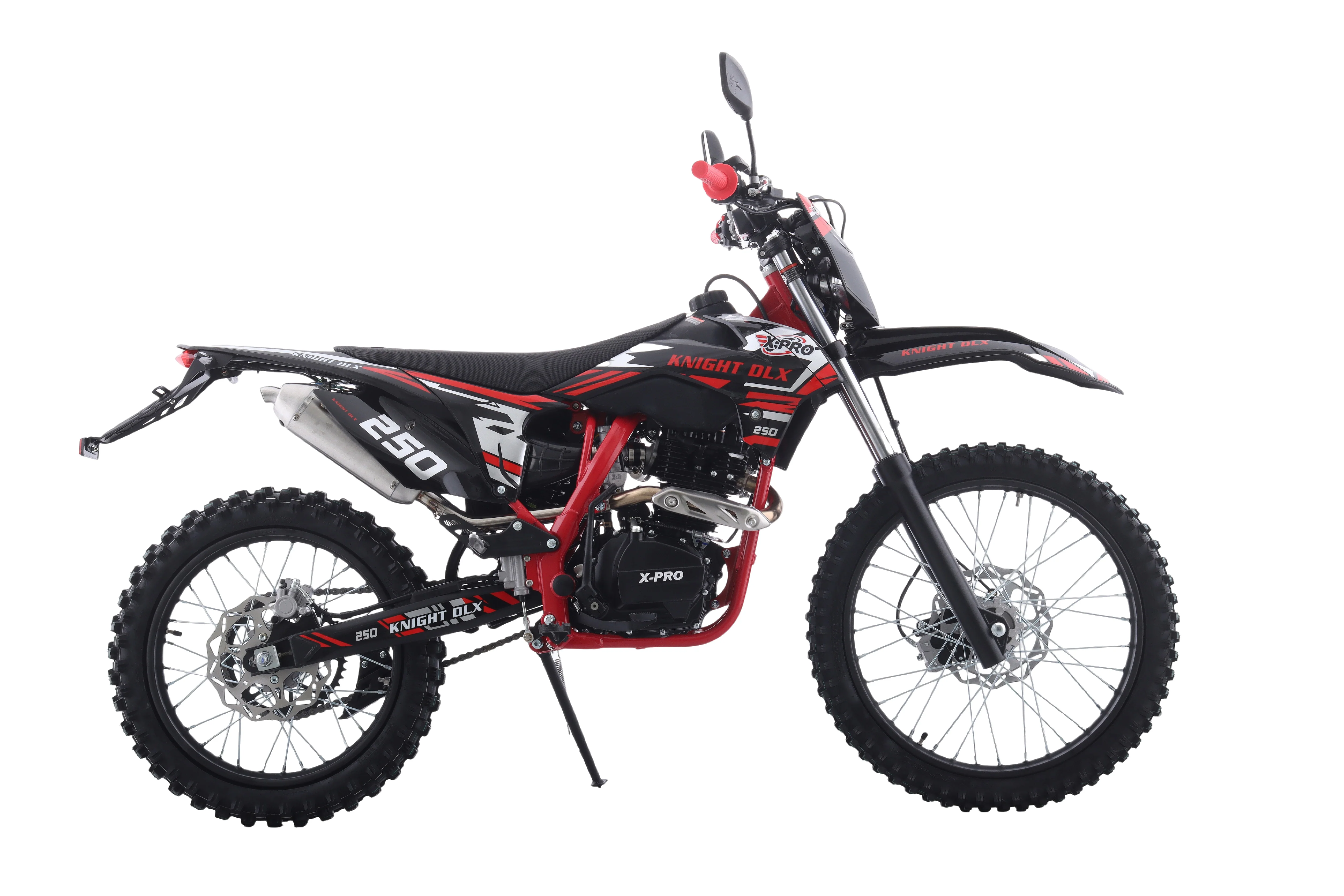

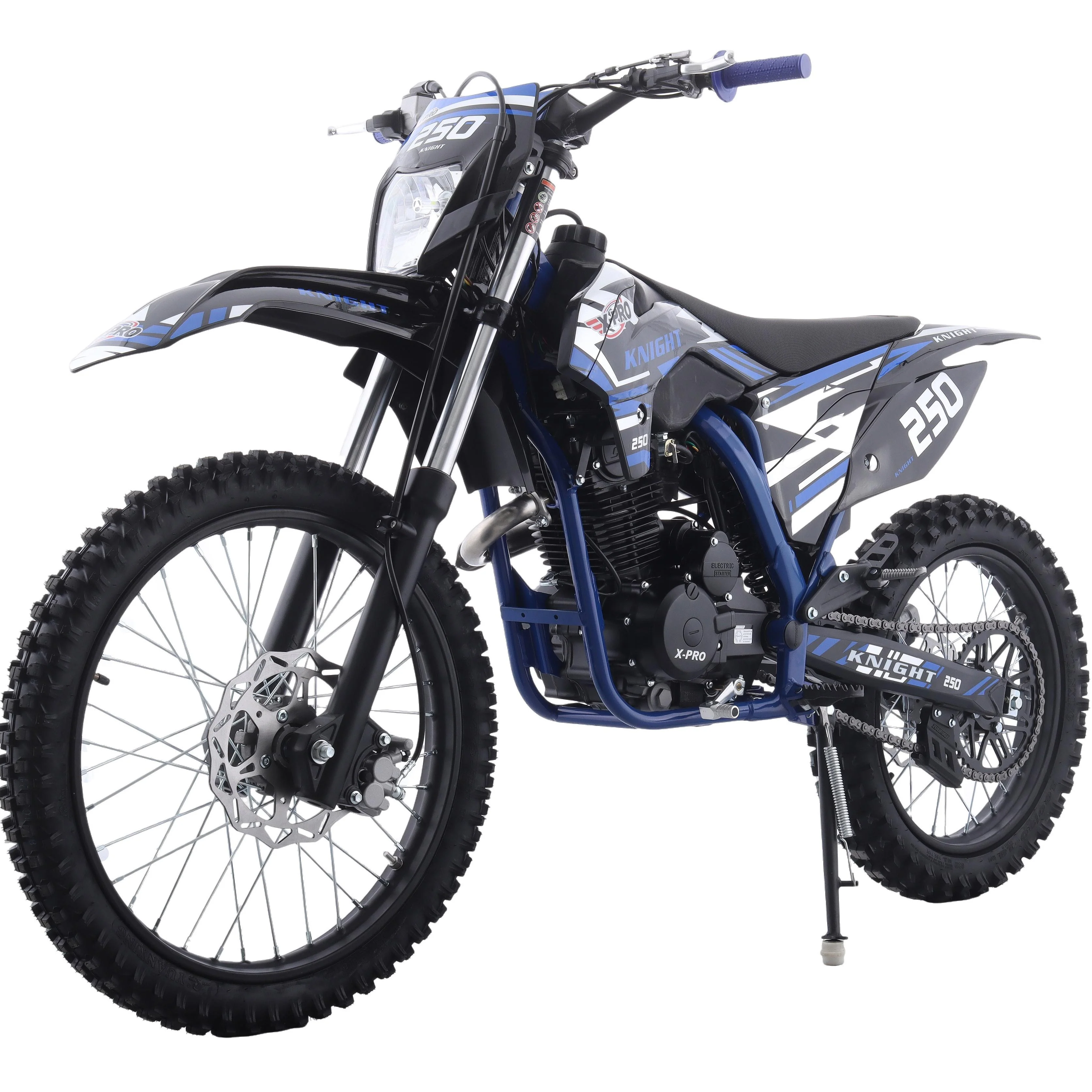

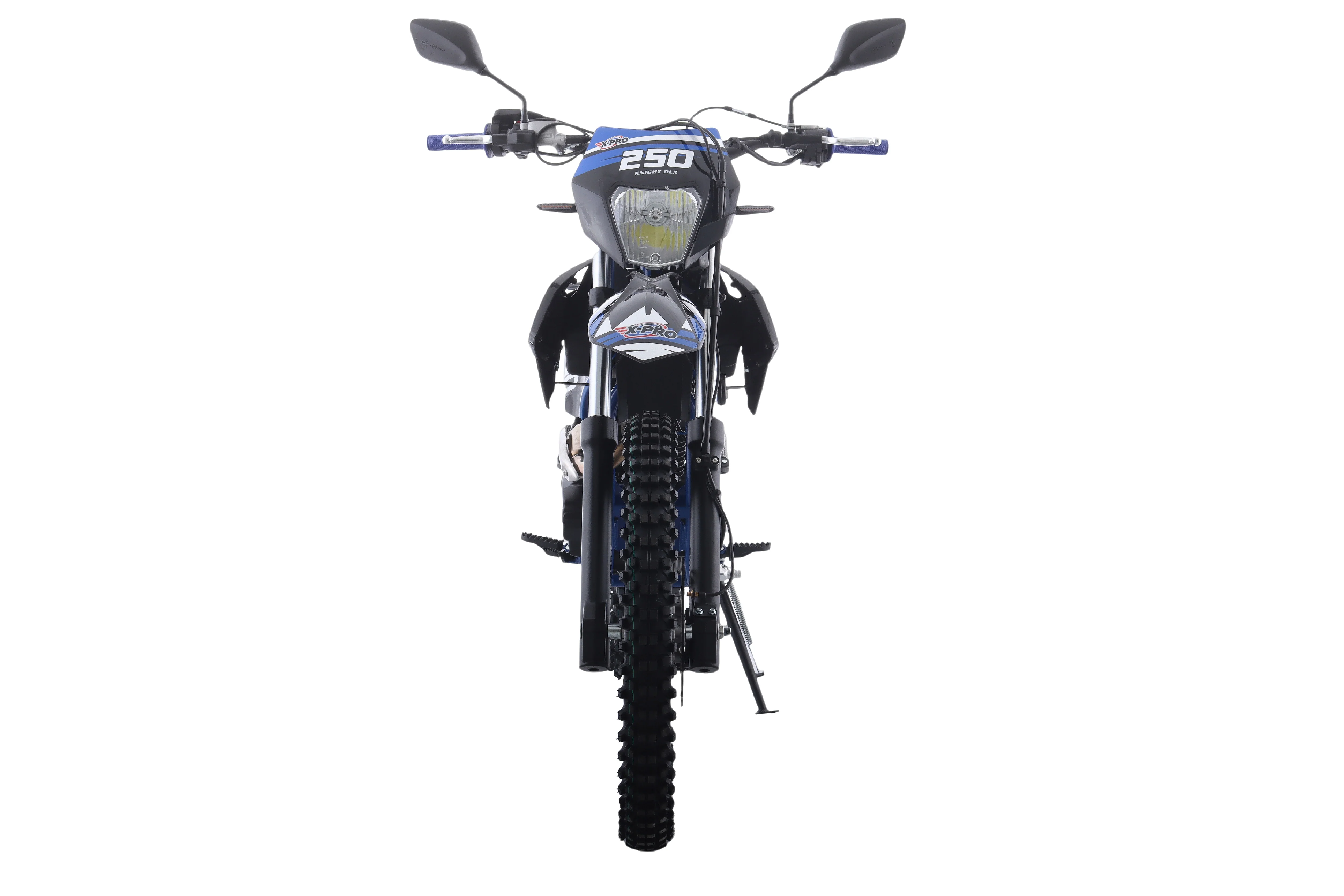

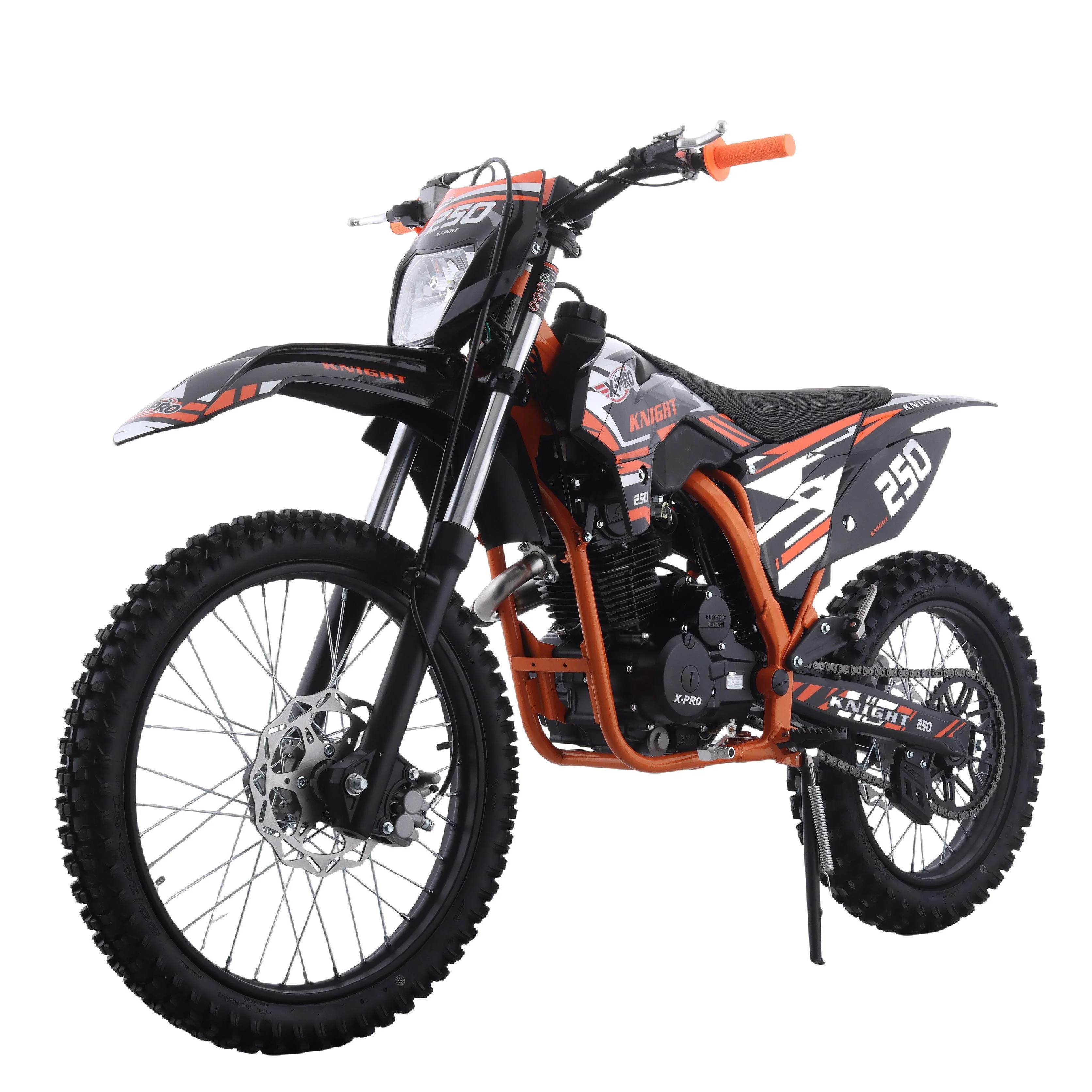

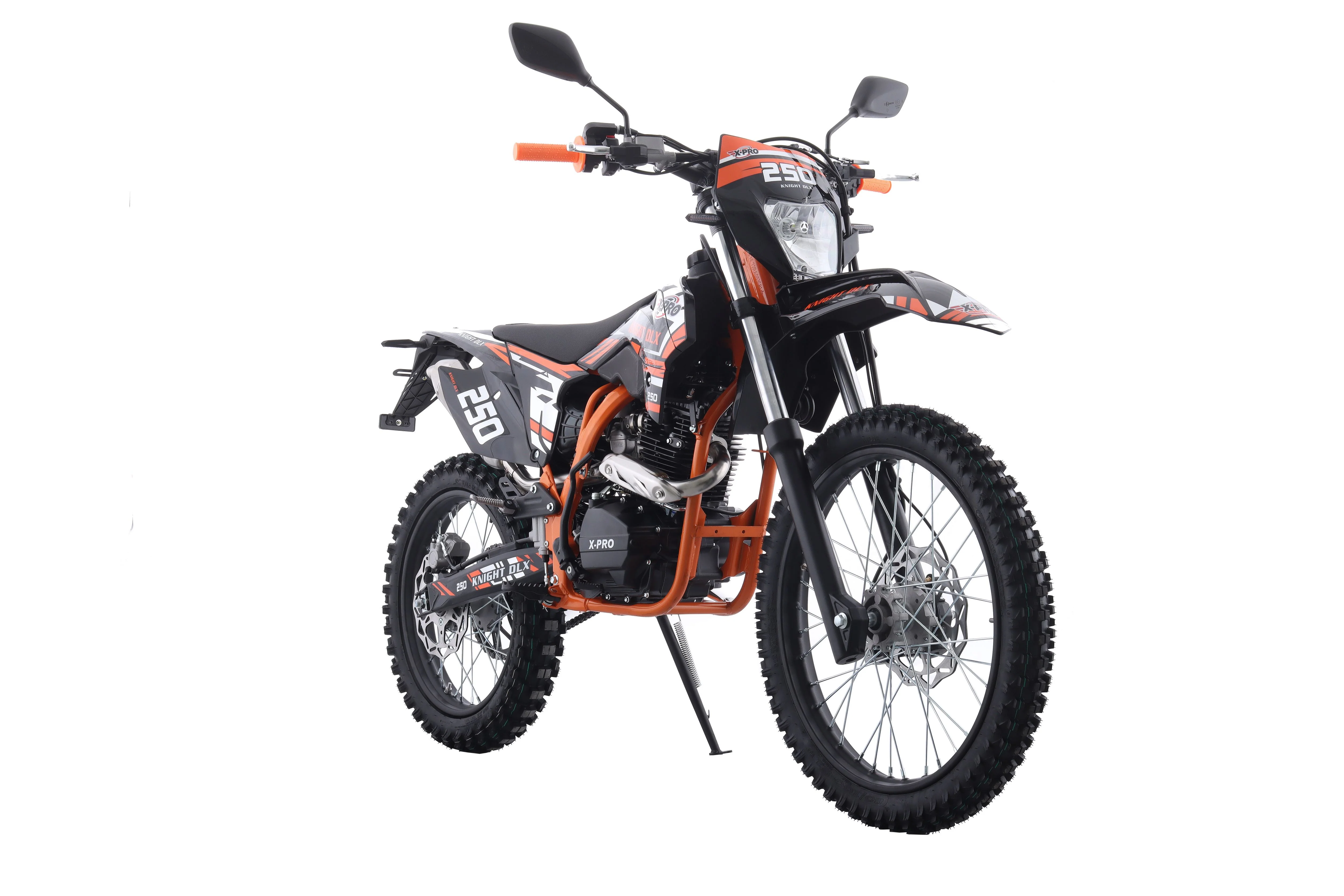

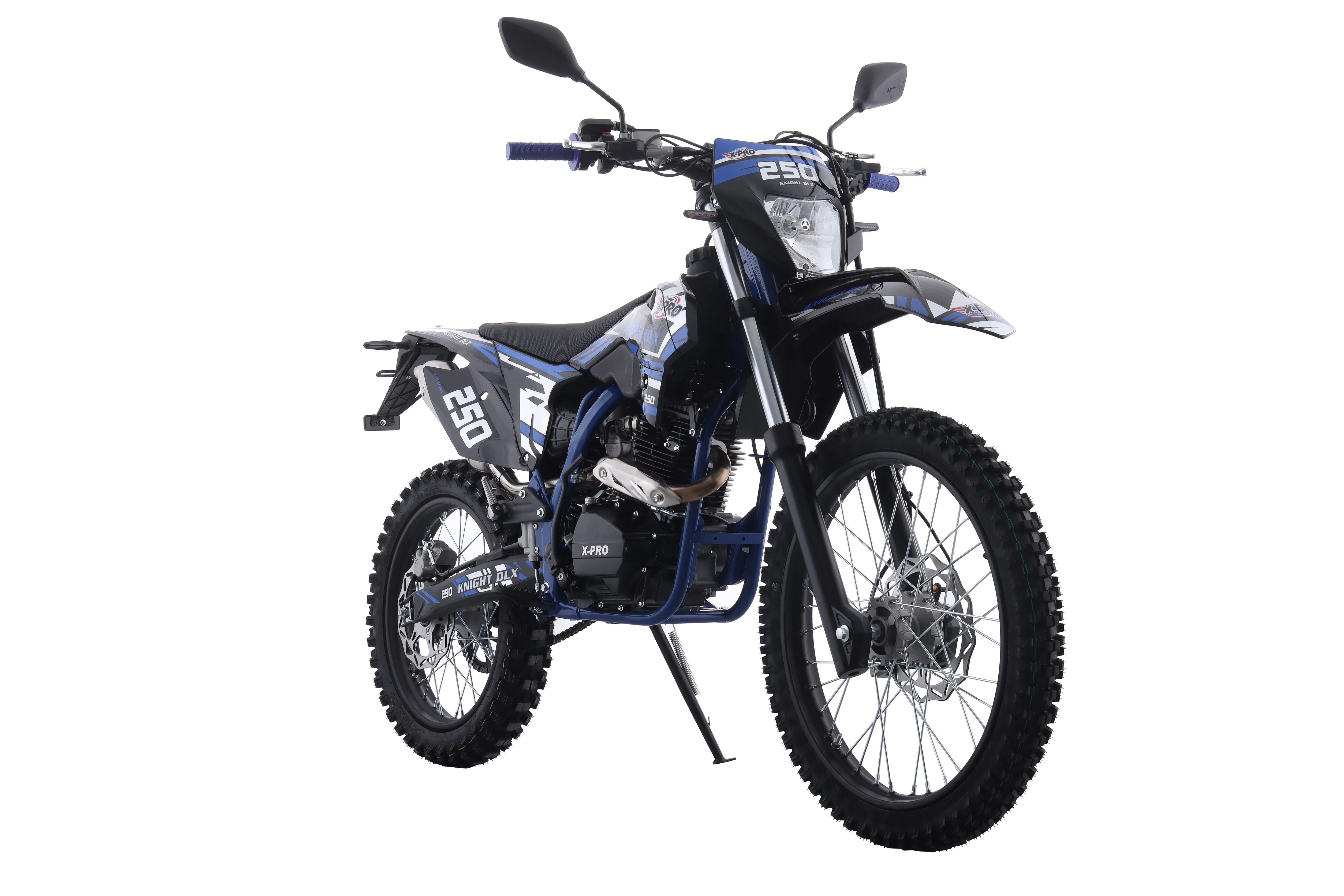

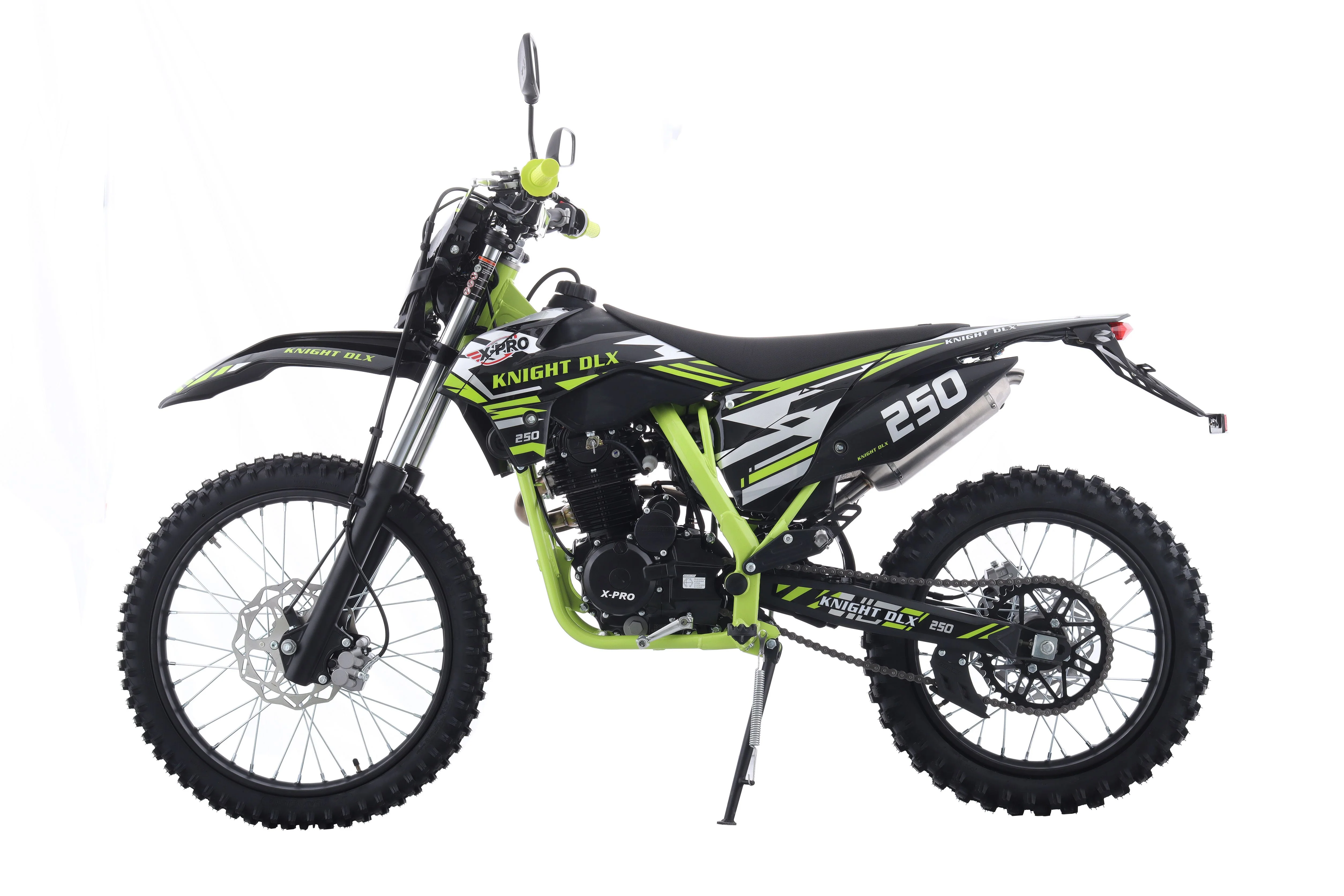

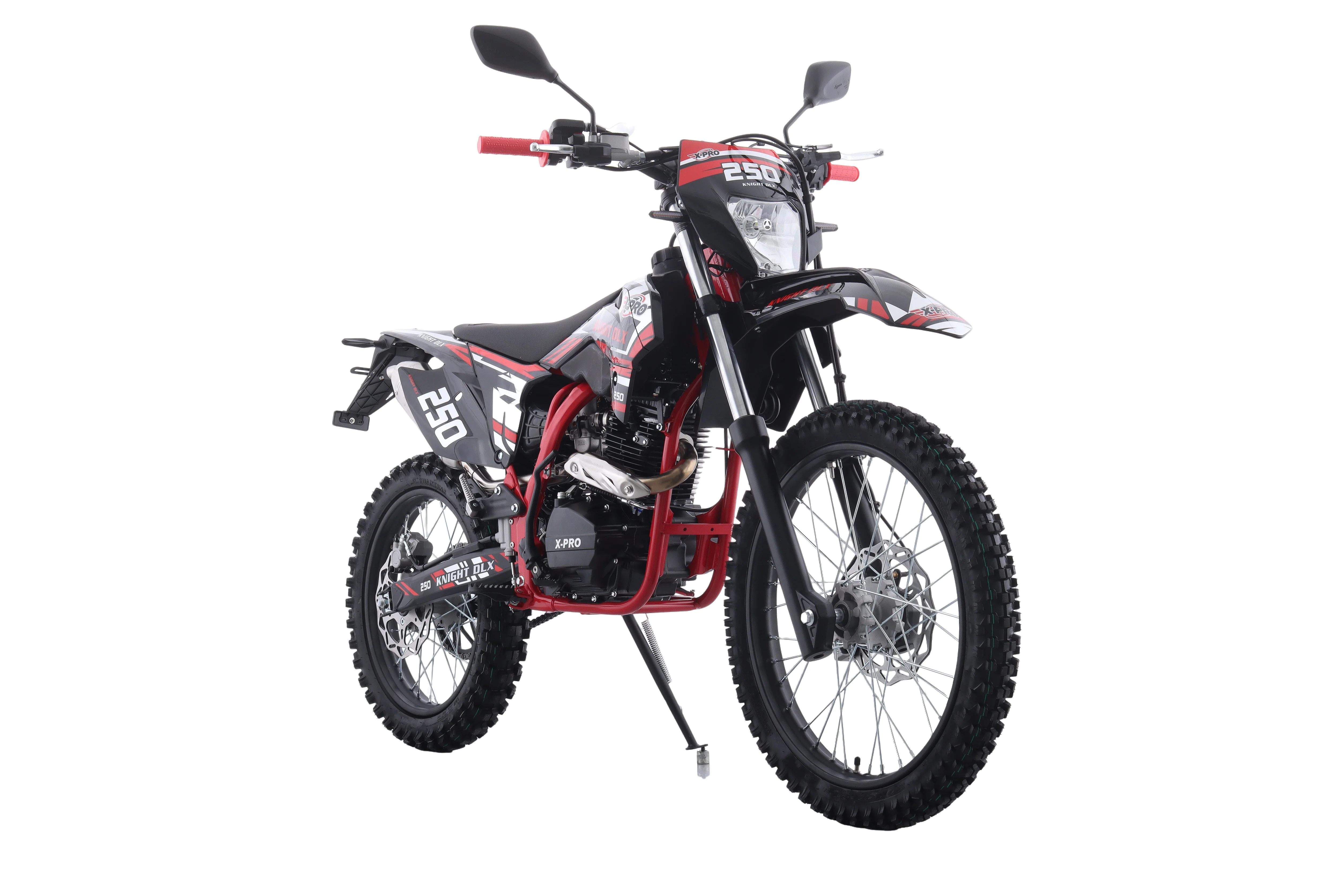

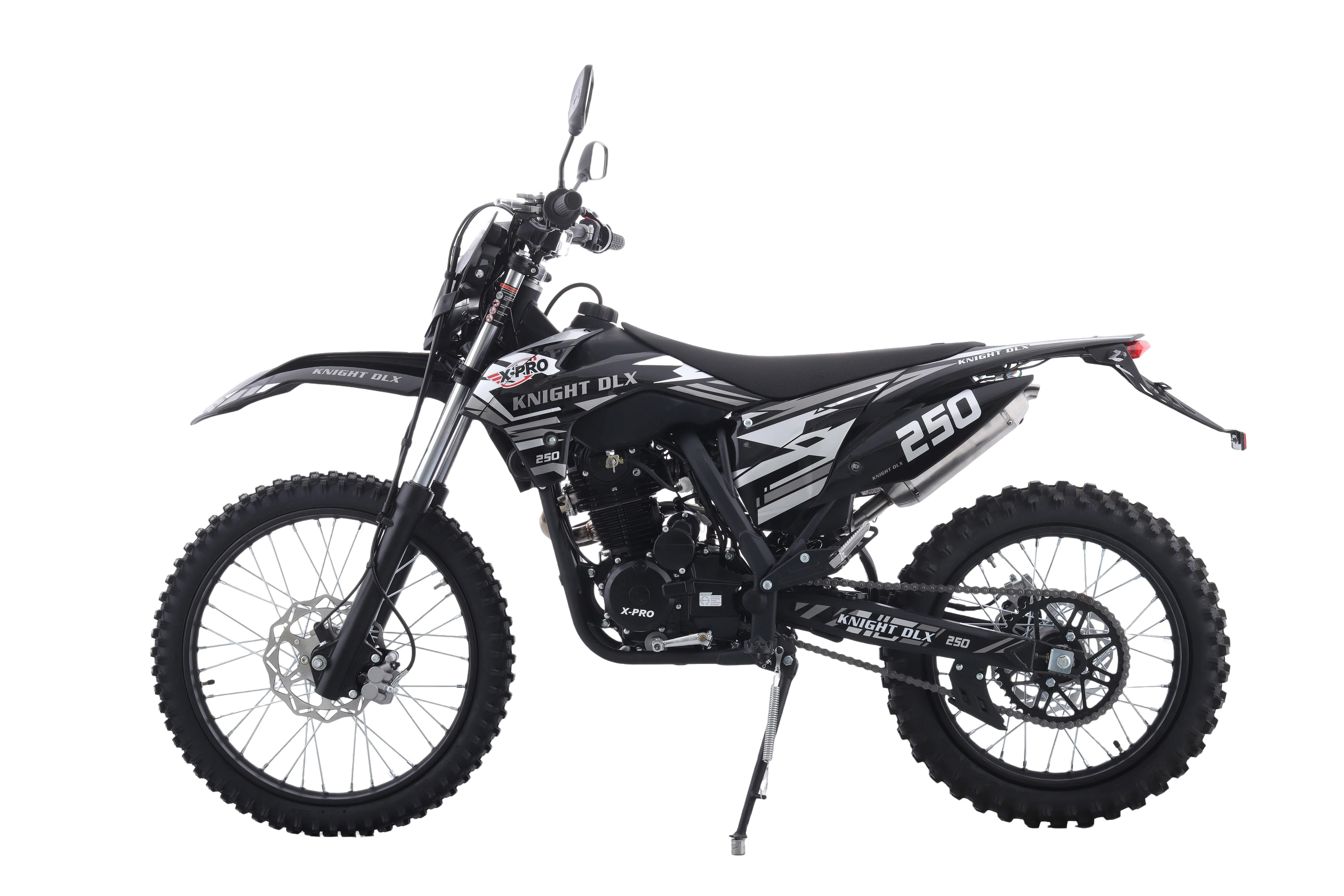

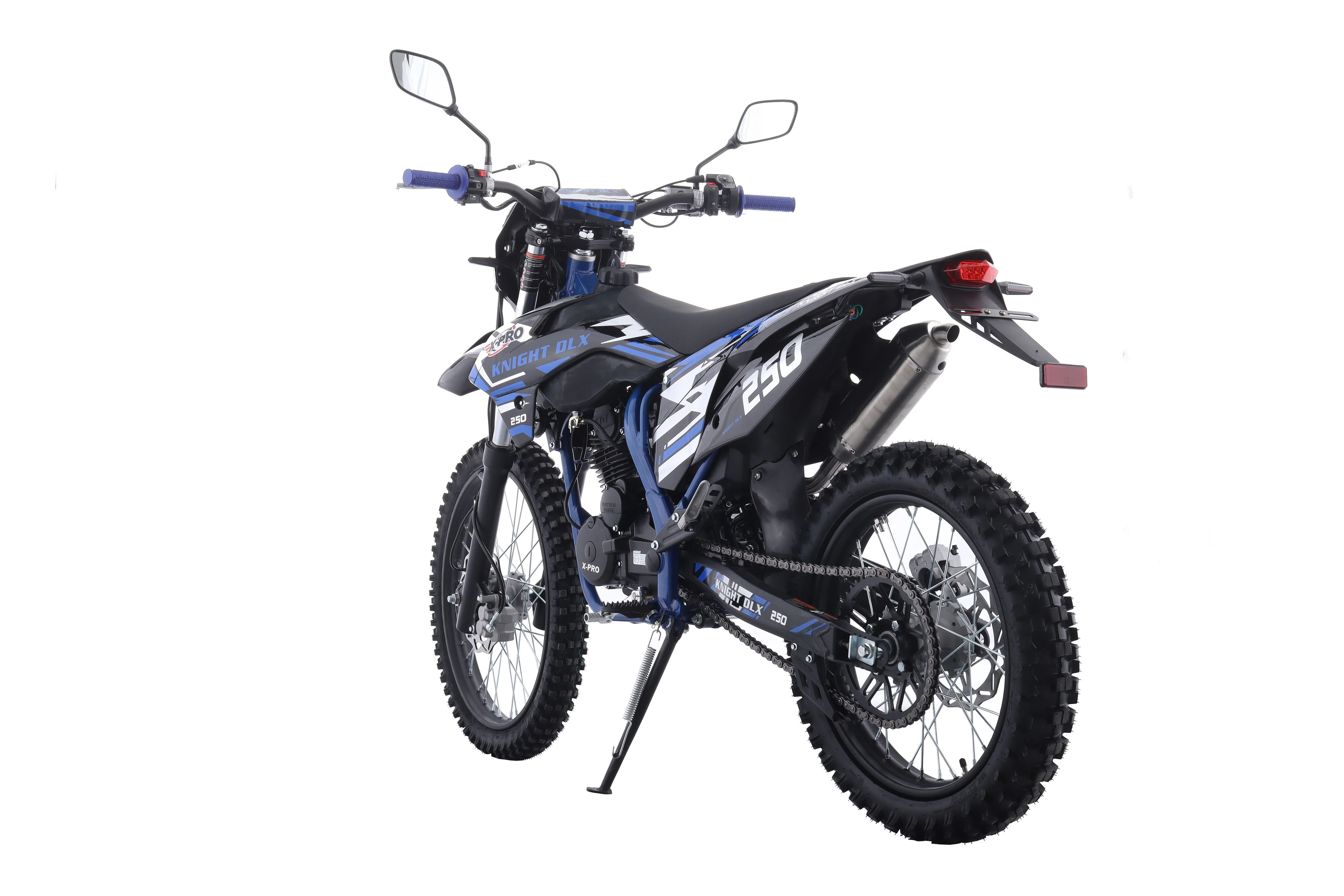

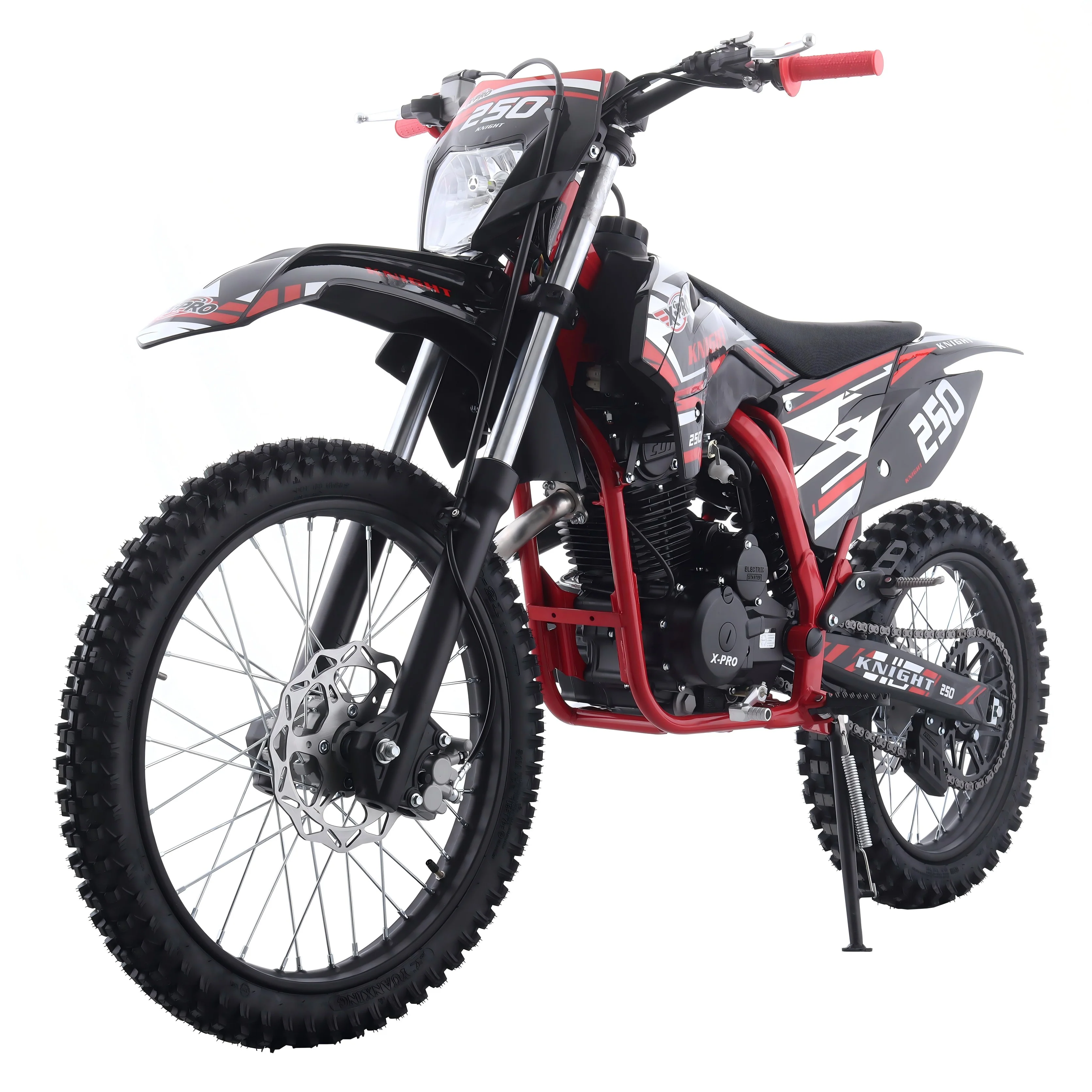

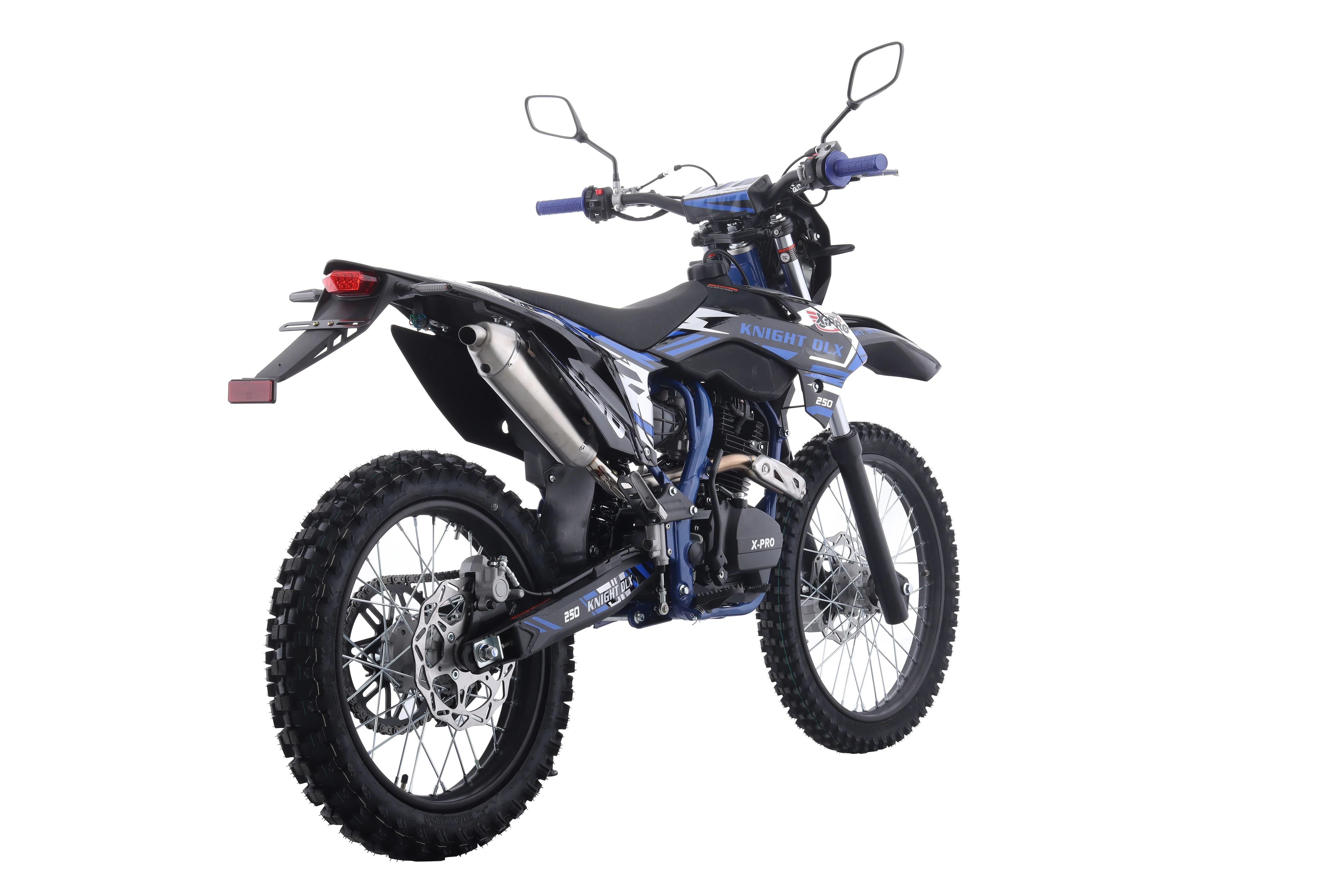

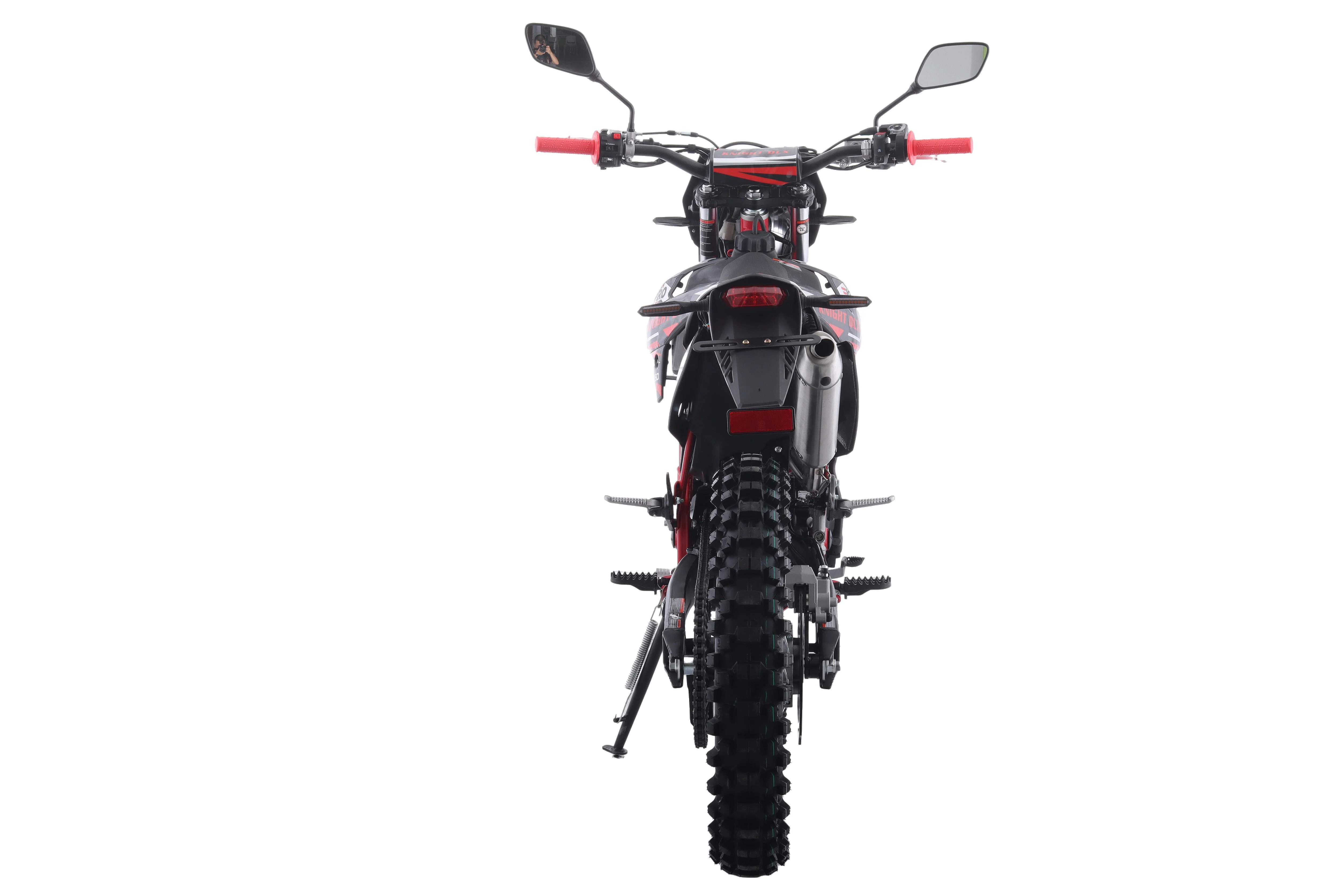

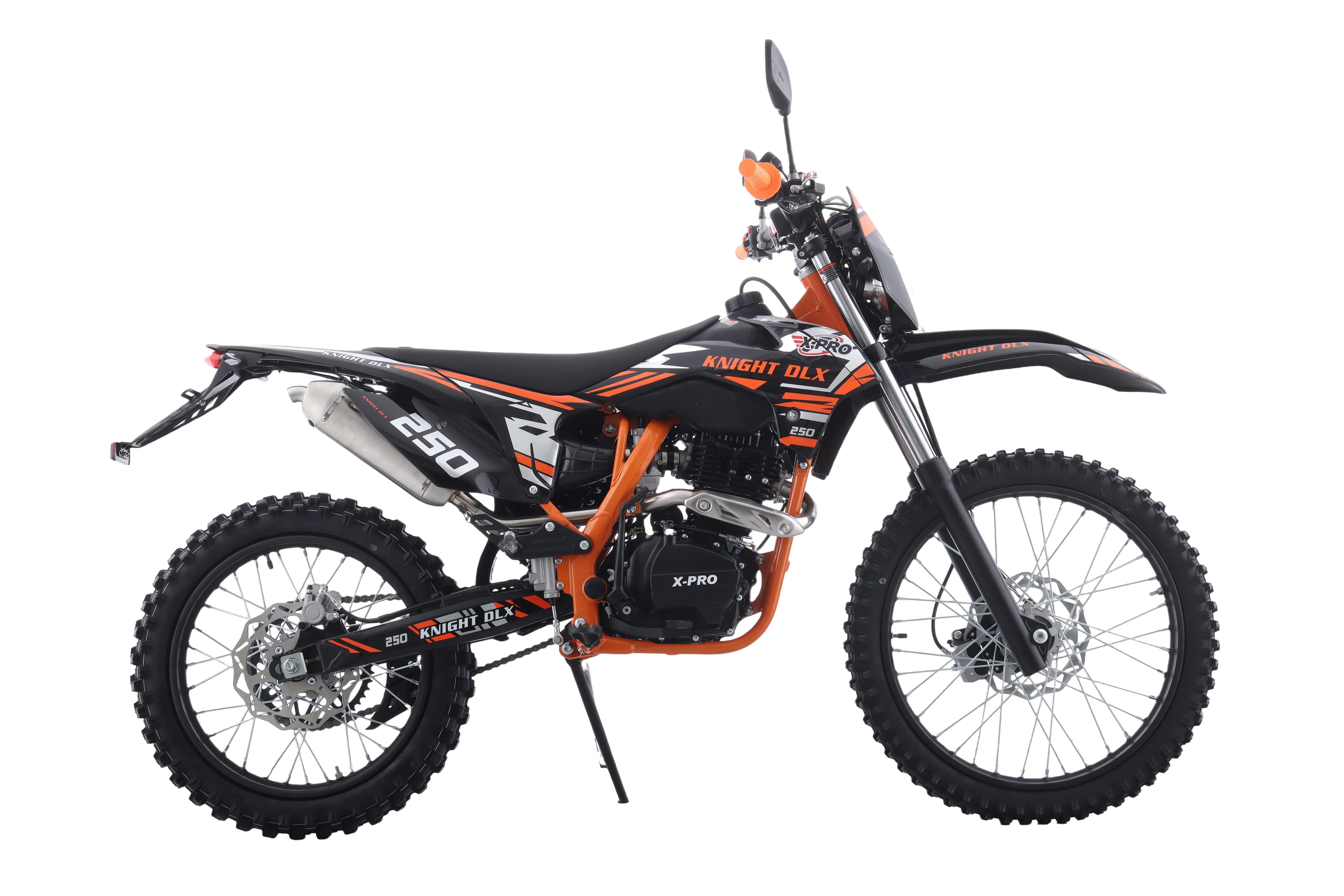

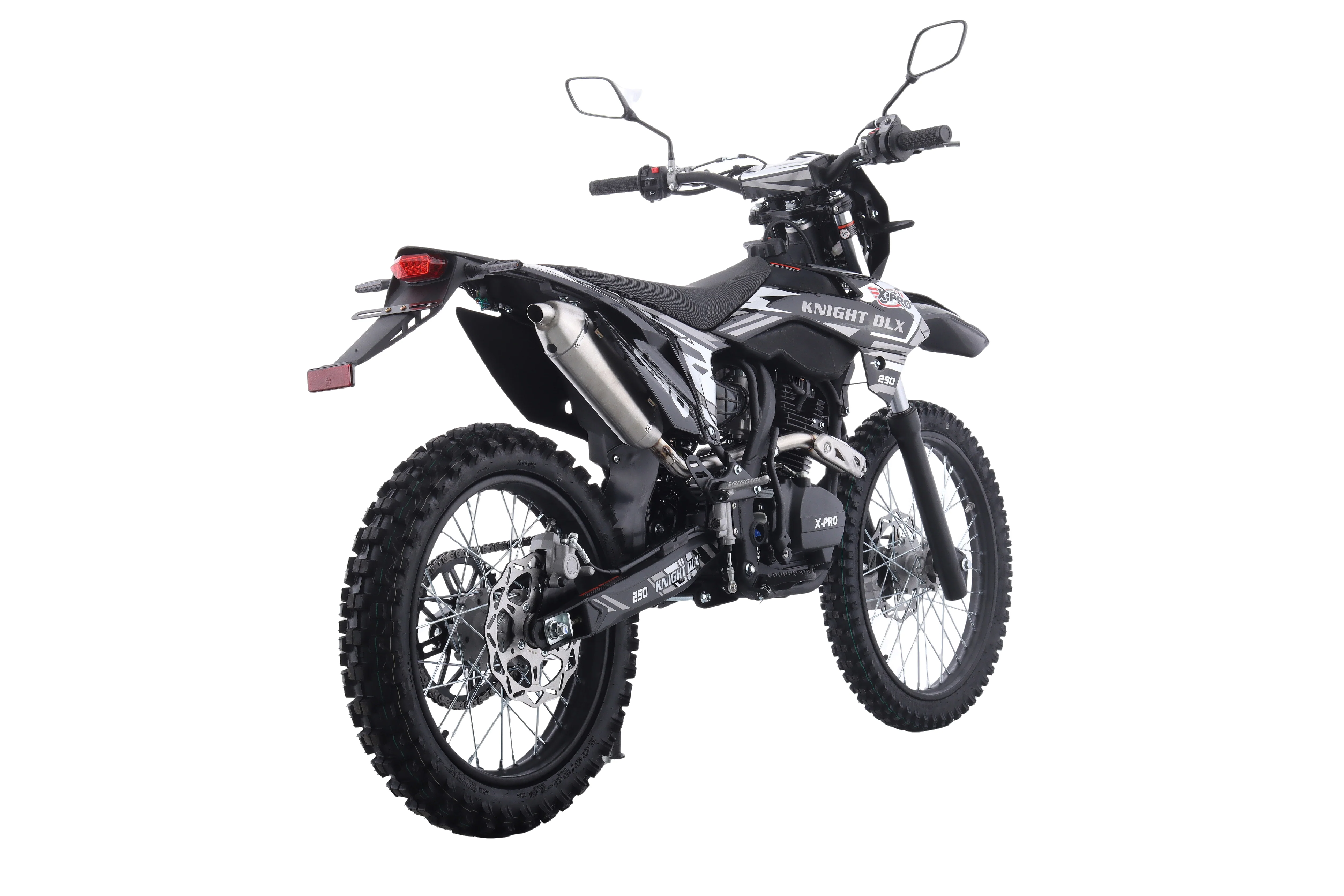

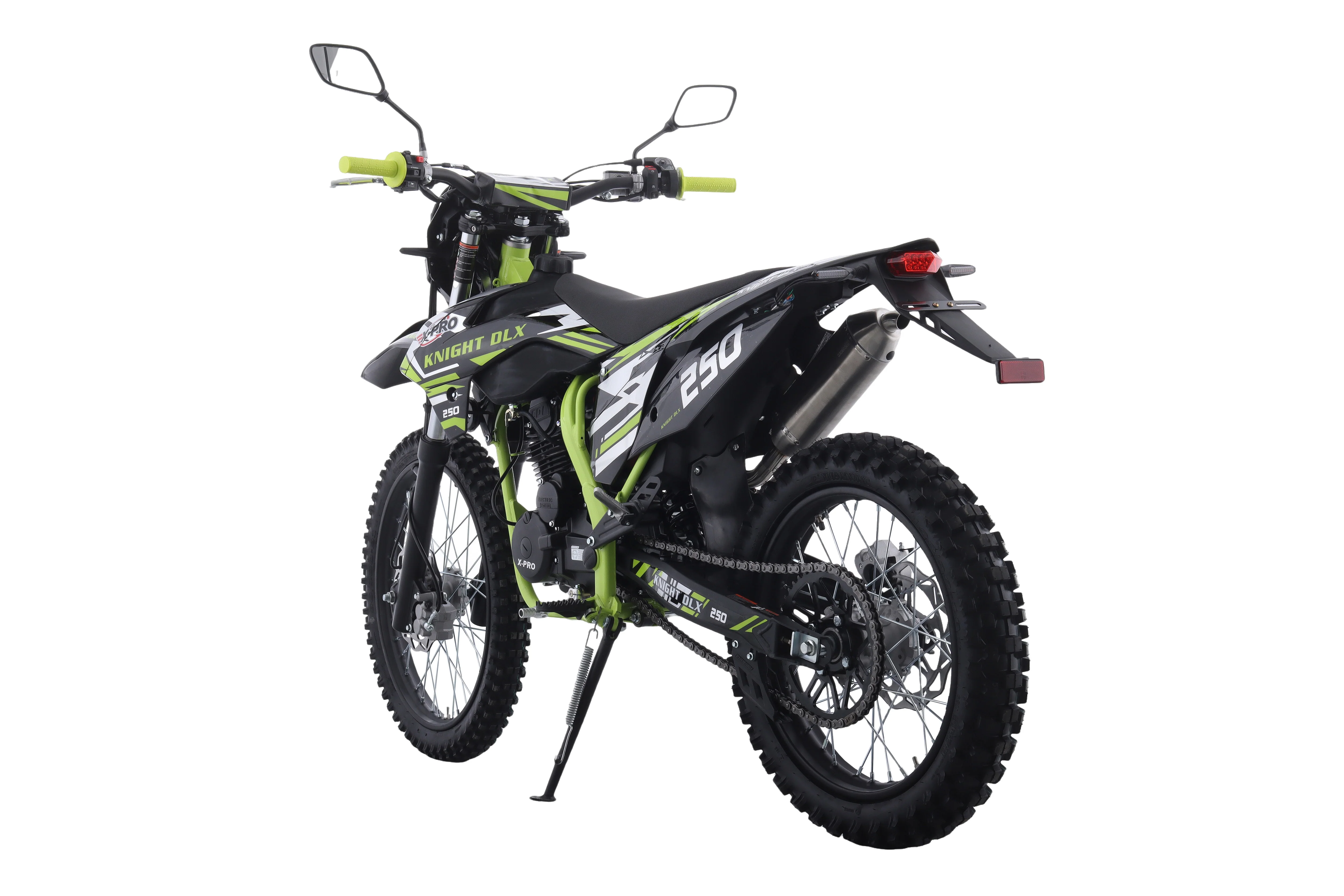

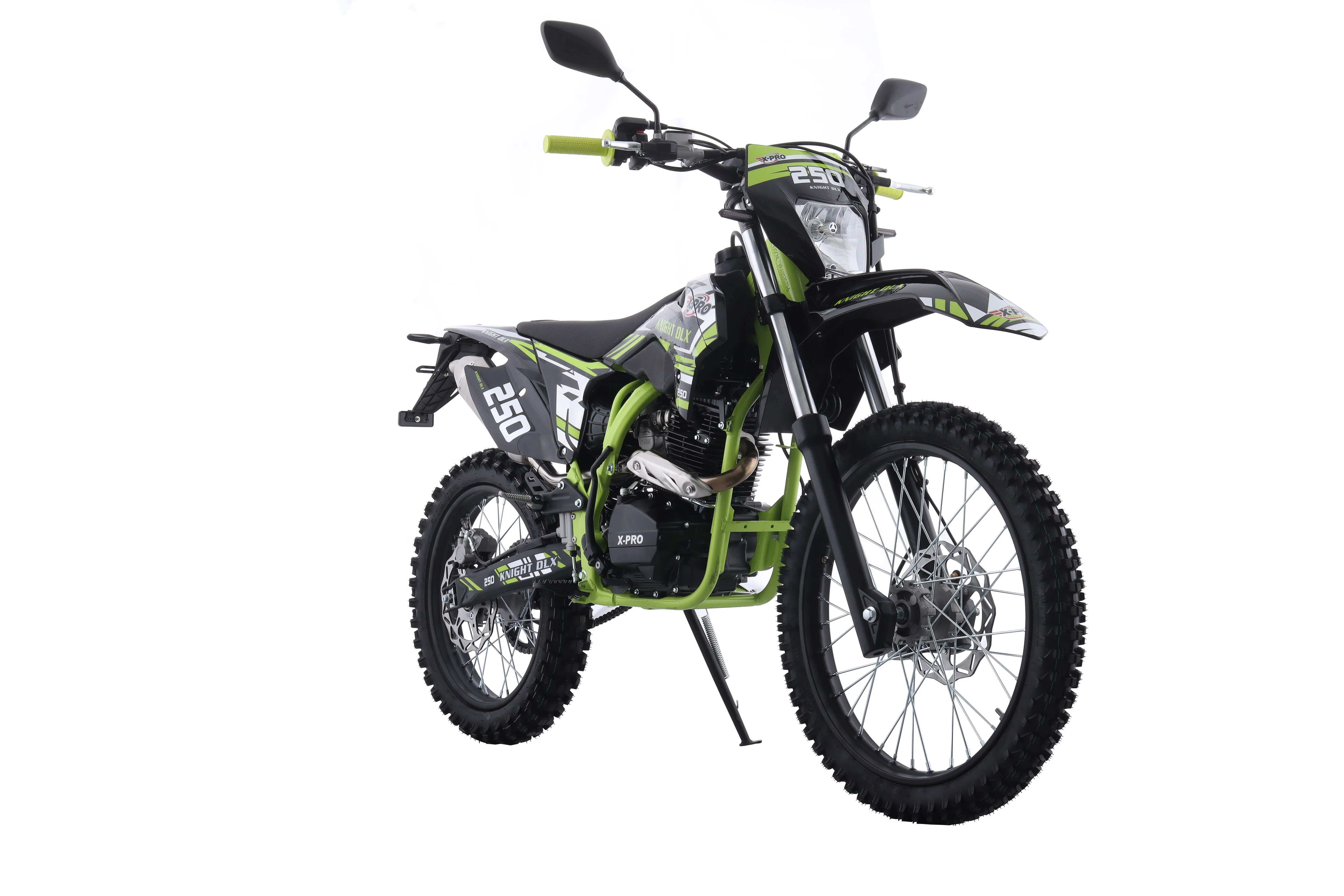

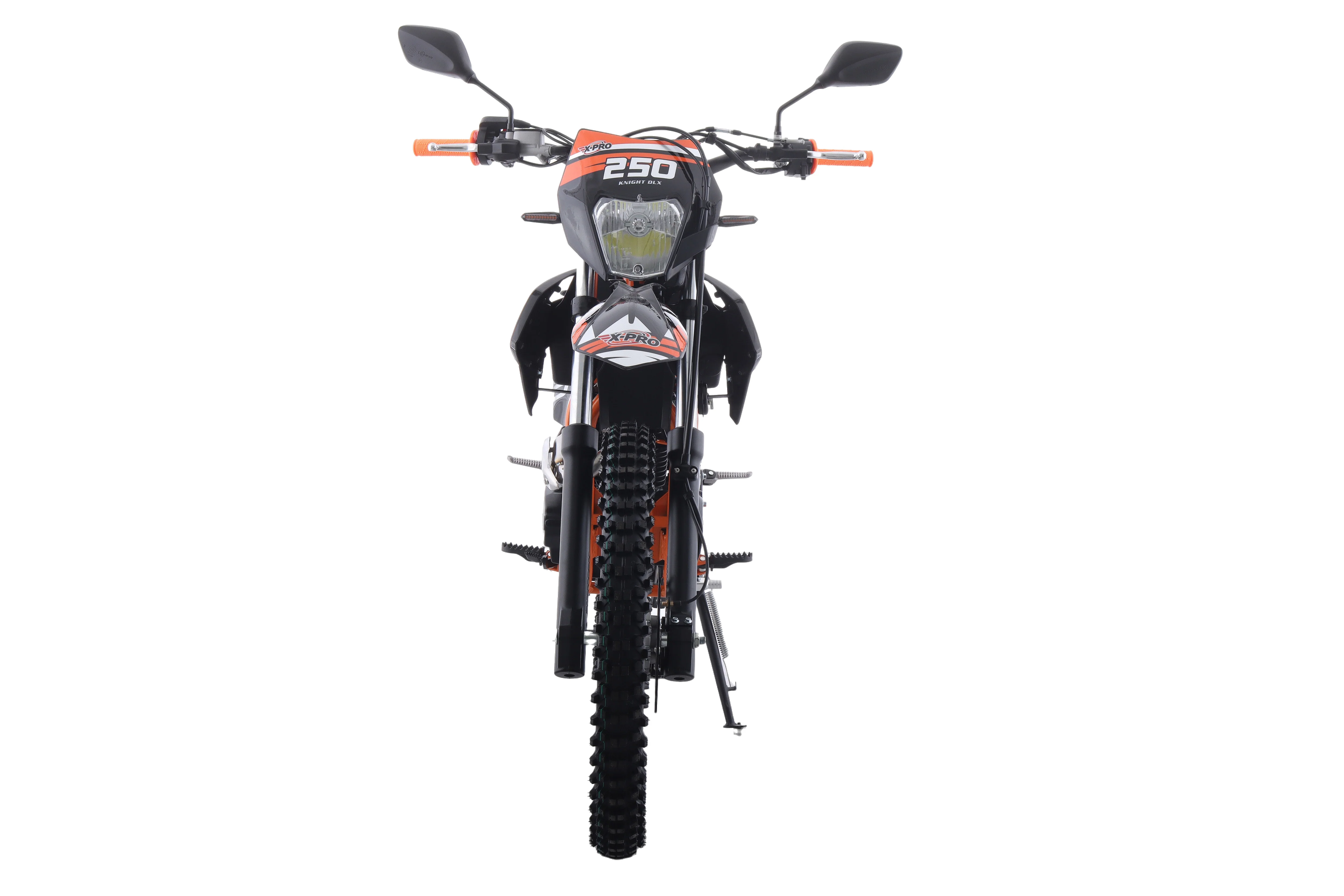

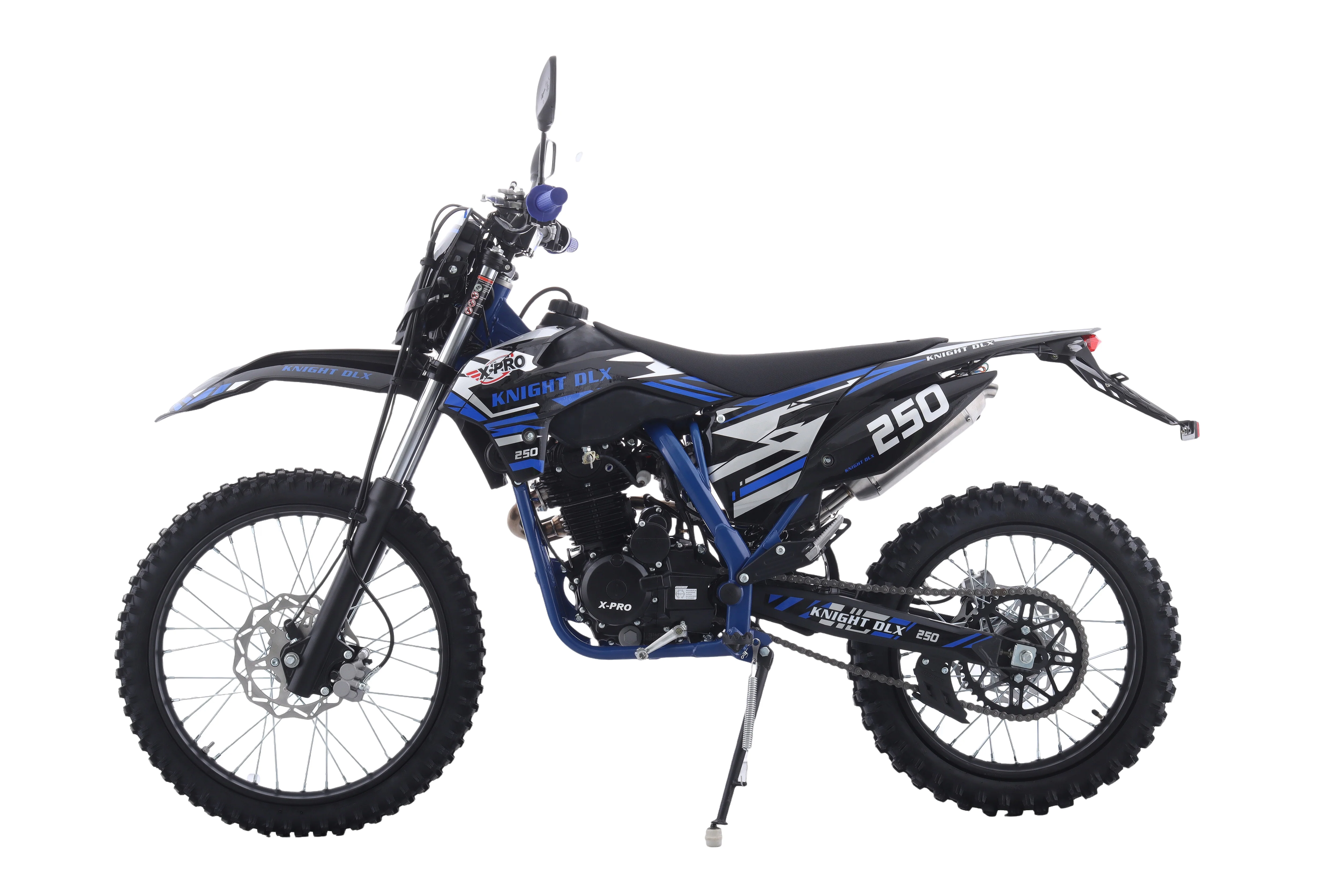

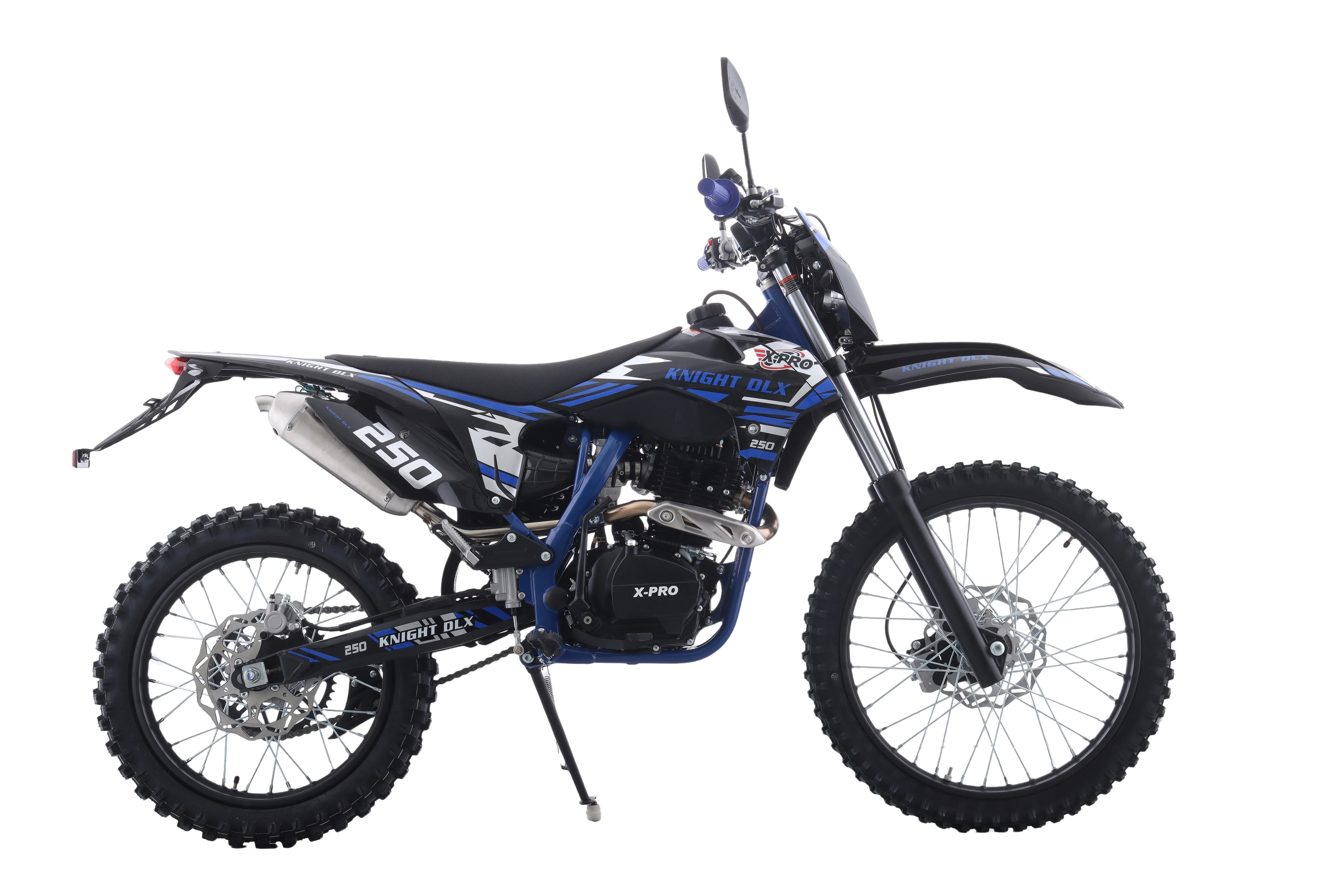

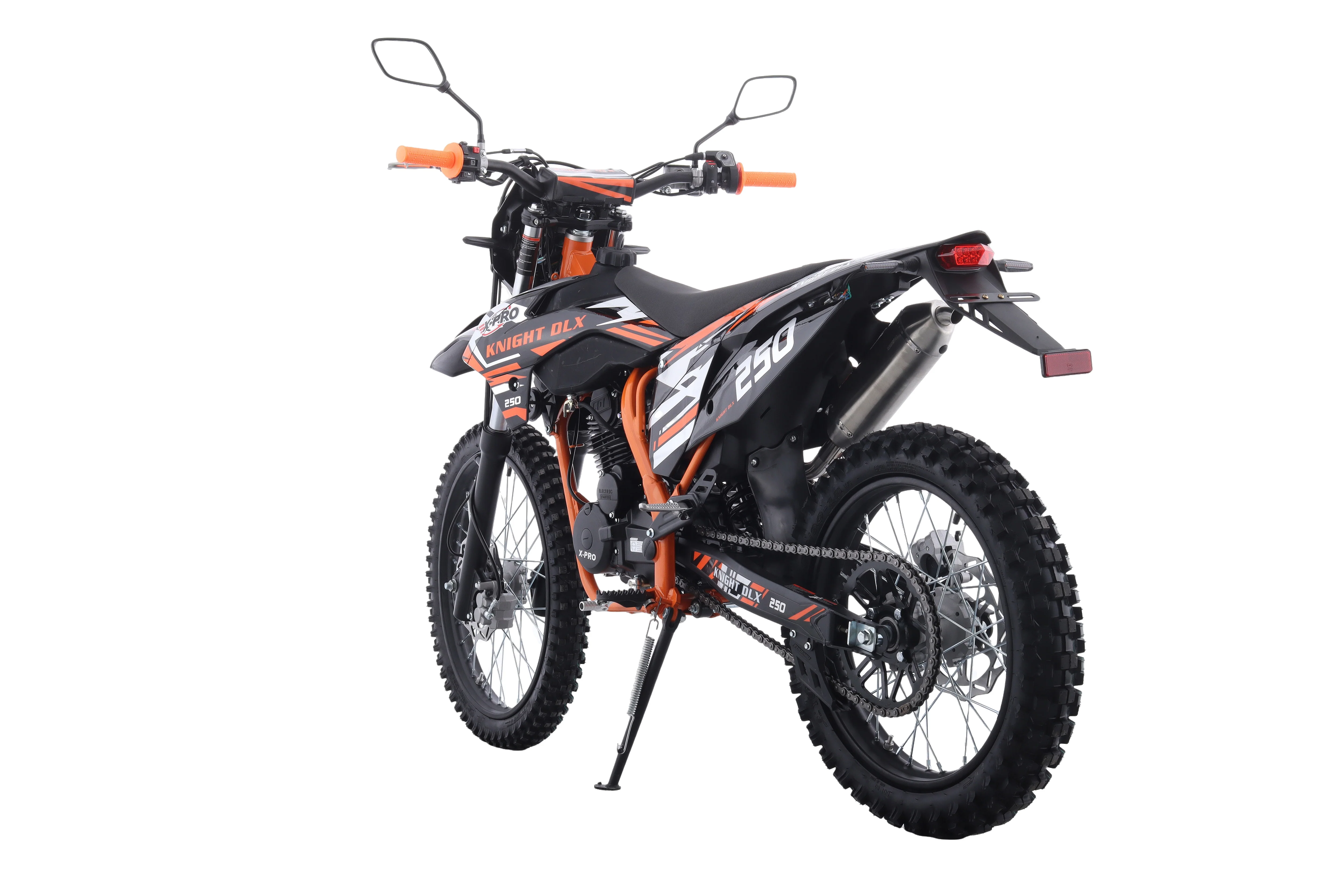

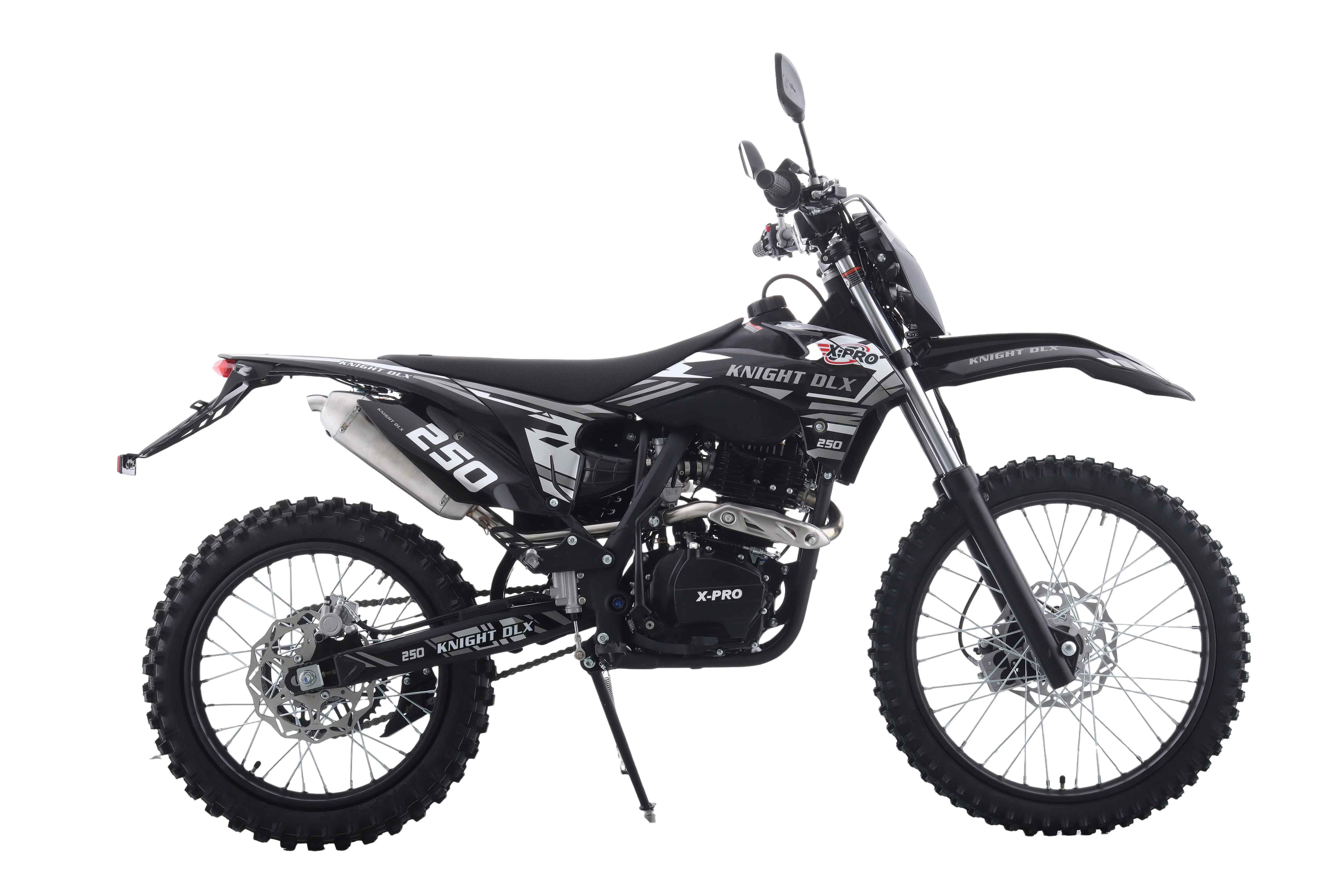

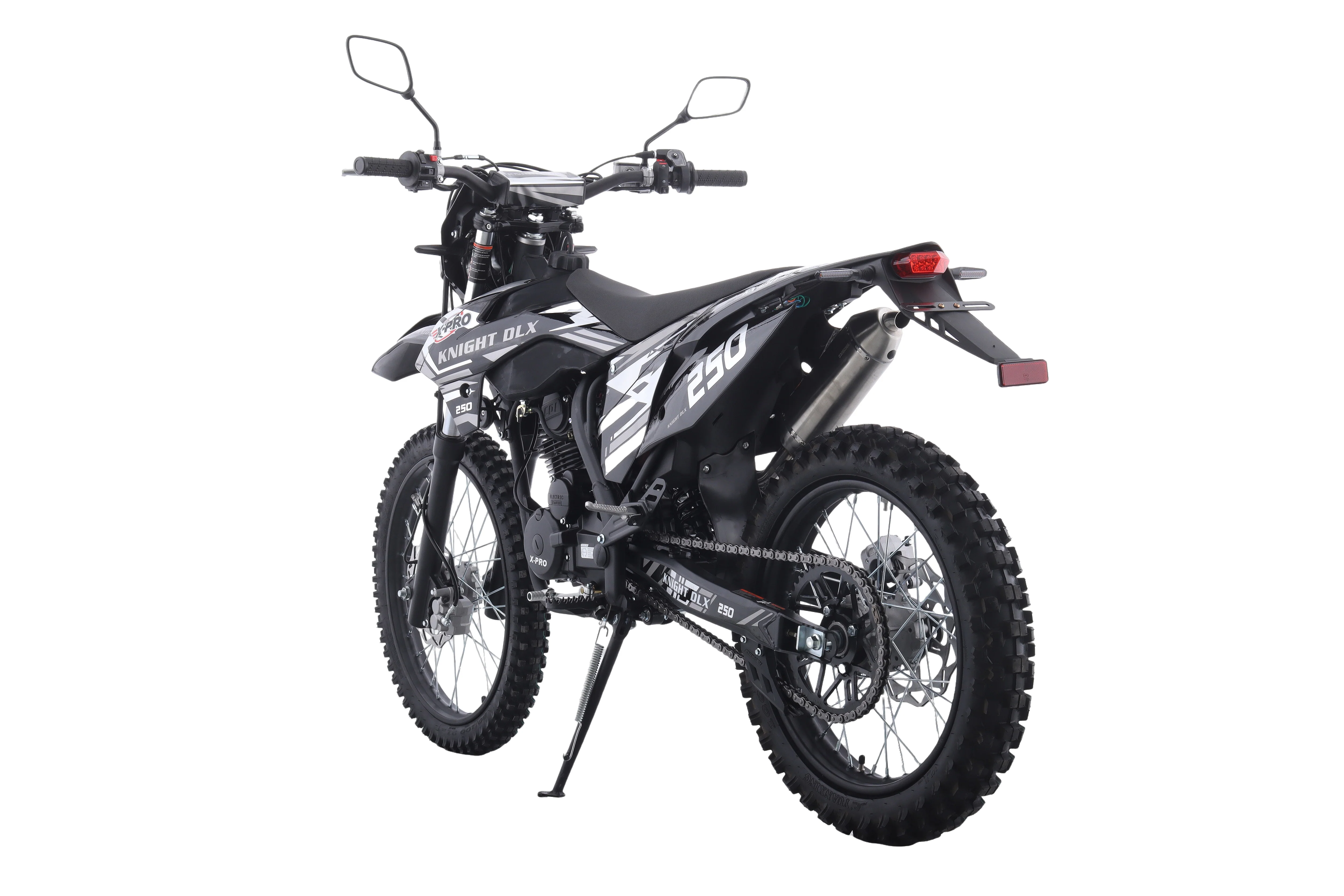

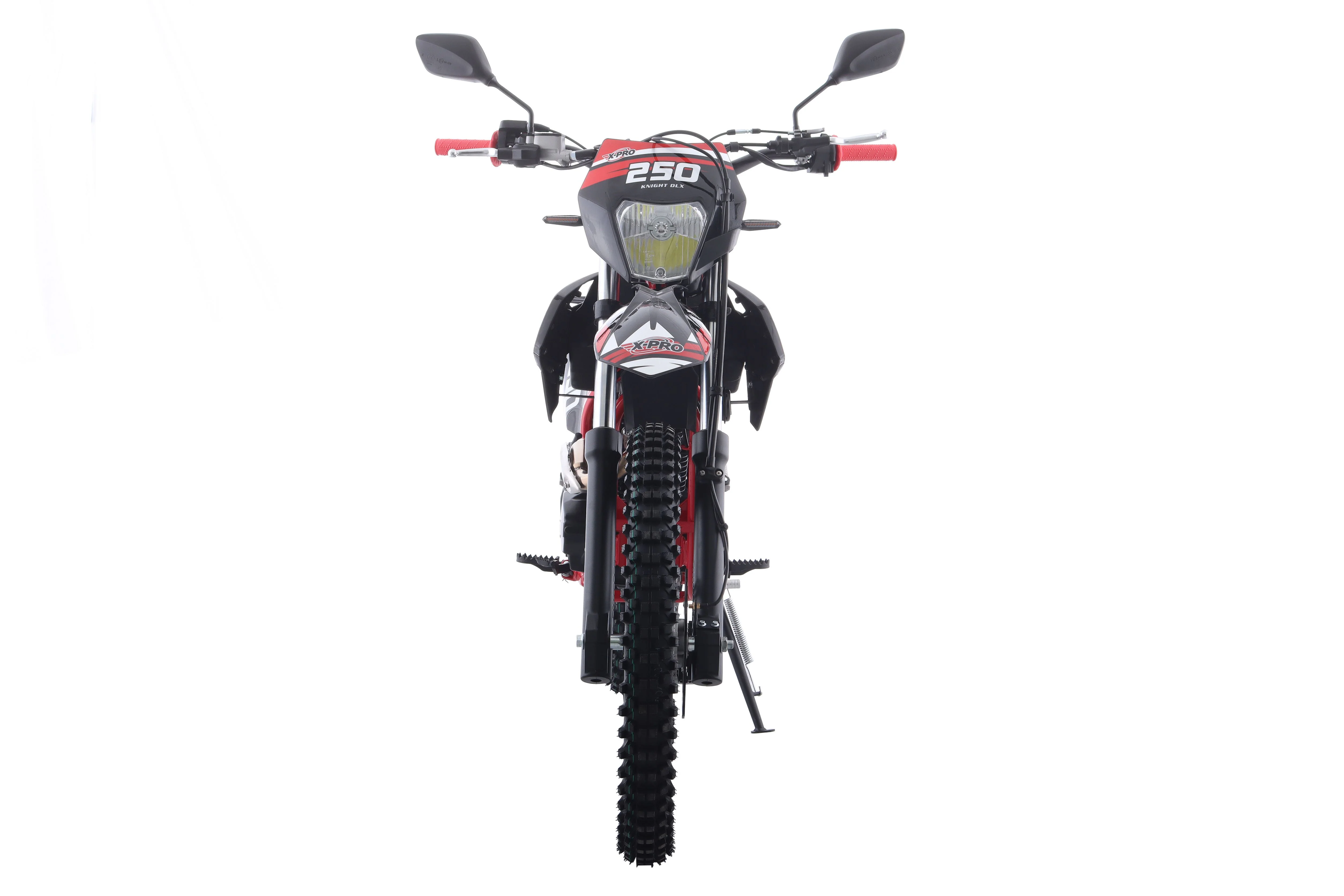

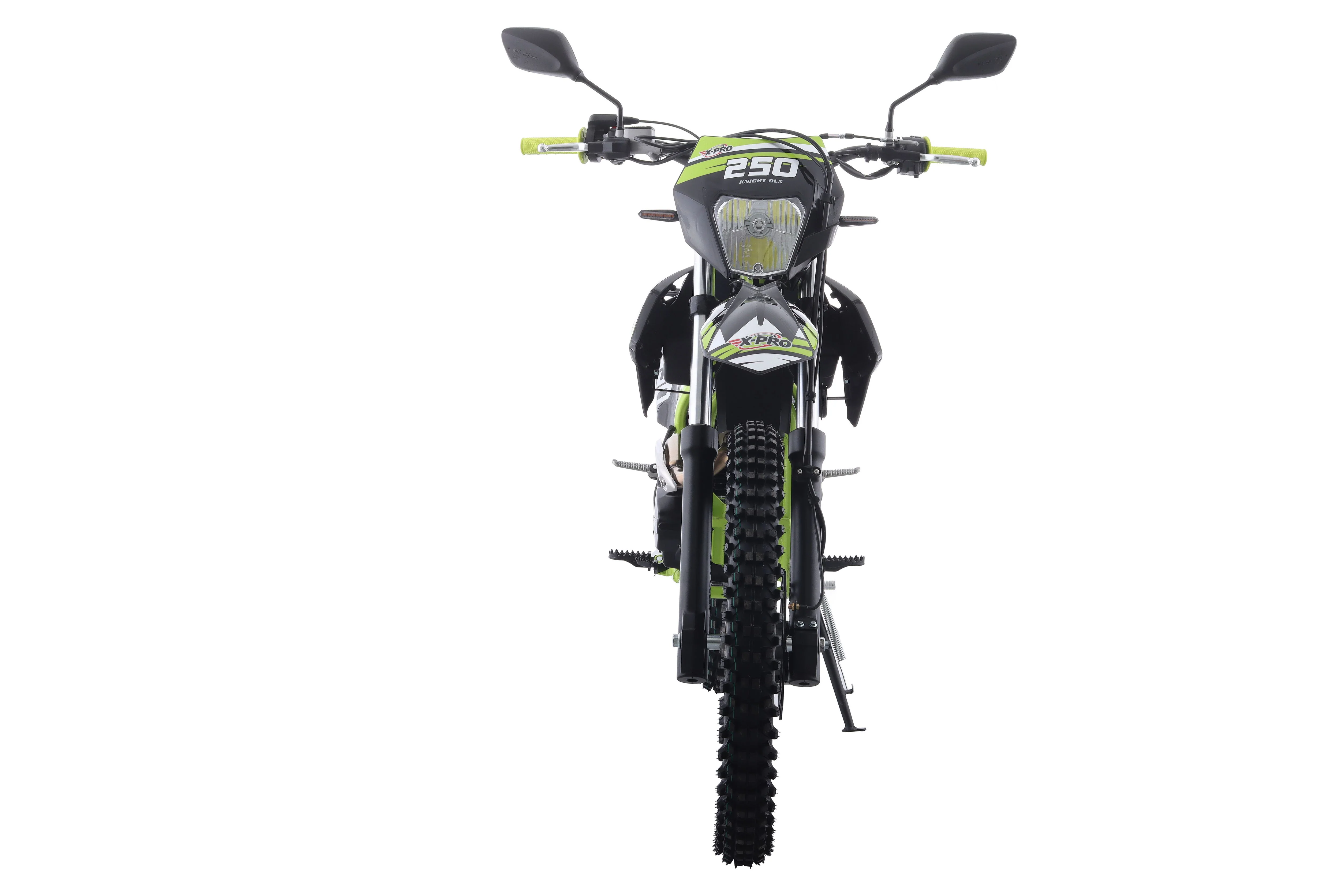

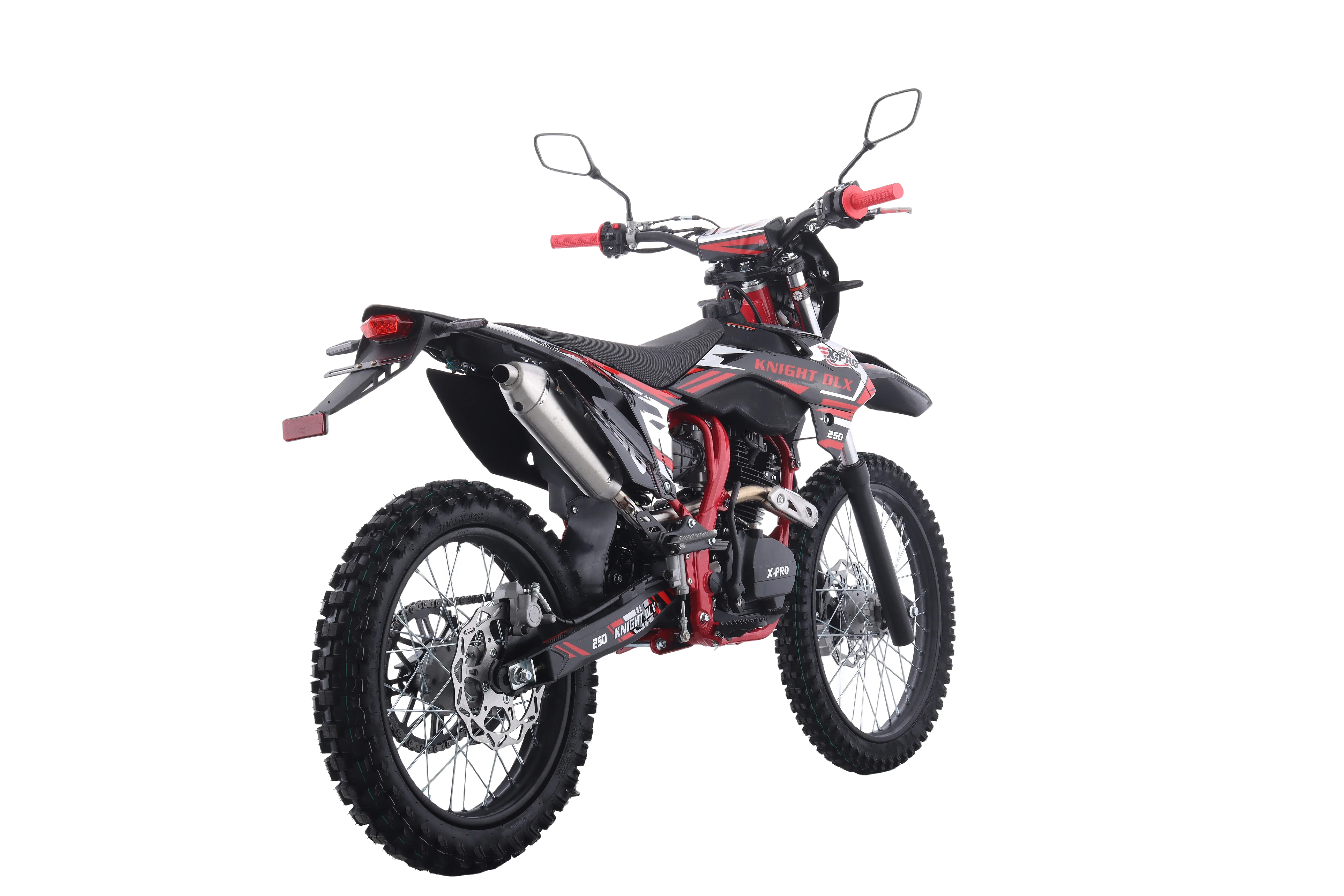

New Upgraded X-PRO Knight DLX 250 Dirt Bike with All Headlight.

• Main Features:
1. Free Upgraded Good Quality Zongshen Brand Engine($250 value): Comes with 223.6cc Zongshen engine, which is expensive, reliable, powerful and long life span.
2. Free Upgraded Better Quality Muffler ($100 value): Reduce engine exhaust noise and enable high-temperature exhaust gas to be discharged safely and effectively!
3. Free Upgraded LED Headlight, Tail Light, Turn Signal Indicator($100 value)

• X-PRO Newest Design Model on the market! 223.6cc Design for Adults!
• 223.6cc Zongshen Brand Engine! High Quality Zongshen Brand Engine, which is expensive, reliable, powerful and long life span.
• 5-Speed Manual Transmission Take fully control of the dirt bike, Pro's Choice!
• Electric & Kick start Electric start for easy starting well the kick start is being used as a back uo plan in any unexpected situations.
• Big 21"/18" get ready for great traction on a variety of tracks and terrain.
• Perimeter Cradle Type Steel Frame: more lighter and stronger, and making big jumps can be much easier.
• With LED Headlight, Tail Light, Turn Signal Indicator.
• Front and Rear Hydraulic Disc Brakes provide strong, linear stopping power.
• 52 inch great Wheel-base, which provides great rider control and comfort.
• High Performance Muffler
• Oversized Foot Pegs
• Off Road Use Only
• Some Assembly Required.





Specifications

Model Number	DB-K035
Engine/Drive Train
Engine	Zongshen CB223, 223.6cc, 4 stroke
Cylinder Arrangement	Single
Cooling System	Air Cooled
Compression Ratio	9.0:1
Bore x Stroke	Φ65.5×66.2(mm)
Max Power[Kw/r/m]	12/7000kw/r/min
Max Torque[N.m/r/m]	17/5000 N.m/r/min
Transmission	5-UP Manual
Final Drive	Chain Drive
Start System	Kick / Electric
Max Speed (MPH)	60+ (Depending on Riders Weight and Road Conditions)
Ignition Type	CDI
Carburetor	PE28
Battery	12V/5AH
Frame /Body/ Suspension / Brakes
Frame	Perimeter Cradle Type Steel Frame
Front Suspension	Front shock absorber, non-adjustable
Rear Suspension	None-Adjustable shock
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	80/100-21
Rear Tire	110/90-18
Capacities / Dimensions
Weight Capacity (lbs)	176
Net Weight (lbs)	243
Gross Weight (lbs)	282
Overall Length	82.7"
Overall Width	32.7"
Overall Height	48"
Carton dimension (L*W*H/in)	67" x 18" x 34"
Seat Height	34"
Wheelbase	52"
Min Ground Clearance	12"
Fuel Capacity	6.5L
Safety / Control
Engine Kill Switch	Yes
Foot Brake	Yes
Horn	Yes
Headlight	Yes
Tail Light	Yes
Turn Signal Indicator	Yes
Others
EPA Approved	Yes
CARB Information	This bike is not legal for sale in California.
