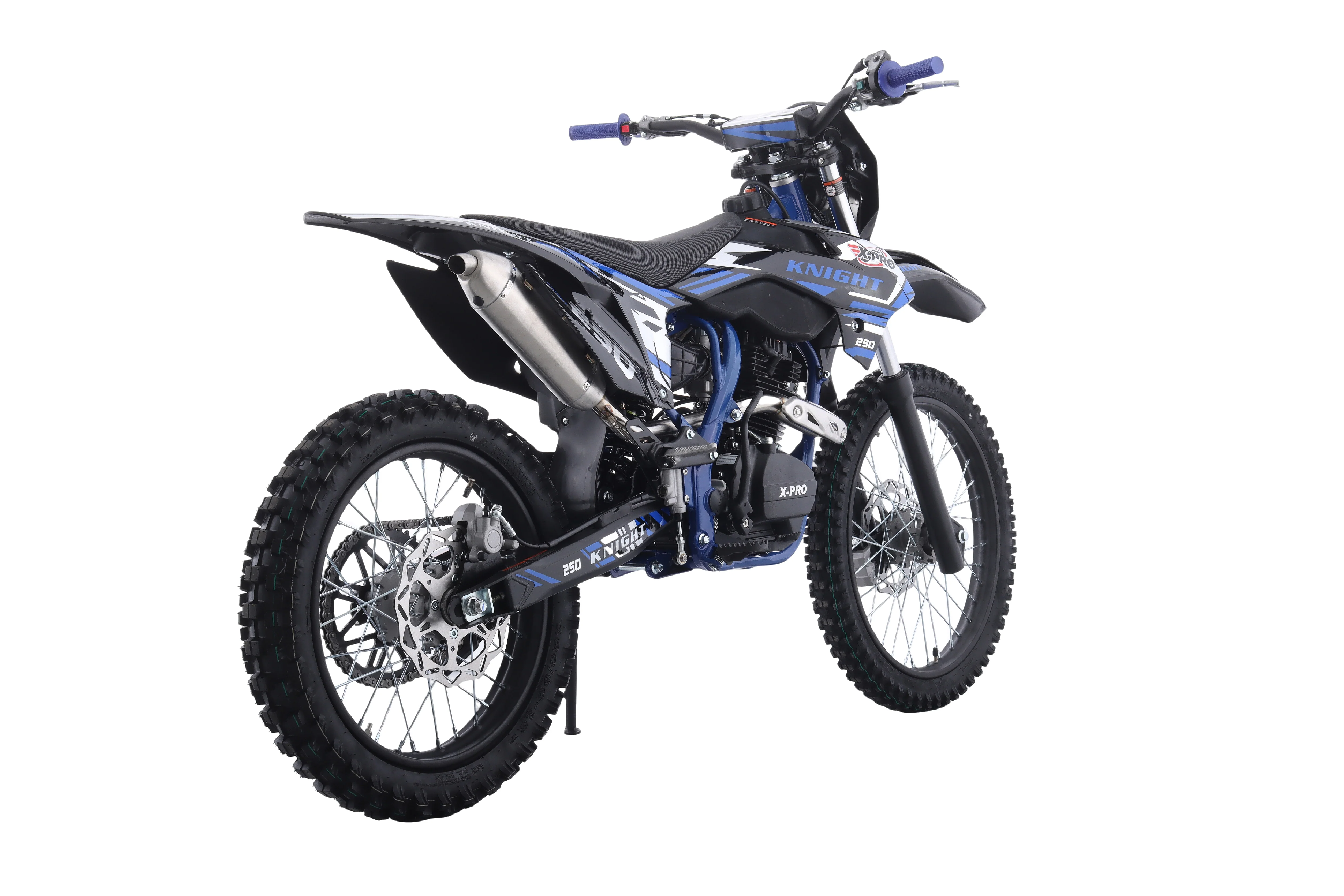

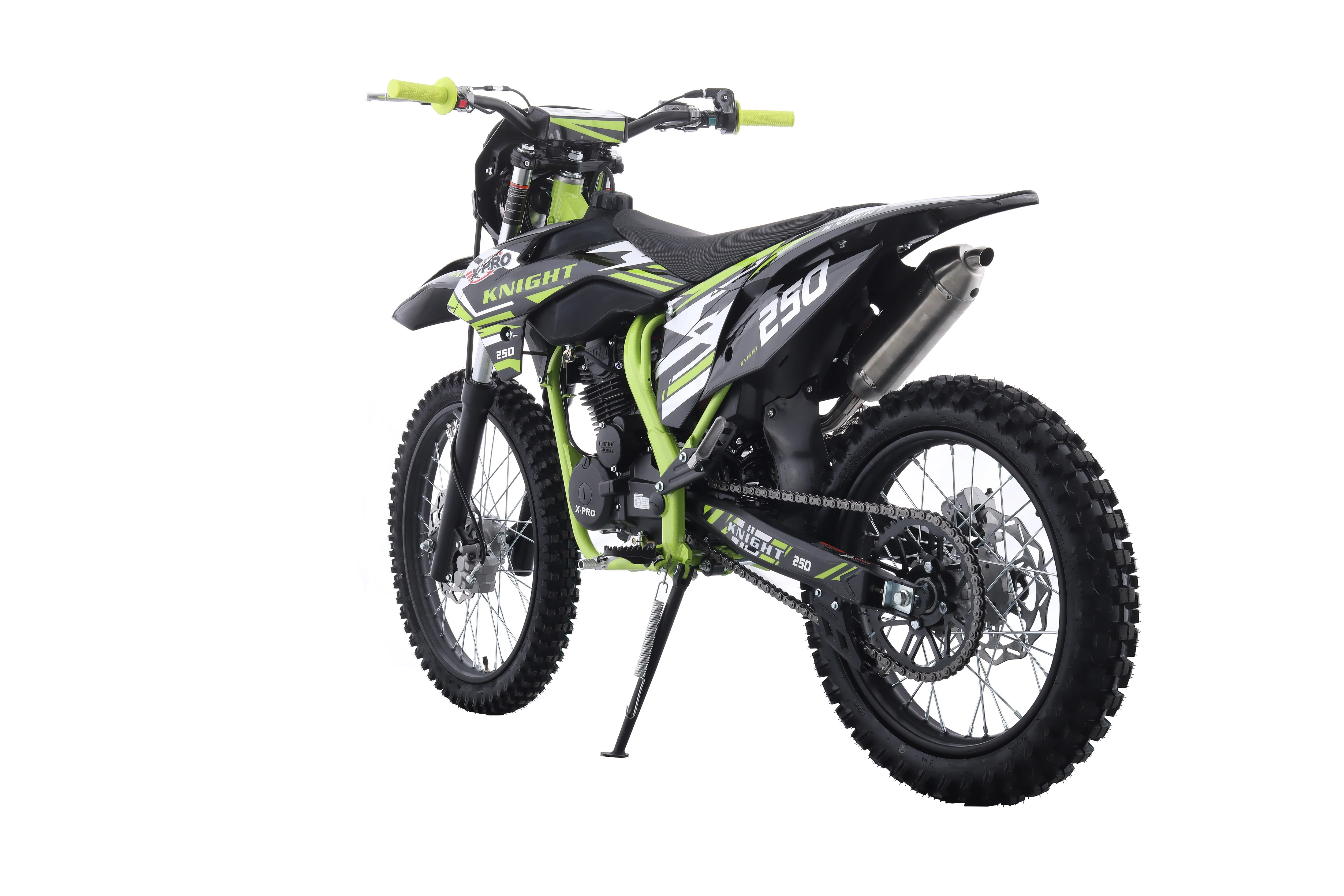

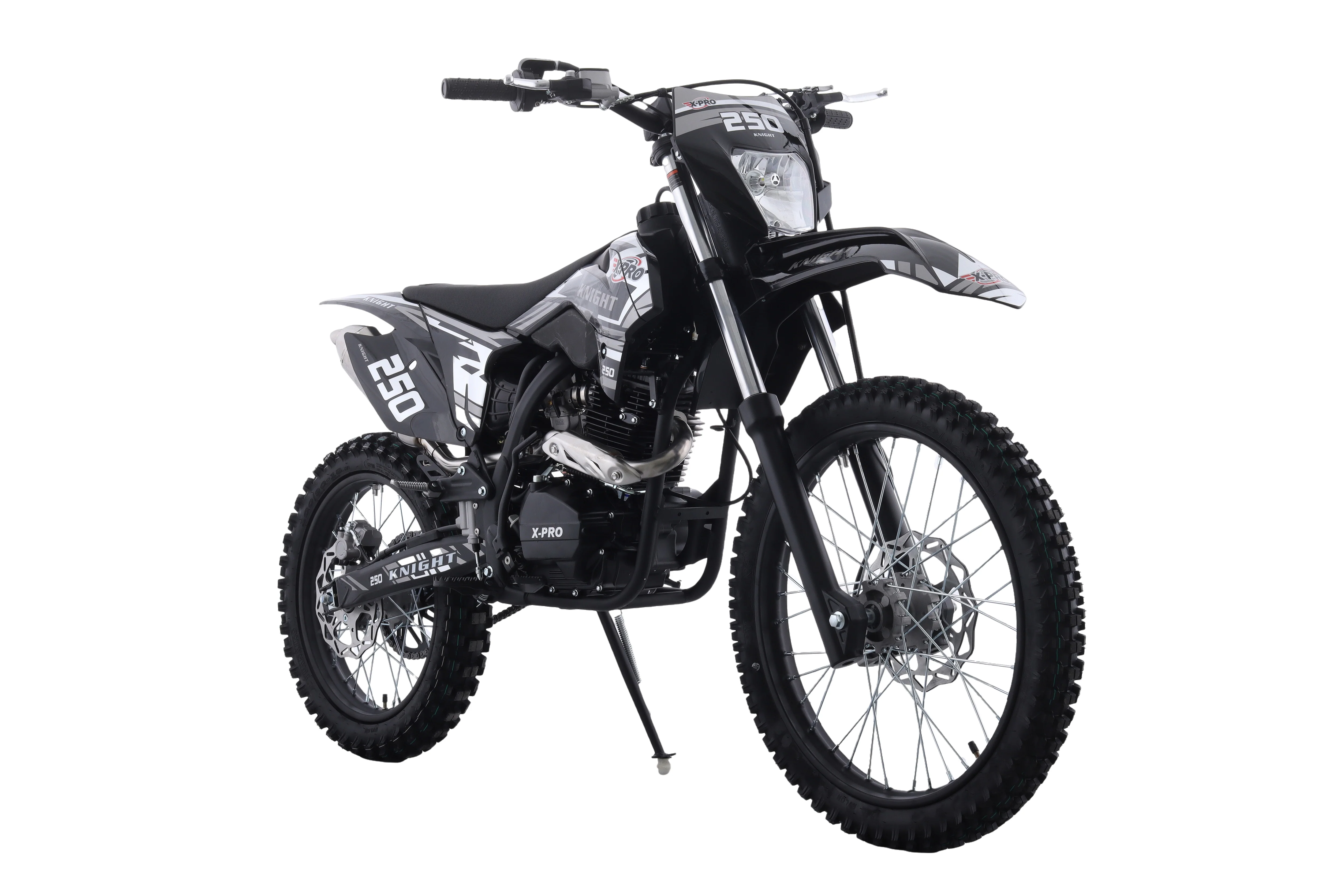

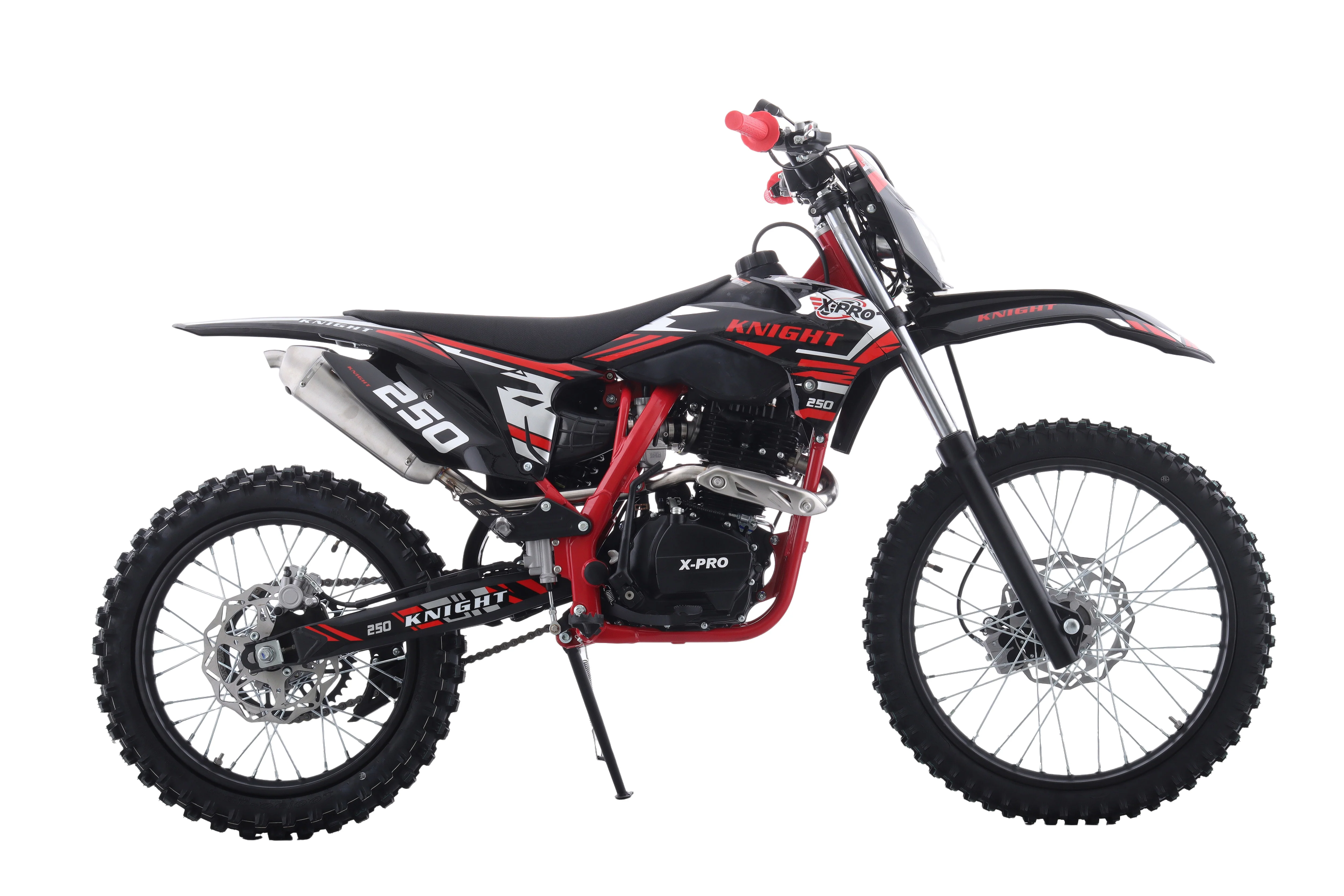

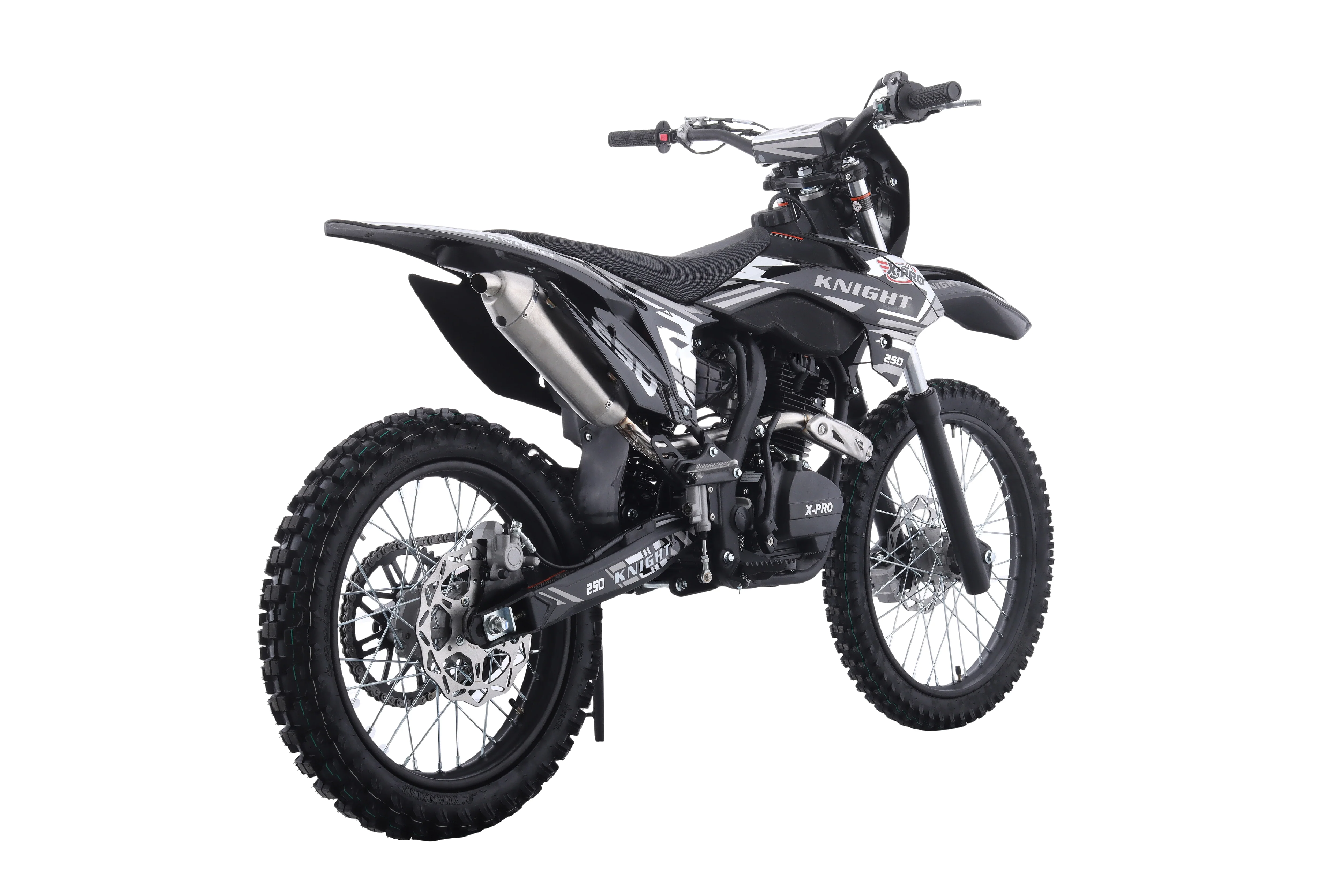

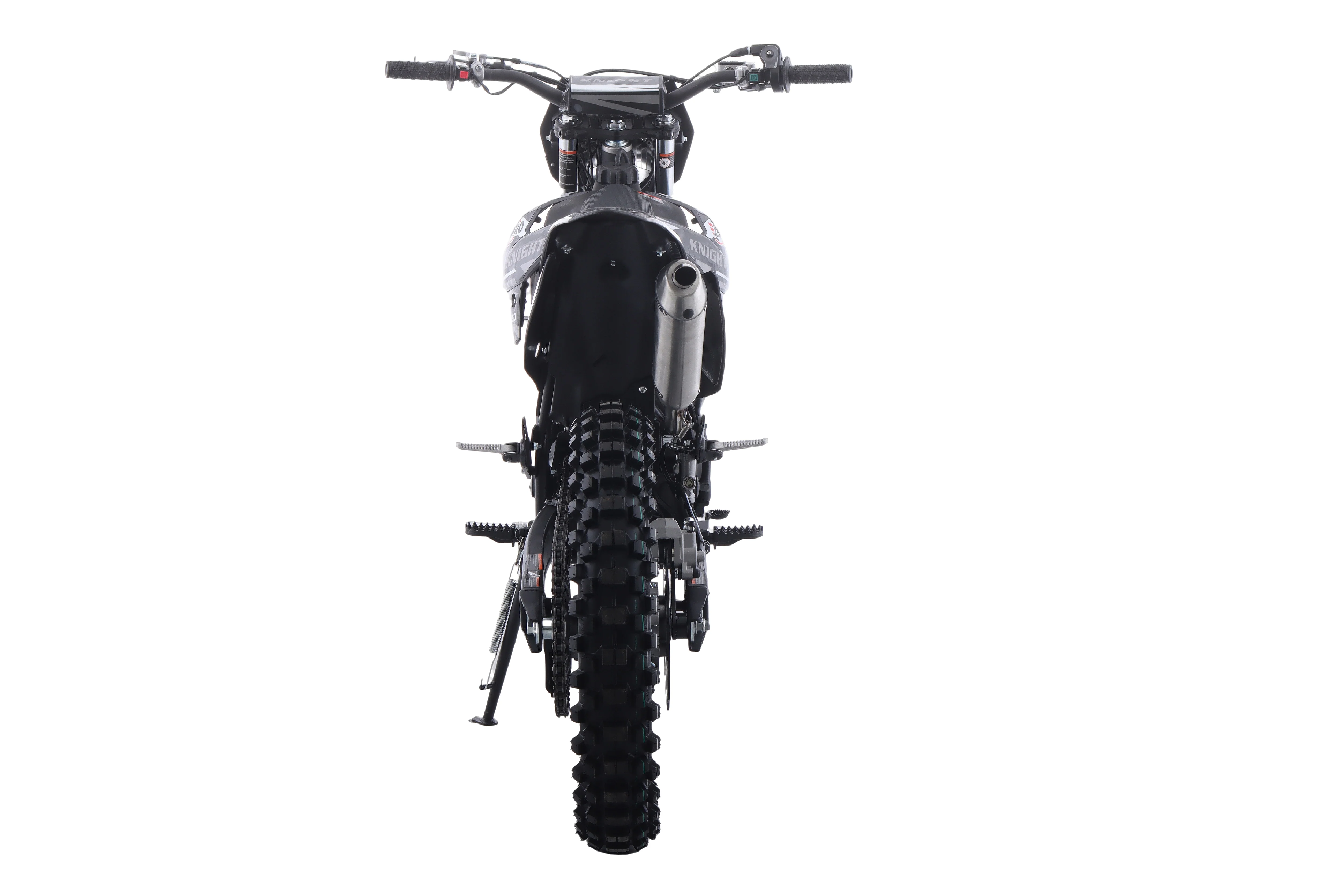

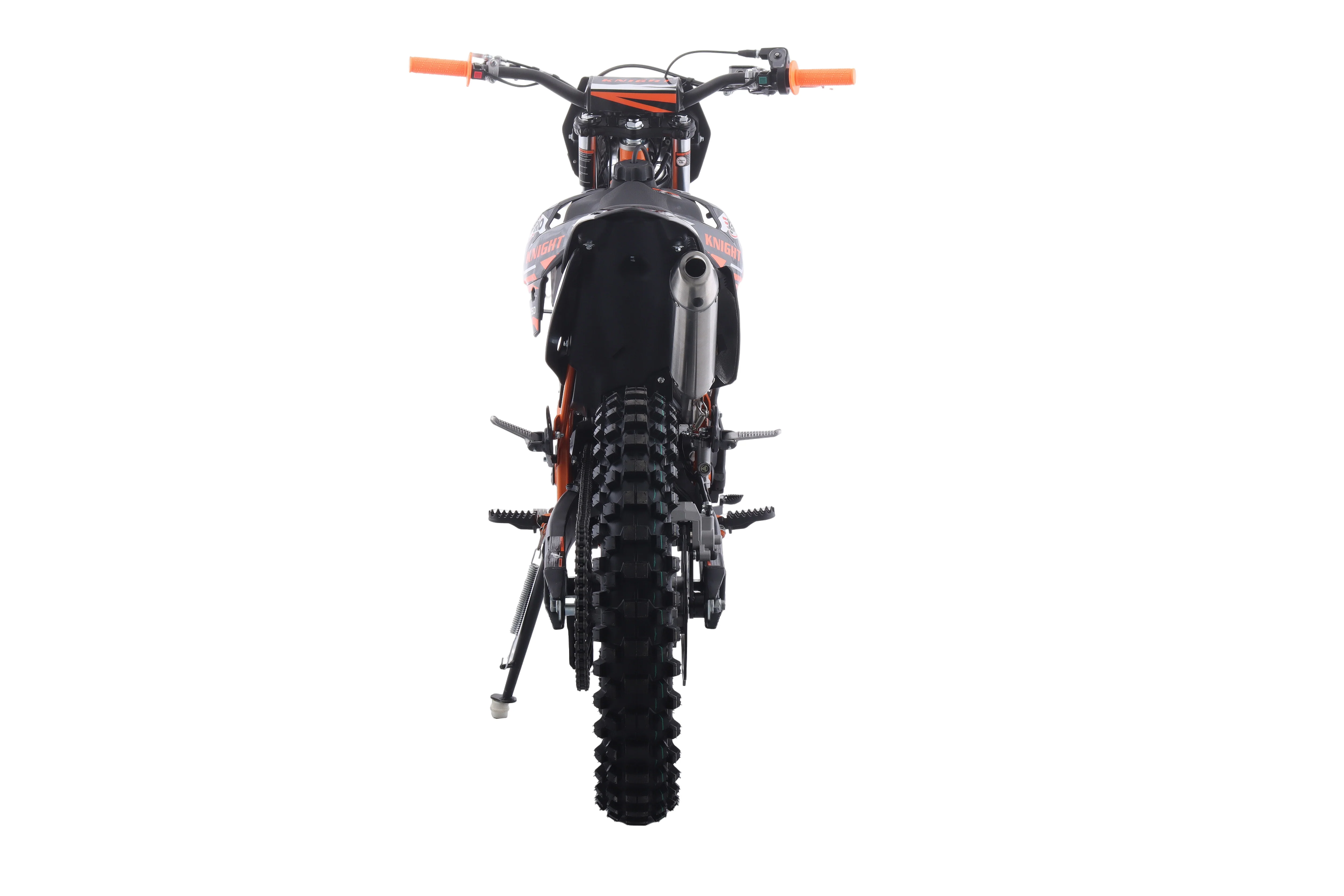

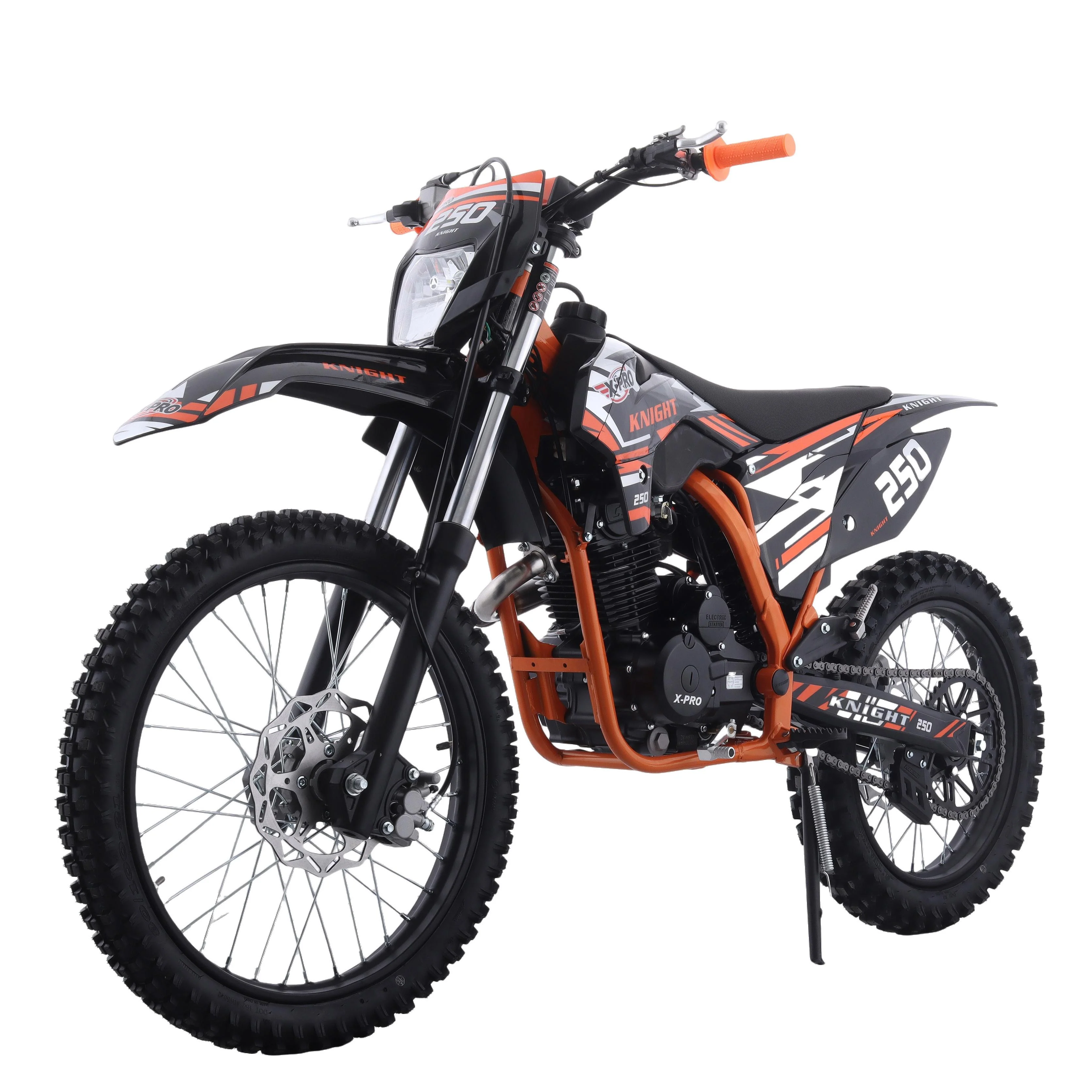

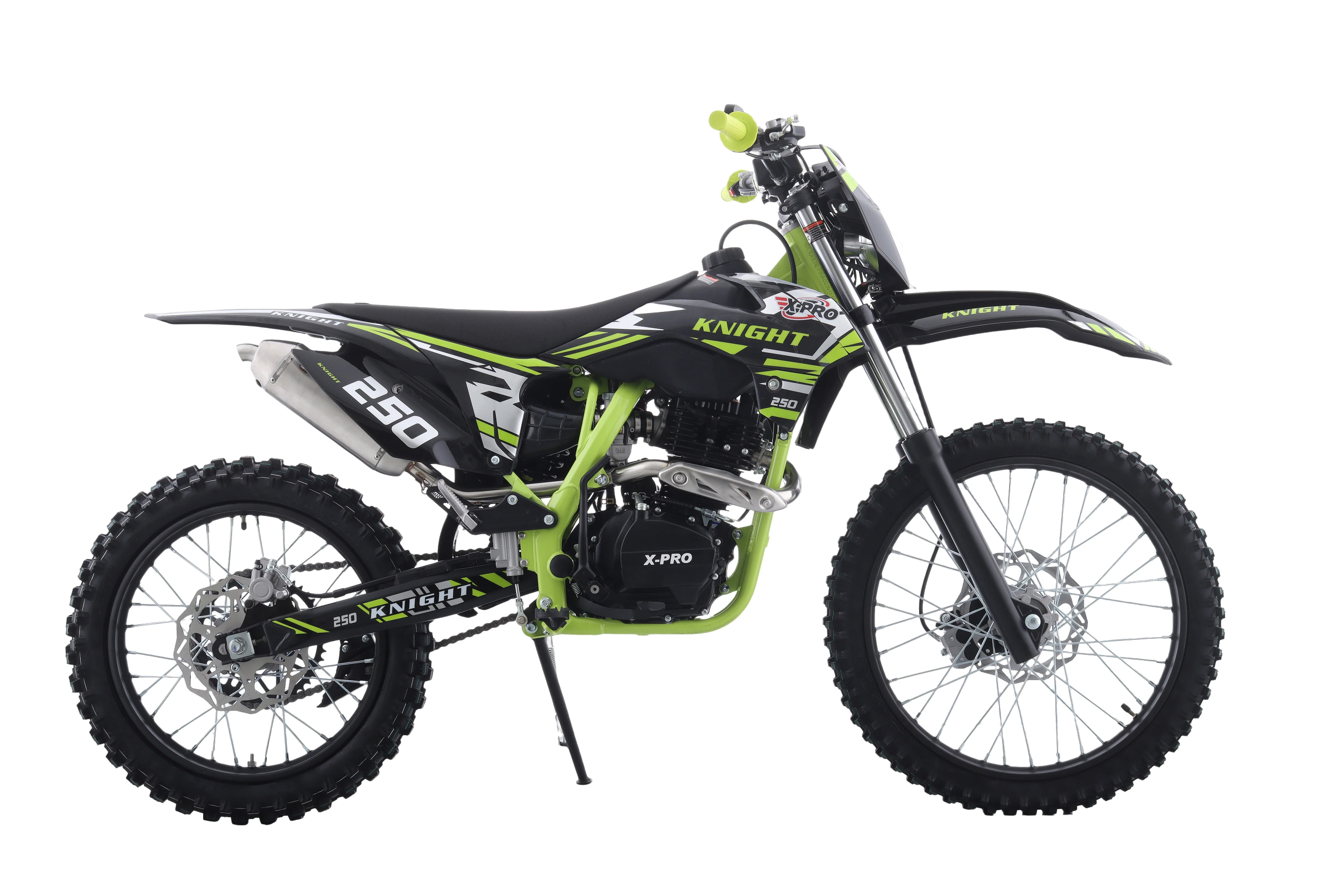

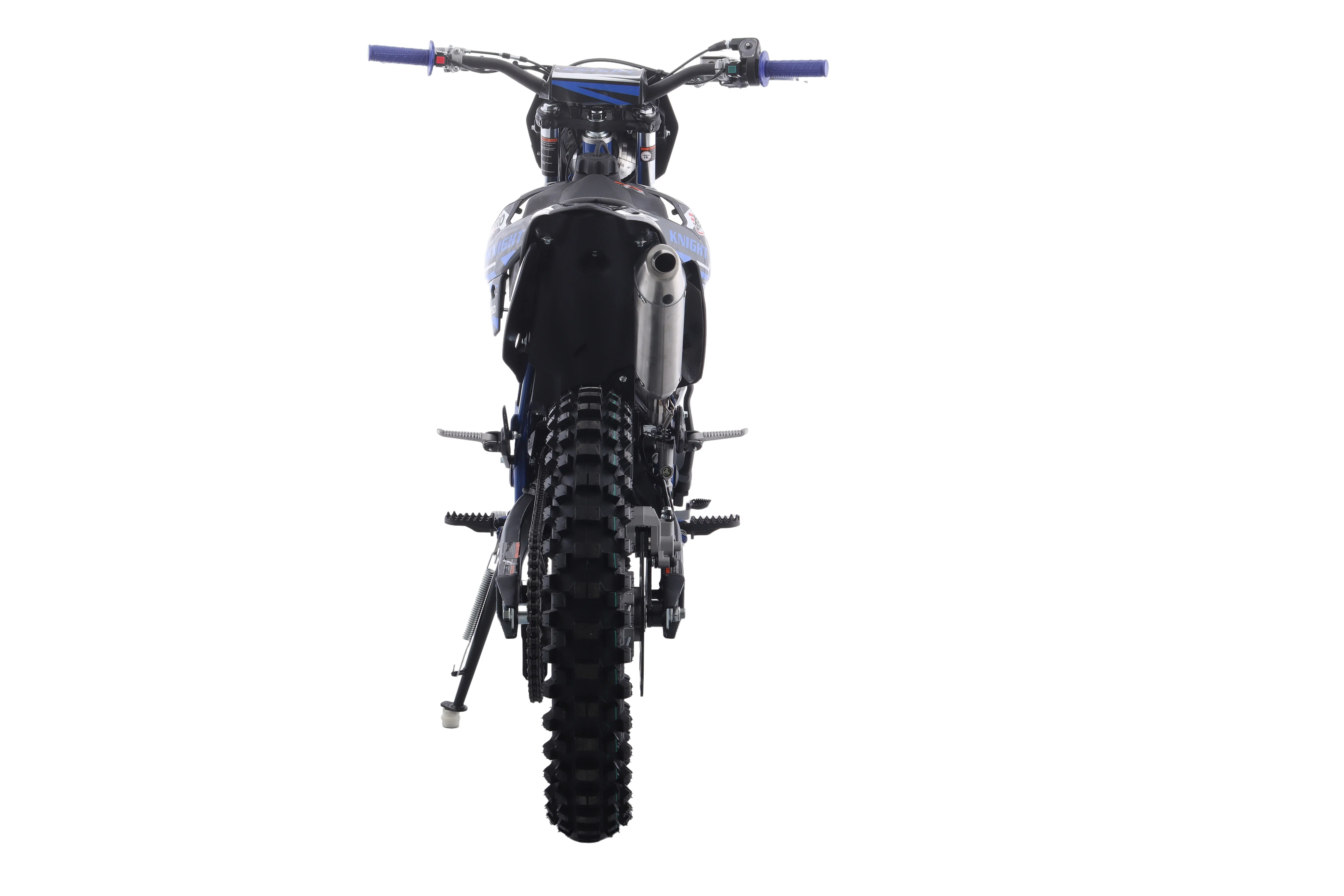

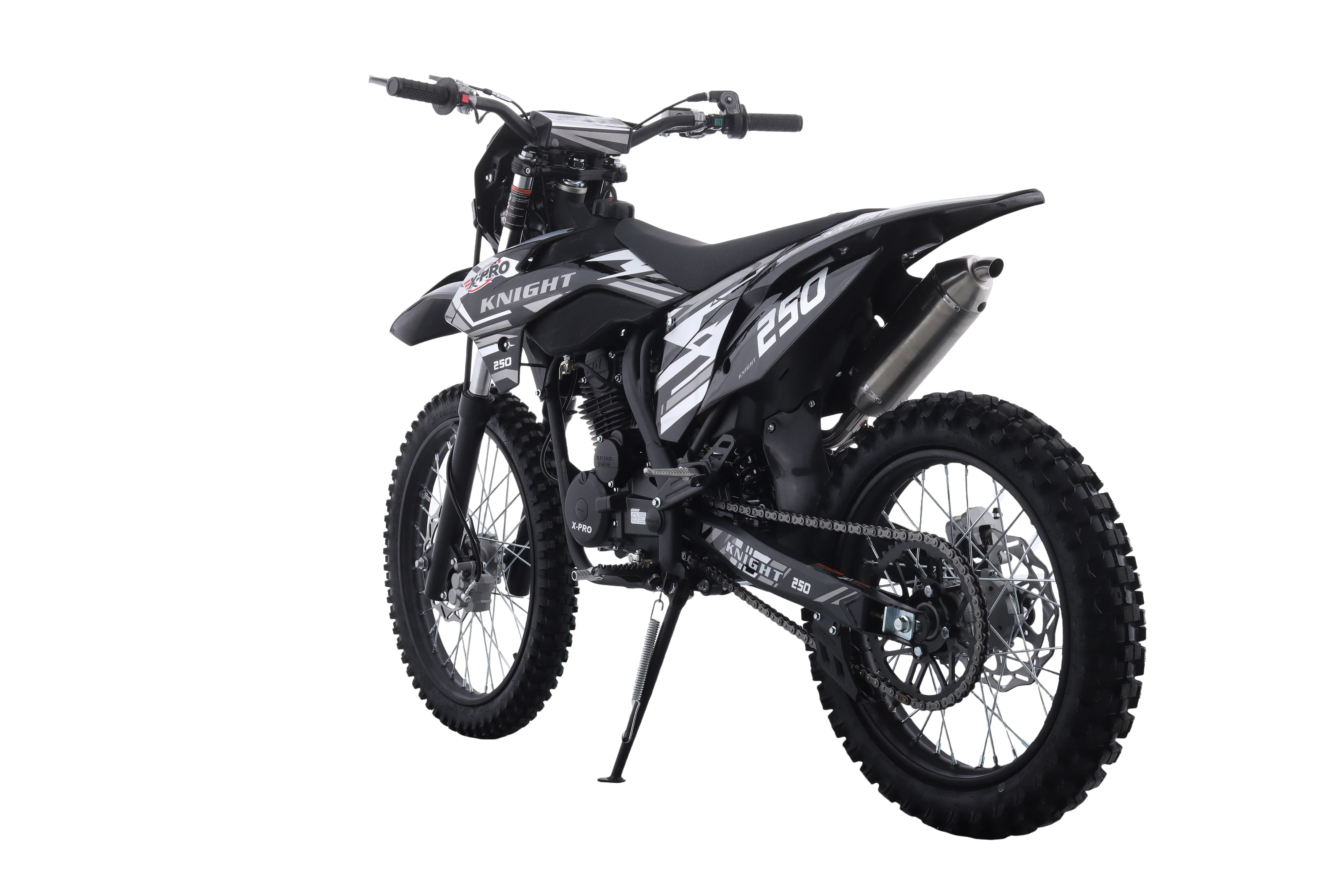

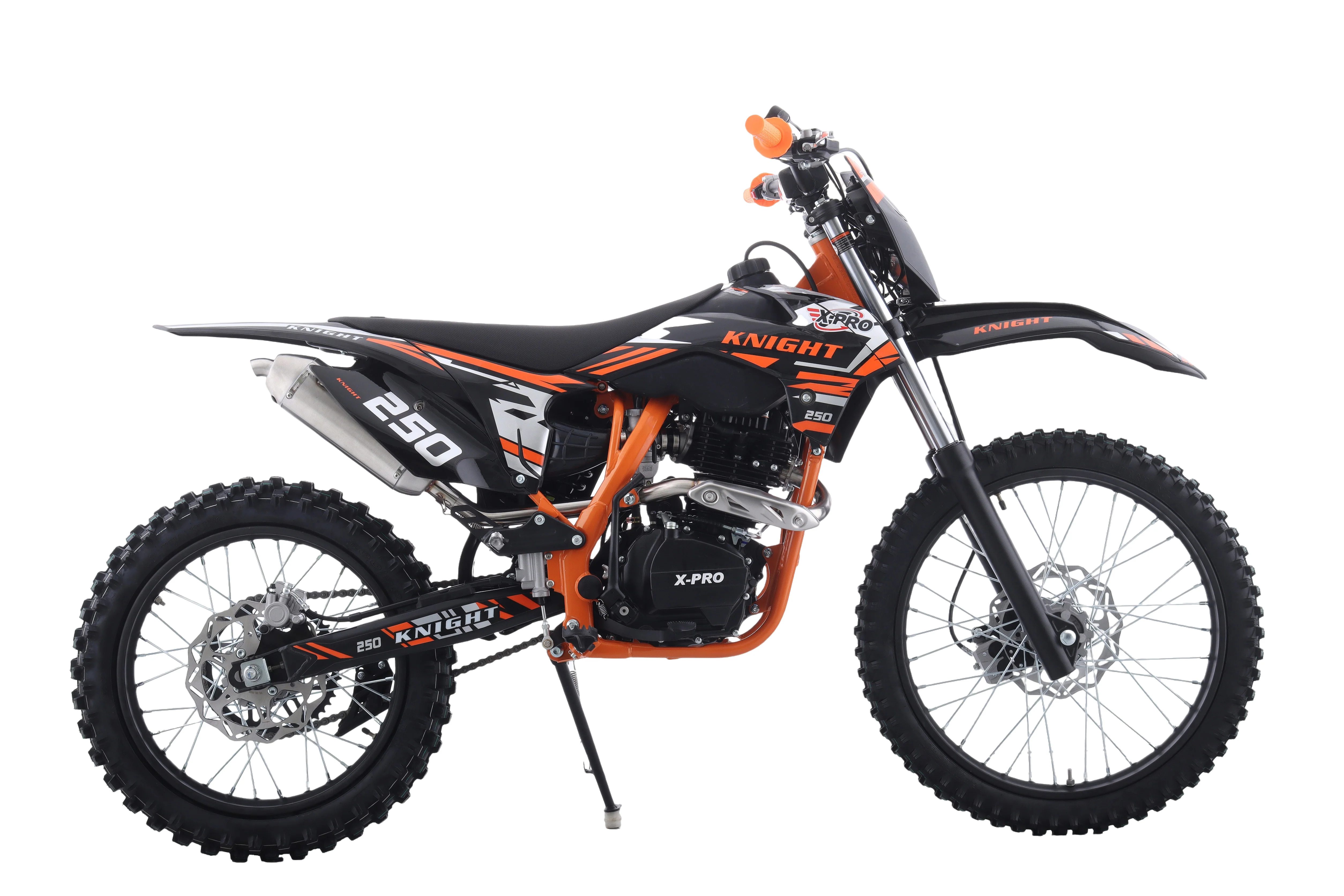

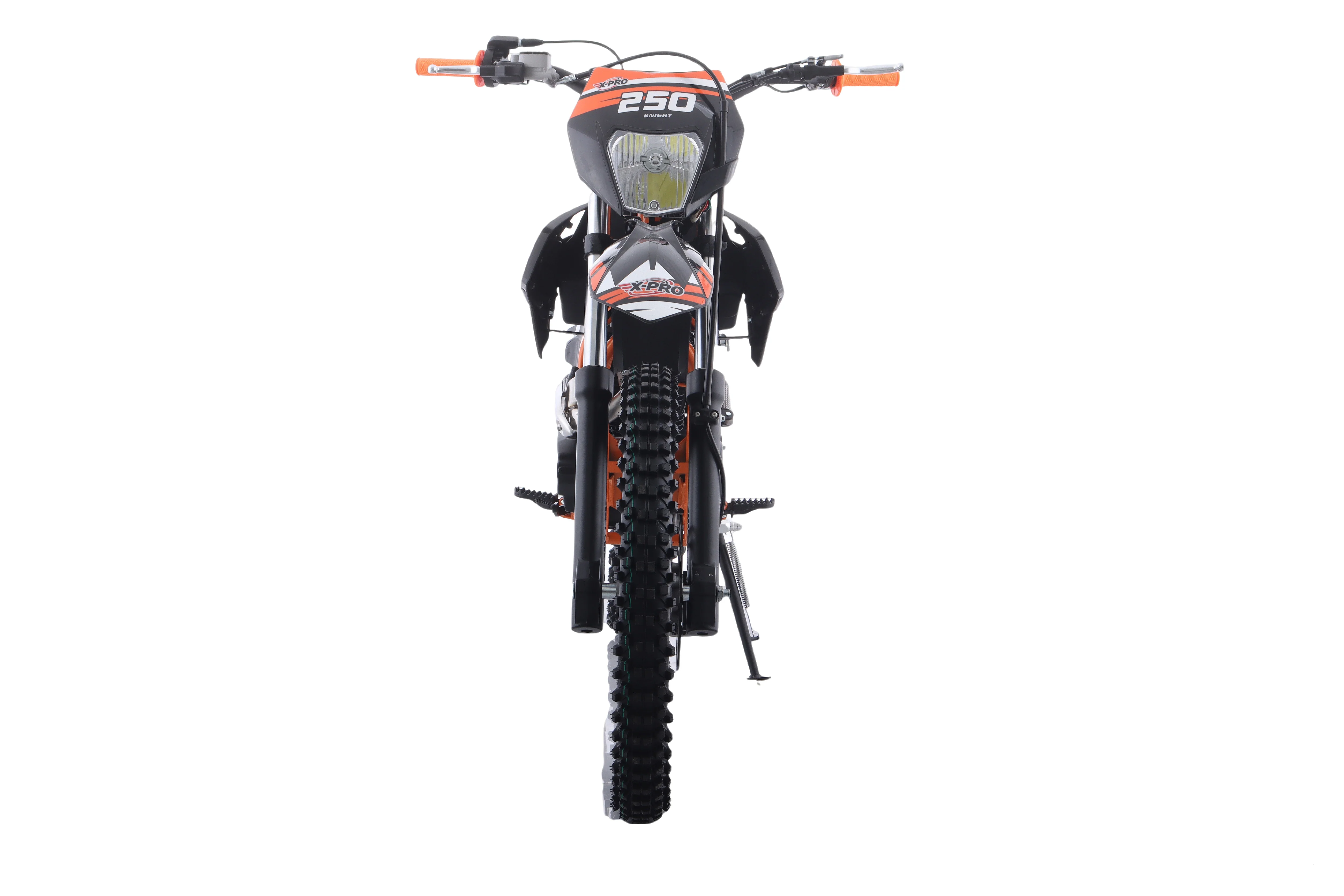

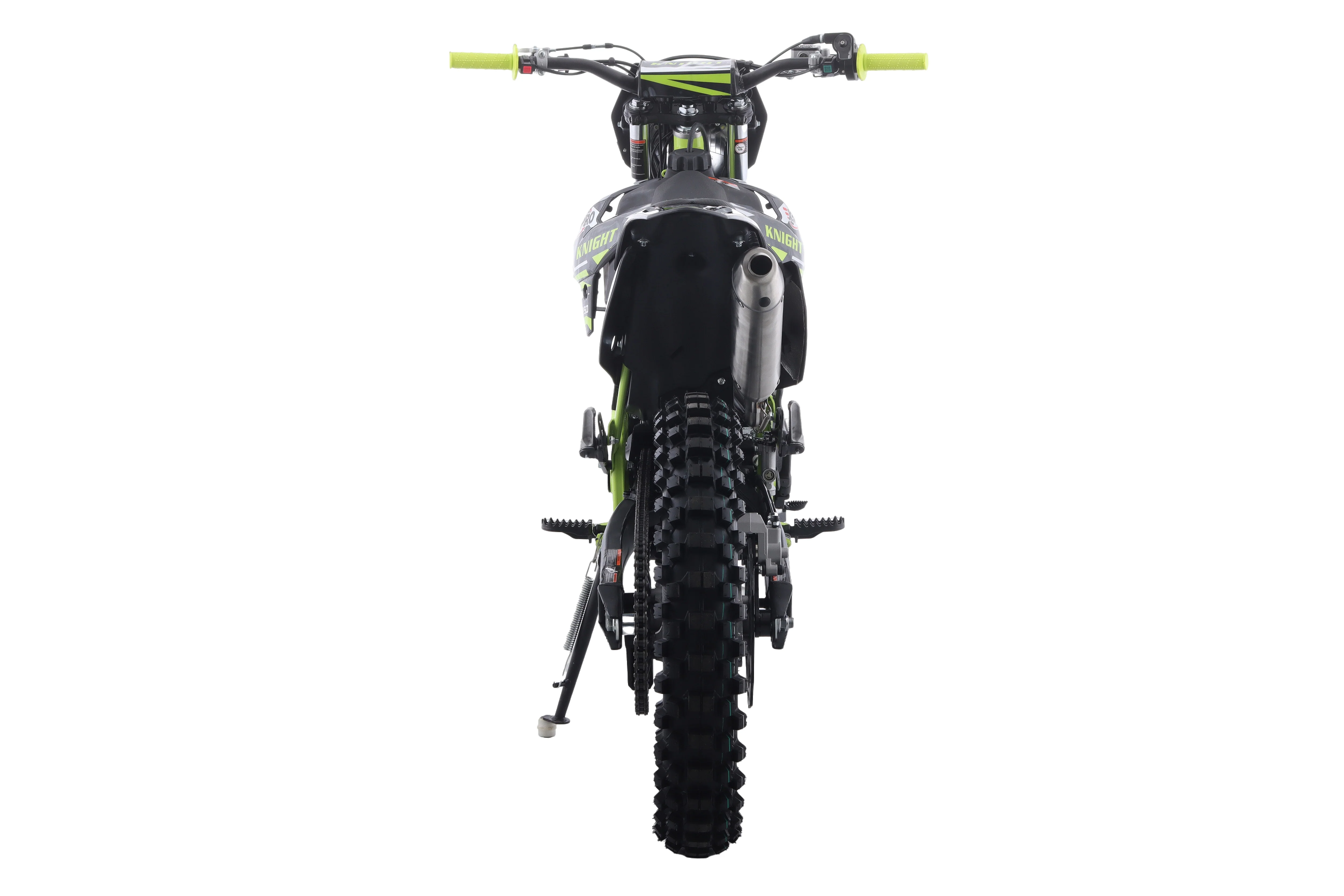

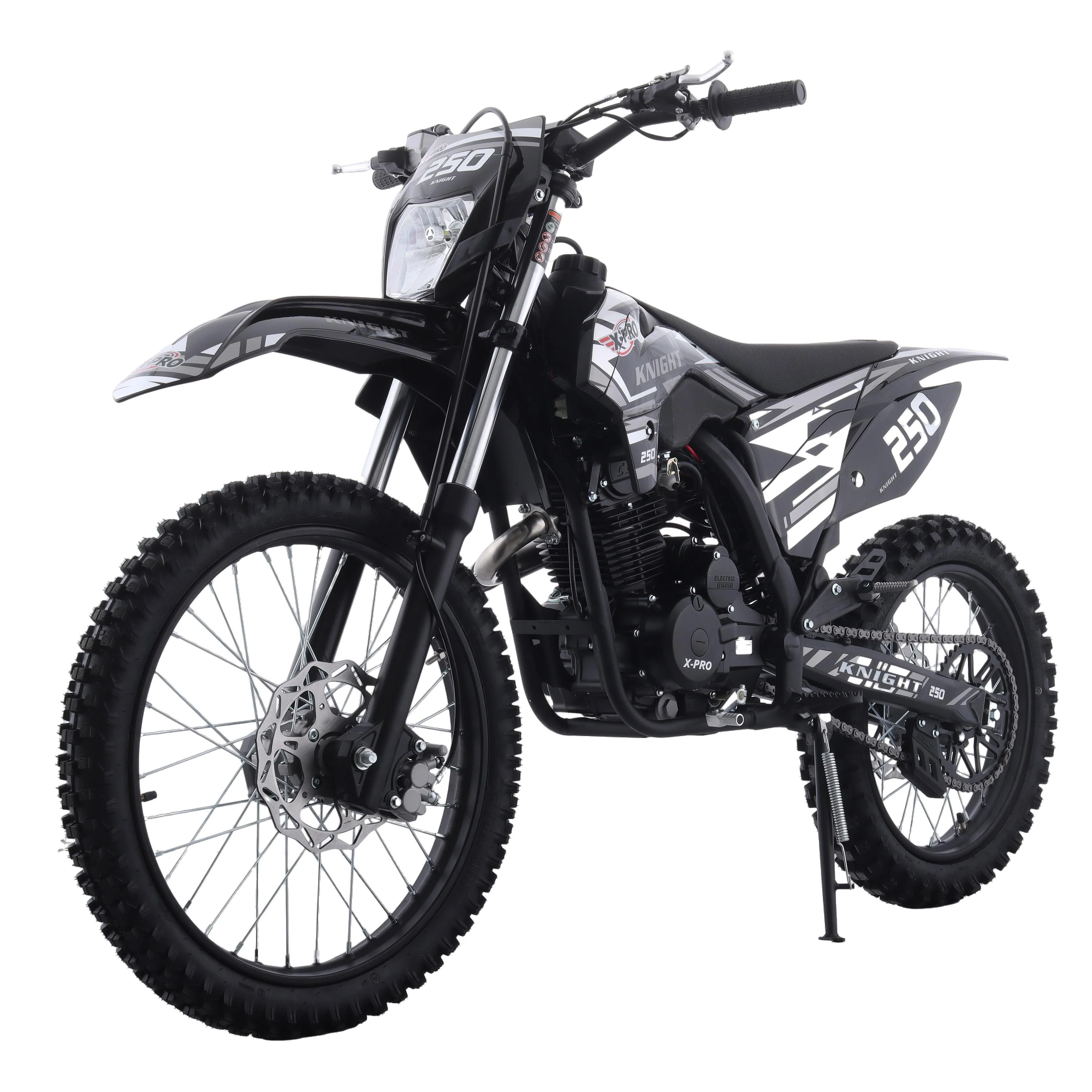

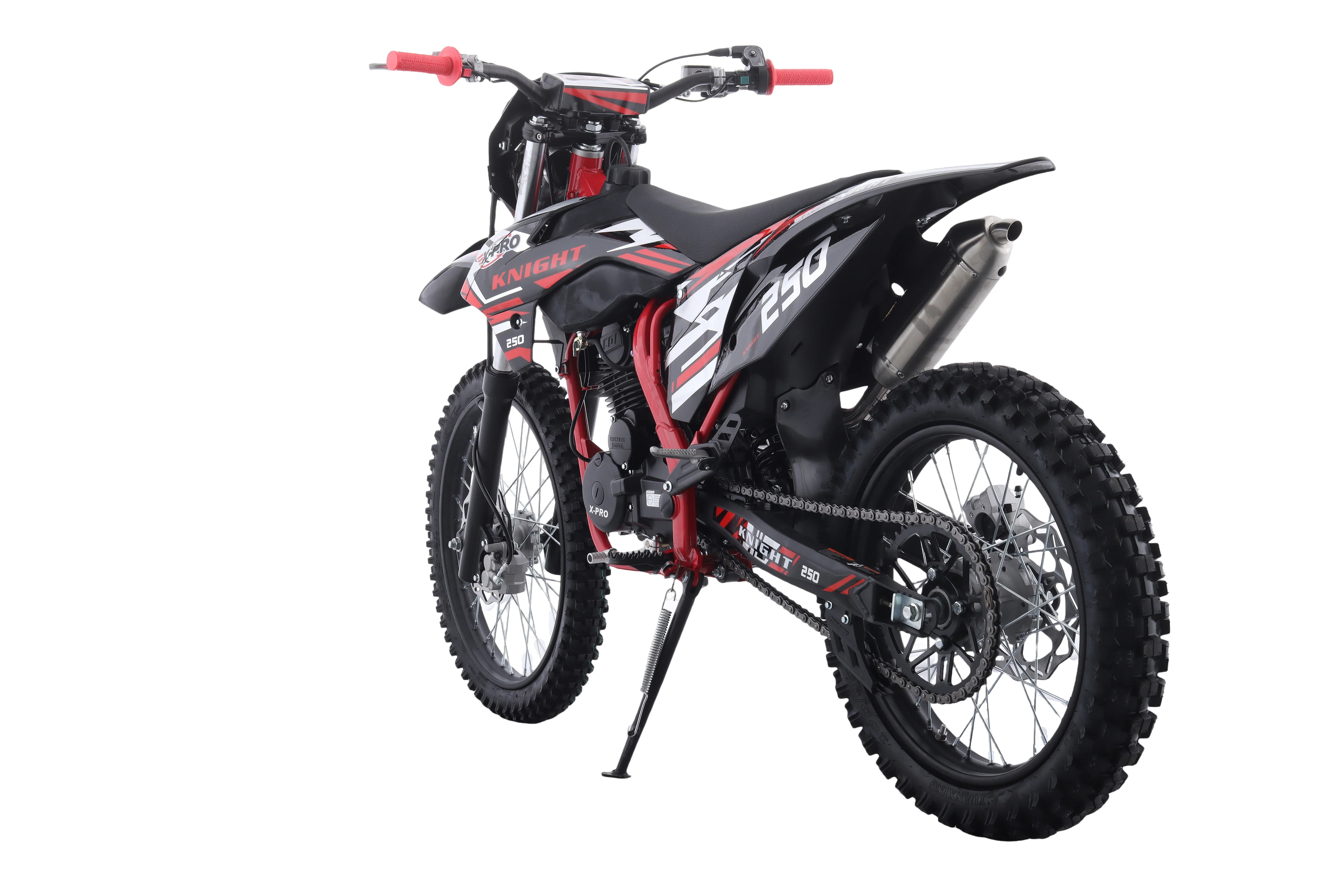

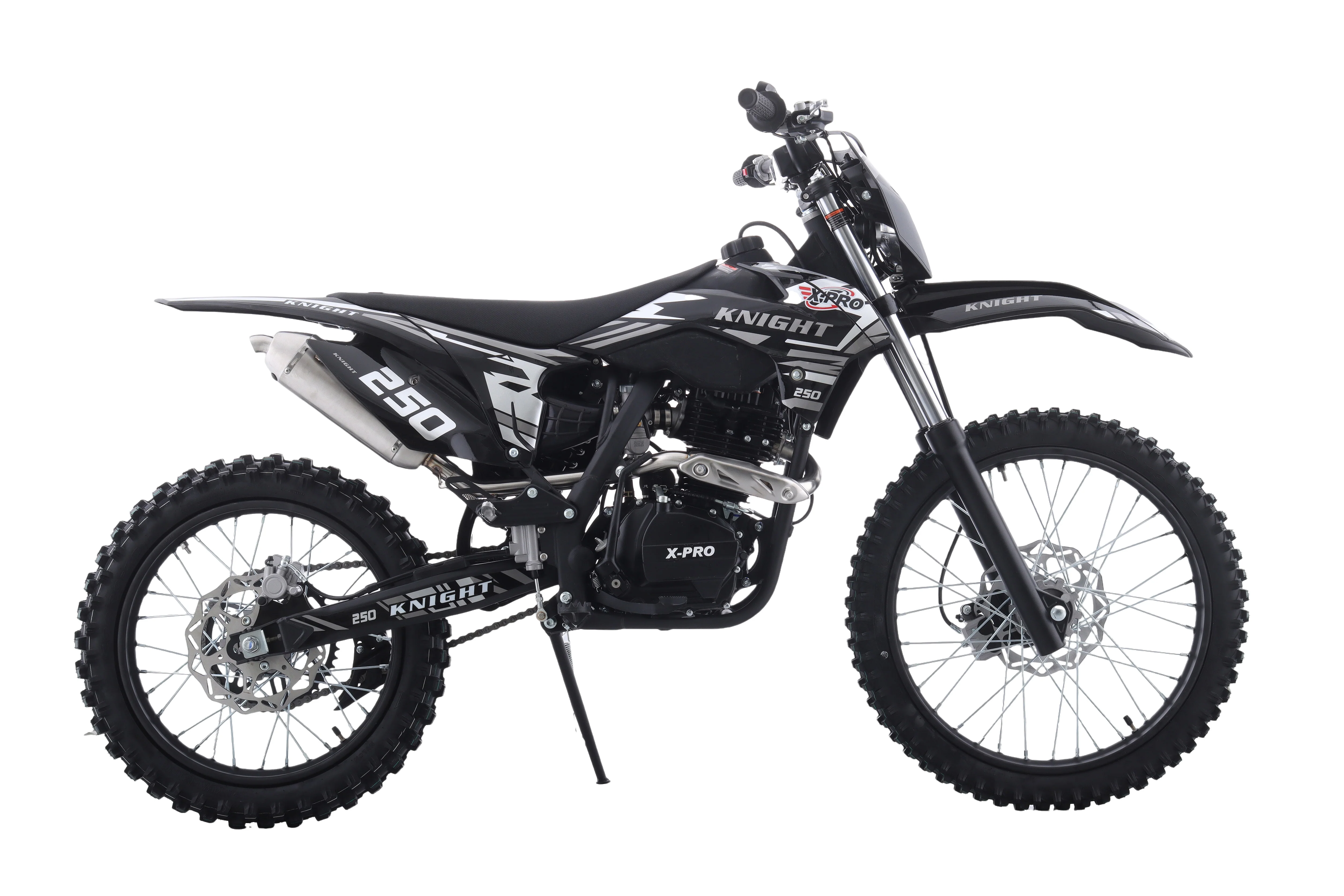

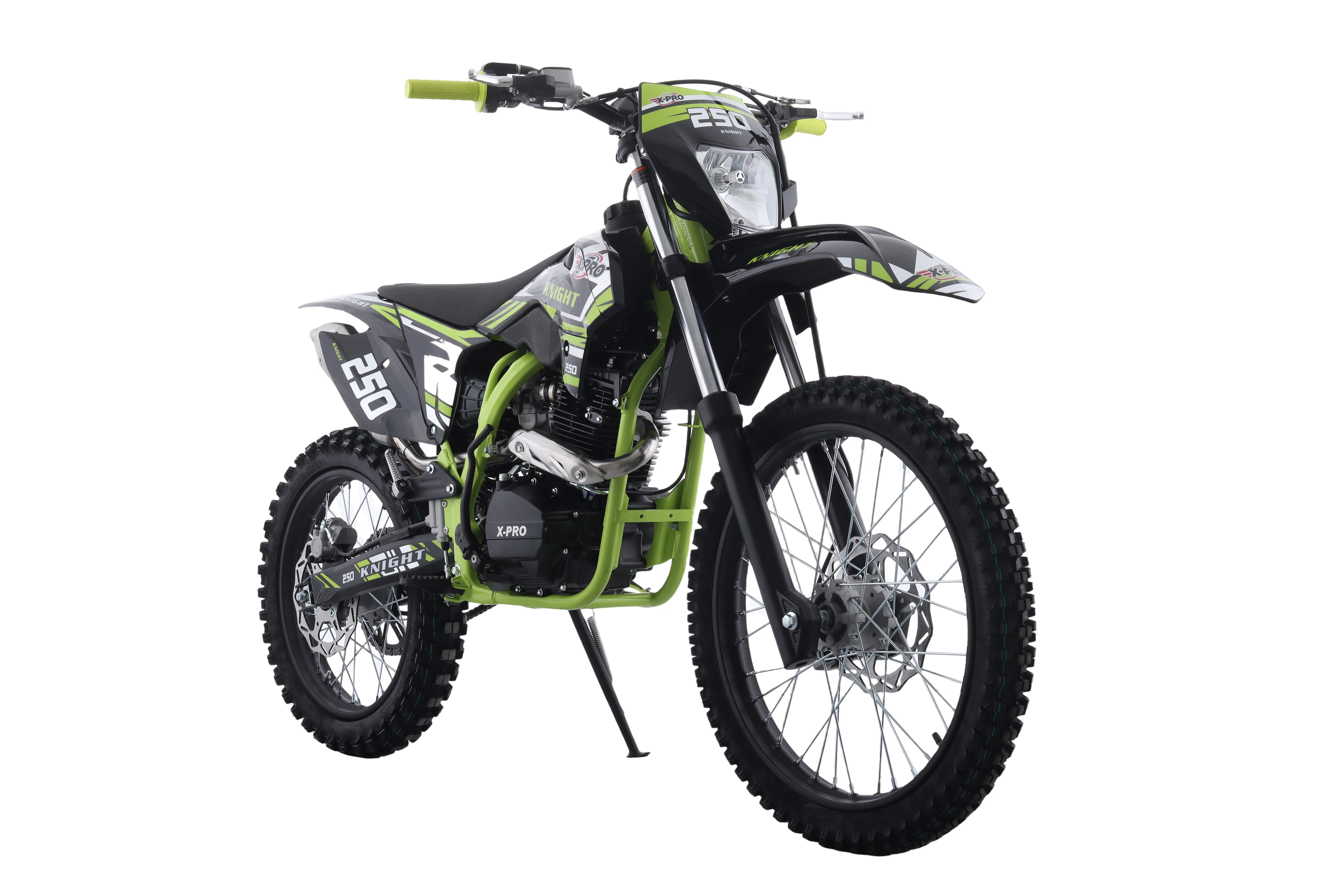

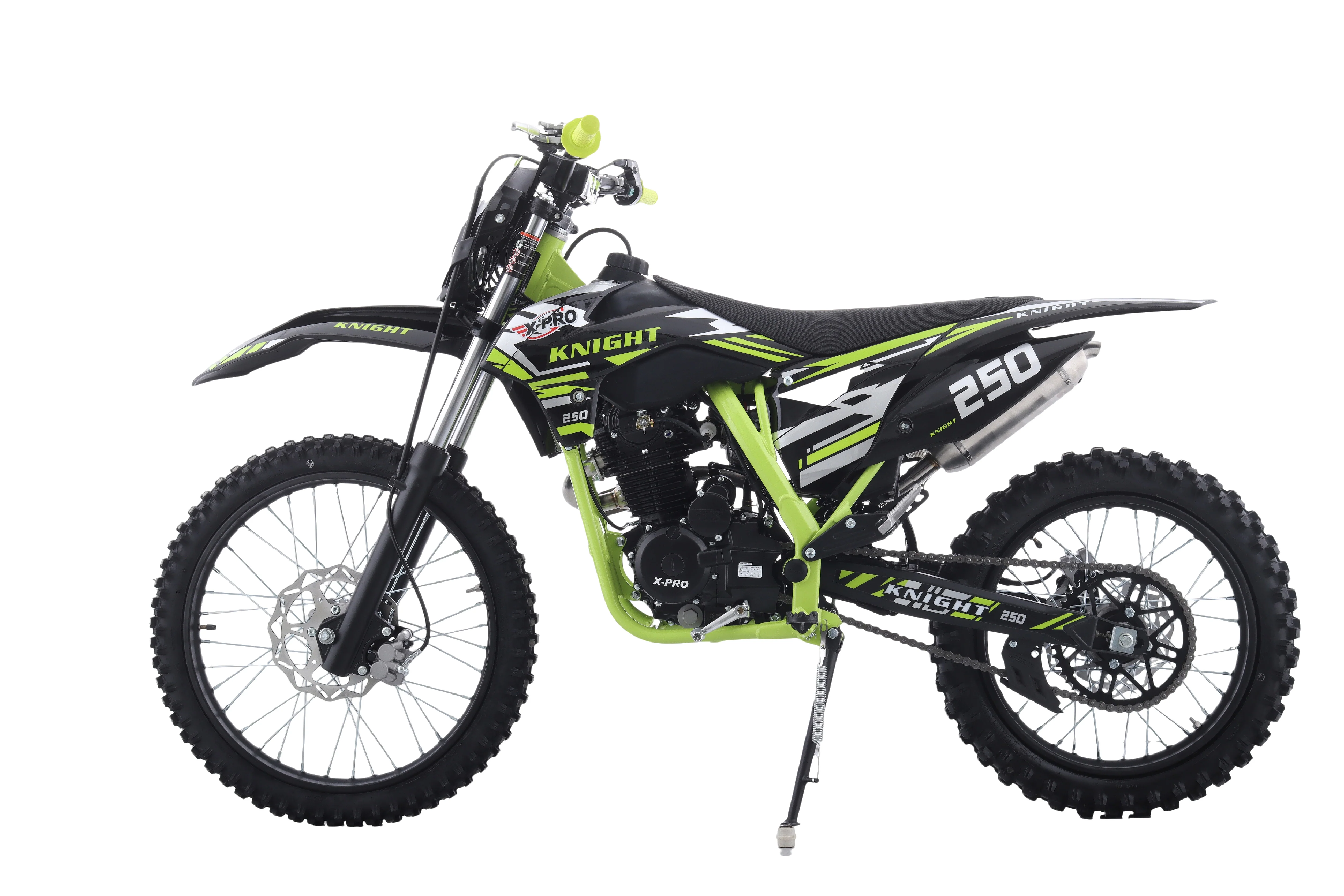

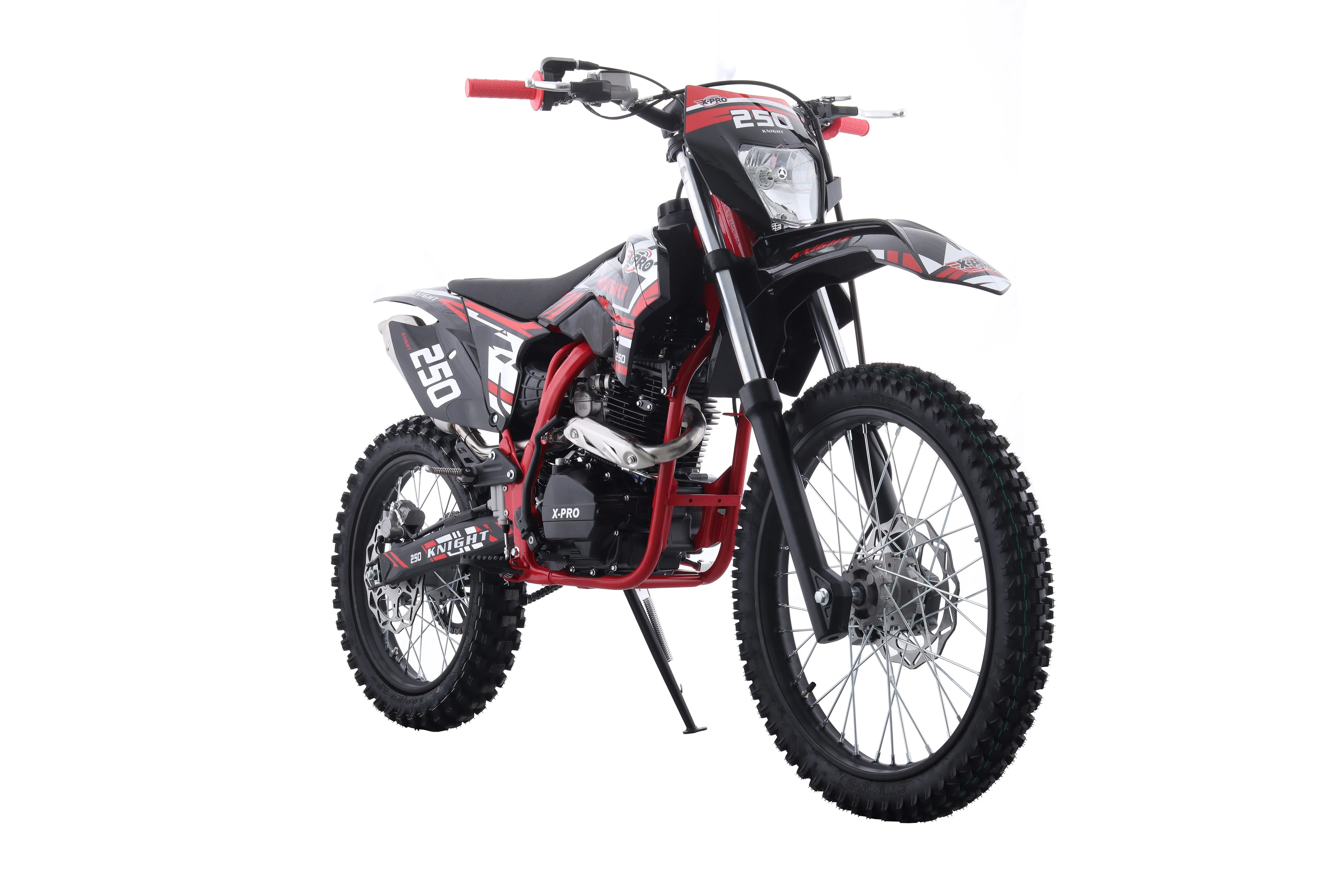

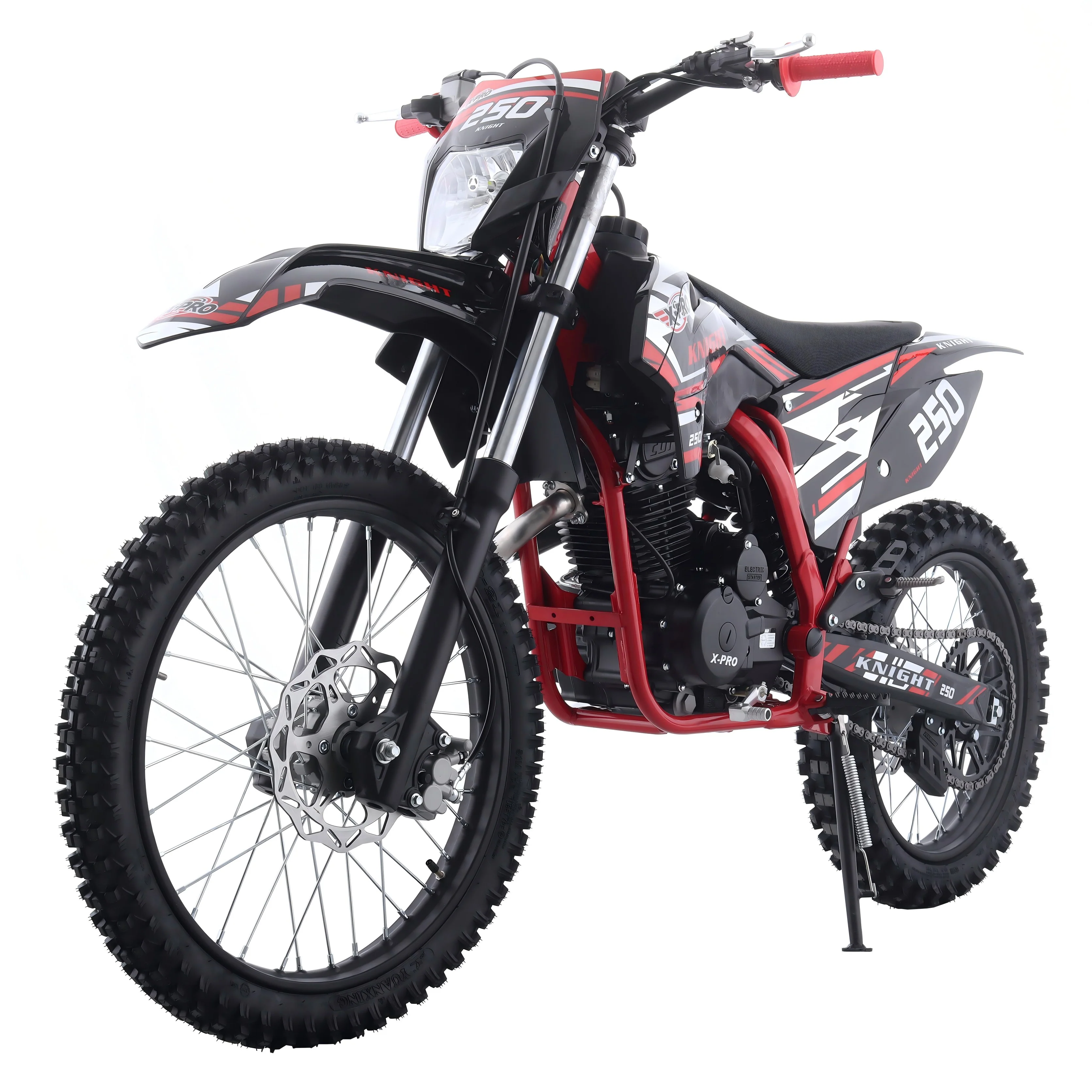

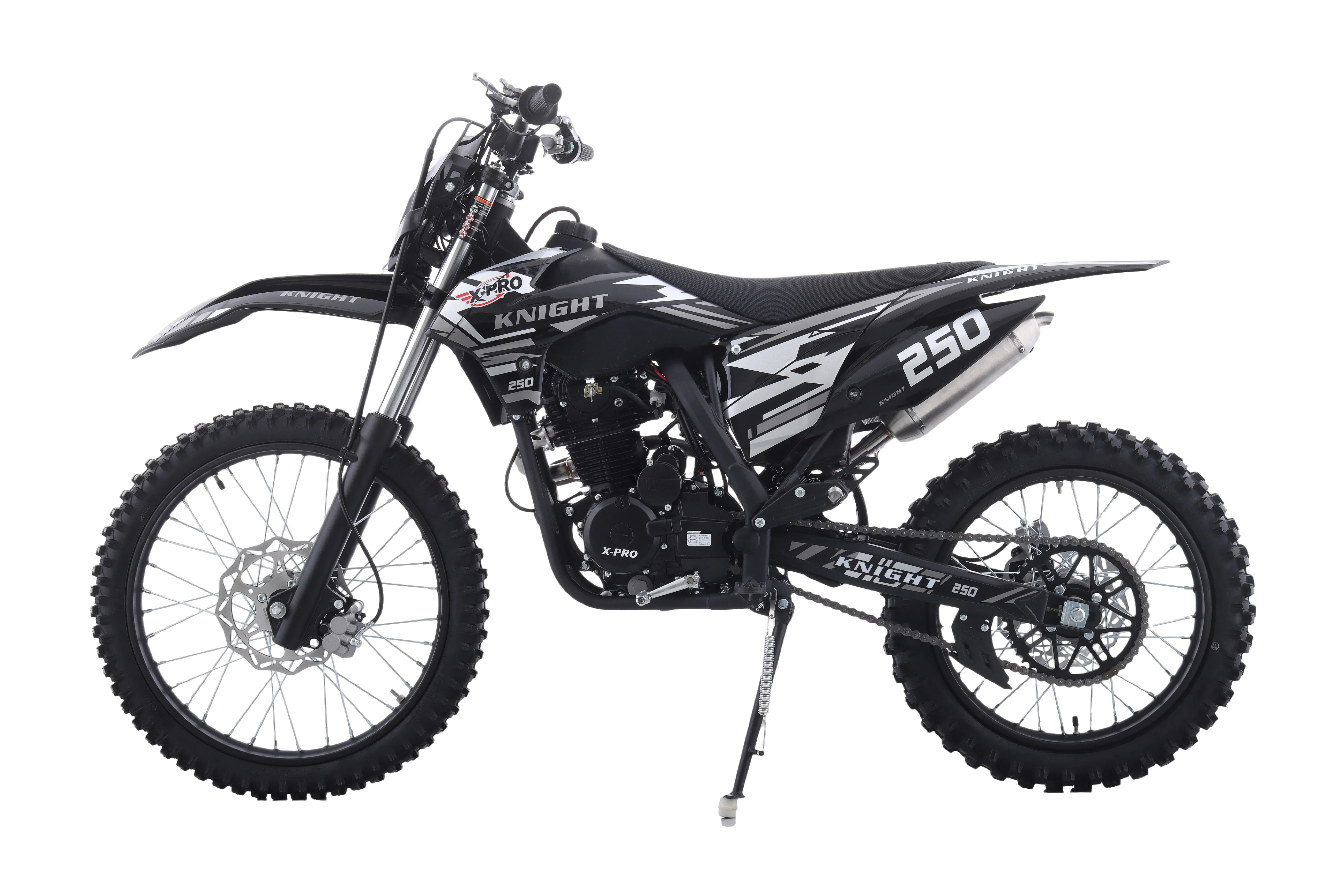

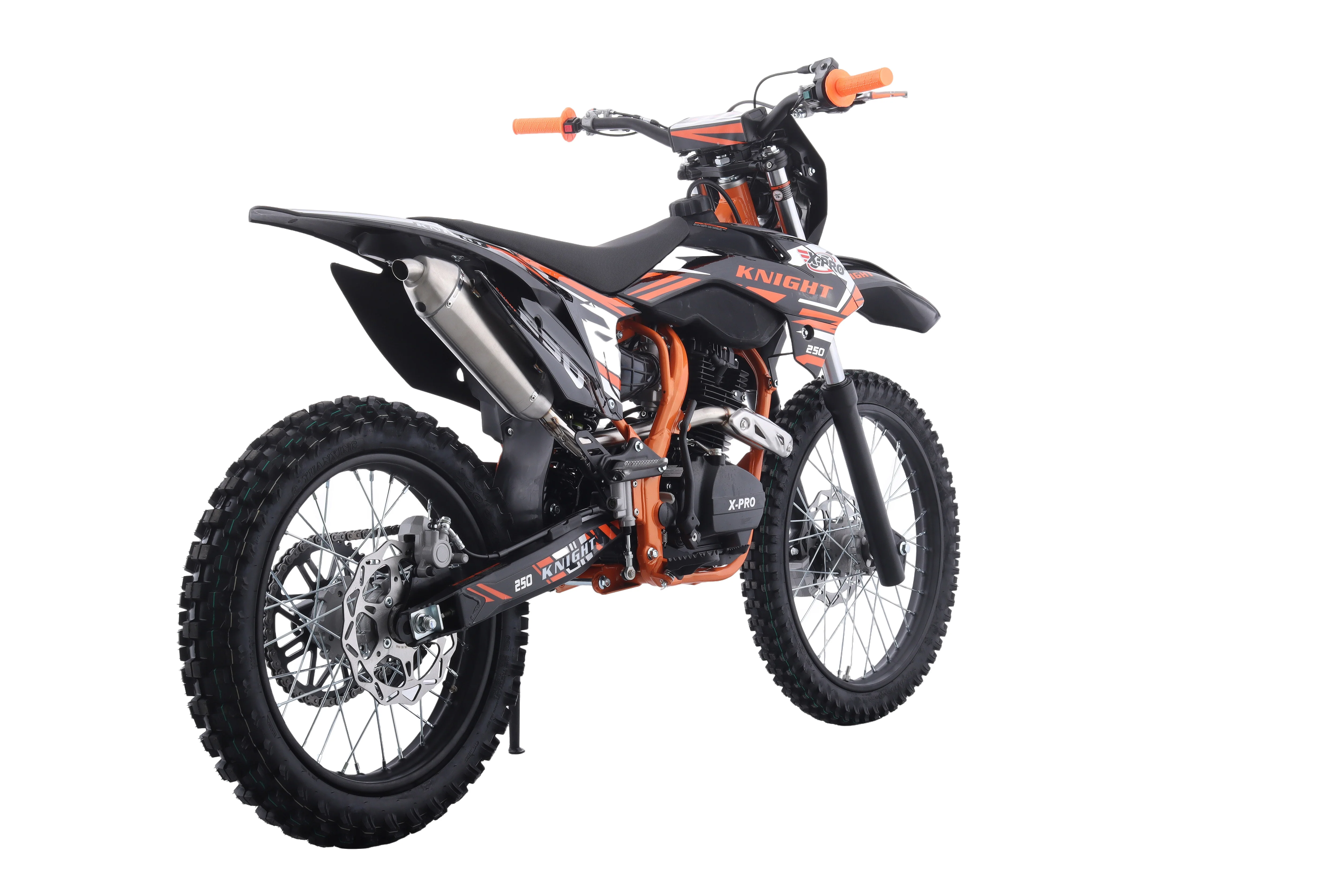

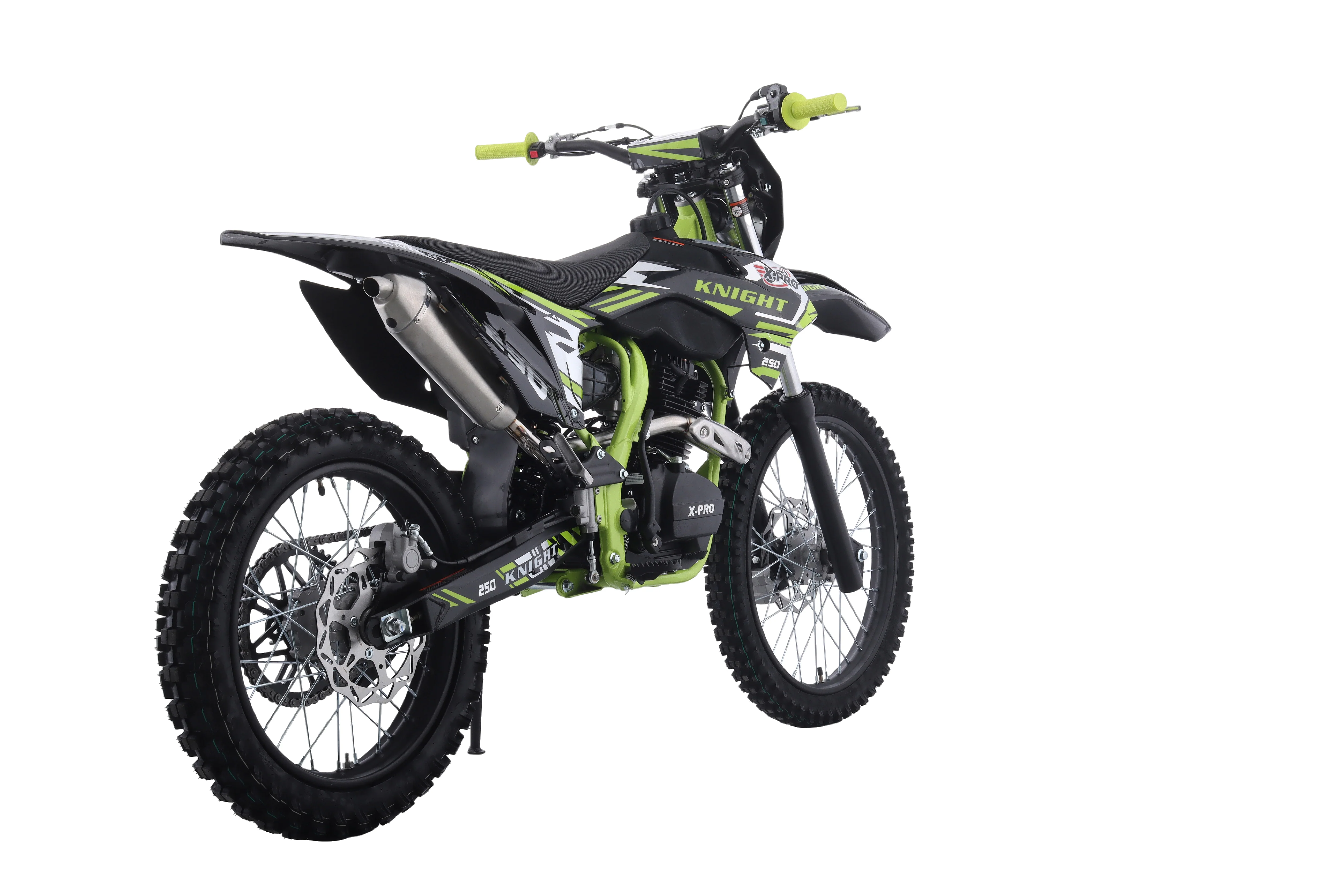

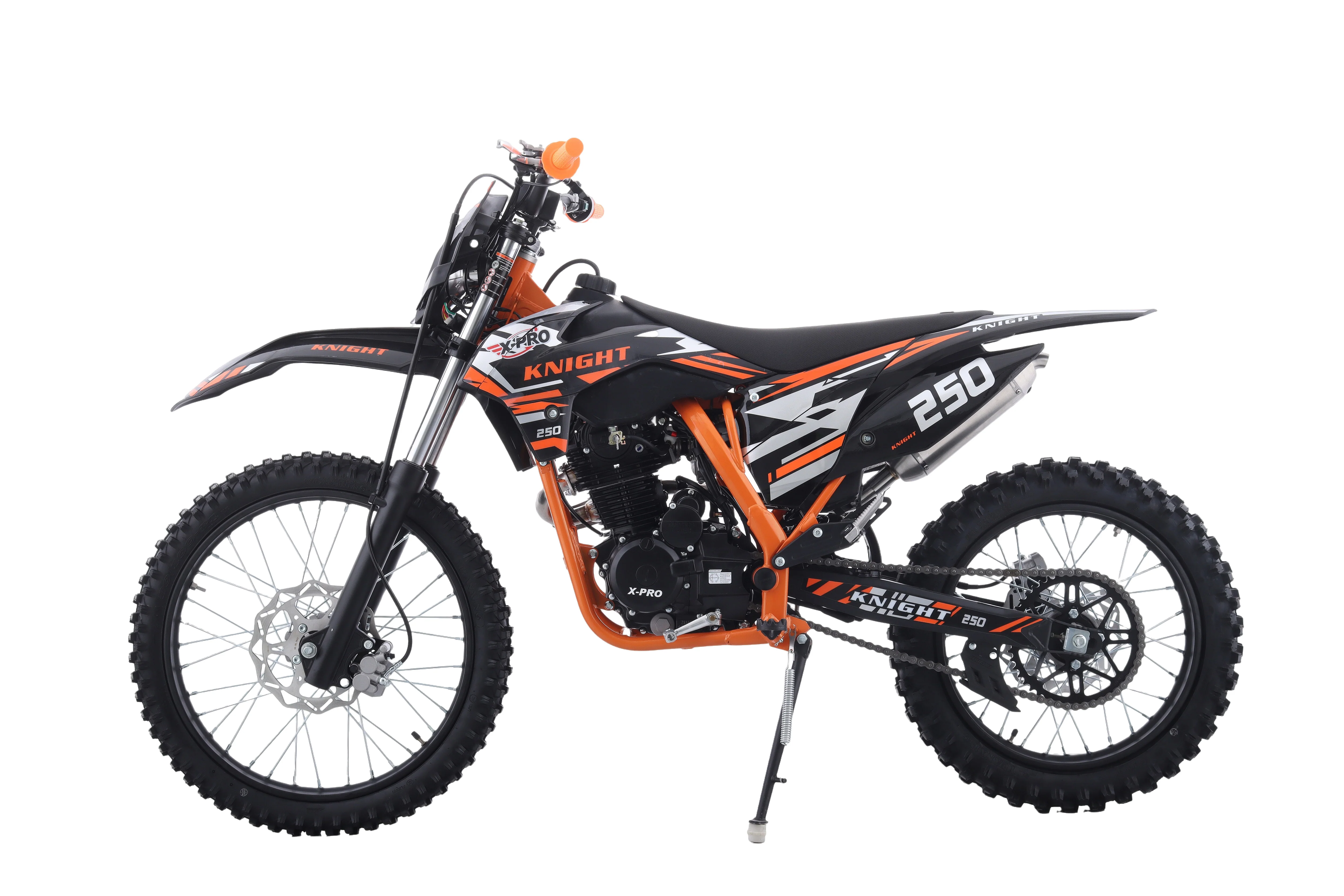

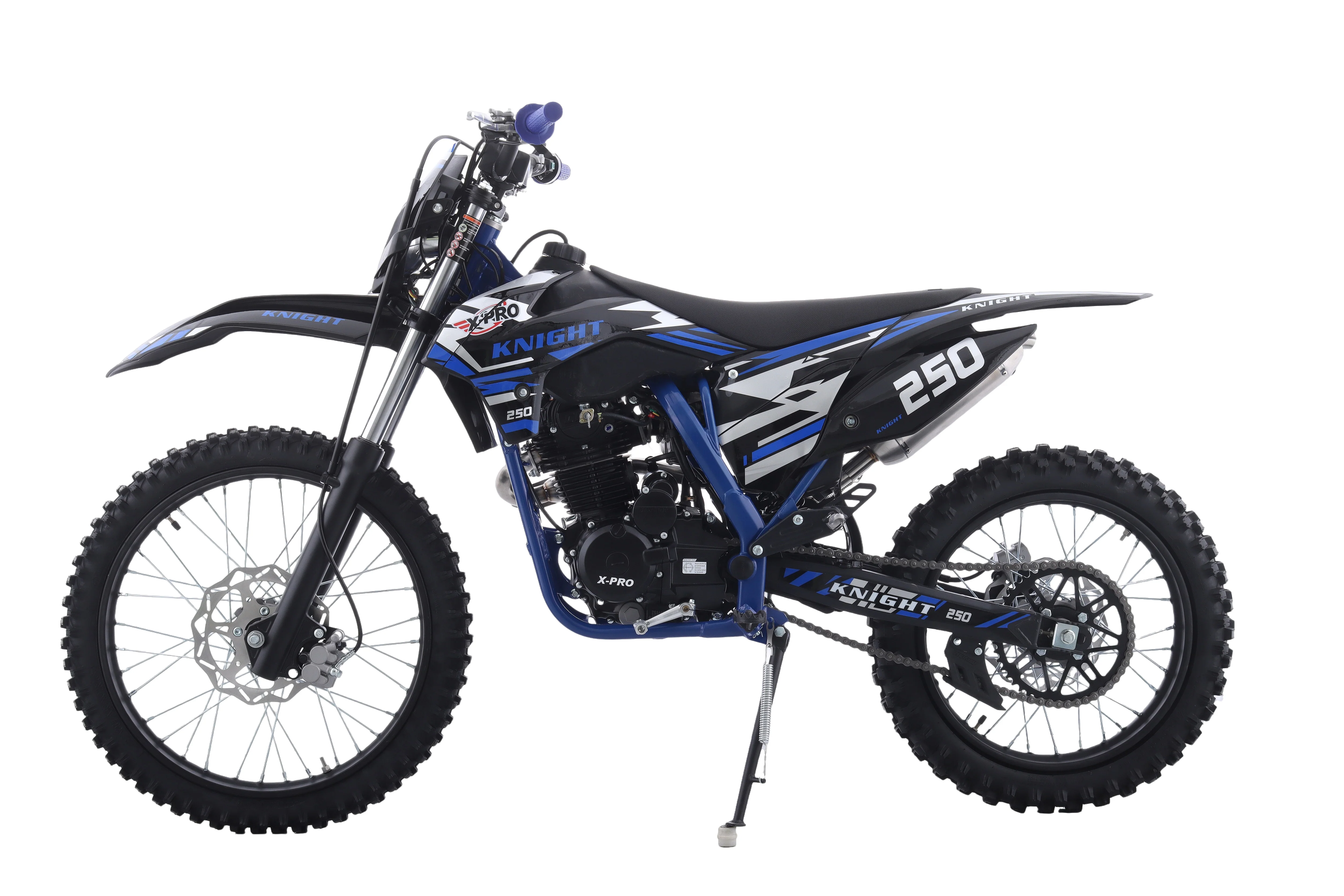

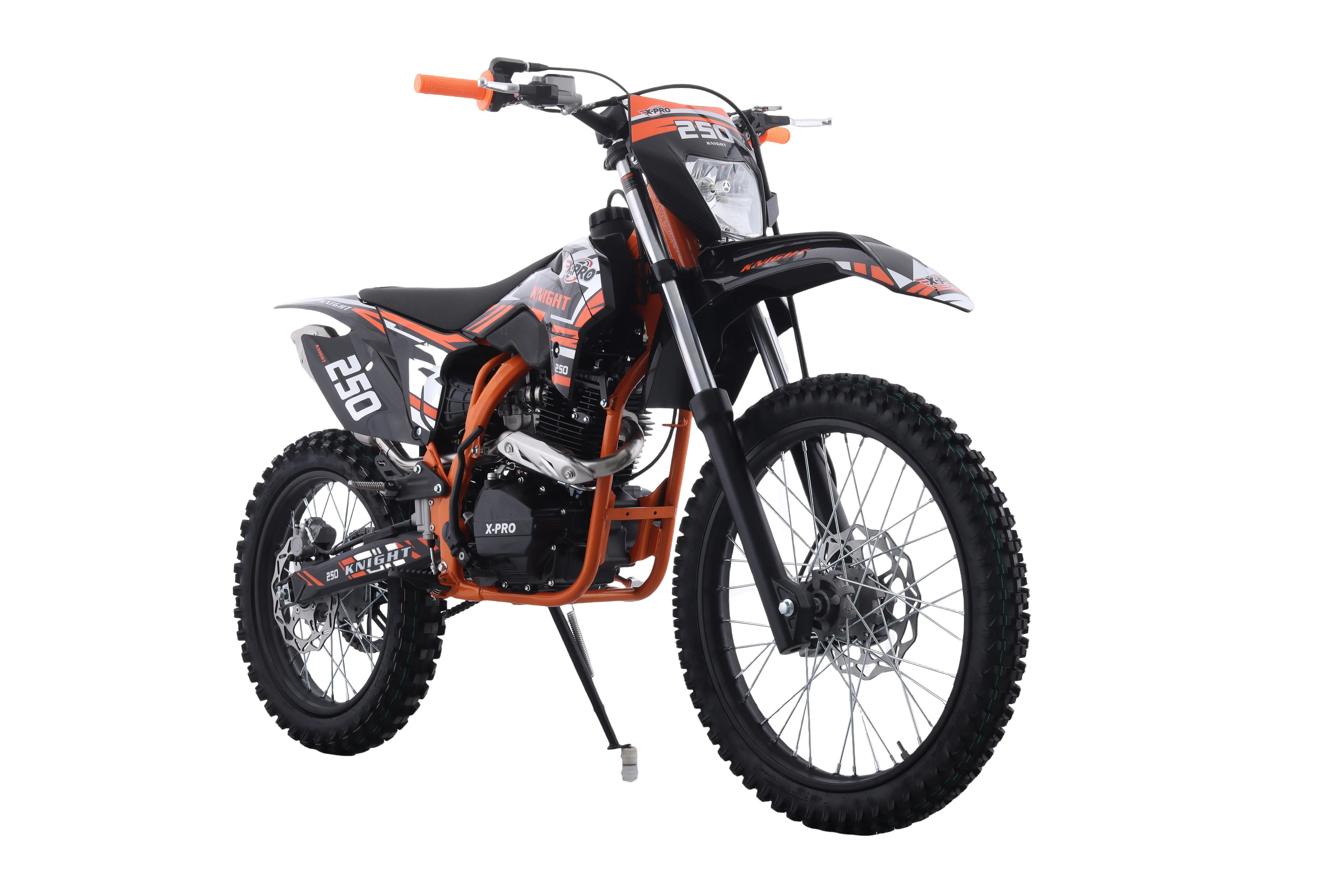

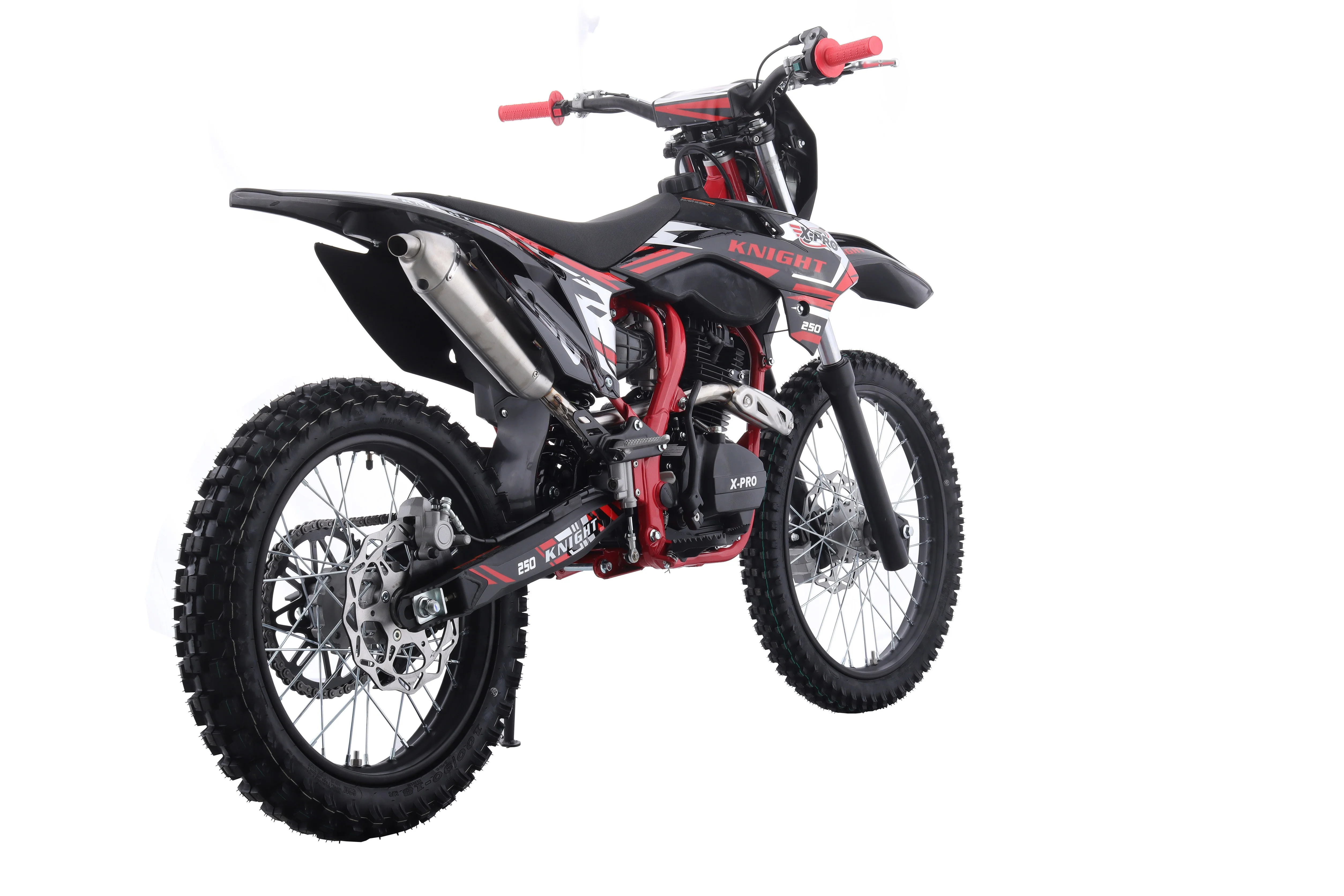

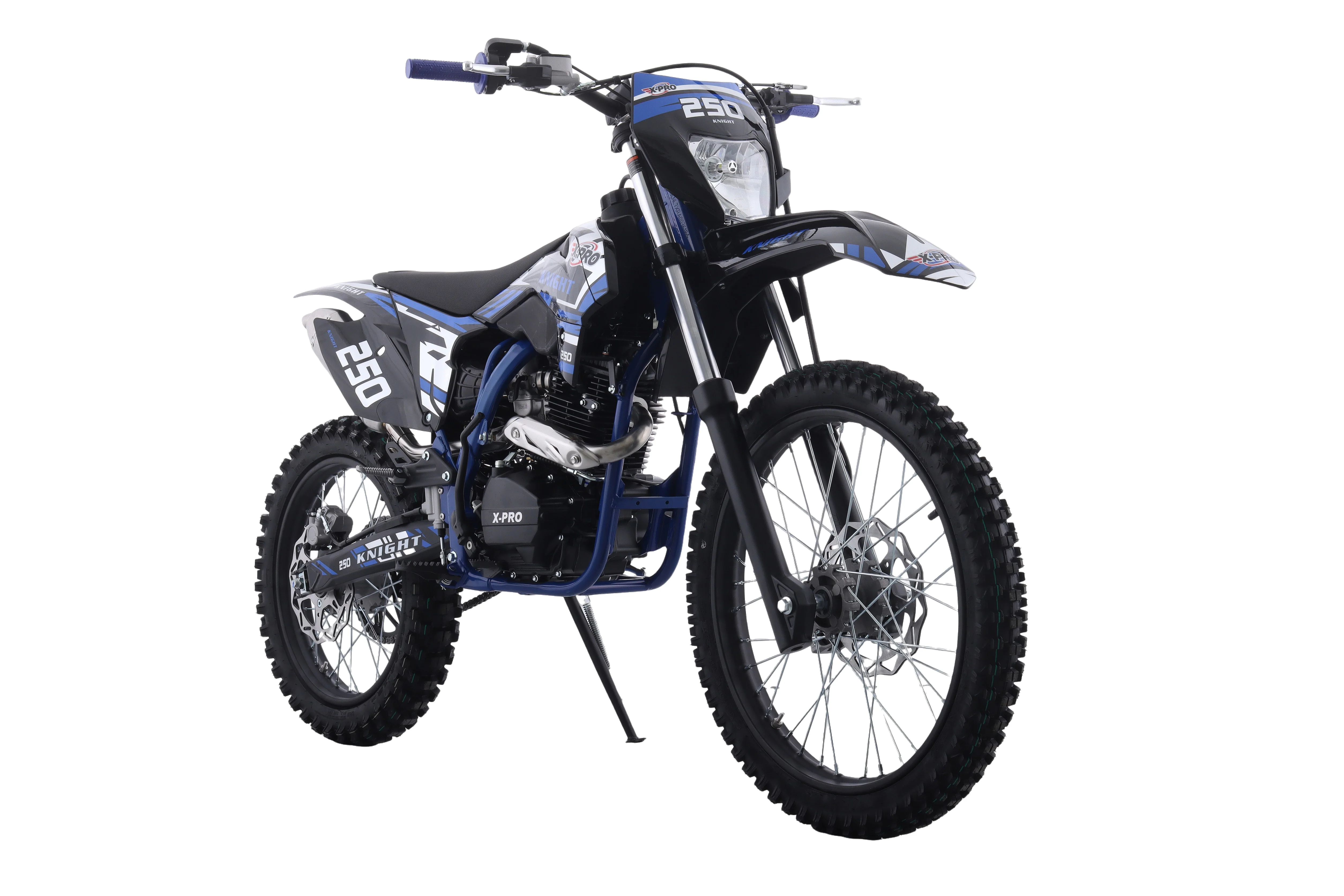

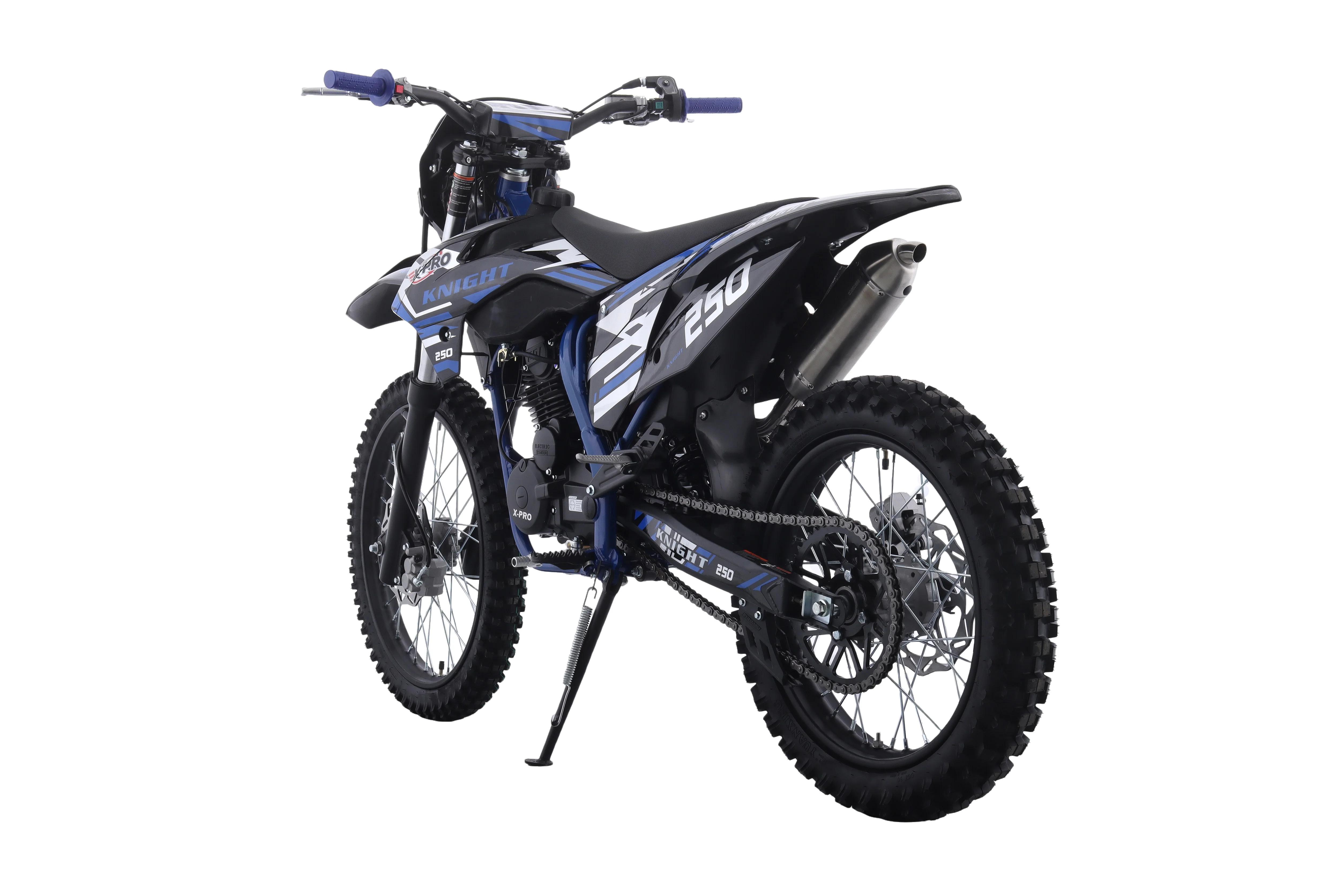

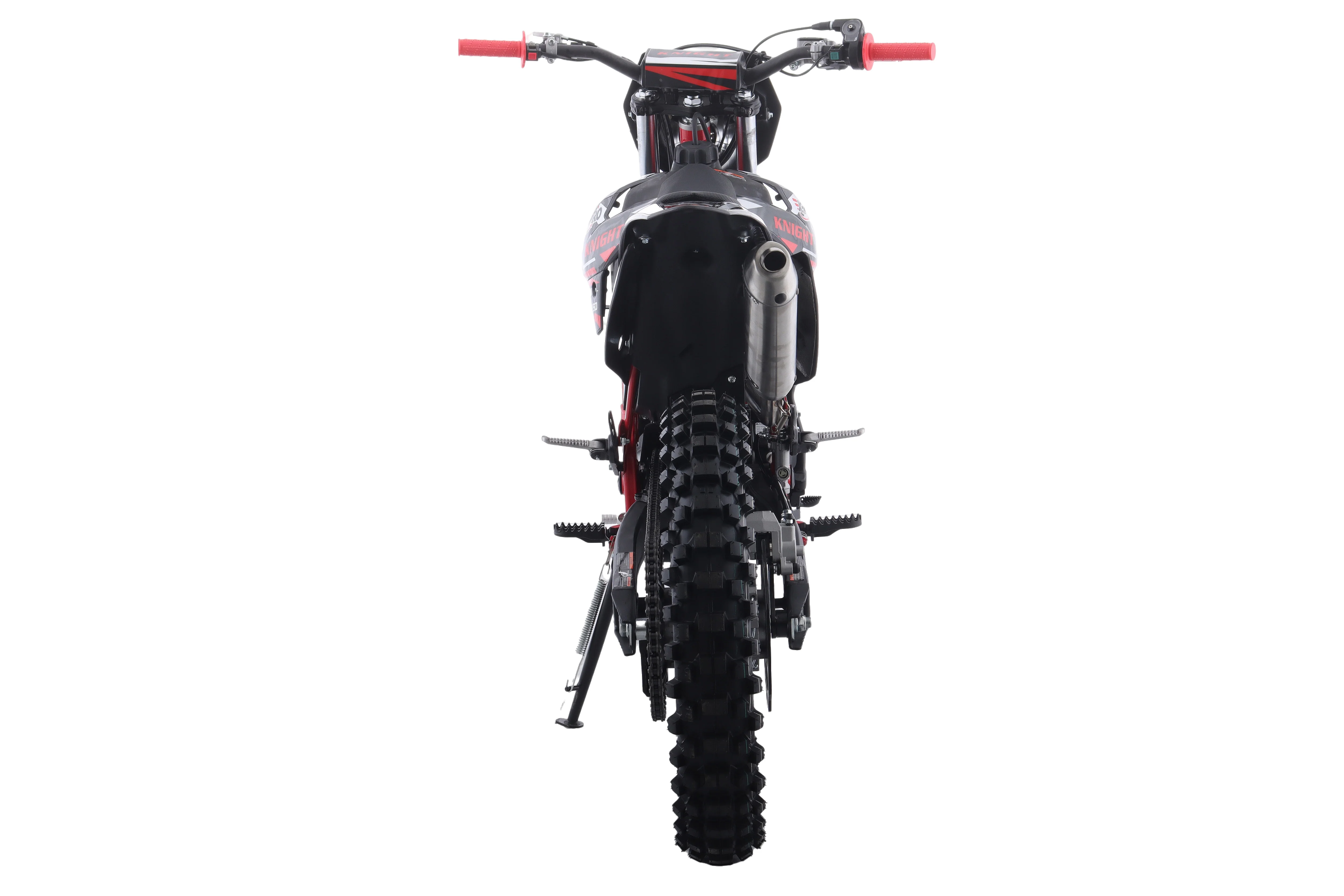

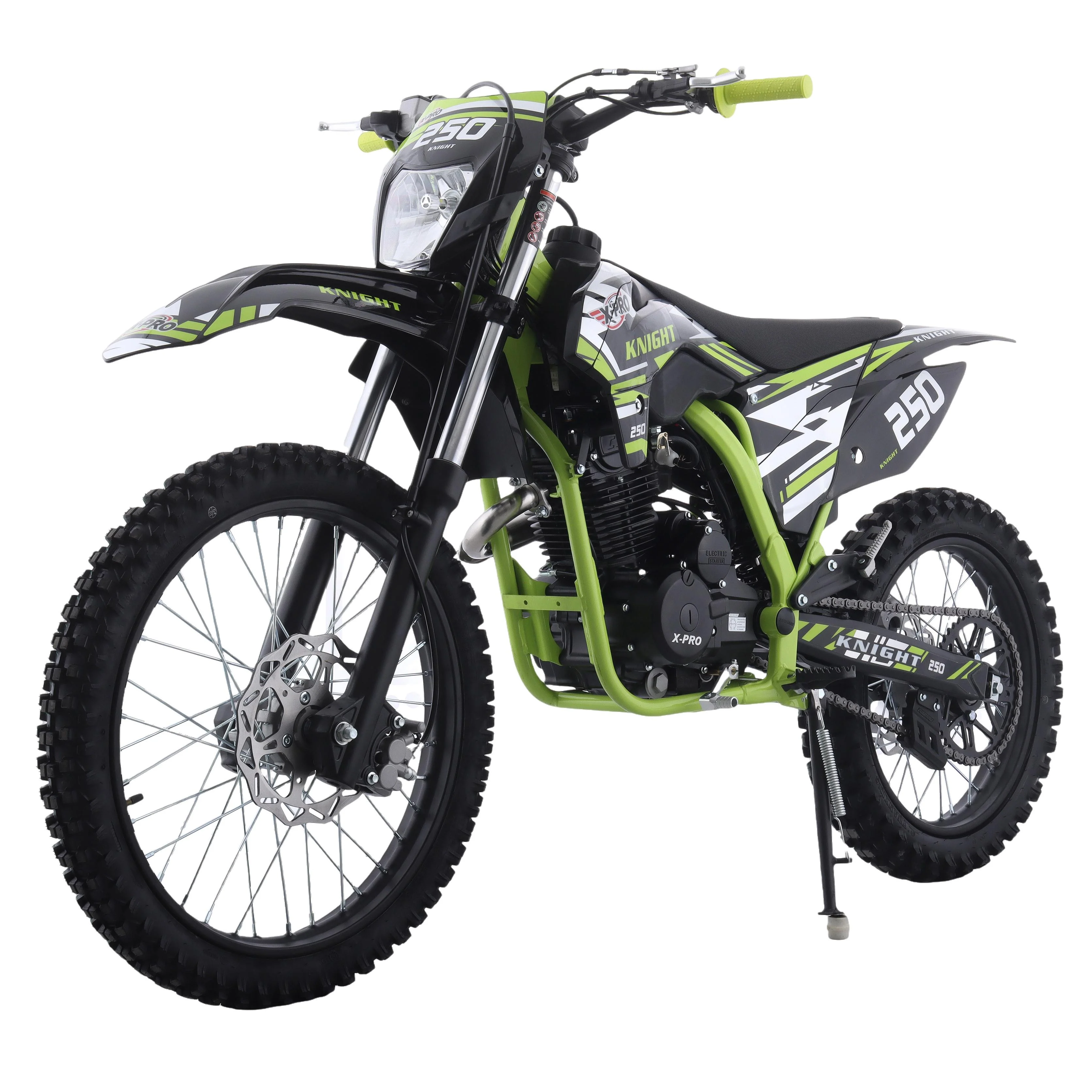

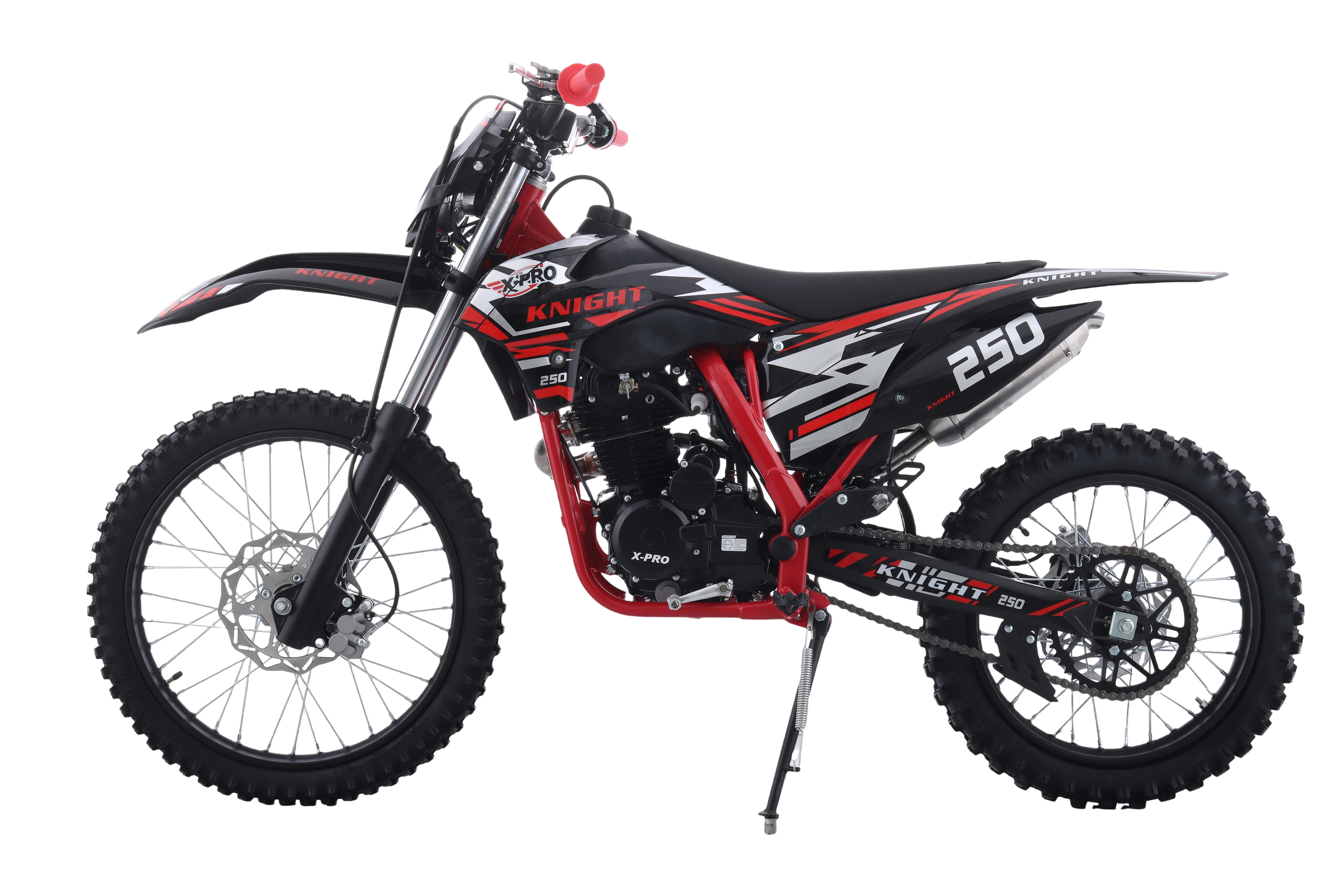

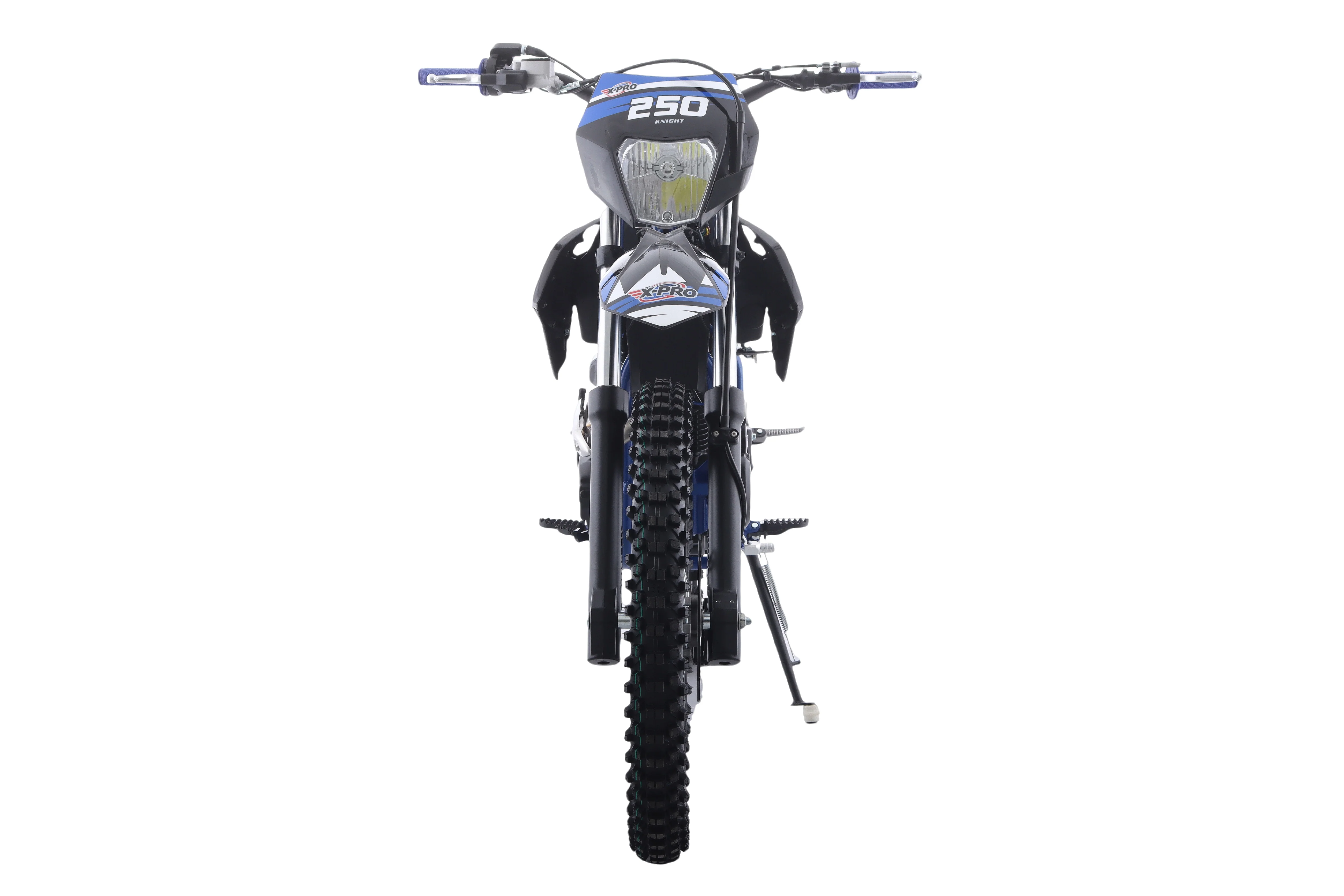

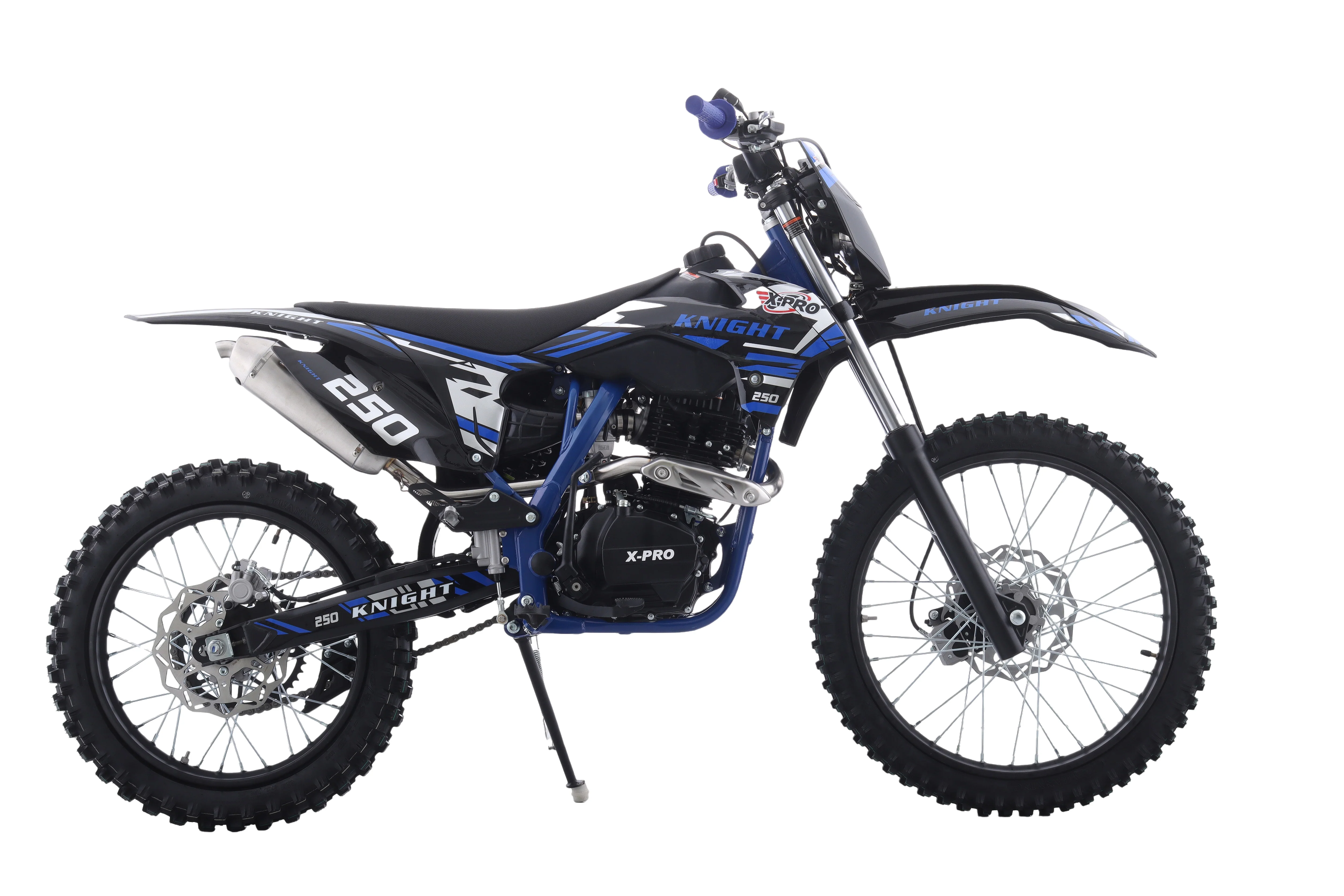

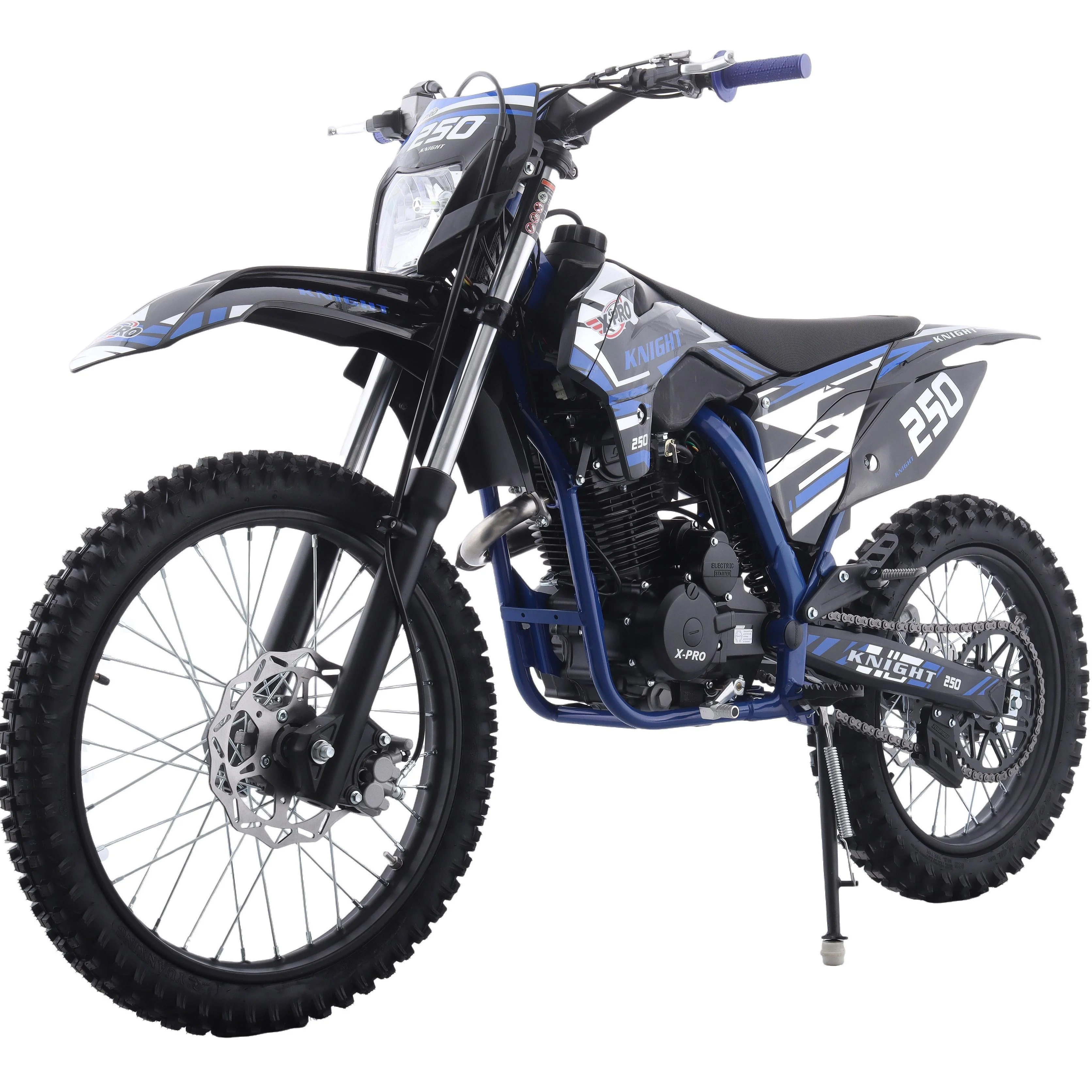

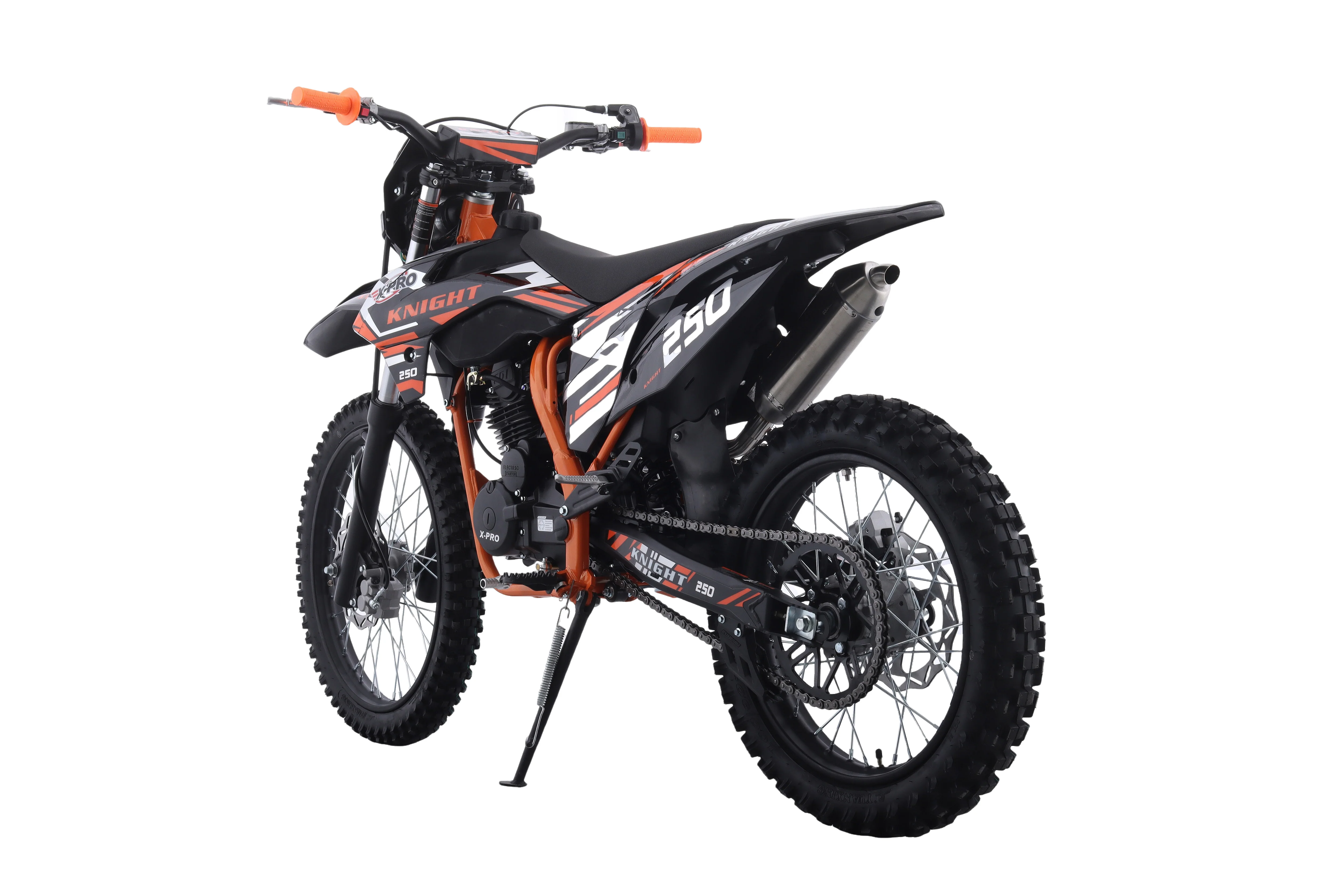

New Upgraded X-PRO Knight 250 Dirt Bike With LED Headlight.

• Main Features:
1. Free Upgraded Good Quality Zongshen Brand Engine($250 value): Comes with 223.6cc Zongshen engine, which is expensive, reliable, powerful and long life span.
2. Free Upgraded LED Headlights($50 value): LED headlights are more efficient than halogen bulbs, resulting in more light and less heat from the same energy used.
3. Free Upgraded Better Quality Muffler ($100 value): Reduce engine exhaust noise and enable high-temperature exhaust gas to be discharged safely and effectively!

• Newest Design Model on the market! 223.6cc Design for Adults!
• 223.6cc Zongshen Brand Engine! High Quality Zongshen Brand Engine, which is expensive, reliable, powerful and long life span.
• 5-Speed Manual Transmission Take fully control of the dirt bike, Pro's Choice!
• Electric & Kick start Electric start for easy starting well the kick start is being used as a back uo plan in any unexpected situations.
• Big 21"/18" knobby wheels get ready for great traction on a variety of tracks and terrain.
• Perimeter Cradle Type Steel Frame: more lighter and stronger with a longer service life, and making big jumps can be much easier.

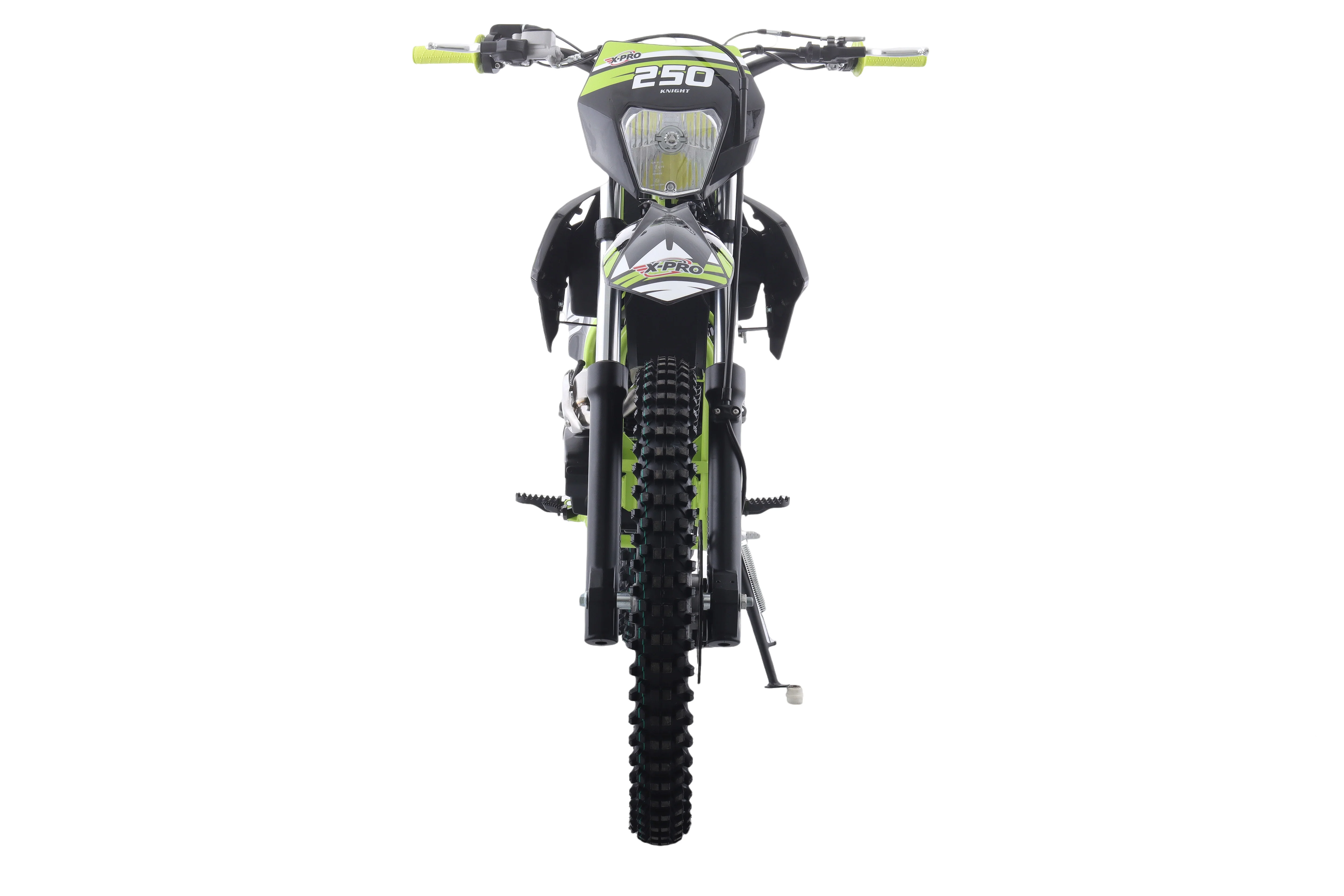

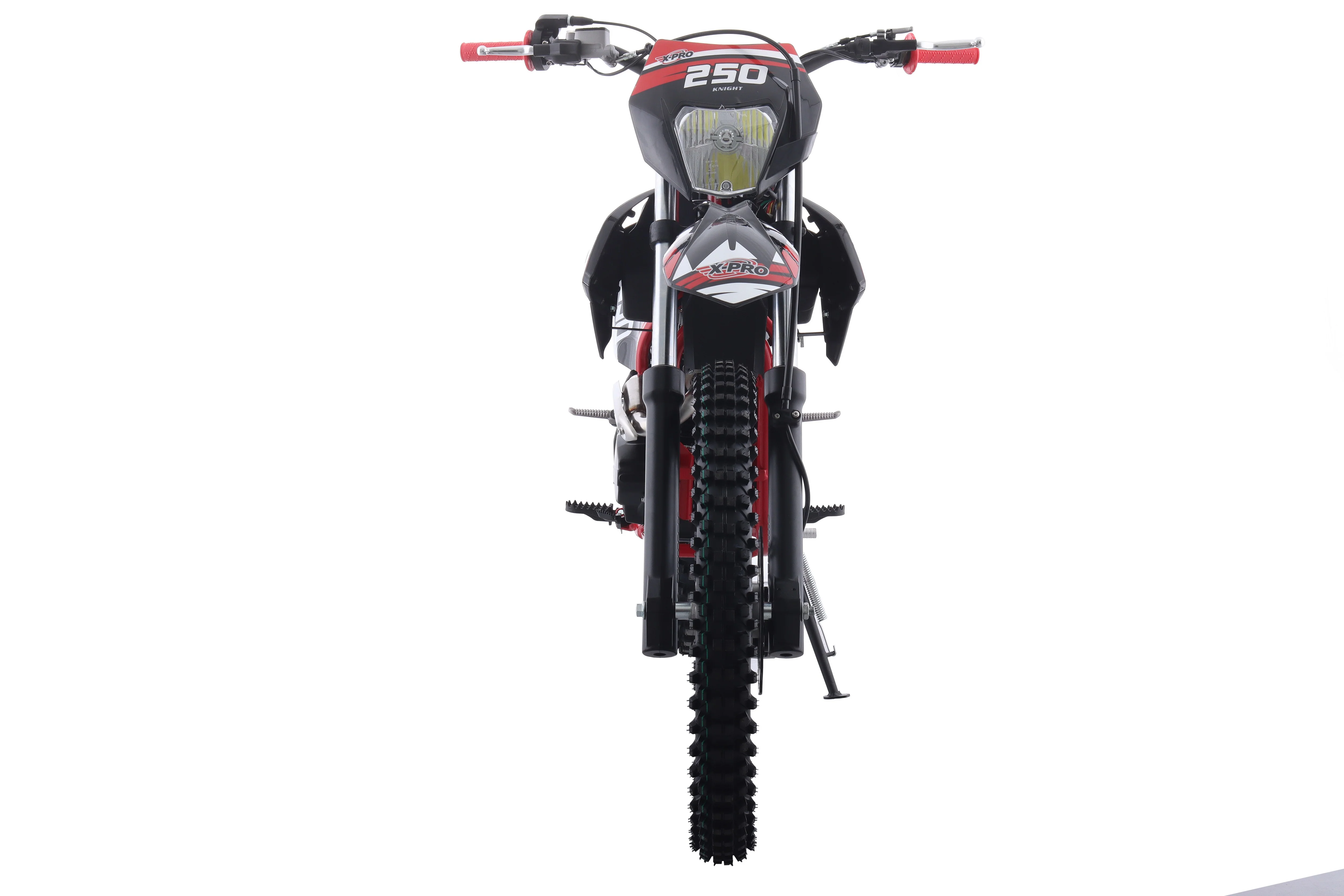

• LED Headlights.
• Front and Rear Hydraulic Disc Brakes provide strong, linear stopping power.
• 52 inch great Wheel-base, which provides great rider control and comfort.
• High Performance Muffler
• Oversized Foot Pegs
• Off Road Use Only
• Some Assembly Required





Specifications

Model Number	DB-K034
Engine/Drive Train
Engine	Zongshen CB223, 223.6cc, 4 stroke
Cylinder Arrangement	Single
Cooling System	Air Cooled
Compression Ratio	9.0:1
Bore x Stroke	Φ65.5×66.2(mm)
Max Power[Kw/r/m]	12/7000kw/r/min
Max Torque[N.m/r/m]	17/5000 N.m/r/min
Transmission	5-UP Manual
Final Drive	Chain Drive
Start System	Kick / Electric
Max Speed (MPH)	60+ (Depending on Riders Weight and Road Conditions)
Ignition Type	CDI
Carburetor	PE28
Battery	12V/5AH
Frame /Body/ Suspension / Brakes
Frame	Perimeter Cradle Type Steel Frame
Front Suspension	Front shock absorber, non-adjustable
Rear Suspension	None-Adjustable shock
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	80/100-21
Rear Tire	100/90-18
Capacities / Dimensions
Weight Capacity (lbs)	176
Net Weight (lbs)	243
Gross Weight (lbs)	282
Overall Length	78.3"
Overall Width	32.7"
Overall Height	47.6"
Carton dimension (L*W*H/in)	67" x 18" x 34"
Seat Height	34"
Wheelbase	52"
Min Ground Clearance	12"
Fuel Capacity	6.5L
Safety / Control
Engine Kill Switch	Yes
Foot Brake	Yes
Headlight	Yes
Others
EPA Approved	Yes
CARB Information	This bike is not legal for sale in California.
