Free shipping! X-PRO 125cc Jeep Go Kart with 3-Speed Semi-Automatic Transmission w/Reverse, LED Headlights, With Windshield and Spare Tire, Big 18in Aluminium Rim Wheels!

Description

CARB Information

This bike is not legal for sale in California.

Assembly

Assembly for MOST Go Karts includes: All four wheels, rear shock, gas tank, roll cage bars, steering wheel, seats, gas lines and battery (may differ per model)

Key Features

New Upgraded X-PRO 125cc Go Kart. Main Features:

1. Free Upgraded 125cc Powerful Zongshen Engine: The engine is located under the seat (the most central position of the cart), makes the go kart remains stable during driving. The distance between the engine and the rear axle is shortened, which makes the bike more tension and powerful.
2. Free Upgraded 18 Aluminum Rim Wheels: Aluminum rims installed on all 4 tires + spare tire! We have upgraded the tires on the X-PRO Mini Jeep 125cc to perform in all terrains, including, but not limited to: snow, mud, grass, rocks, etc.
3. High Weight Capacity with Extra Tank and Spare Tire: The weight capacity for this go kart can be up to 350lbs which can carry one adult and one child, just have fun with your child. The extra tank and spare tire at back side will save you from emergency.
4. Stylish US Army Design Cool Jeep Car style with one-piece fully transparent plastic windshield and latest full-round rearview mirrors, plus the shining body painting makes this kart awesome and eye-catching.

• X-PRO 125cc Go Kart is equipped with a Semi-Automatic (3-Speed + Reverse) Transmission.
• Front and Rear Hydraulic Disc brake provides sure and efficient stopping power in a variety of conditions.
• Electric Starting provides much easier control and handling, and gives the rider the great convenience in the event of a stall.
• Durable chain drive, which is really great. Chains are easy to repair and replace.
• Big LED Headlights.
• Big front and rear 18 Chrome Wheels
• Some Assembly Required.

Specifications

Model Number	GK-U01
Engine/Drive Train
Engine	Zongshen Brand 125cc, 4 stroke, 1-cylinder
Cooling System	Air Cooled
Max Horsepower	5.9KW/7500r/min
Max Torque	9.5N.m/5500r/min
Bore Stroke	54x54
Compression Ratio	9.0:1
Transmission	Semi-Automatic (1 Reverse + N + 3-speed)
Max Speed (MPH)	35+ (Depending on Riders Weight and Road Conditions)
Final Drive	Chain Drive
Start System	Electric
Carburetor	PZ22
Ignition	CDI
Battery	12V/9Ah
Frame /Body/ Suspension / Brakes
Front Suspensions	Hydraulic Spring Shock Absorber
Rear Suspensions	Hydraulic Spring Shock Absorber
Front Brakes	Hydraulic Disc
Rear Brakes	Hydraulic Disc
Front Tires	18x7-8 Alloy Rim
Rear Tires	18x7-8 Alloy Rim
Capacities / Dimensions
Weight Capacity(lbs)	350
Net Weight (lbs)	330
Gross Weight (lbs)	364
Overall Length	76.5
Overall Width	43.3
Overall Height	28.3
Package Size	76*45*22
Seat Height	24.4
Wheelbase	49.6
Ground Clearance	11
Fuel Capacity	7L
Safety / Control
Foot Brake	Yes
Horn	Yes
Headlights	Yes, LED
Tail lights	Yes
Turn Signal Indicators	Yes
Others
EPA Approved	Yes

Gallery

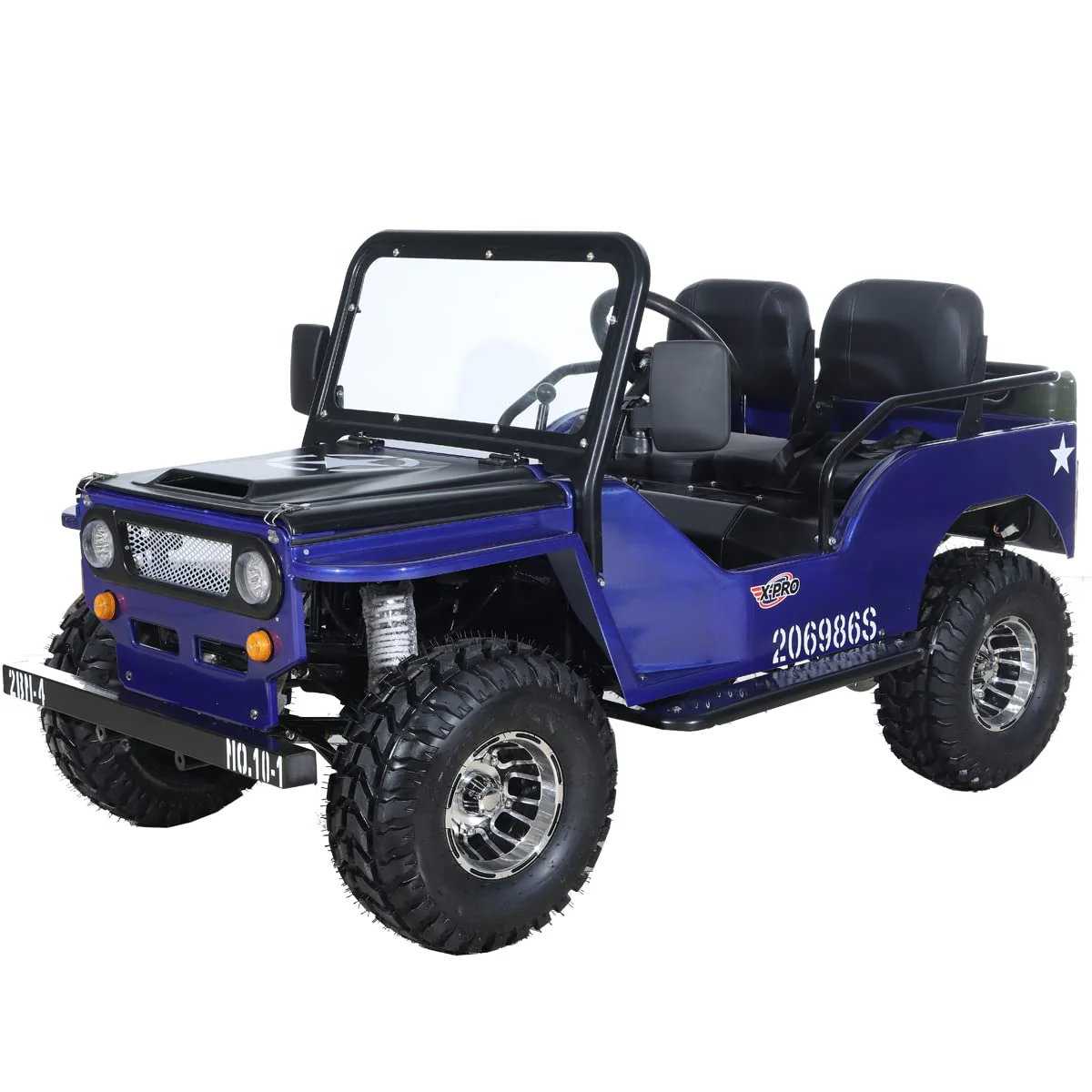

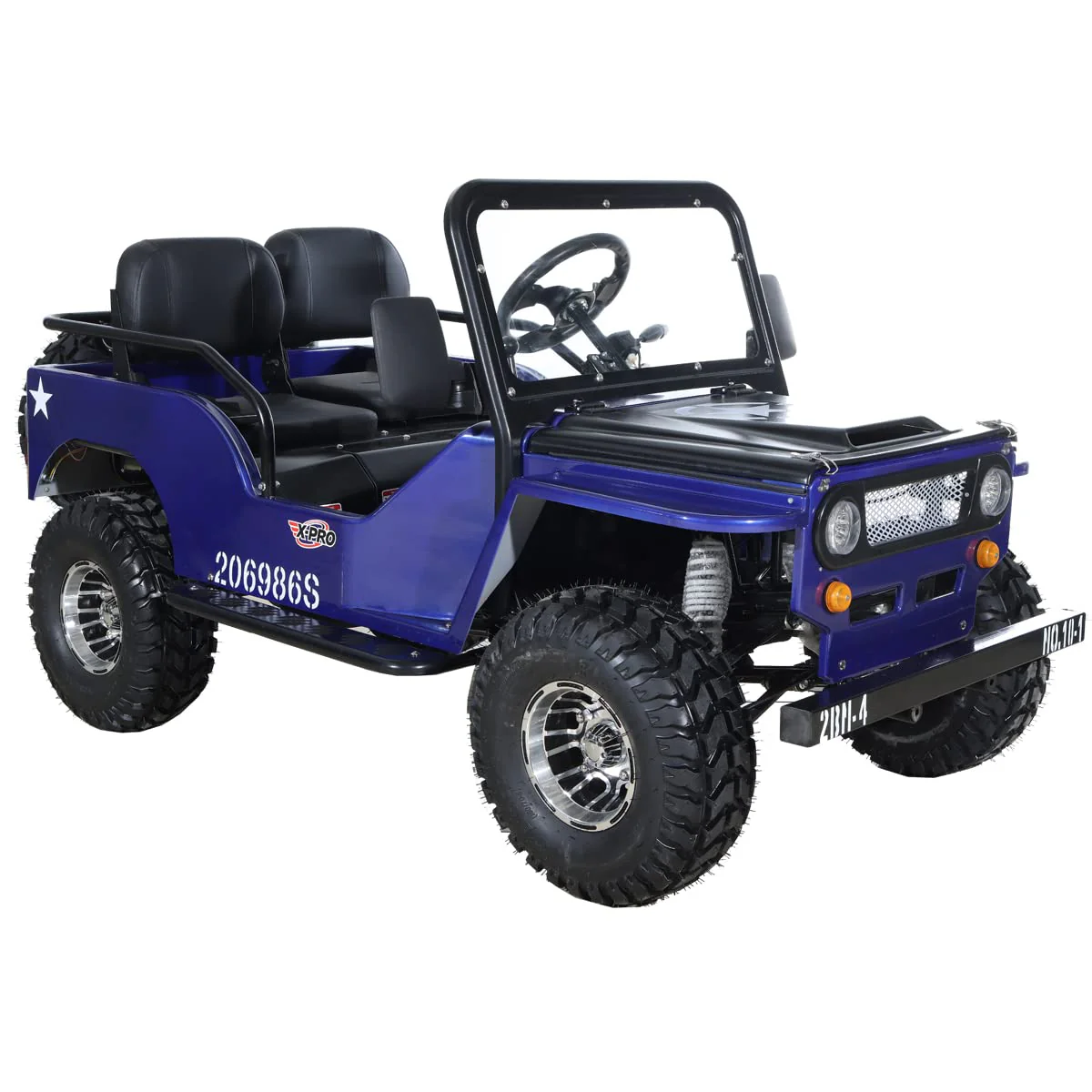

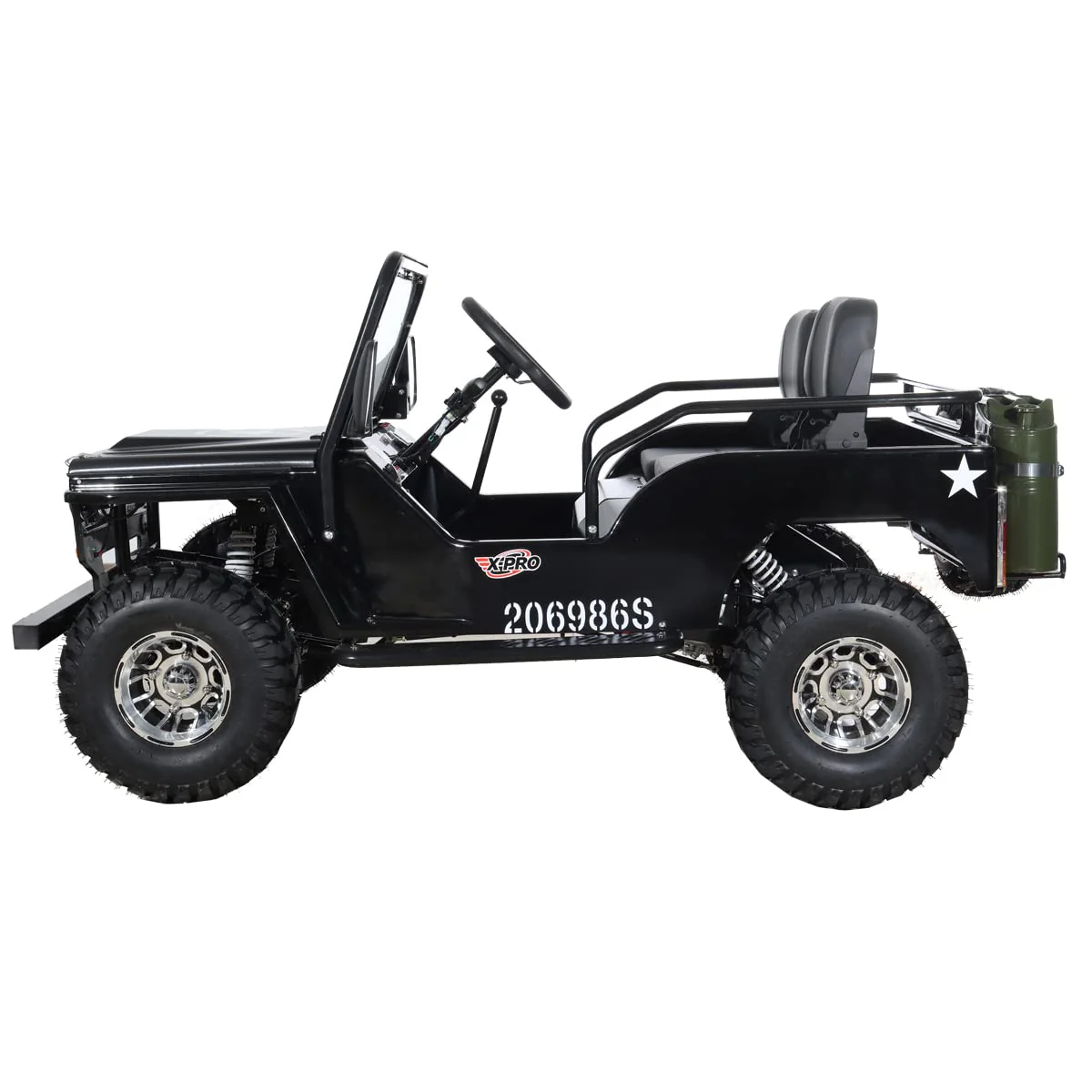

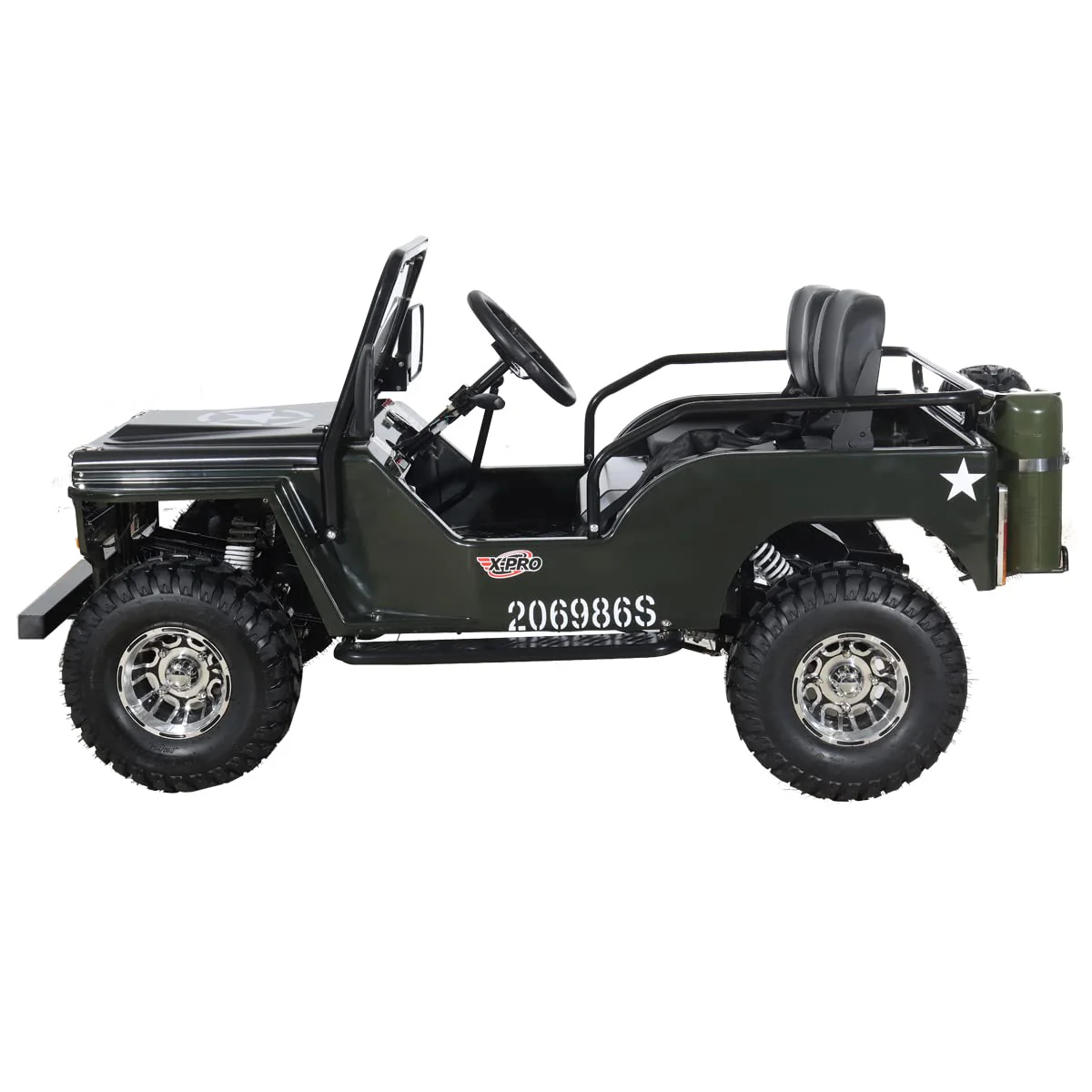

Different Colors

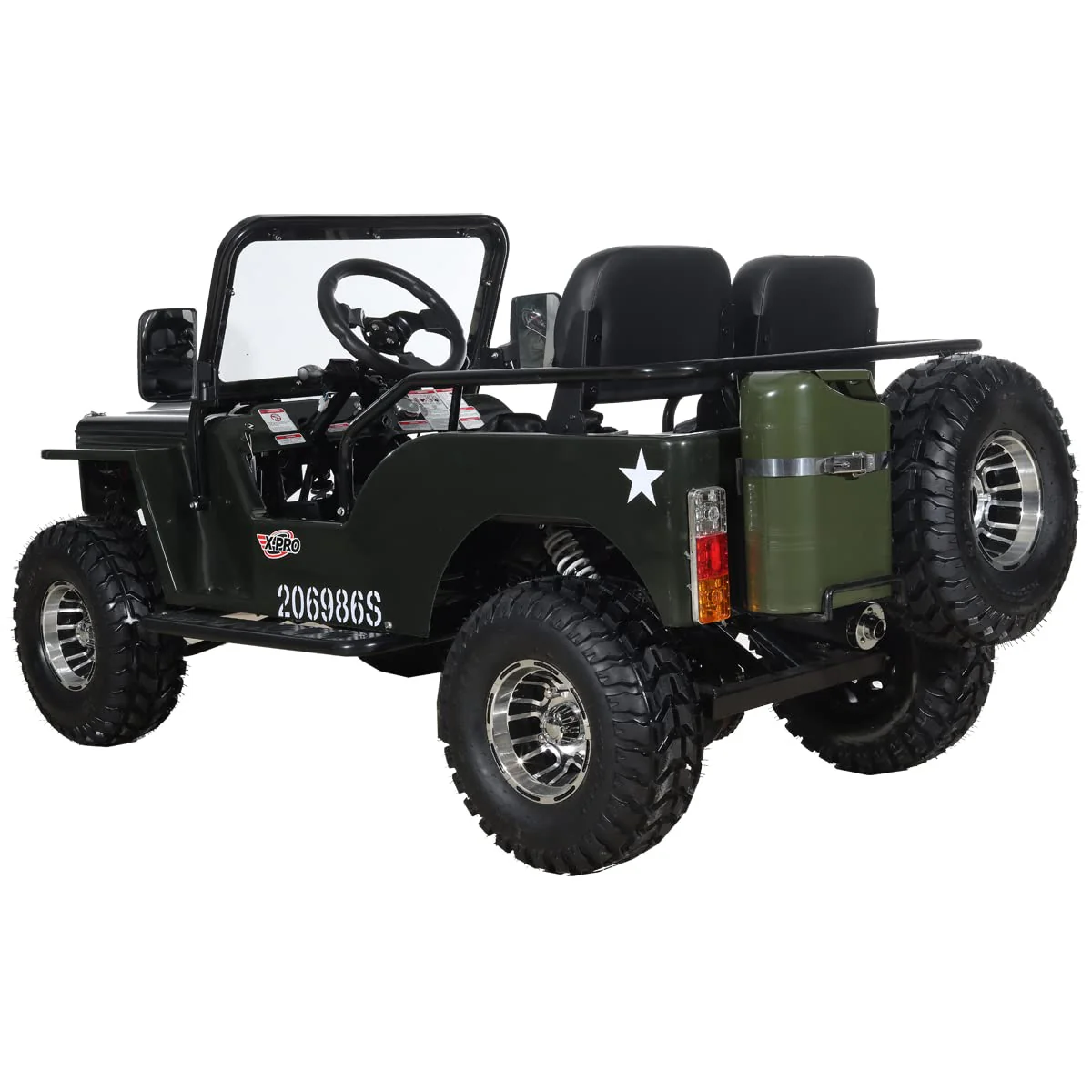

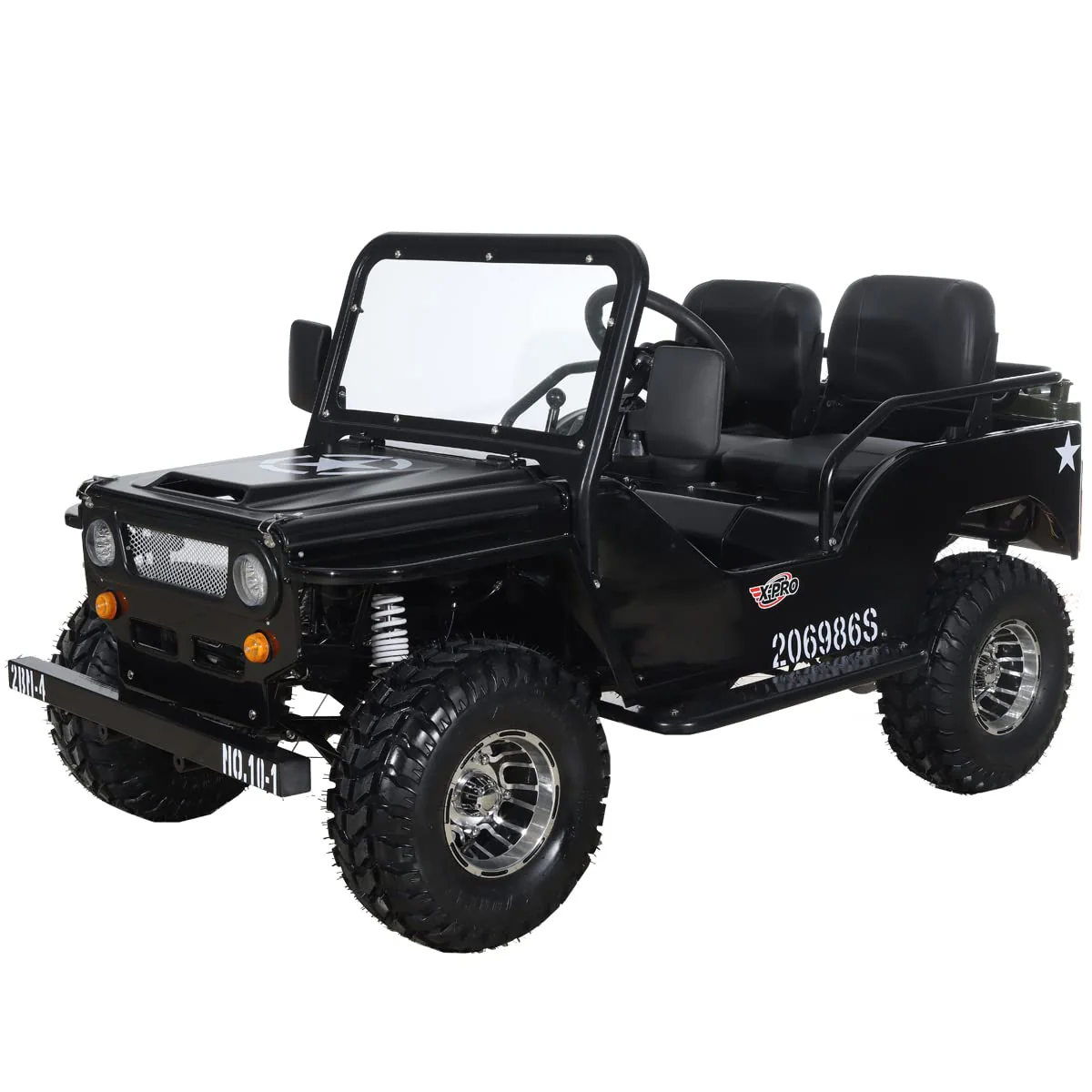

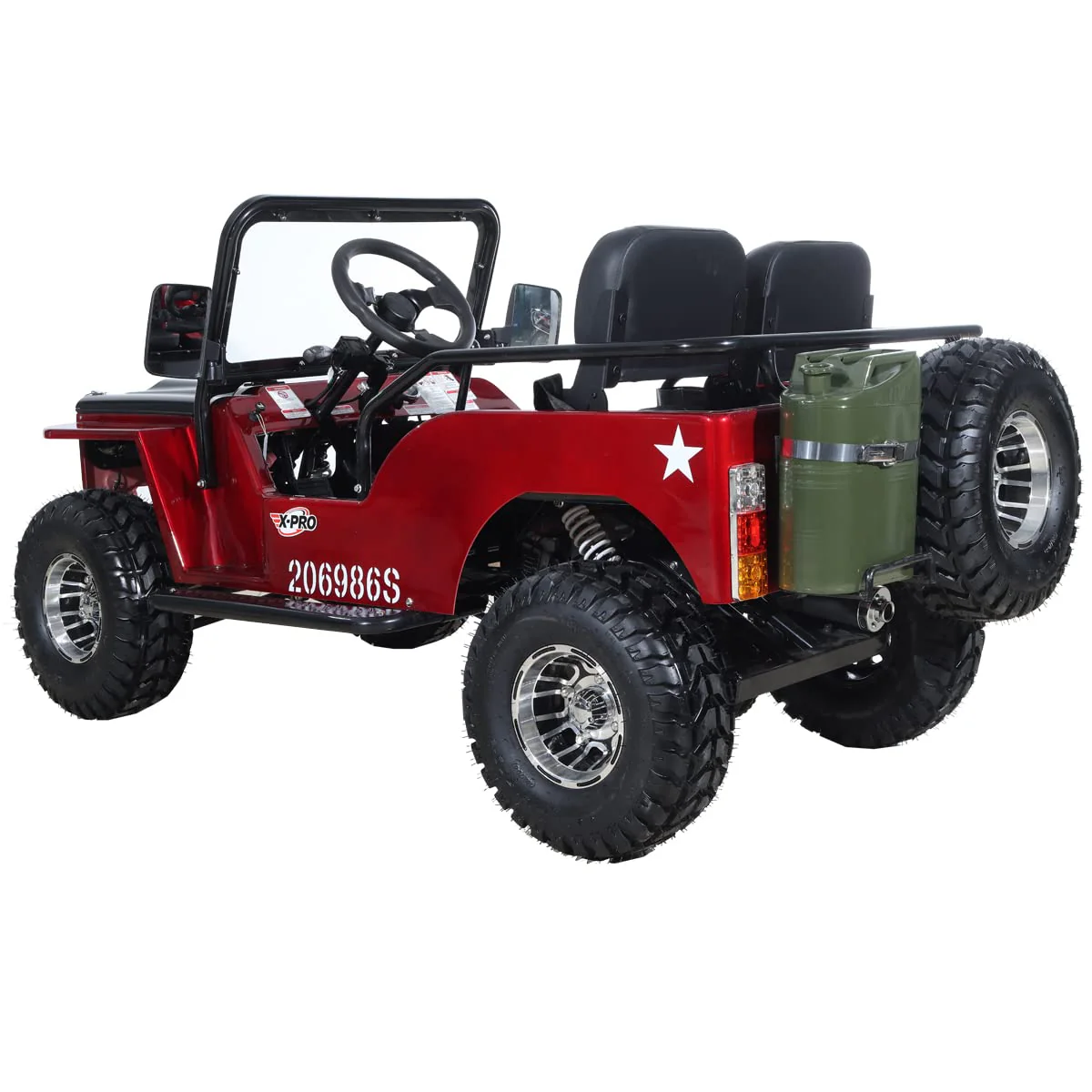

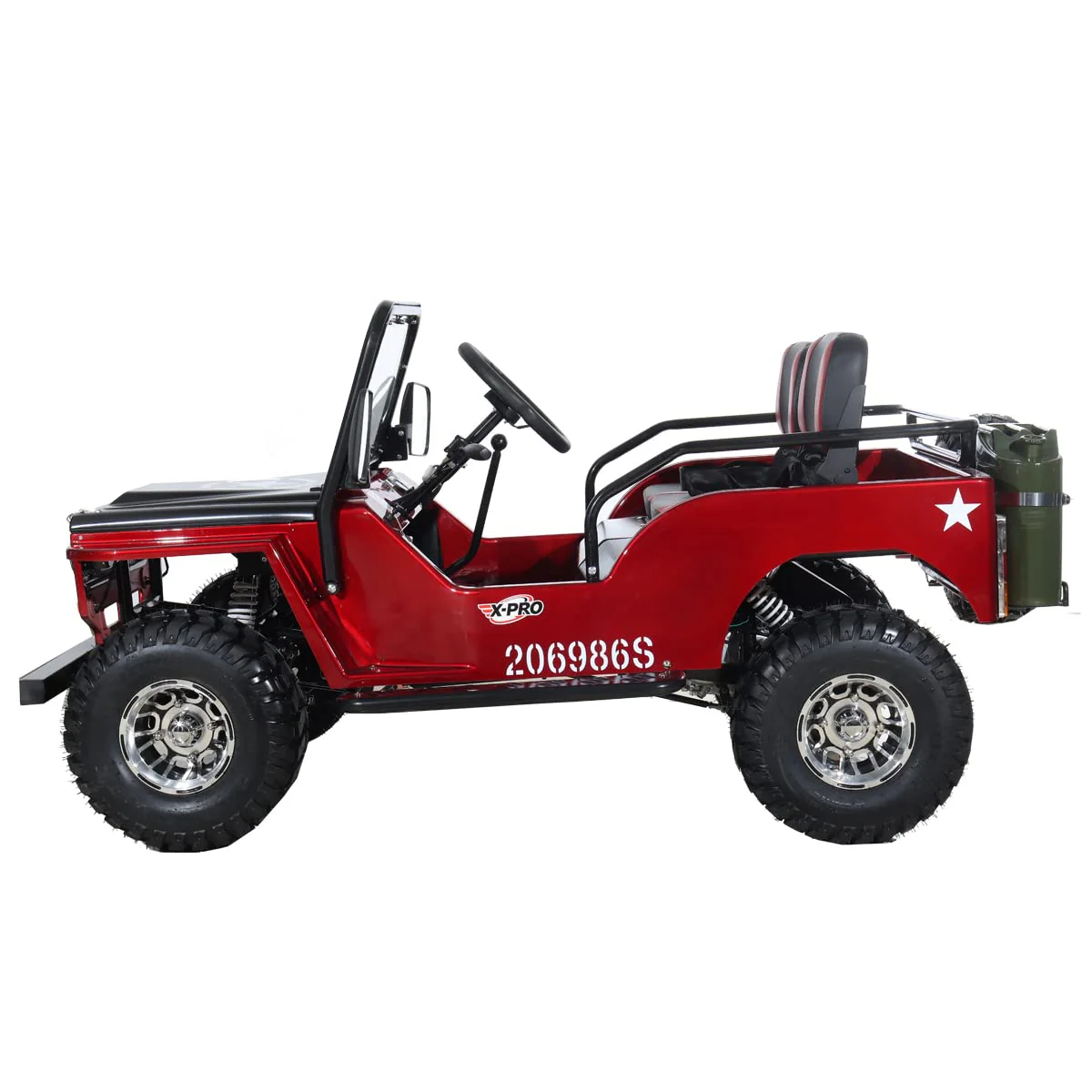

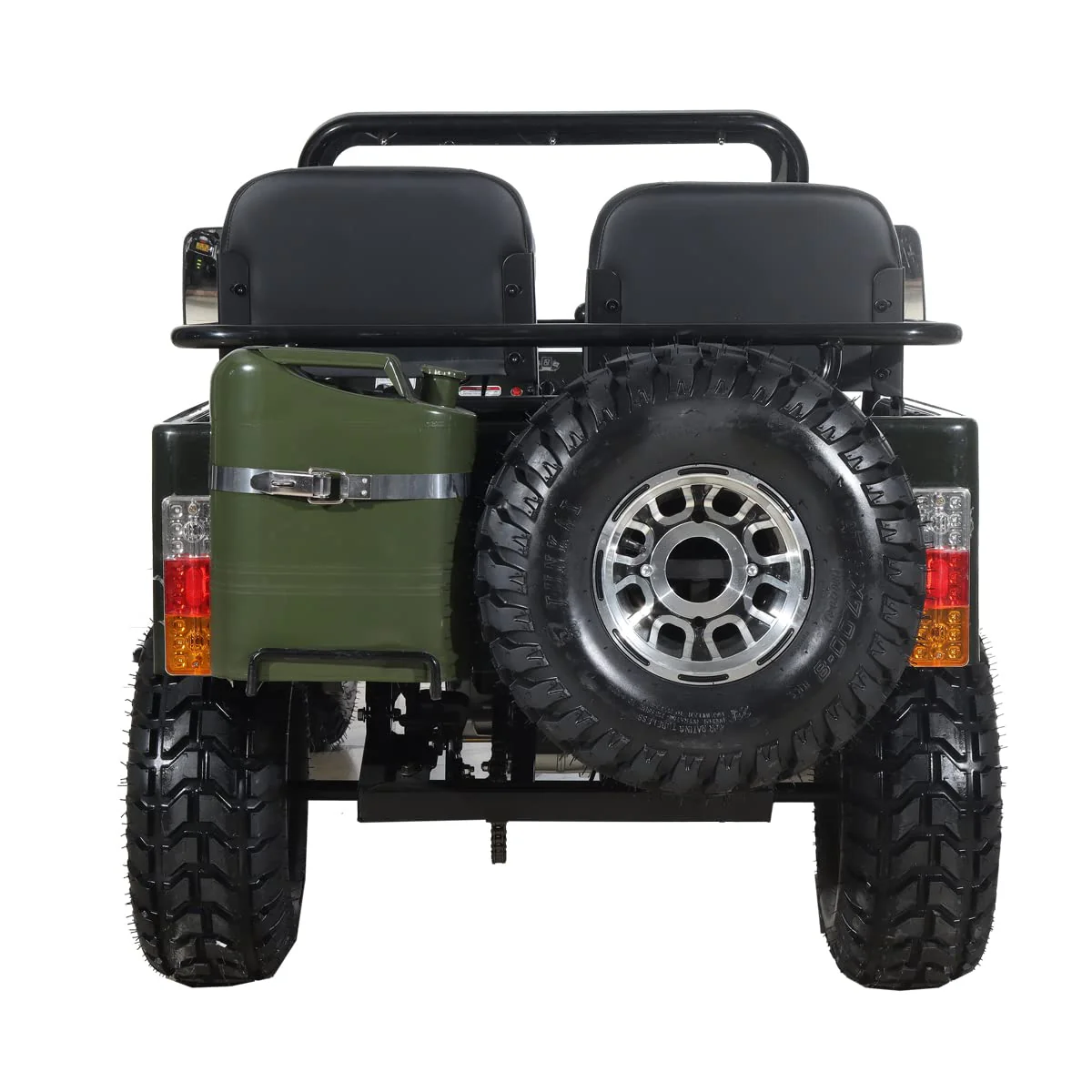

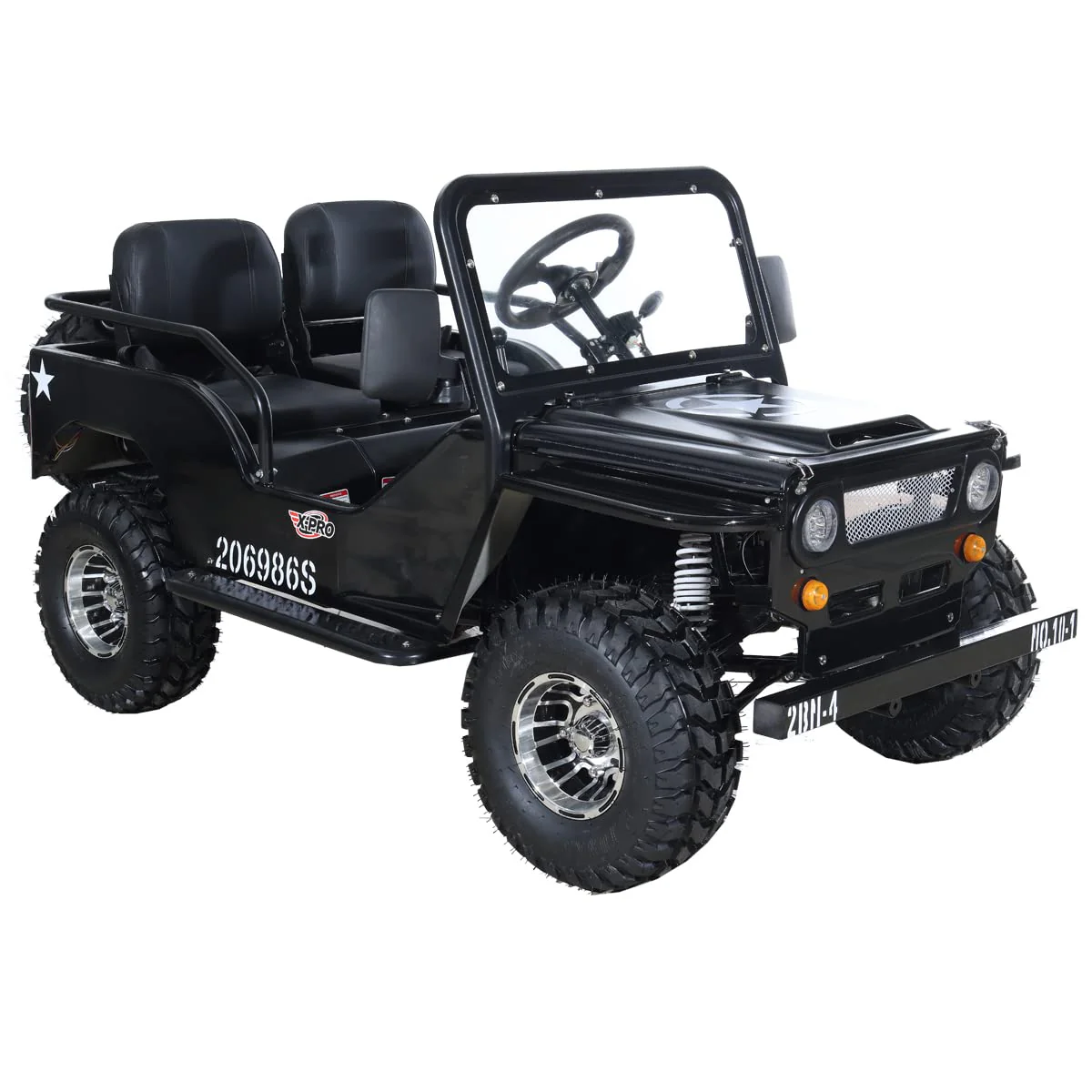

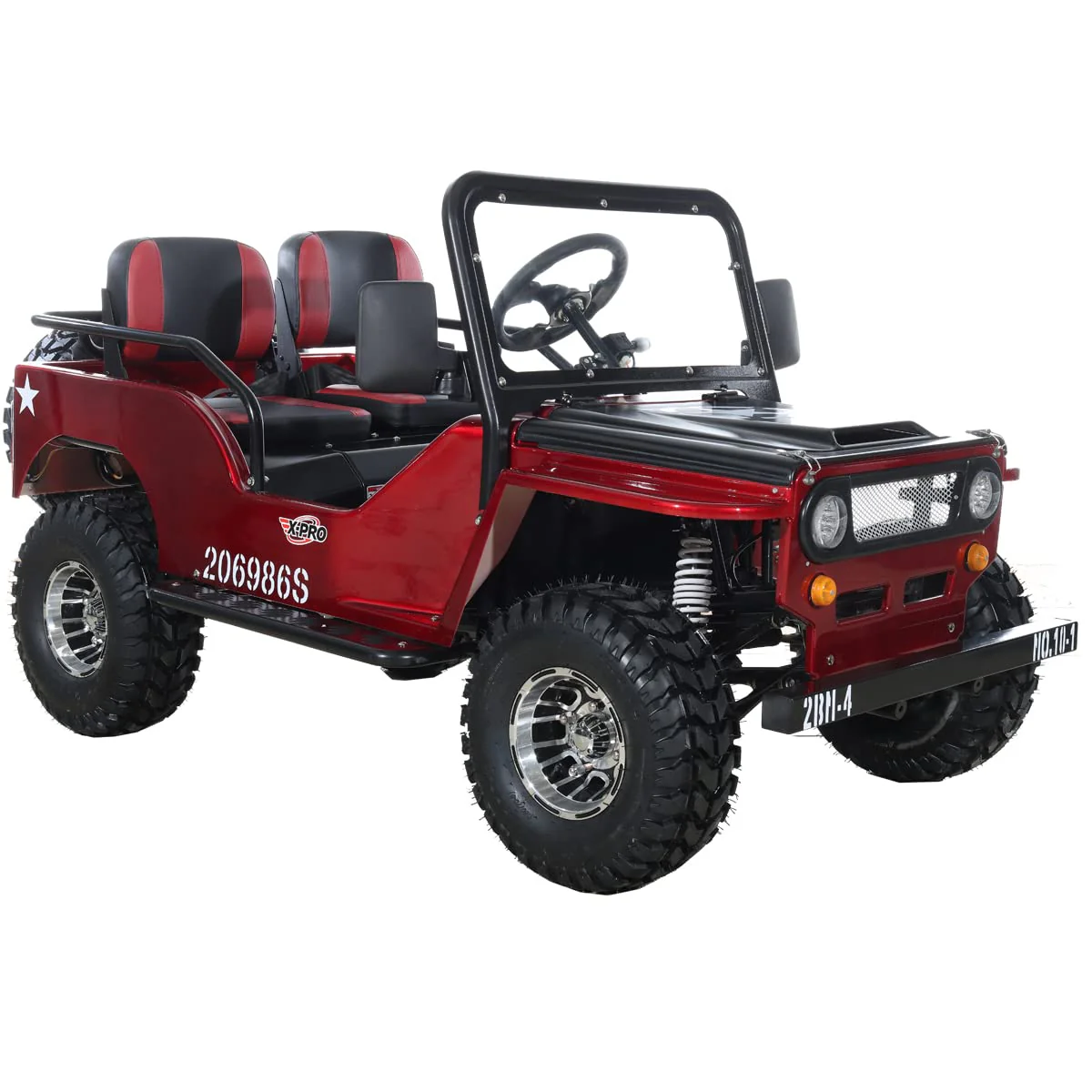

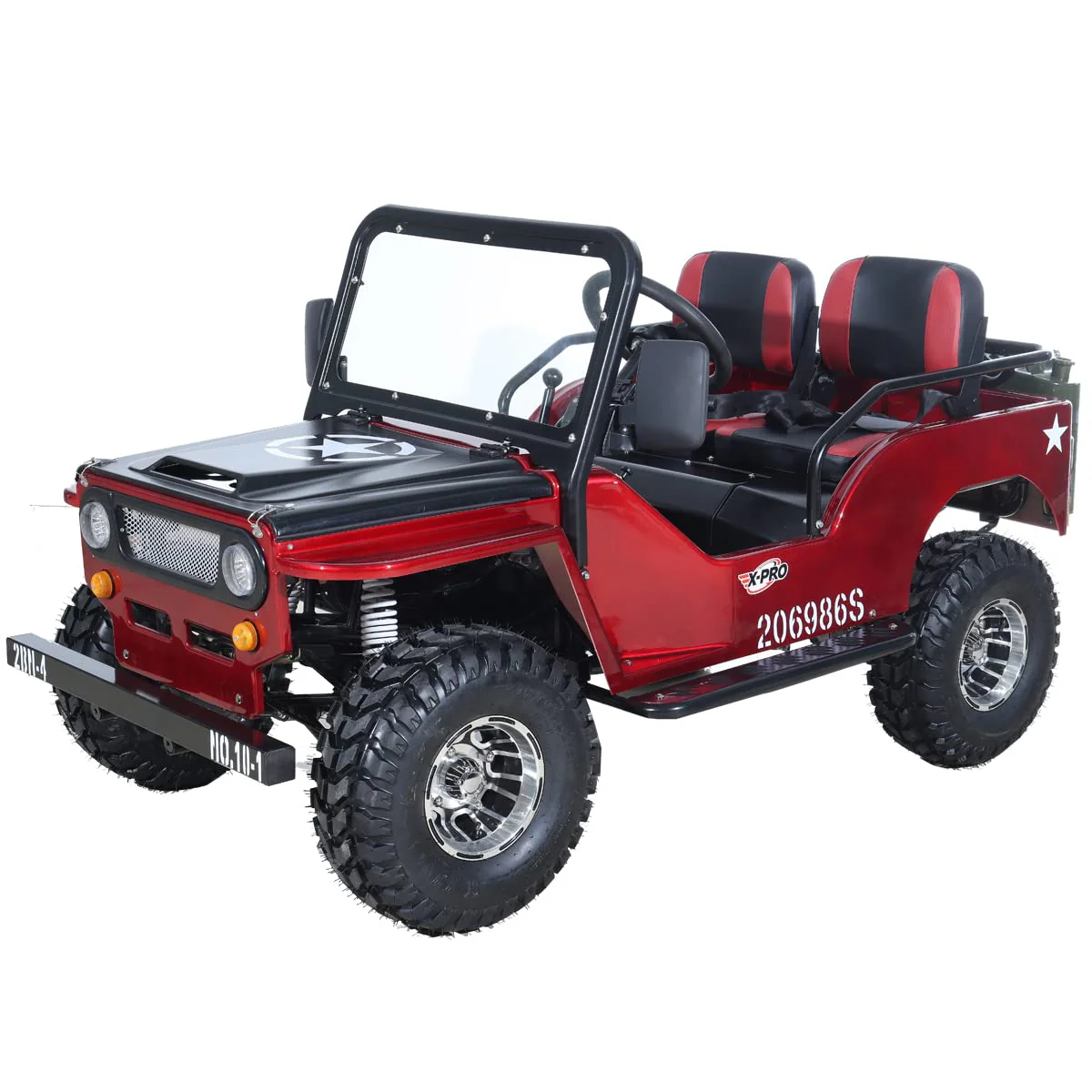

Different Angles
