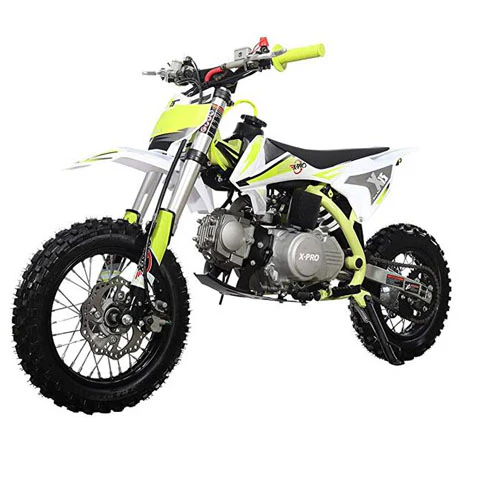

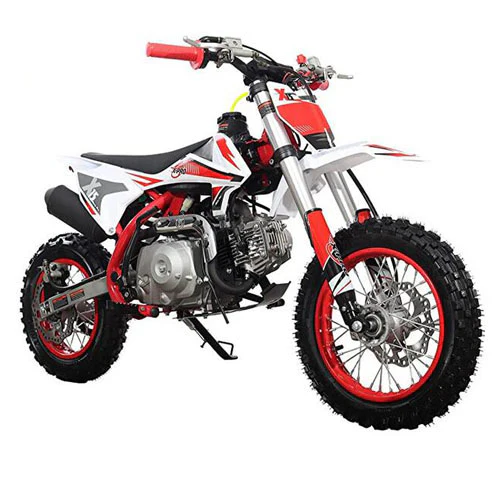

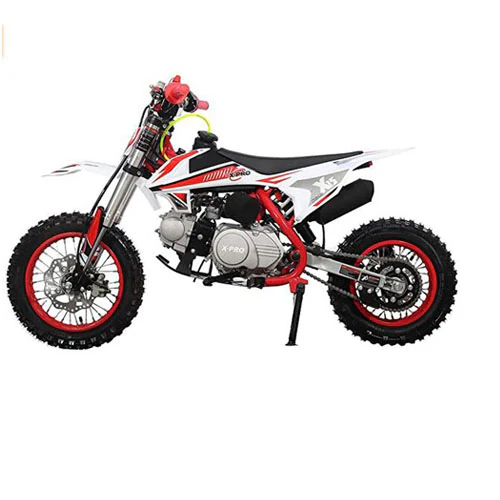

Free Shipping! X-PRO X15 110cc Dirt Bike with Semi-Automatic Transmission, Kick Start, Hydraulic Disc Brake! Chain Drive! 12in/10in Wheels!
Free Shipping! X-PRO X15 110cc Dirt Bike with Semi-Automatic Transmission, Kick Start, Hydraulic Disc Brake! Chain Drive! 12in/10in Wheels!
Description
CARB Information
This bike is not legal for sale in California.
Assembly
Assembly for MOST dirt bikes includes: Handle bar brackets (c-clamps), front wheel, front brake, number plate and front fender. (May differ per model)
Â
Key Features
New Upgraded X-PRO X15 110cc Dirt Bike. Main Features:
- Free Upgraded Cradle Type Steel Tube Frame ($150 value): with greater strength and rigidity, and better stability during frequent acceleration and braking.
- Free Upgraded Inverted Front Forks ($100 value): Has the advantages of favorable shock insulating effect, long service life, safety and better stability.
- Free Upgraded Steel Pipe with Catalyst Converter(EPA )($80 value): It reduces air pollution; equipped with catalytic converter, which reduces emissions of harmful compounds.
- Free Upgraded Stylish with Beautiful Color Design($30 value): Color matching design on wheel rims, handle bars and frame bar with plastic decals make this dirt bike unique and eye-catching in the neighborhoods.

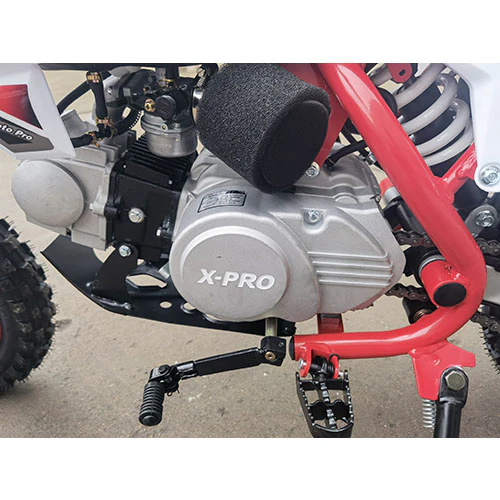

- FAST! 110cc Four Stroke, Single Cylinder, Force Air Cooled Engine
- Semi-Automatic Transmission with Kick Start
- Front 2.75-12 and Rear 3.0-10" Tire
- Front Hydraulic Double Piston Caliper, 190mm Disc and Rear Hydraulic Single Piston Caliper, 190mm Disc.
- Cradle Type Steel Tube Frame.
- Steel Pipe with catalyst converter(EPA).
- 0.92 gallon Fuel Tank
- Some Assembly Required: Need to assemble front shock, front wheels, handlebars and front disc brake.
Specifications
| Model Number | DB-K005 |
| Engine/Drive Train | |
|---|---|
| Engine | 1P52MH, 107cc, 4-Stroke |
| Cylinder Arrangement | Single |
| Cooling System | Air Cooled |
| Compression Ratio | 9.0:1 |
| BorexStroke | Ф52.4×49.5mm |
| Max Power[Kw/r/m] | 5.0/8000±500 kw/r/min |
| Max Torque[N.m/r/m] | 7.5/5500±500 N.m/r/min |
| Transmission | Semi-Automatic |
| Start System | Kick start |

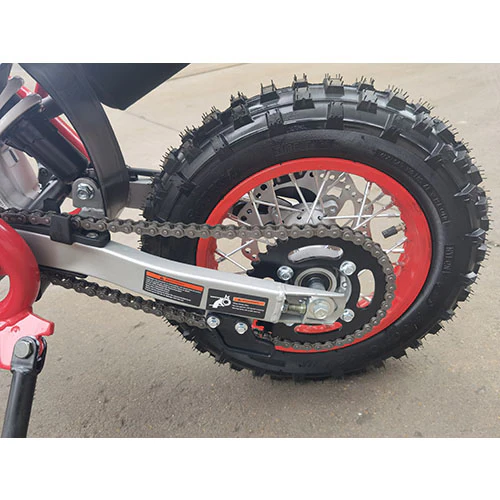

| Final Drive | #420 Chain, FT: 14T/RR: 39T Sprocket |
| Carburetor | PZ22 Jingke Carburetor |
| Ignition Type | C.D.I |
| Max Speed (MPH) | 35+ (Depending on Riders Weight and Road Conditions) |
| Frame /Body/ Suspension / Brakes | |
| Frame | Cradle Type Steel Tube Frame |
| Front Fork | Inverted ï¿ 39*ï¿ 42*590mm Forks, Non-Adjustable |
| Rear Fork | 12*270mm None-Adjustable Shock |
| Front Disc | Hydraulic Double Piston Caliper, 190mm Disc |
| Rear Disc | Hydraulic Single Piston Caliper, 190mm Disc |
| Front Tire | 2.75-12" |
| Rear Tire | 3.0-10" |
| Exhaust/Pipe | Steel Pipe with catalyst converter(EPA) |
| Capacities / Dimensions | |
| Weight Capacity(lbs) | 165 |
| Gross Weight (lbs) | 125.7 |
| Net Weight (lbs) | 116.4 |
| Overall Length | 61" |
| Overall Width | 28" |
| Overall Height | 40.6" |
| Carton Dimension | 45 x 14 x 21" |
| Seat Height | 24" |
| Wheelbase | 39.8" |
| Ground Clearance | 6.7" |
| Fuel Capacity | 3.5 L/0.92 Gal |
| Safety / Control | |
| Engine Kill Switch | Yes |
| Others | |
| EPA Approved | Yes |
| D.O.T Approved | Yes |
|
|
|
Gallery

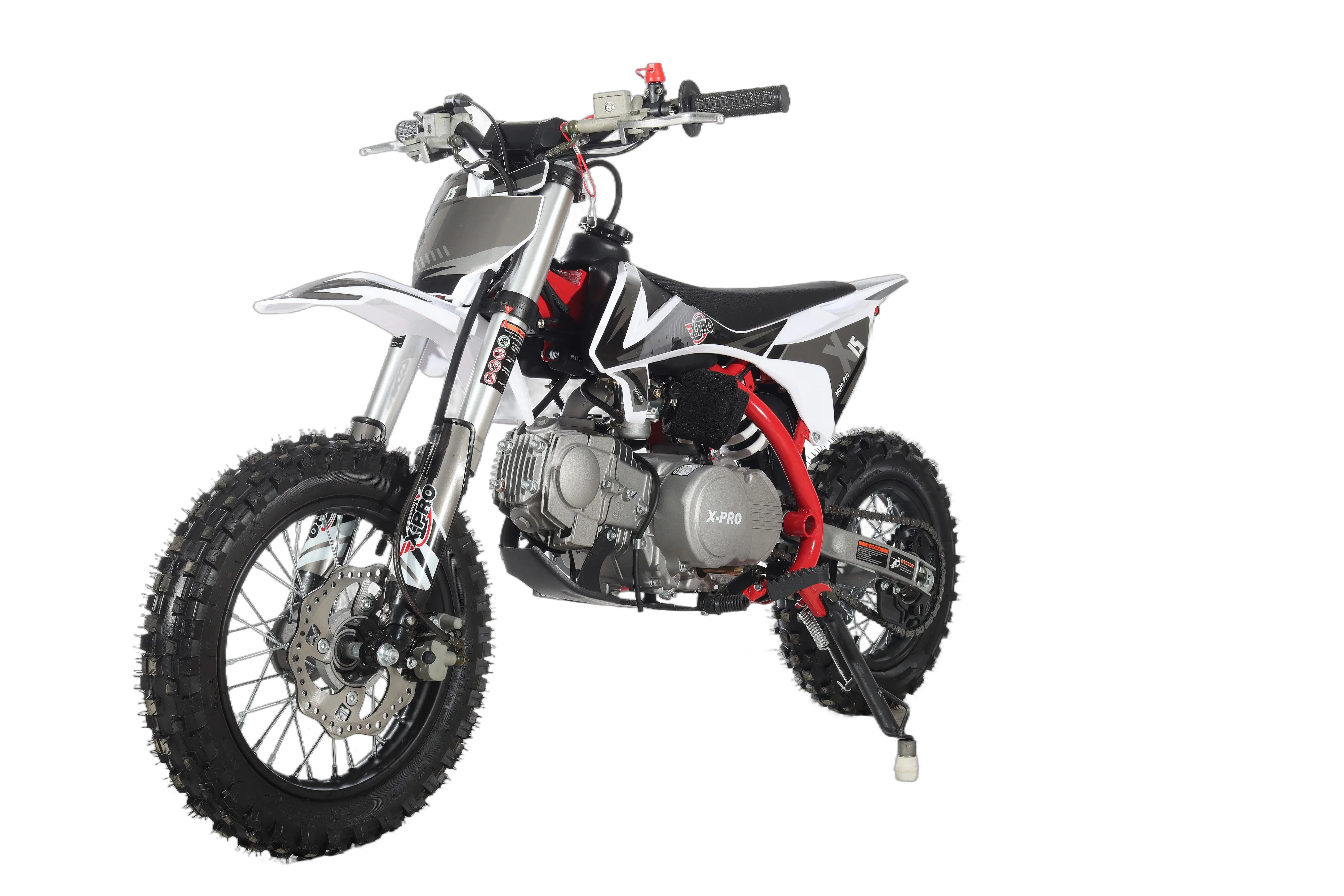

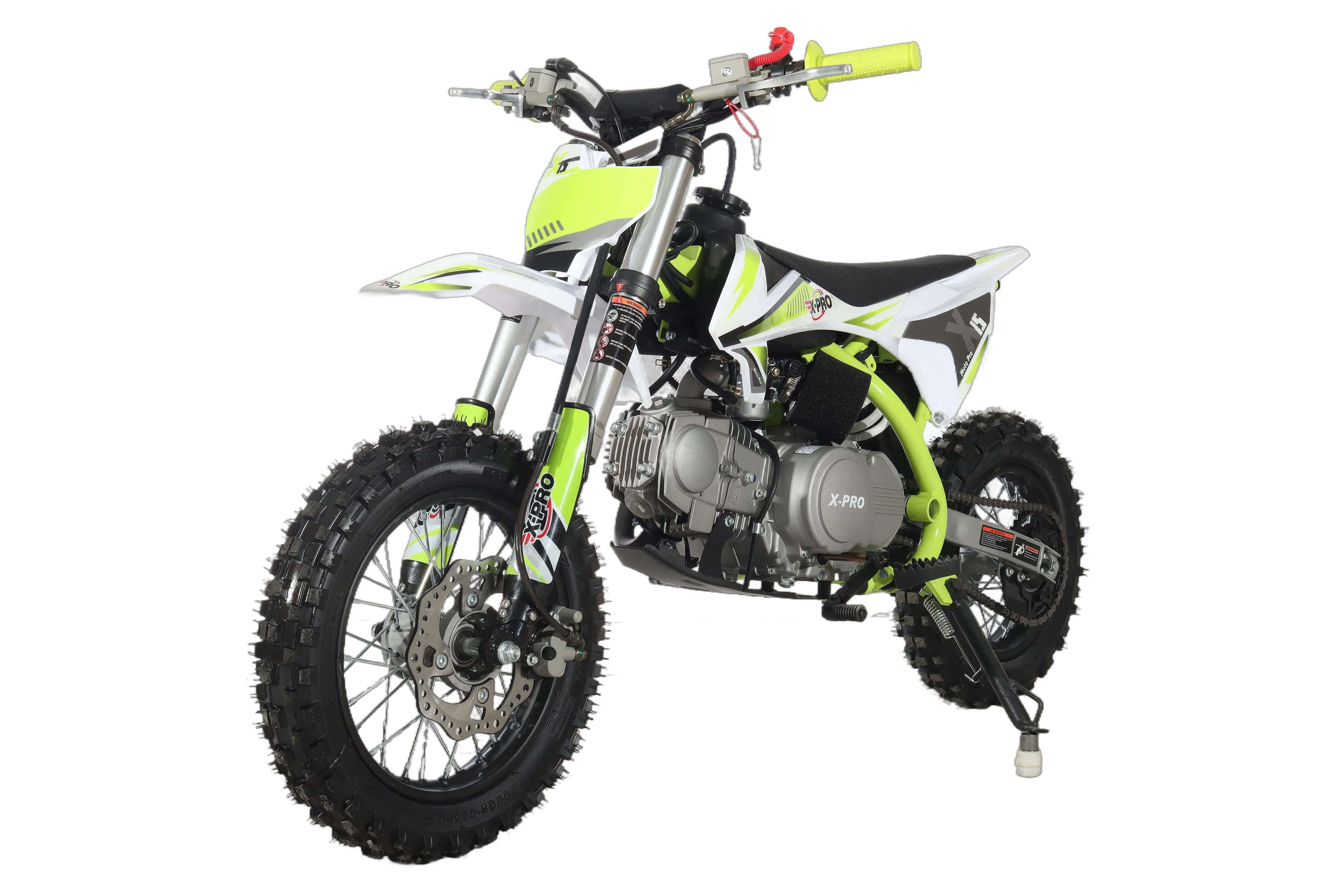

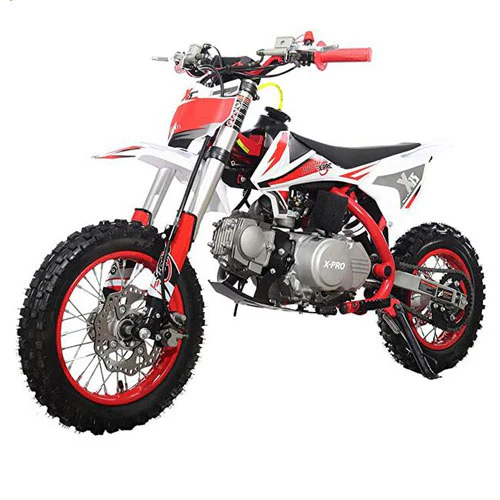

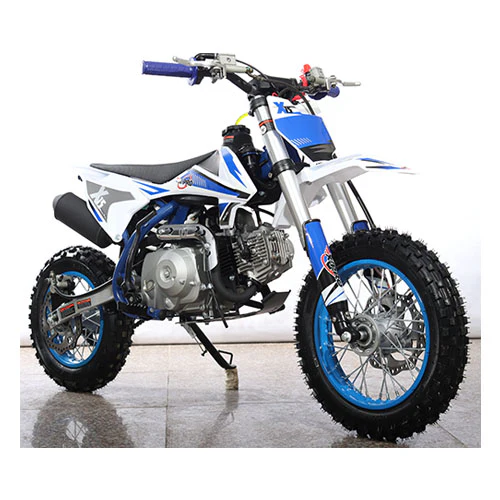

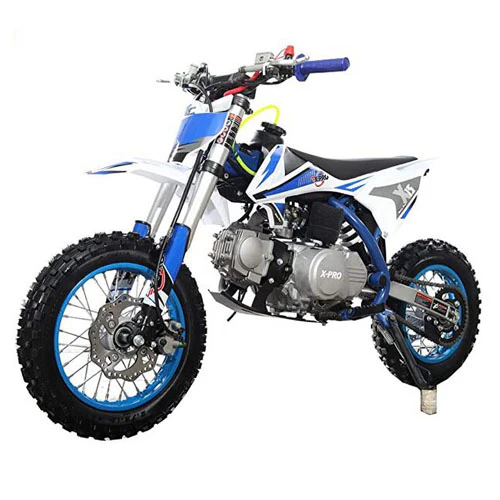

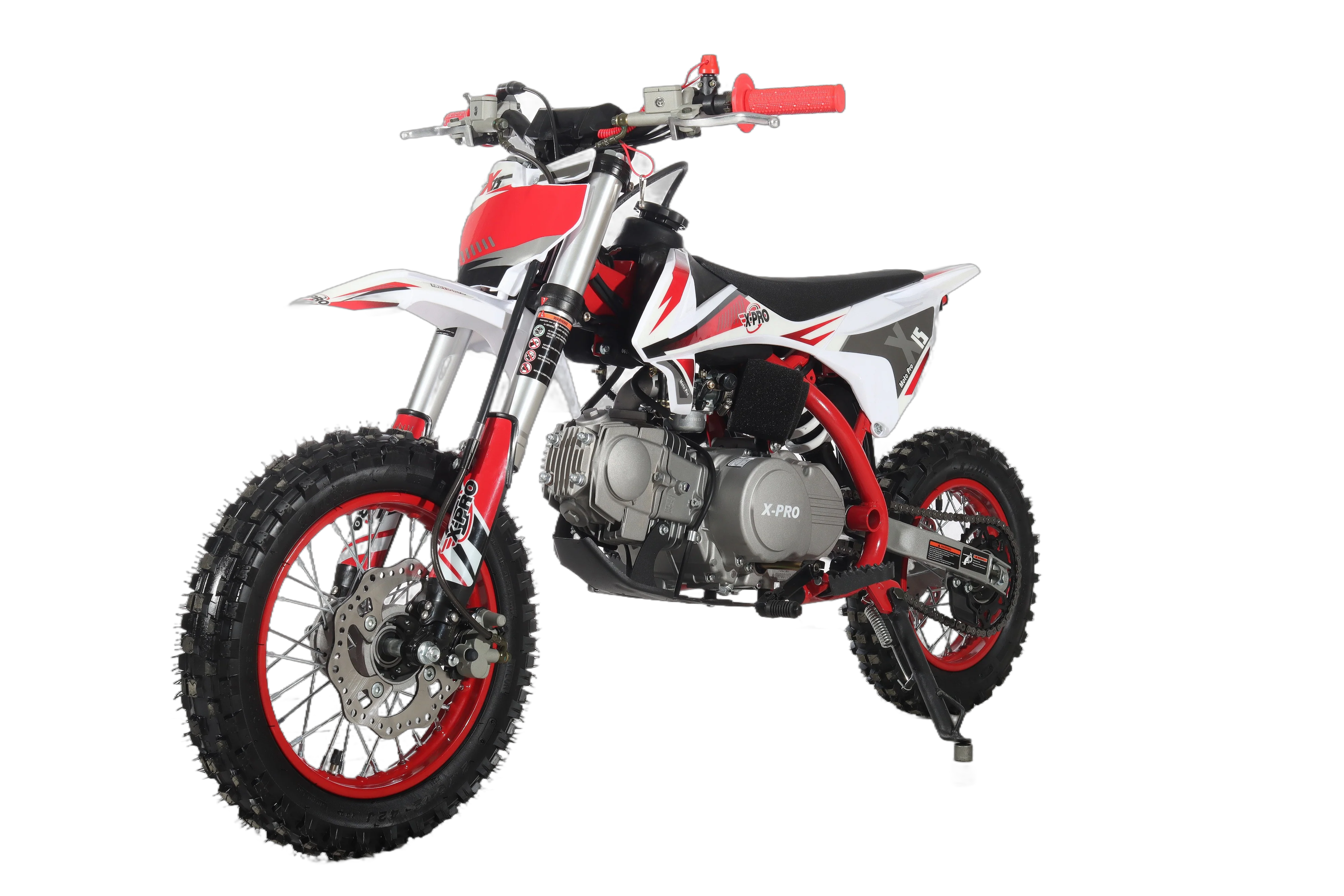

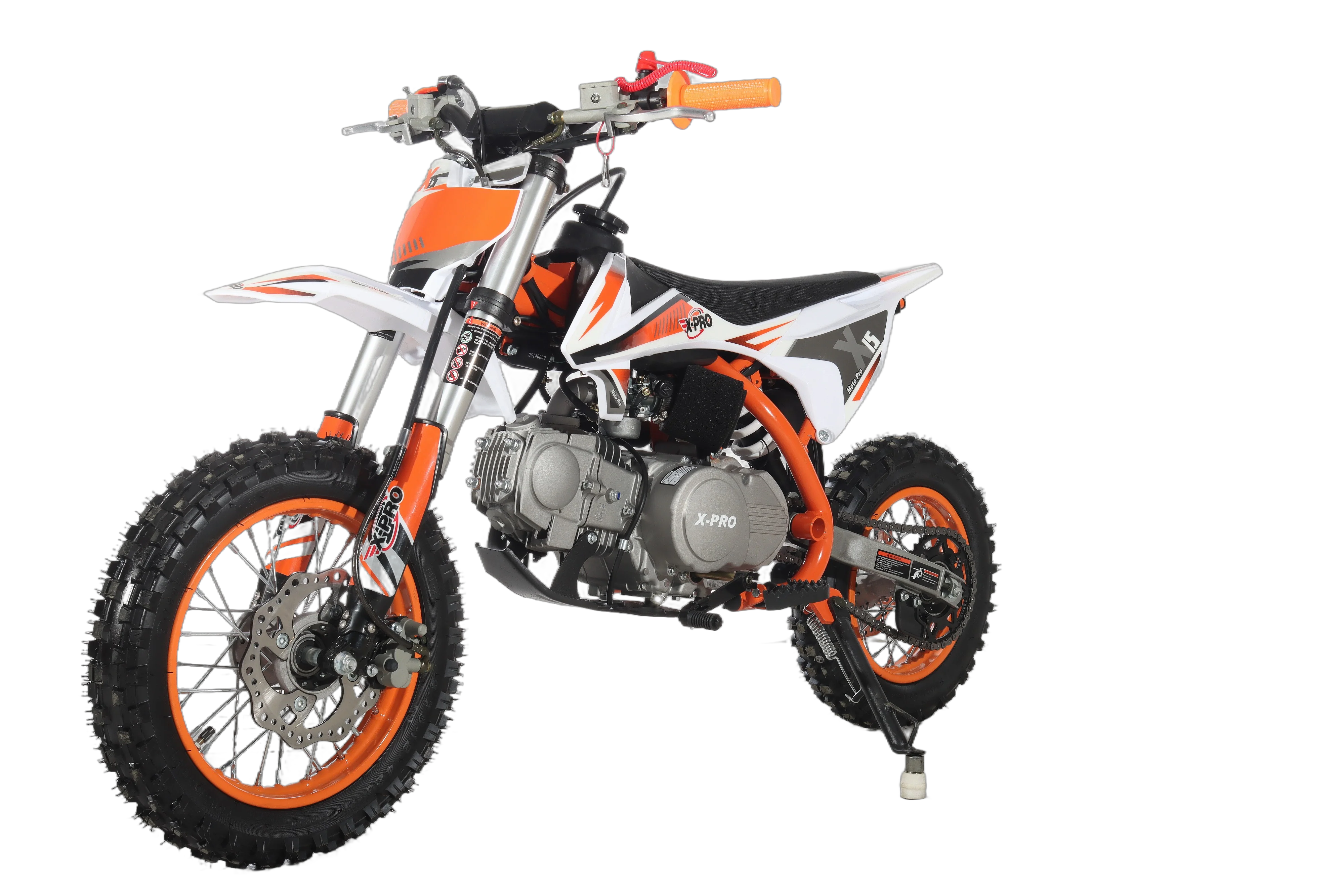

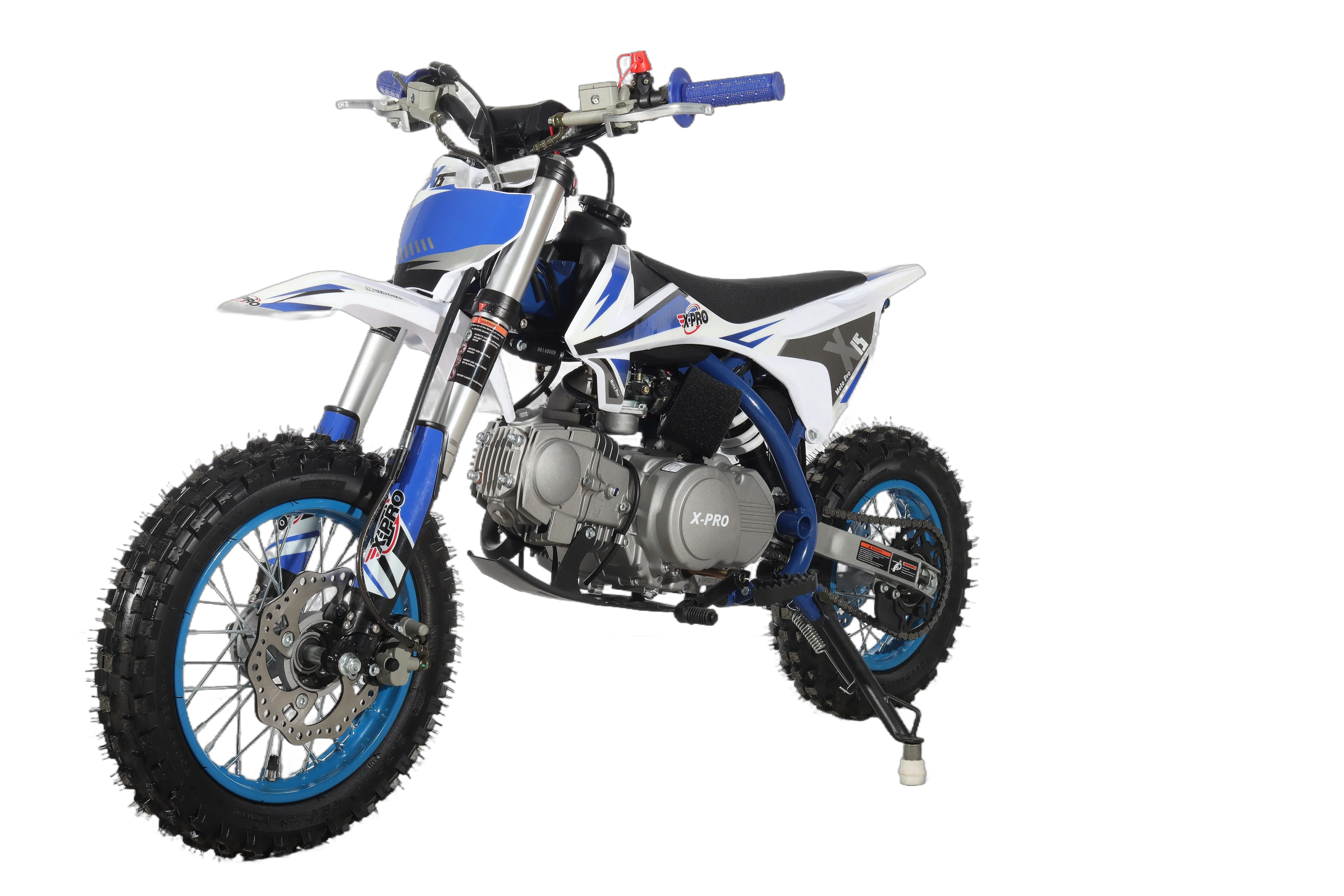

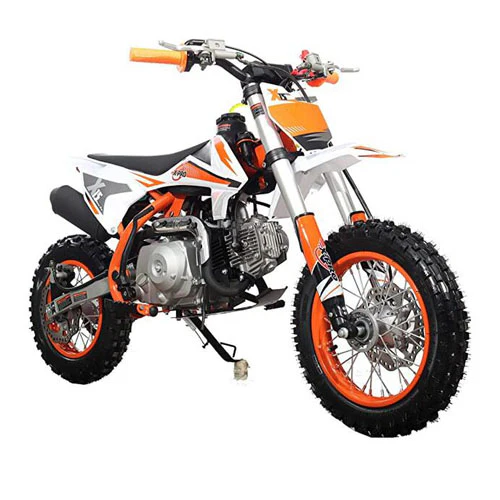

Different Colors

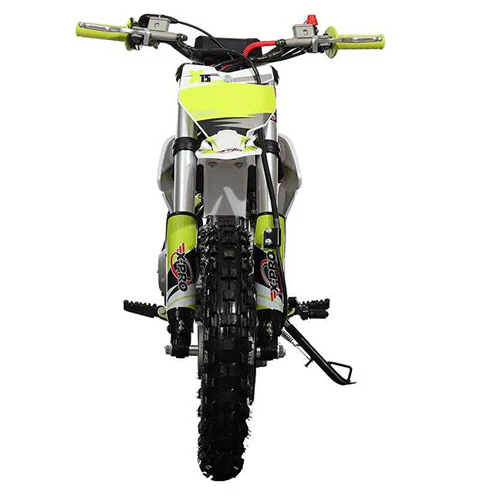

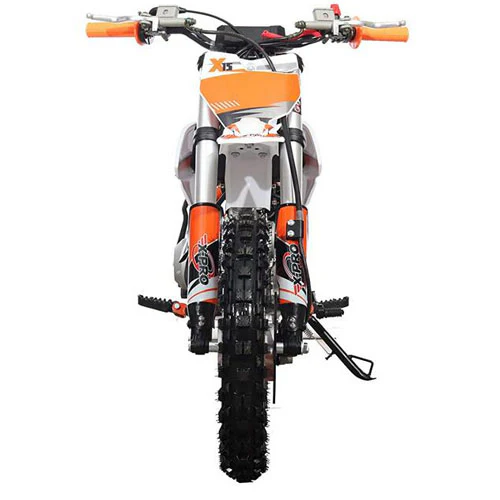

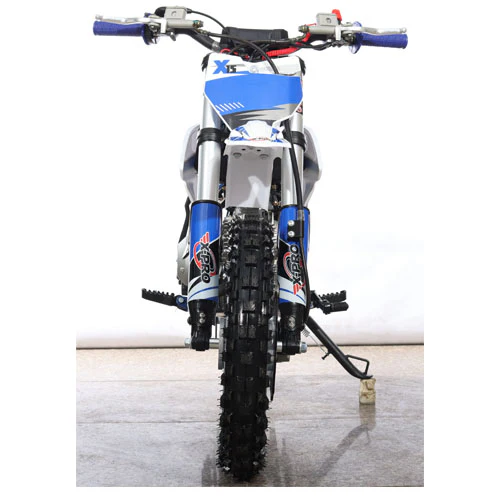

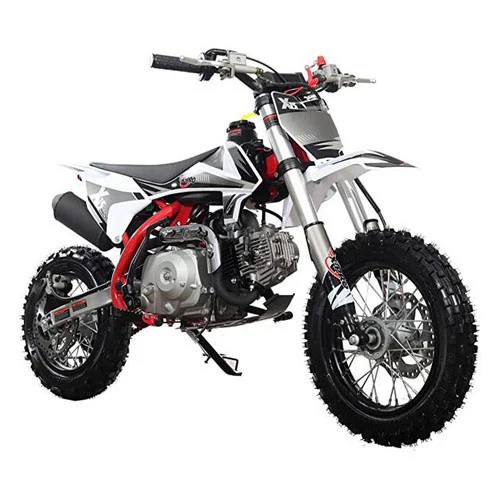

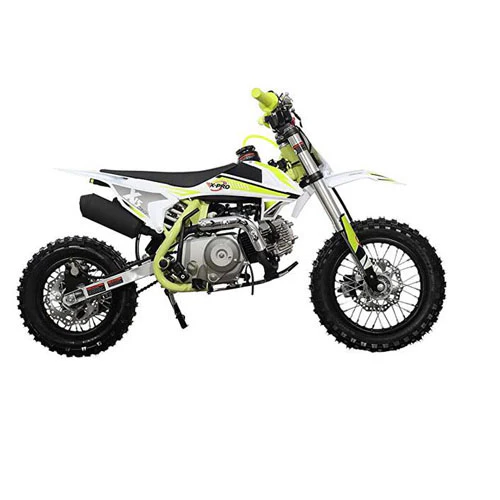

Different Angles
How-To Guides
Assembly Video
Select Color
Select Assembly Service
From $212.99
Original: $709.95
-70%Free Shipping! X-PRO X15 110cc Dirt Bike with Semi-Automatic Transmission, Kick Start, Hydraulic Disc Brake! Chain Drive! 12in/10in Wheels!—
$709.95
$212.99
