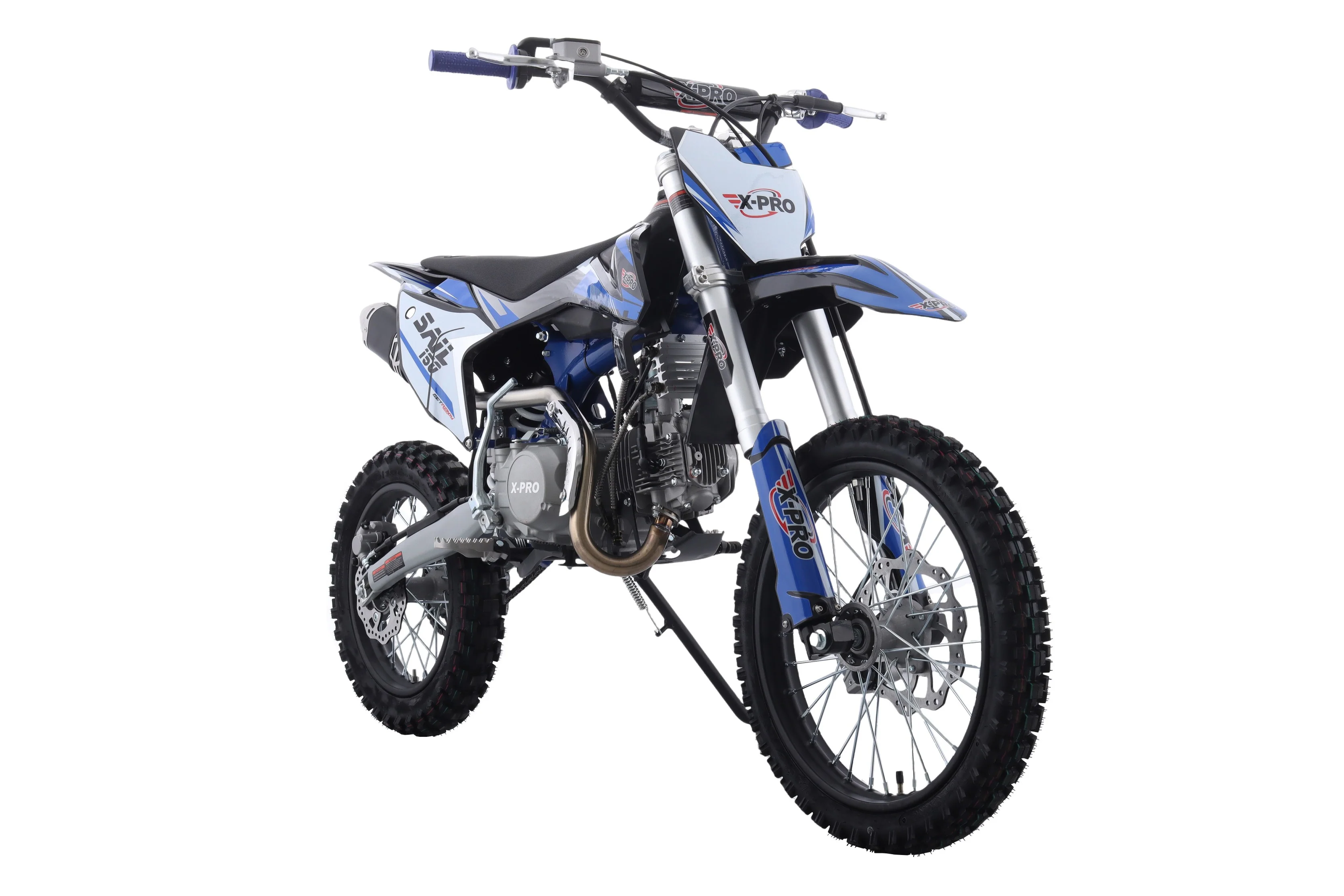

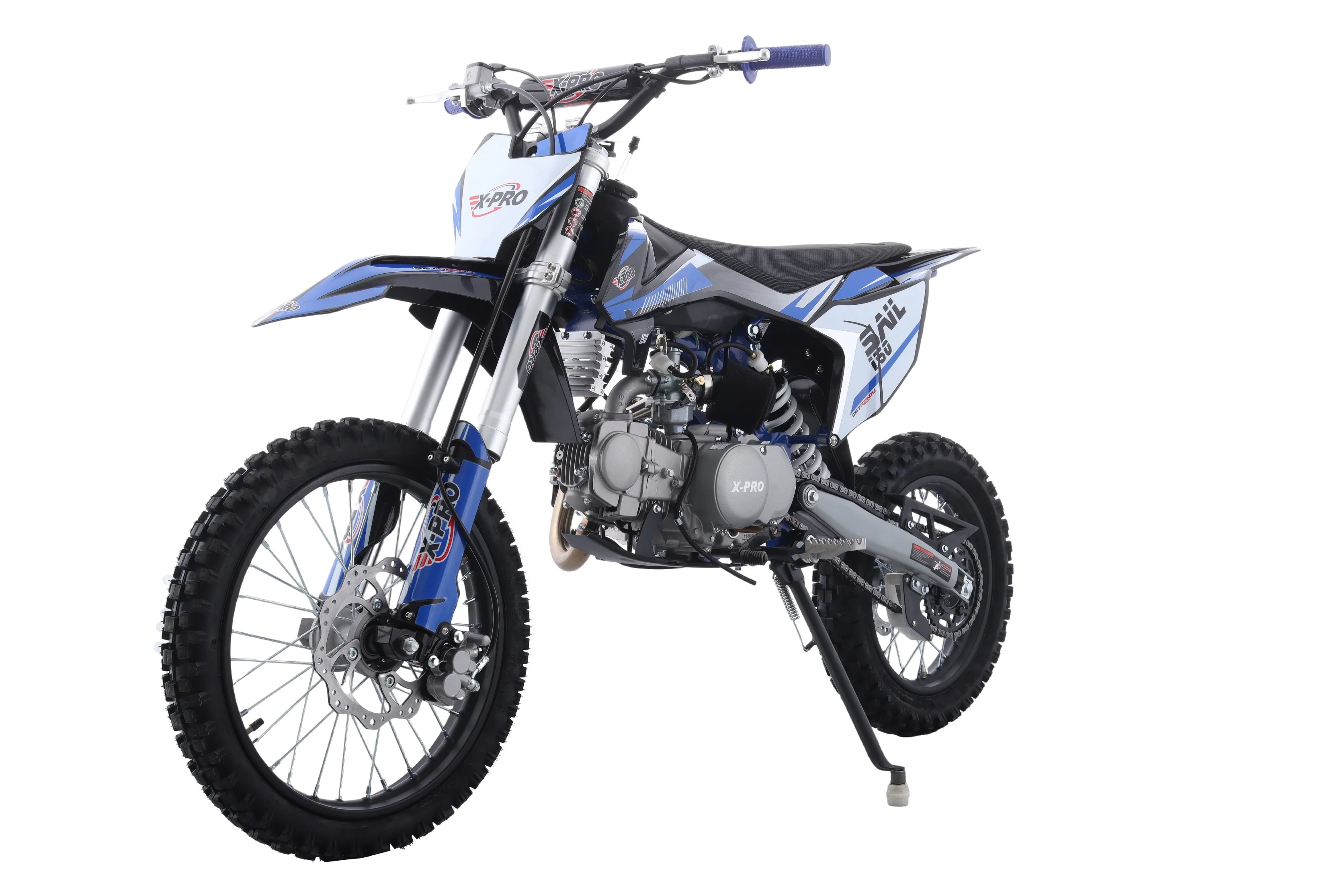

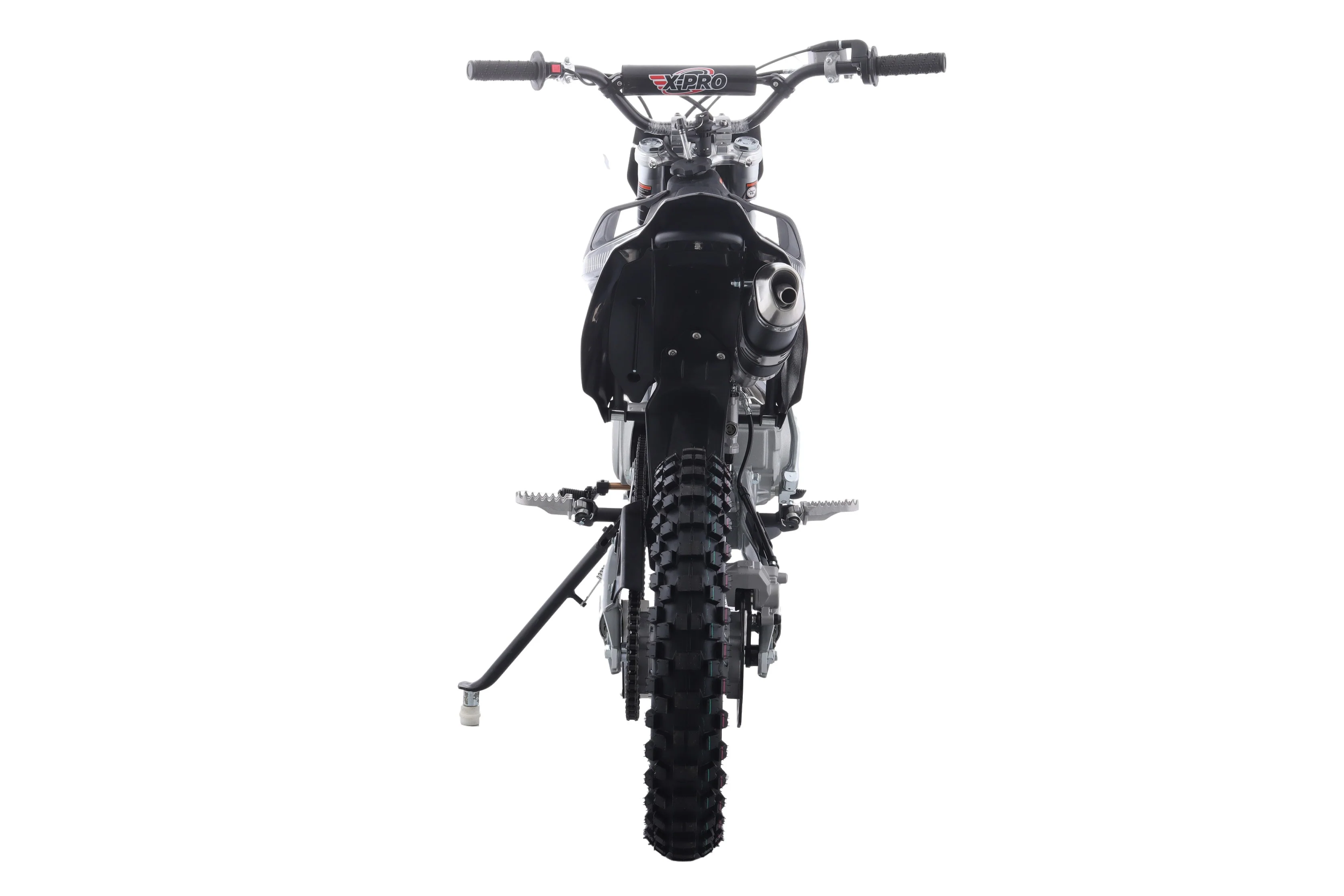

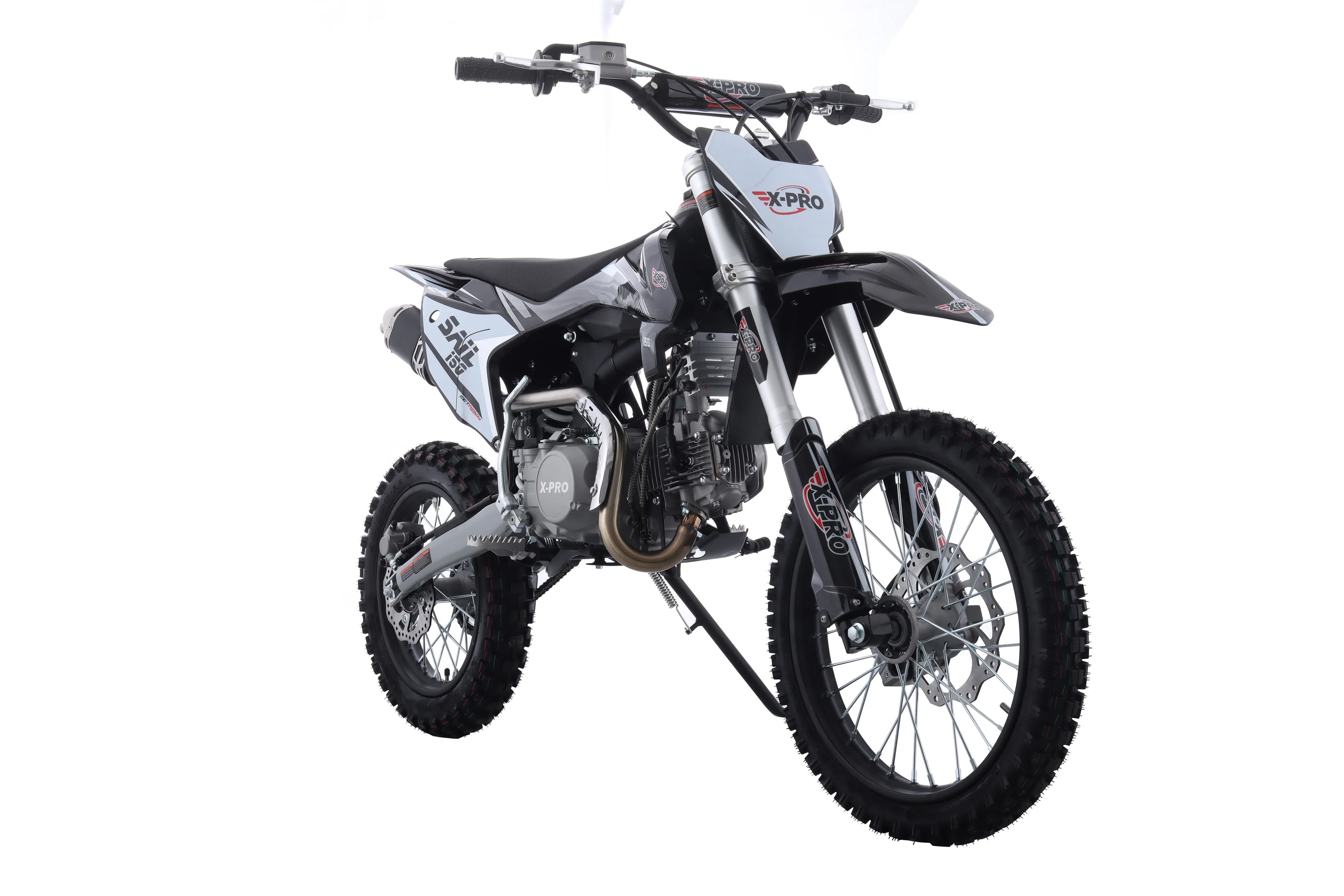

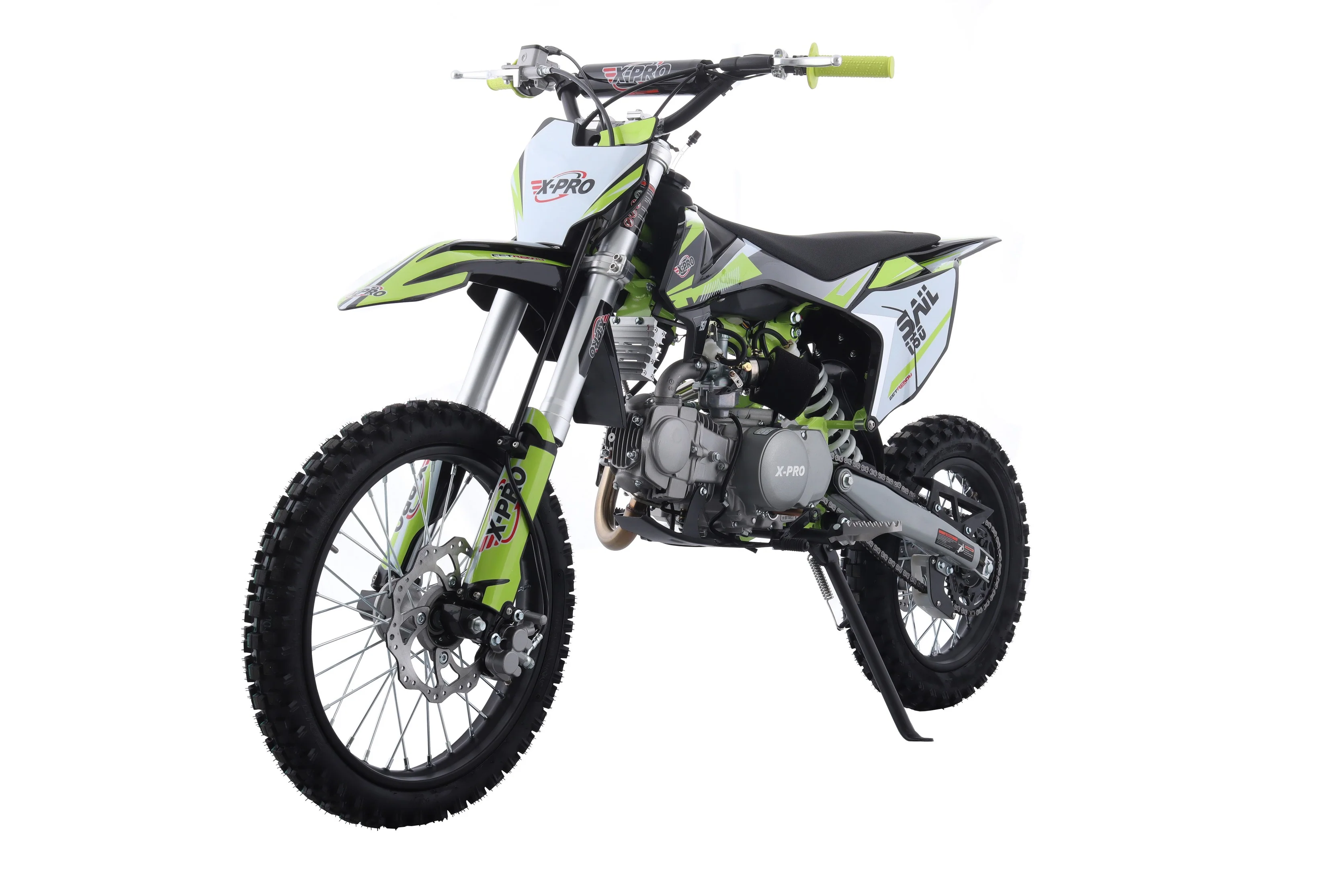

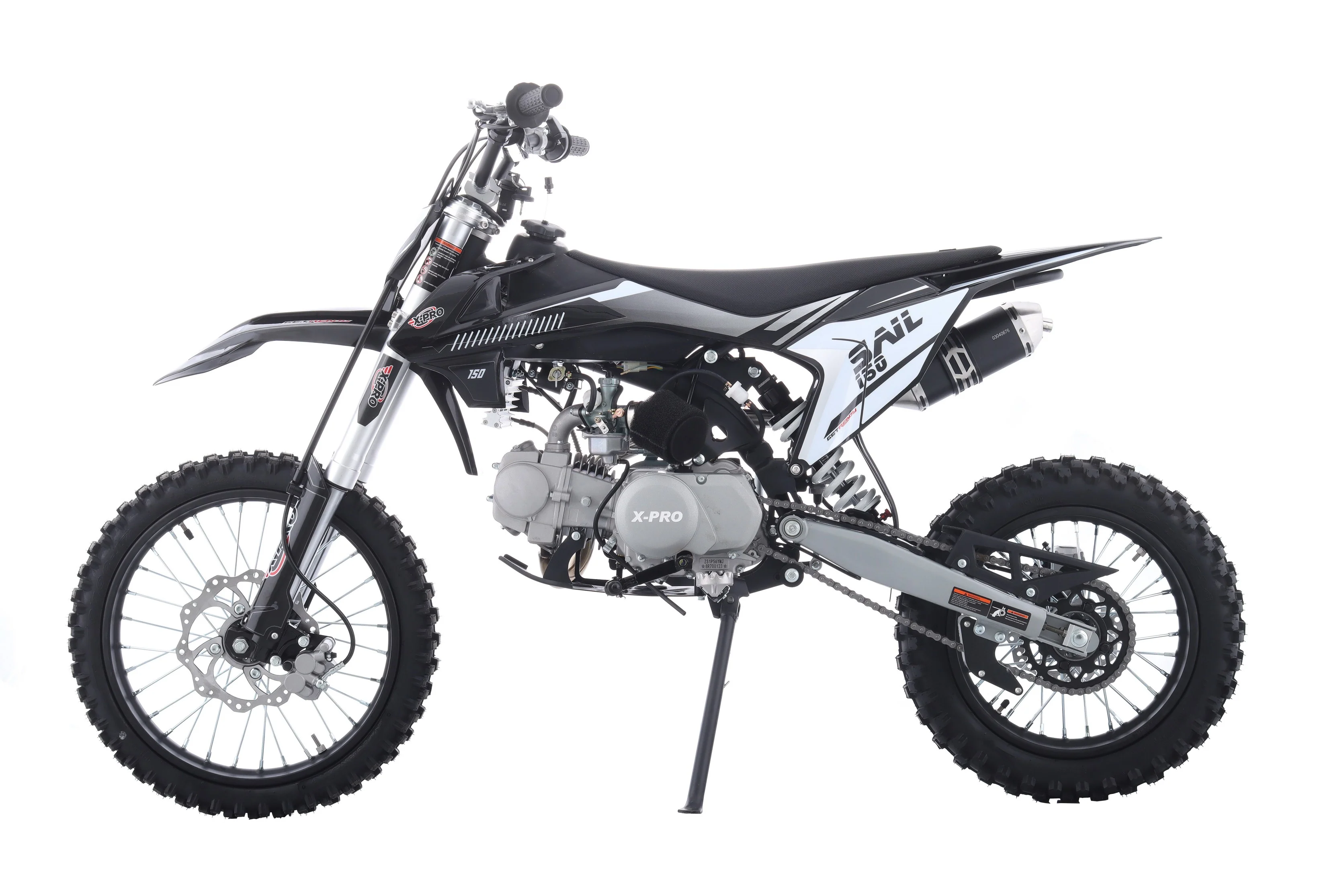

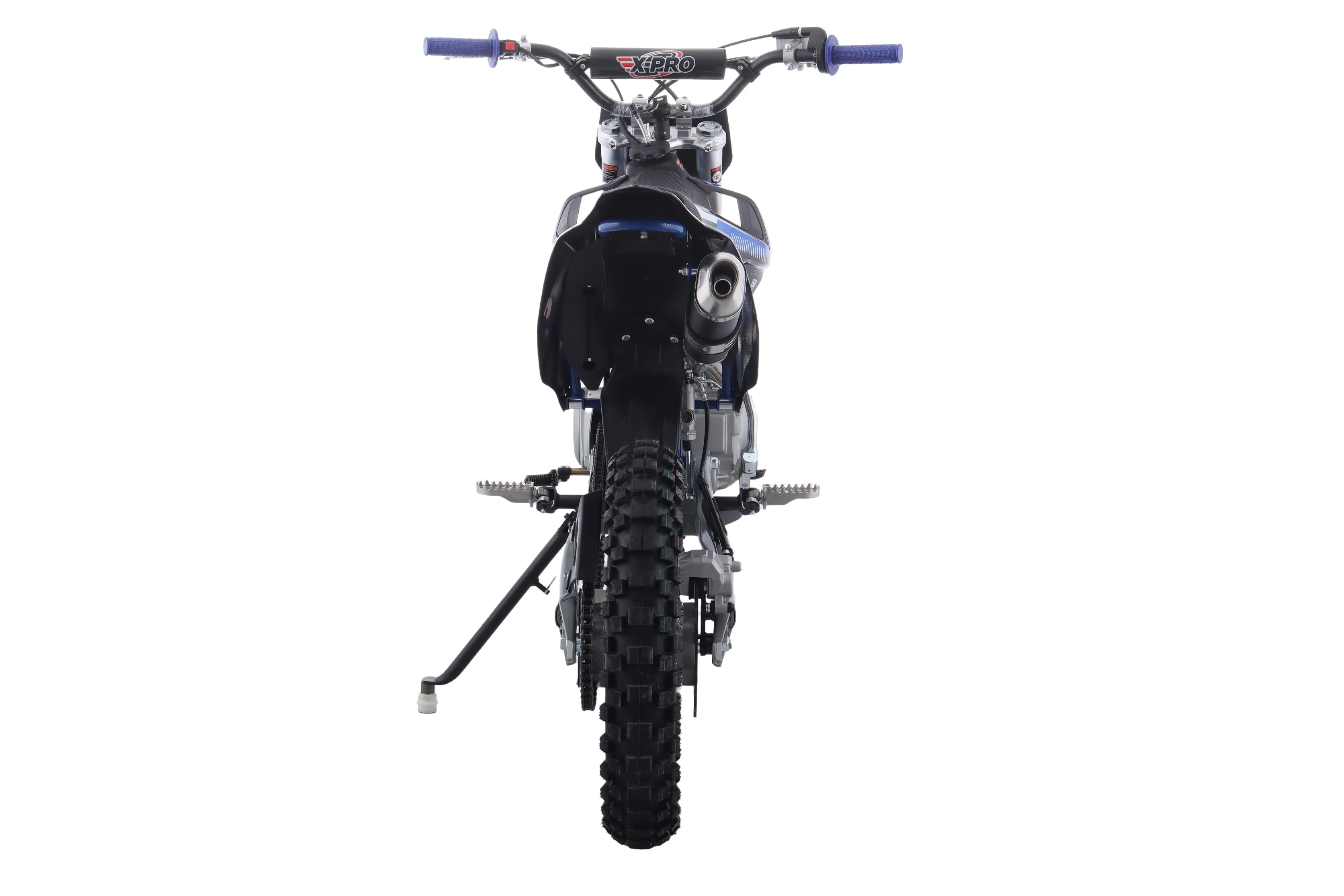

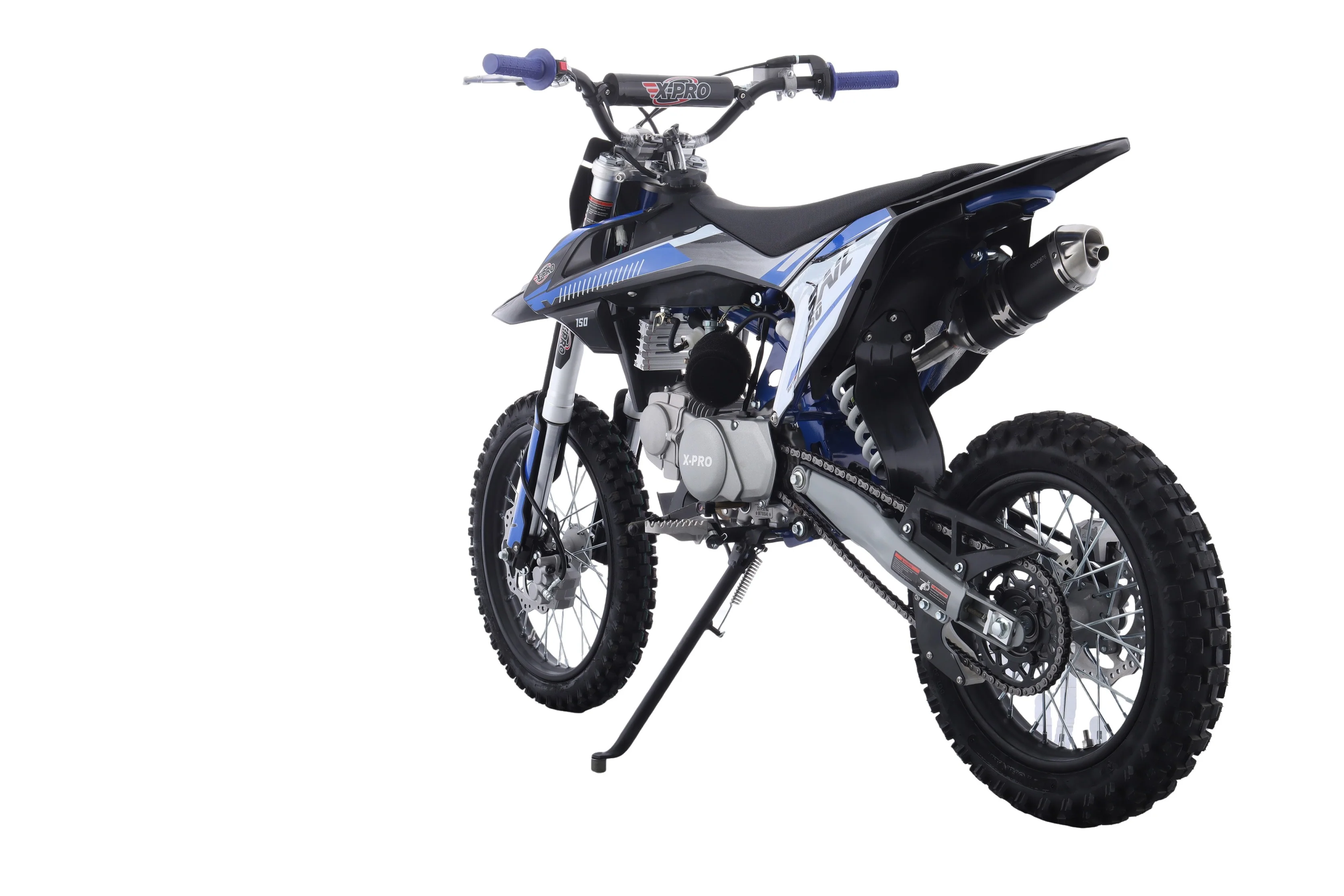

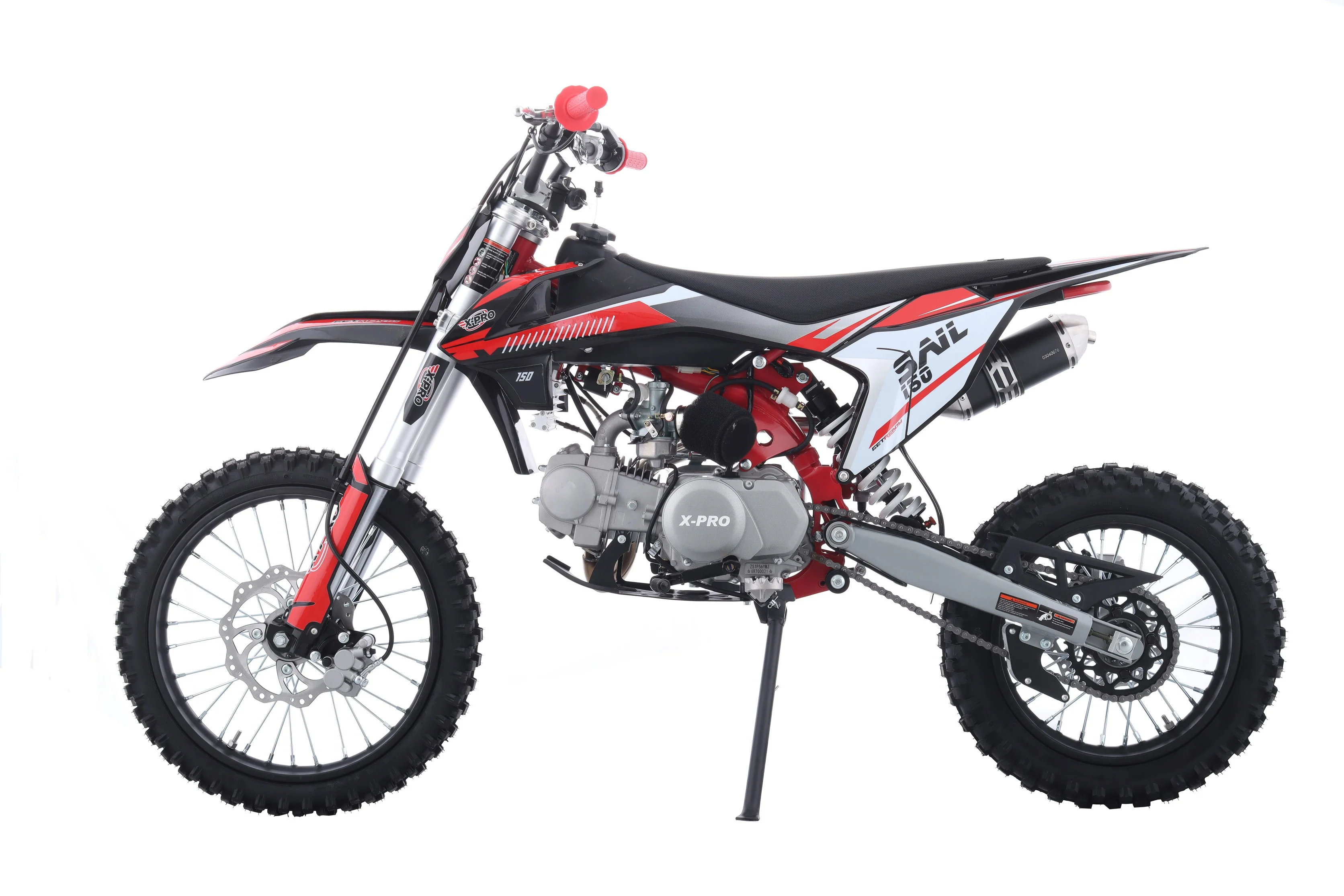

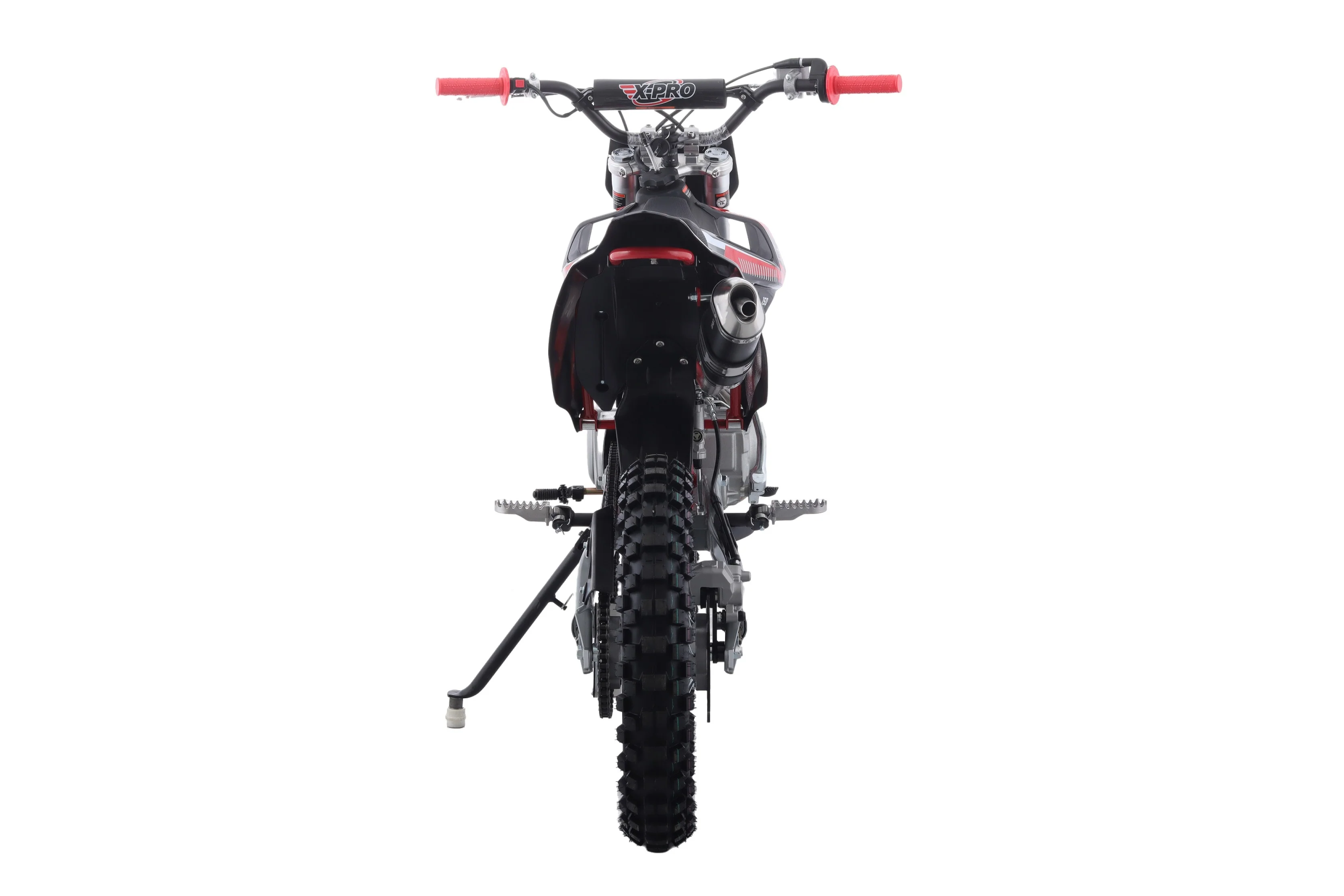

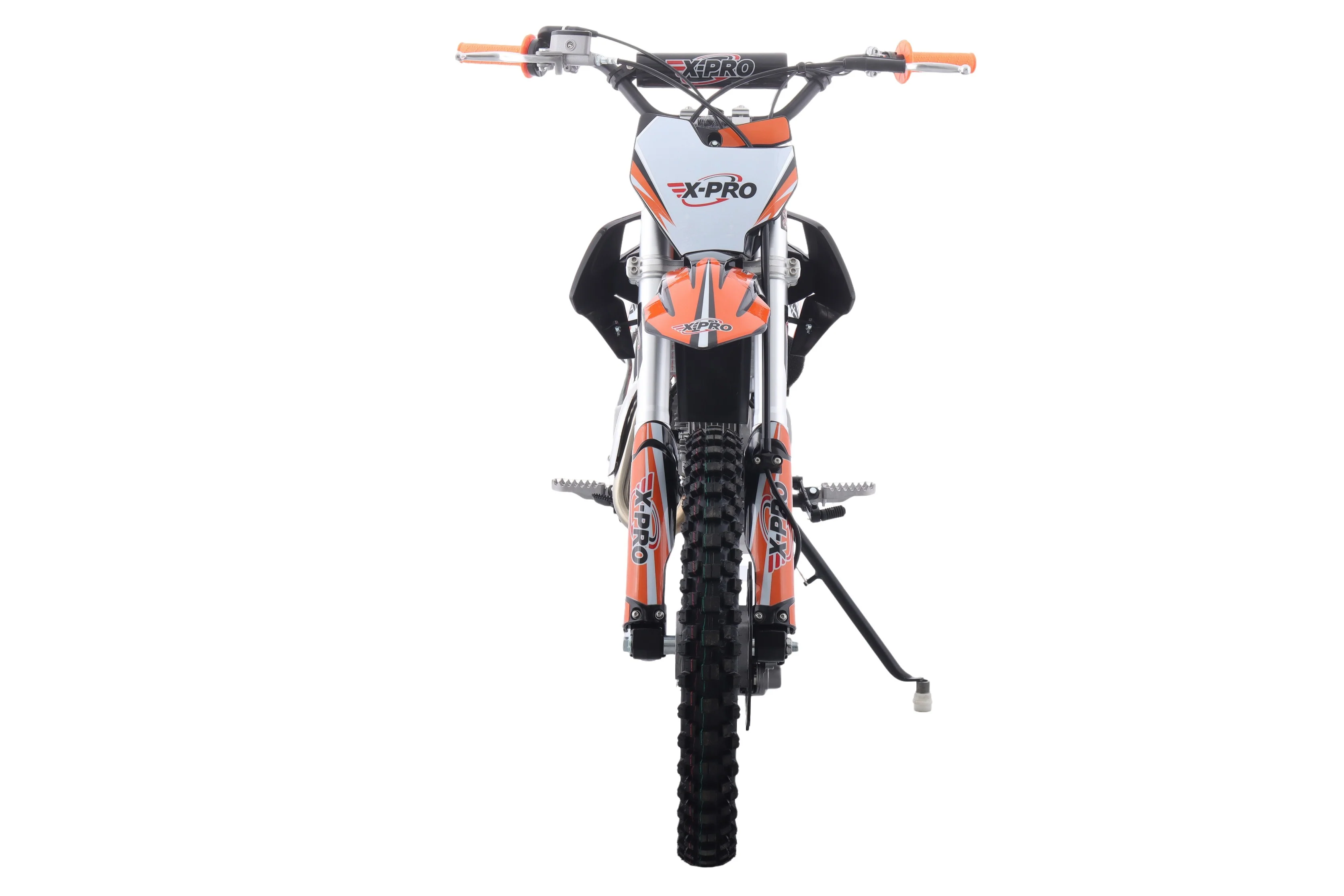

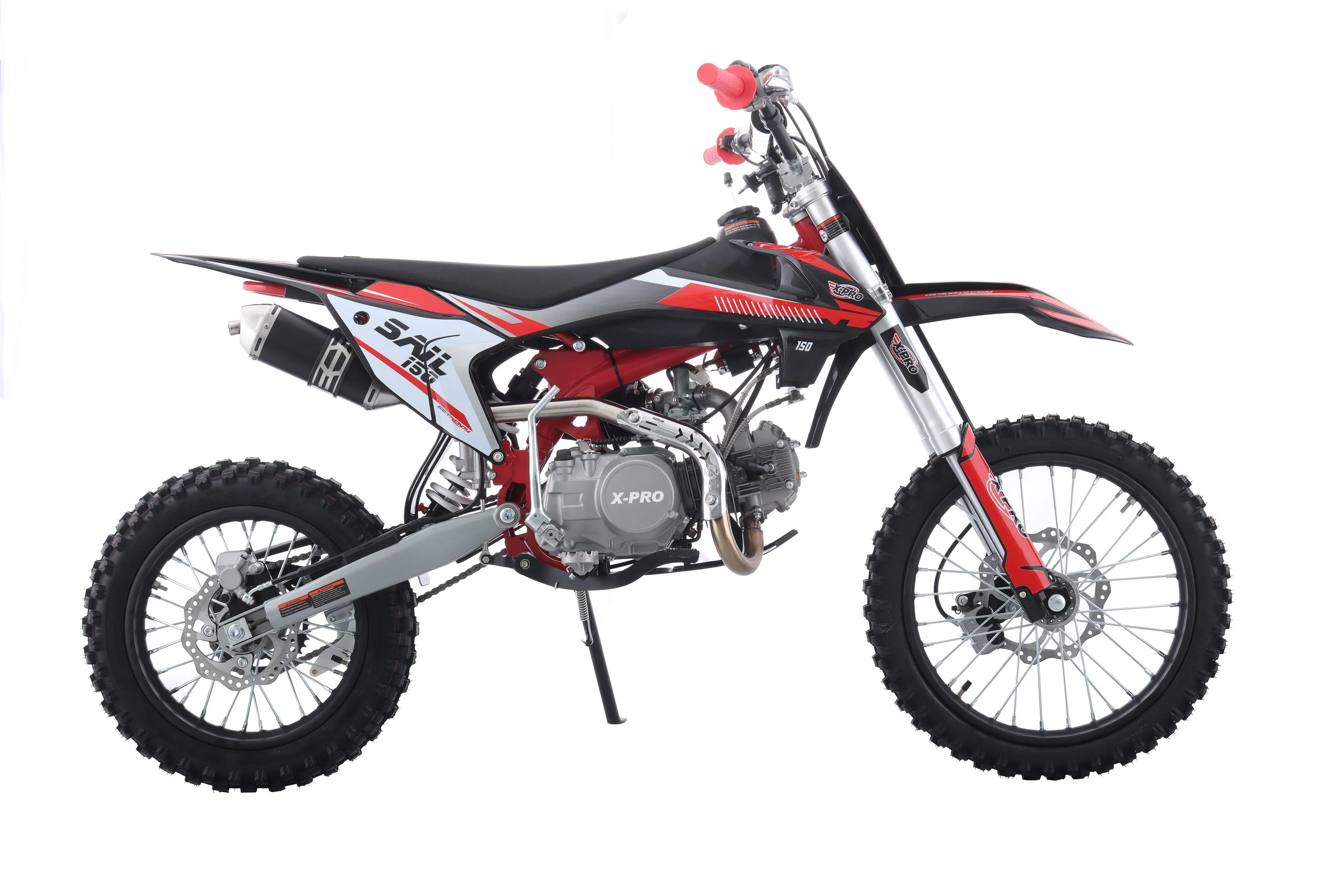

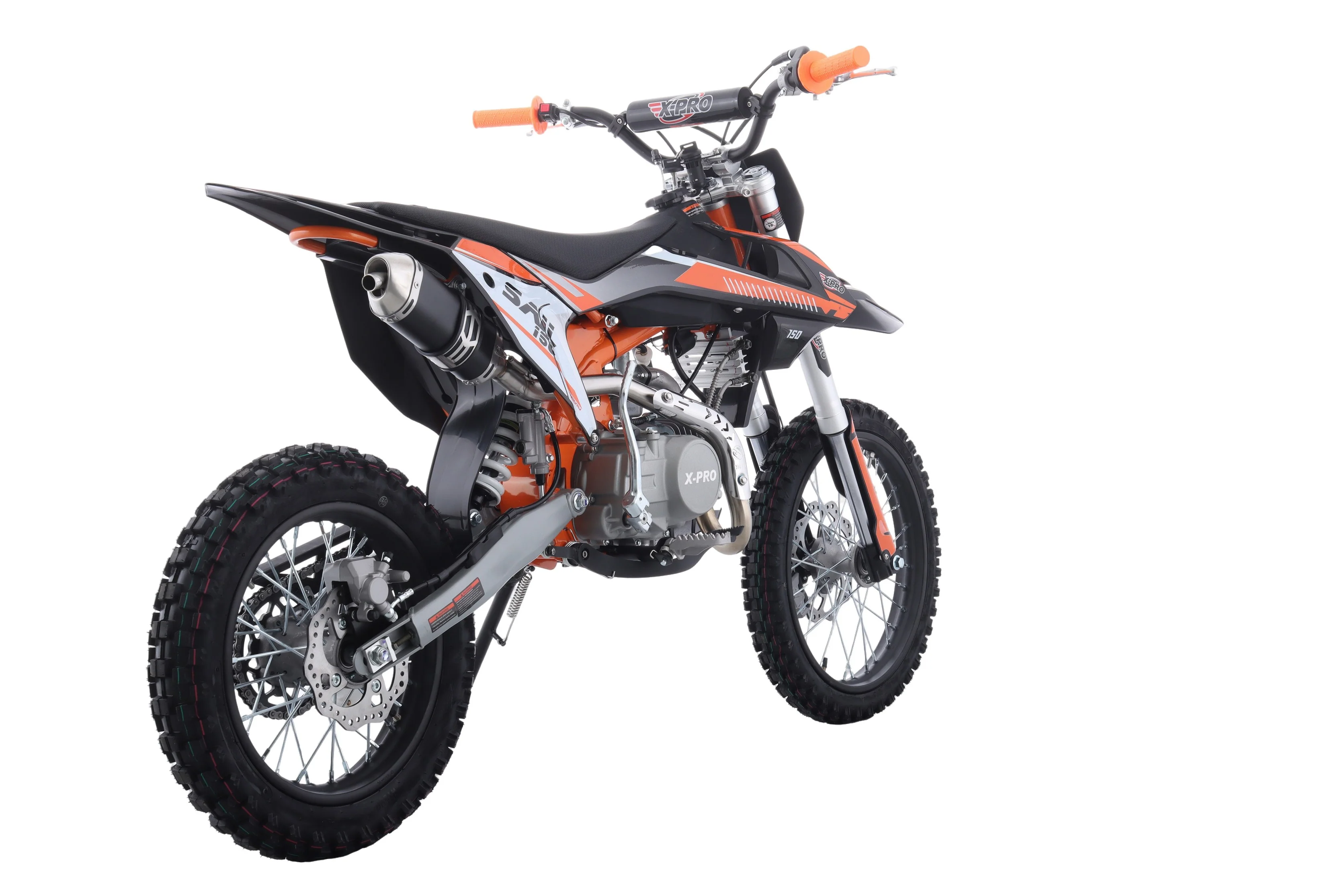

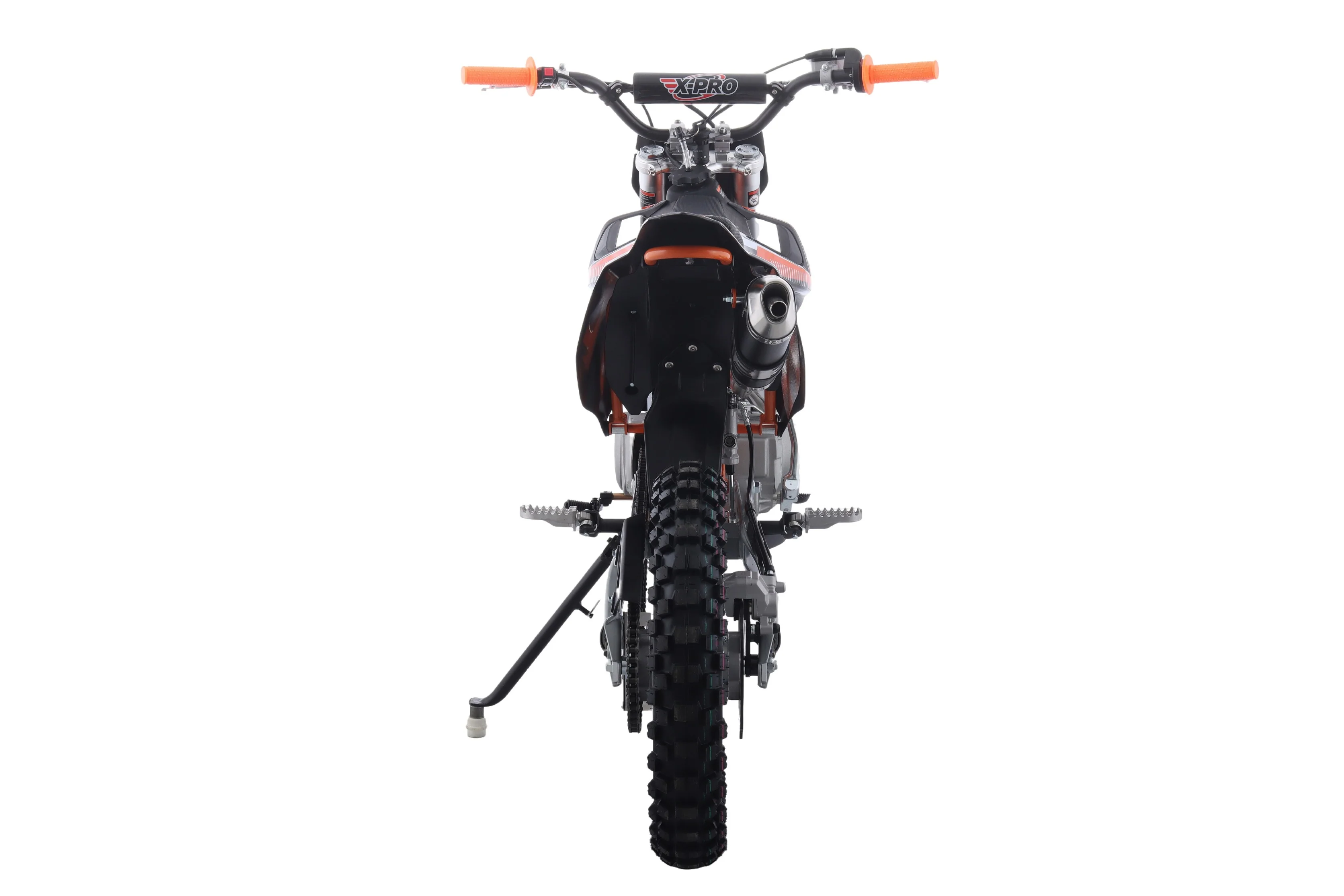

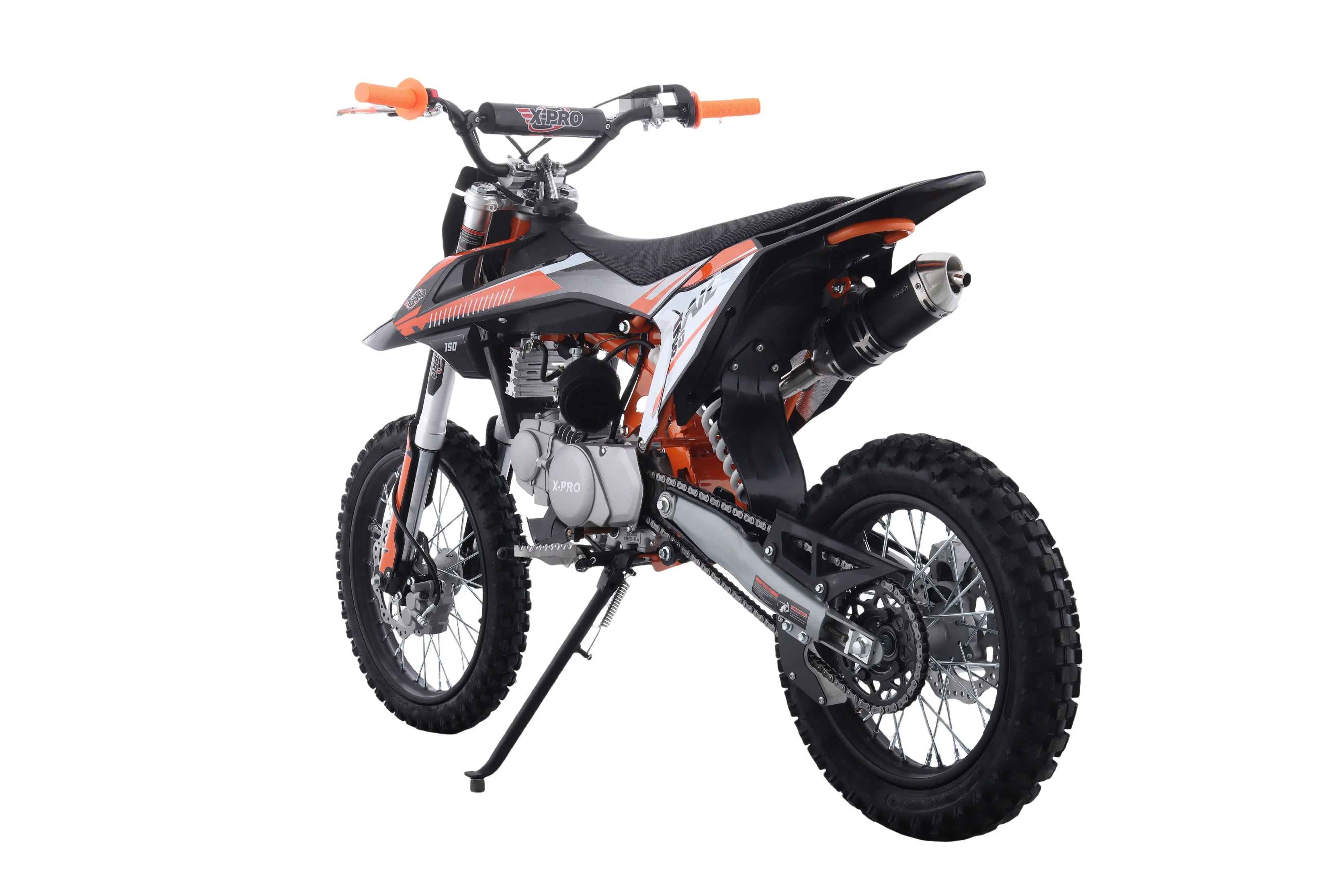

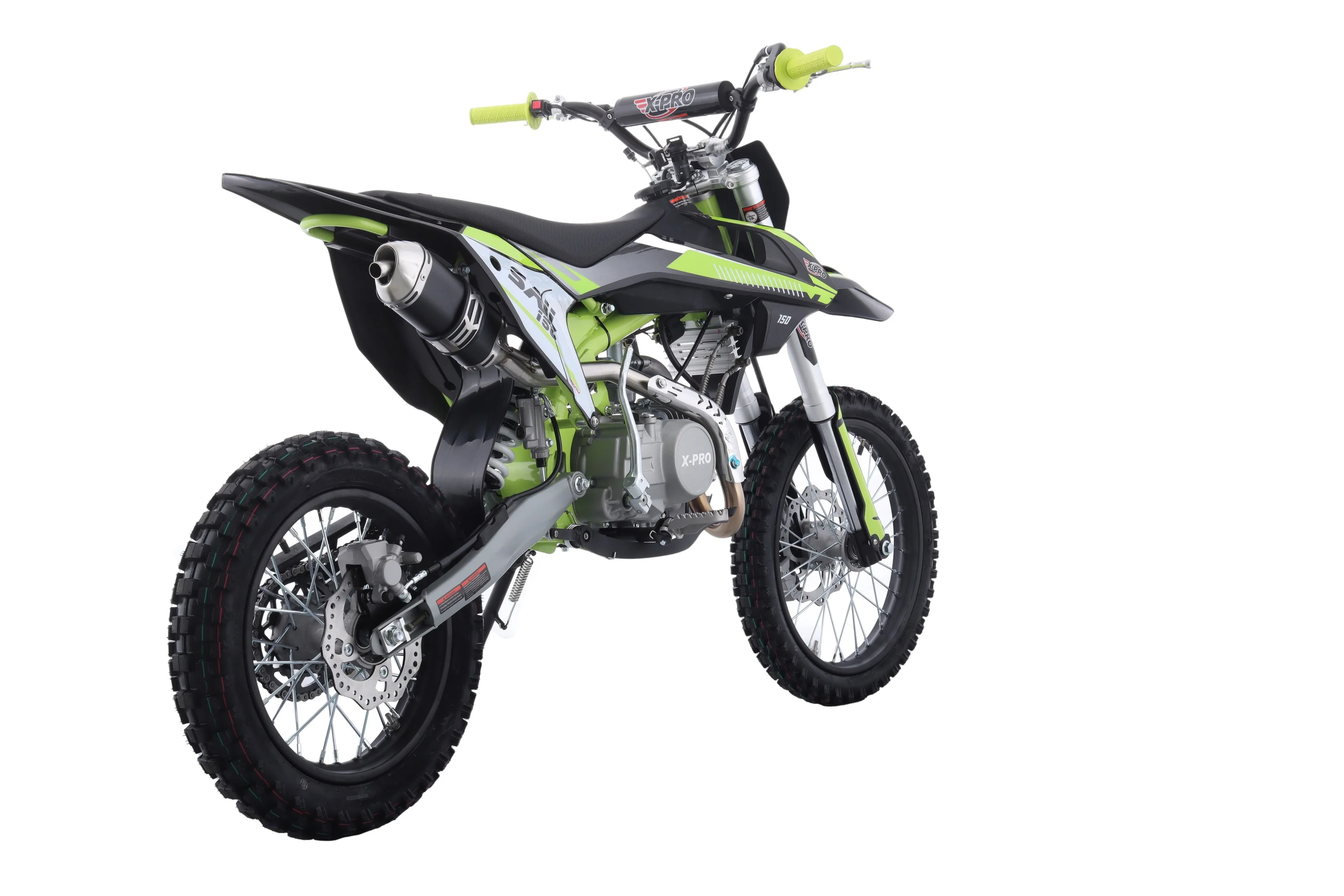

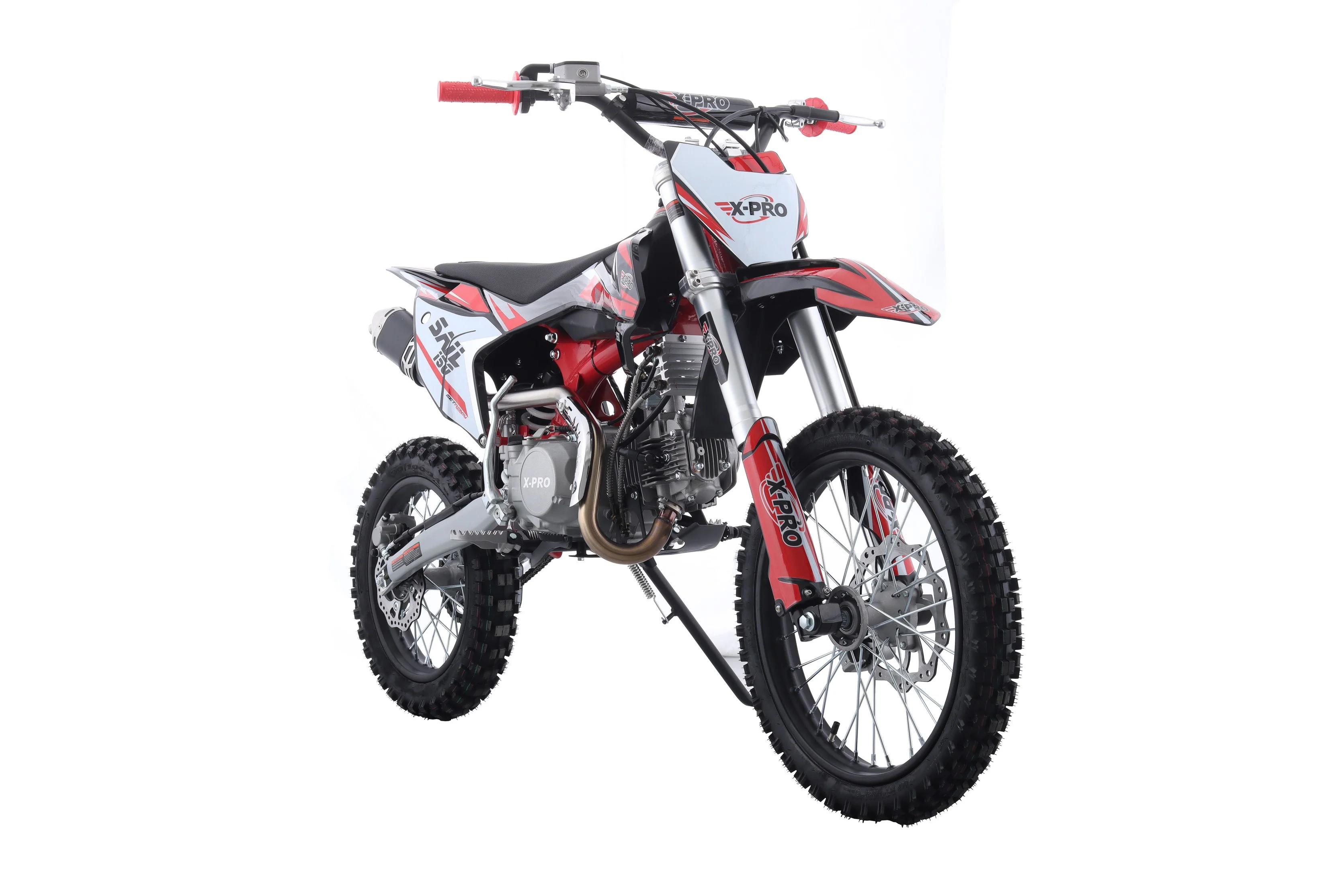

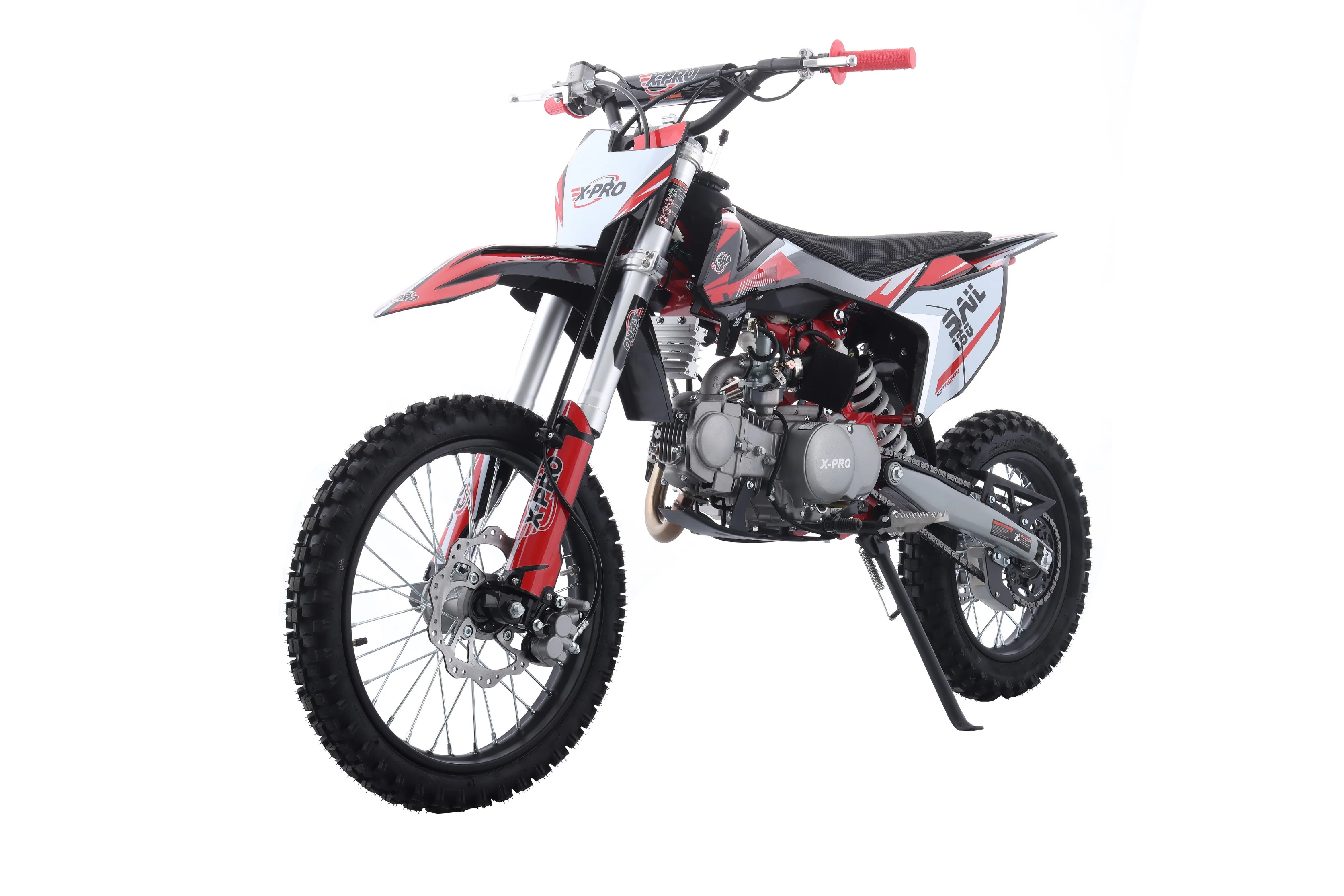

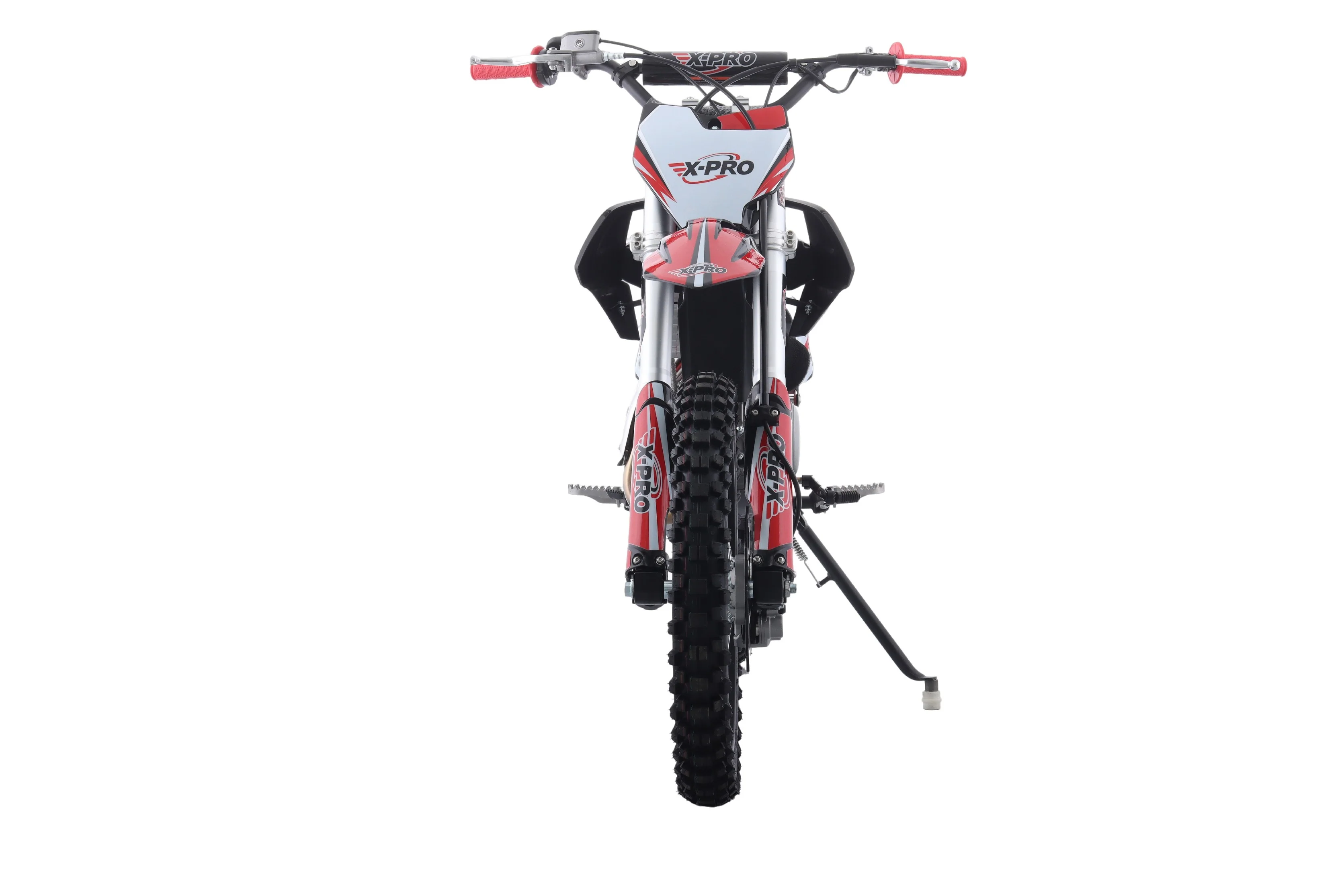

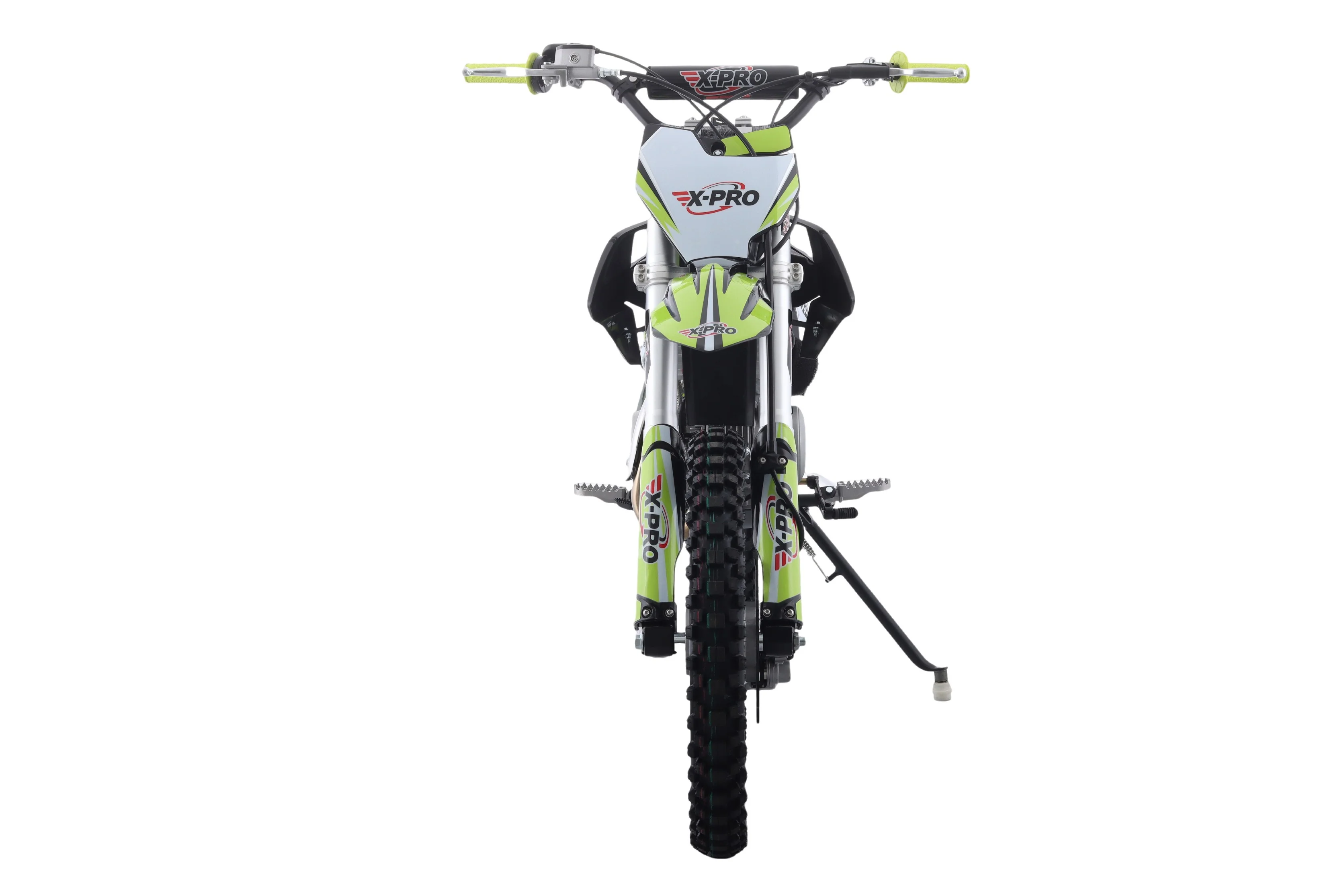

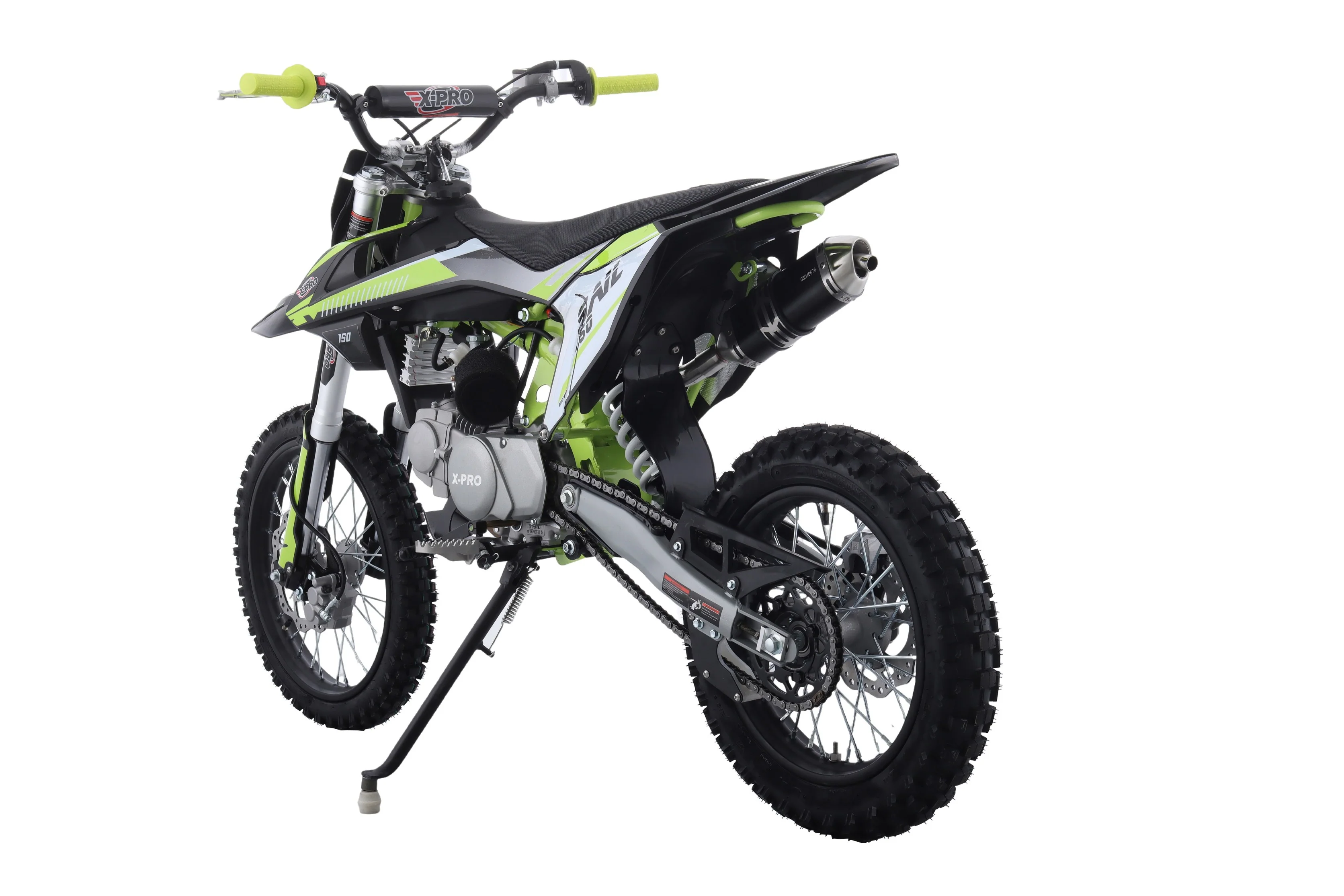

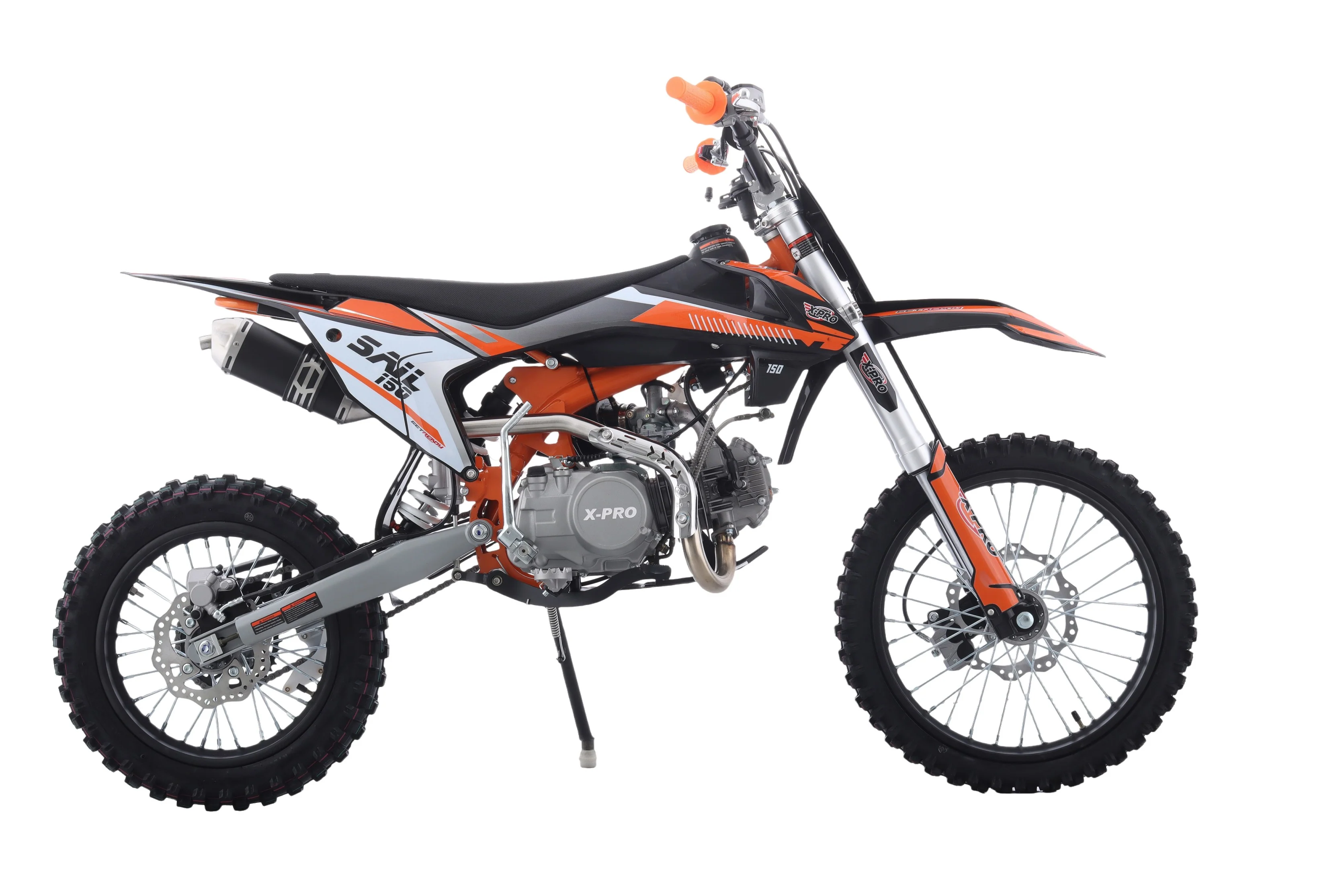

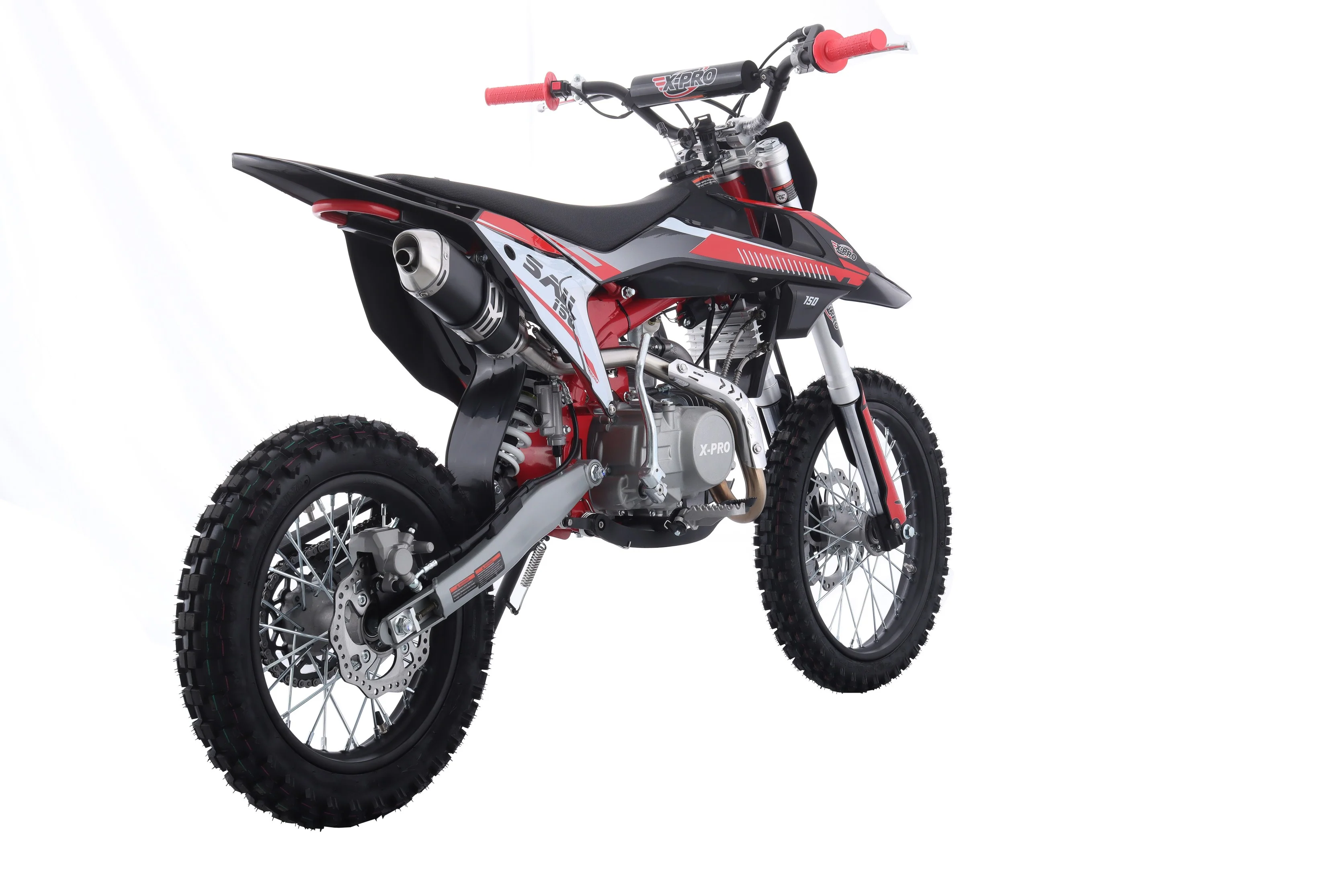

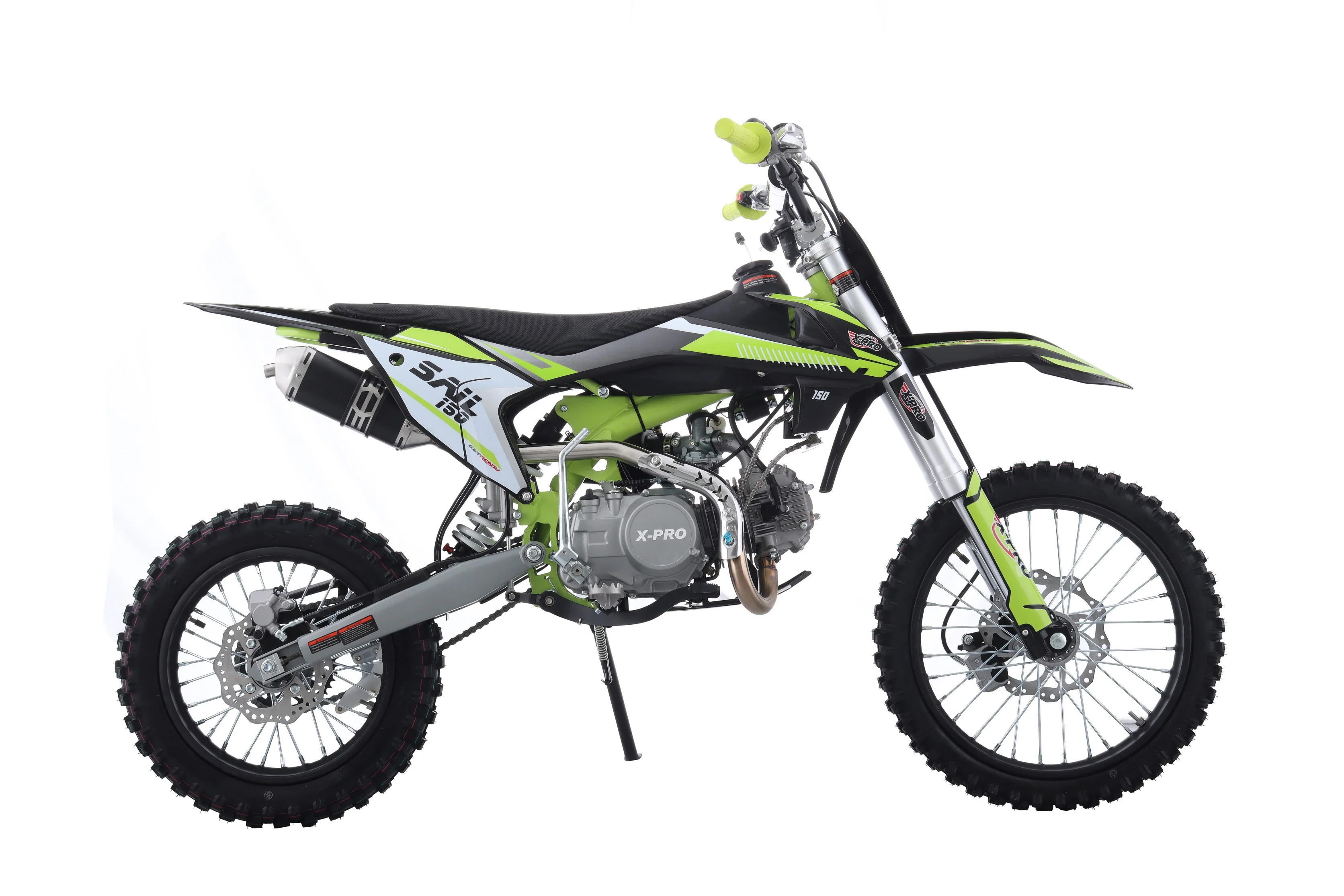

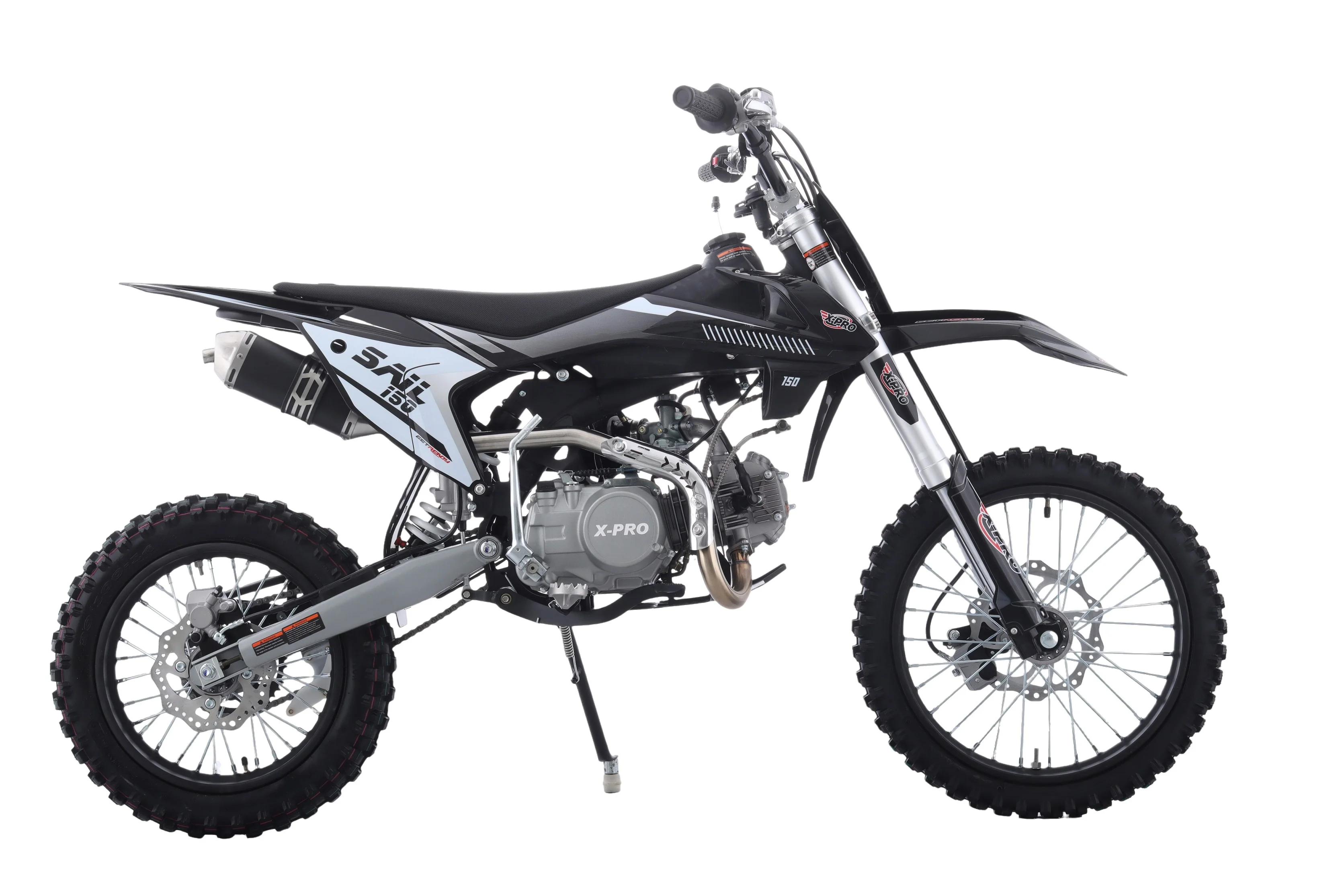

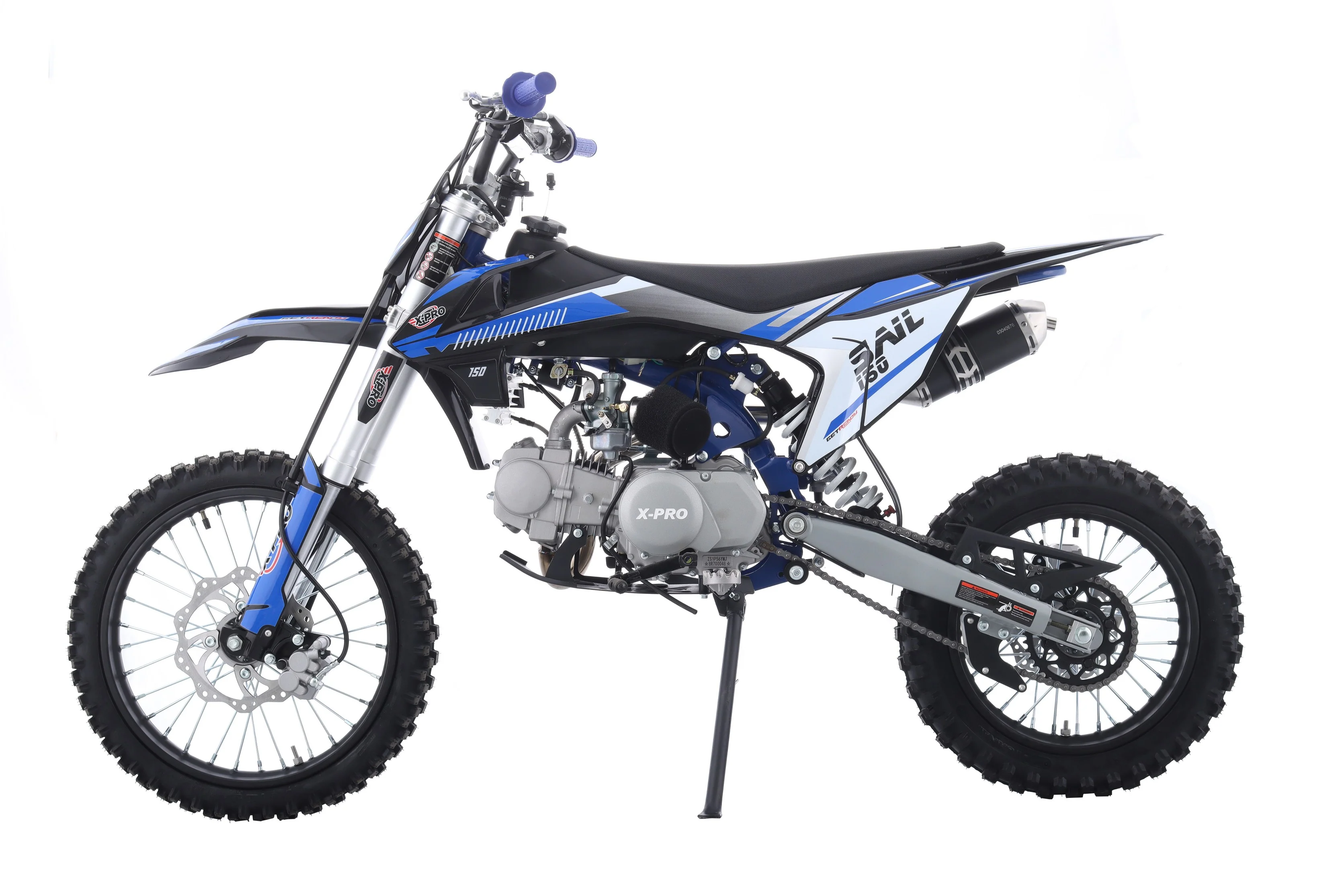

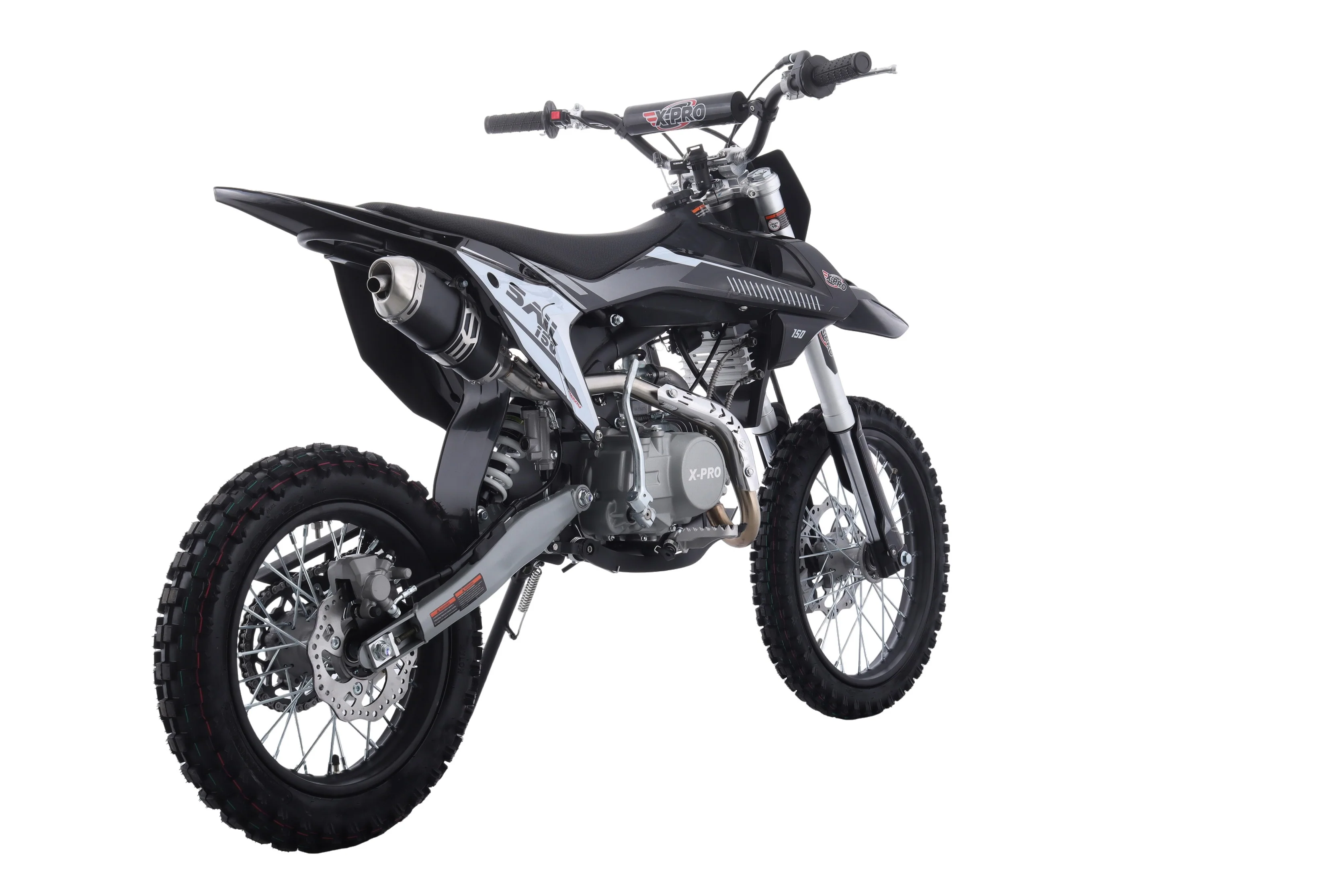

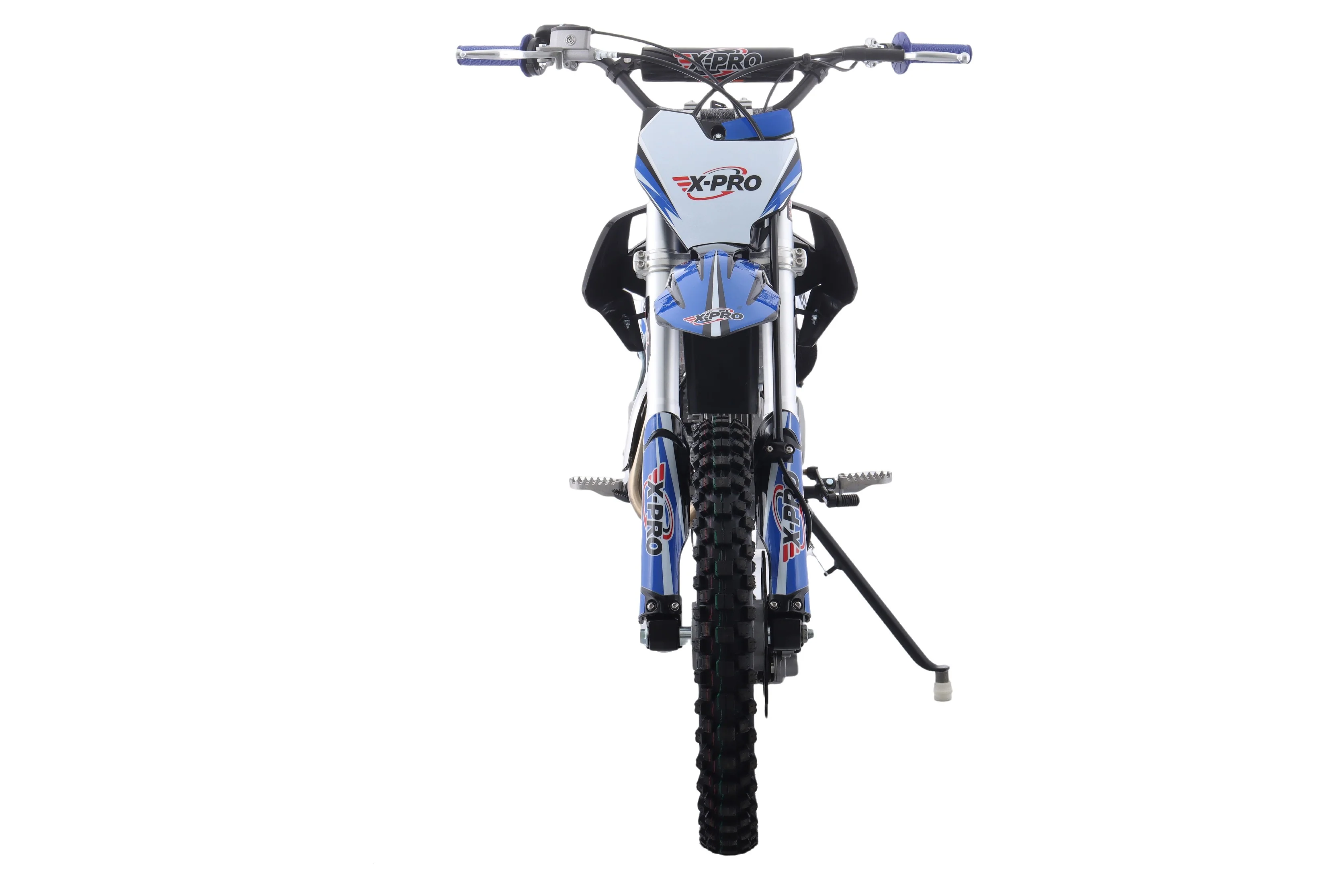

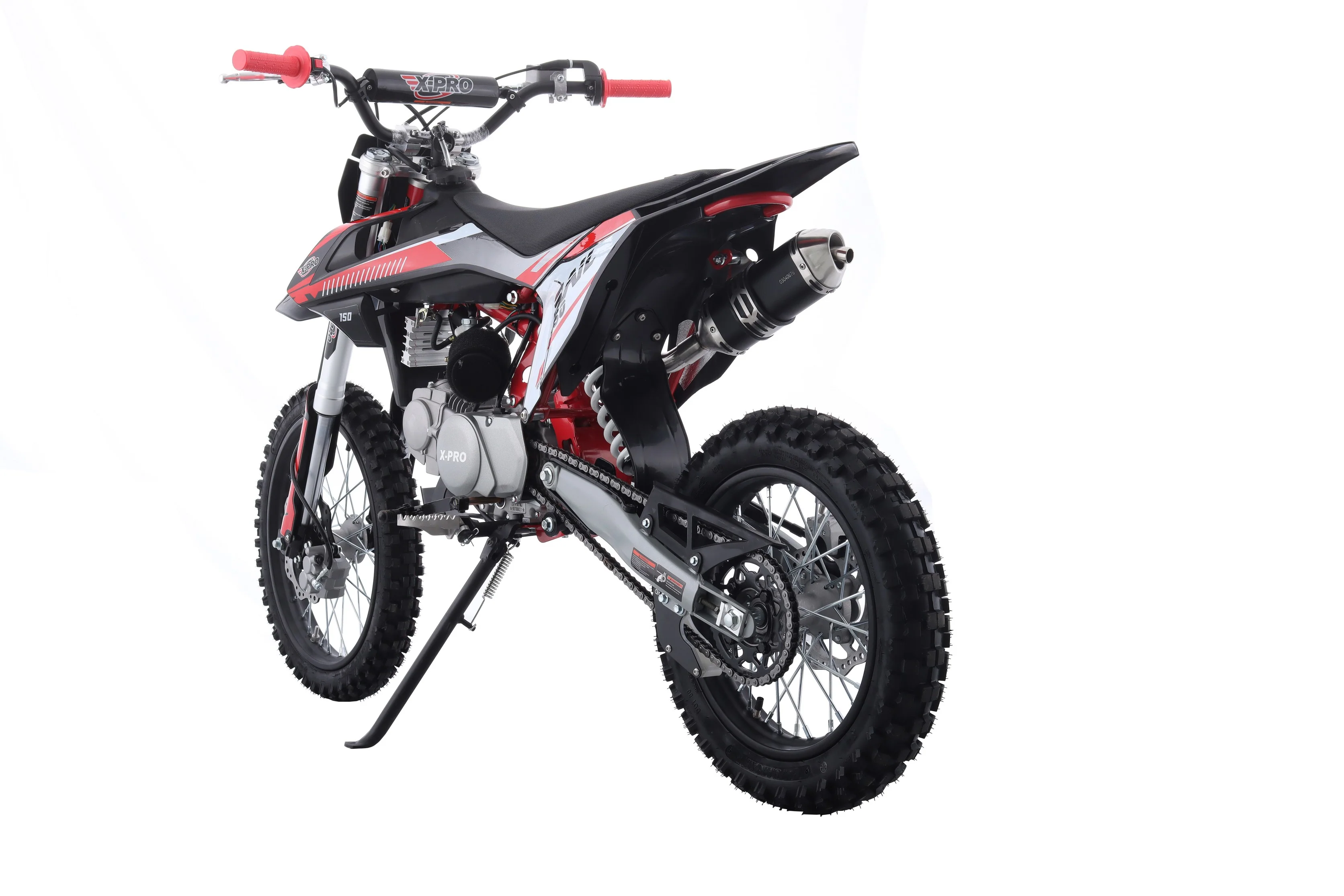

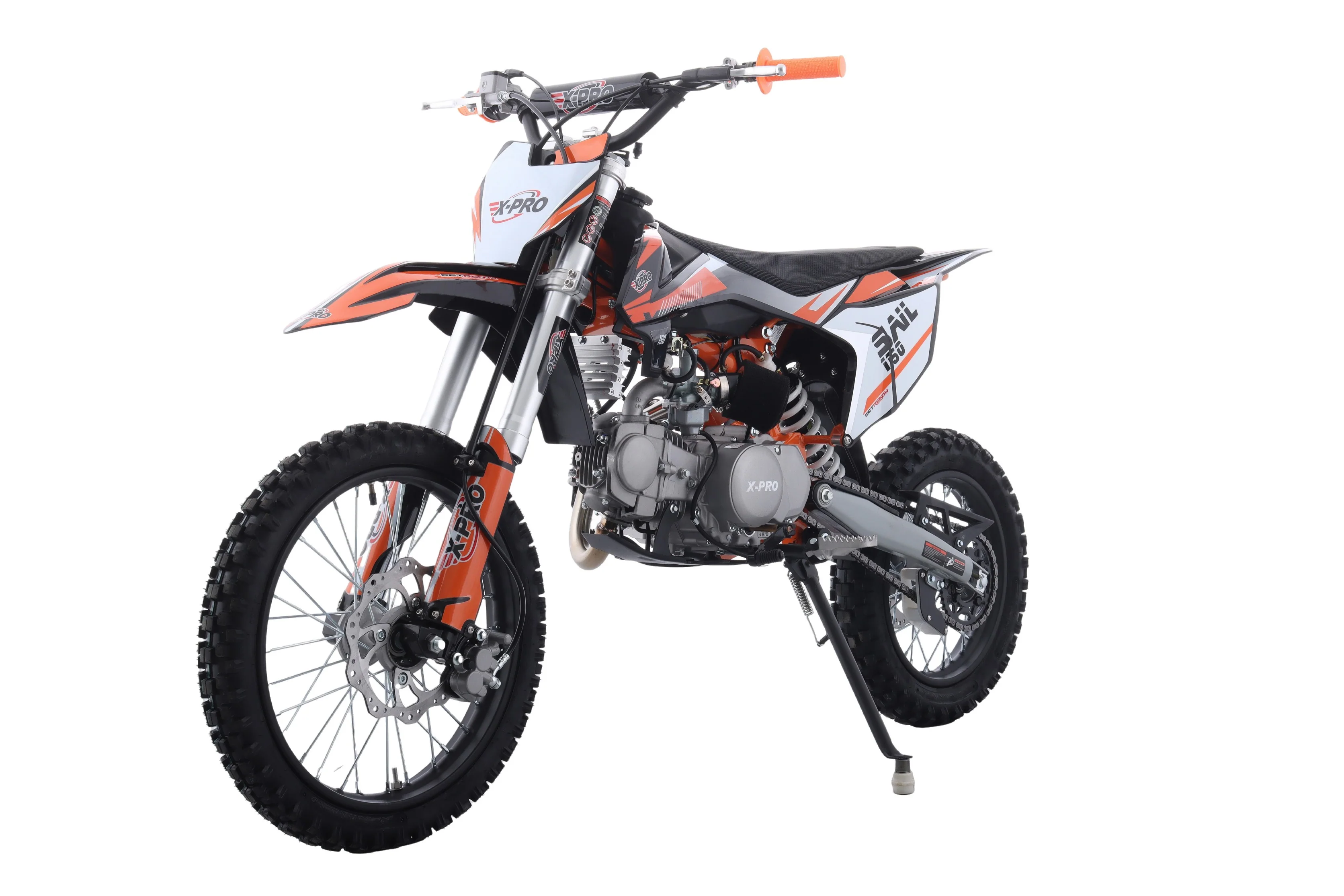

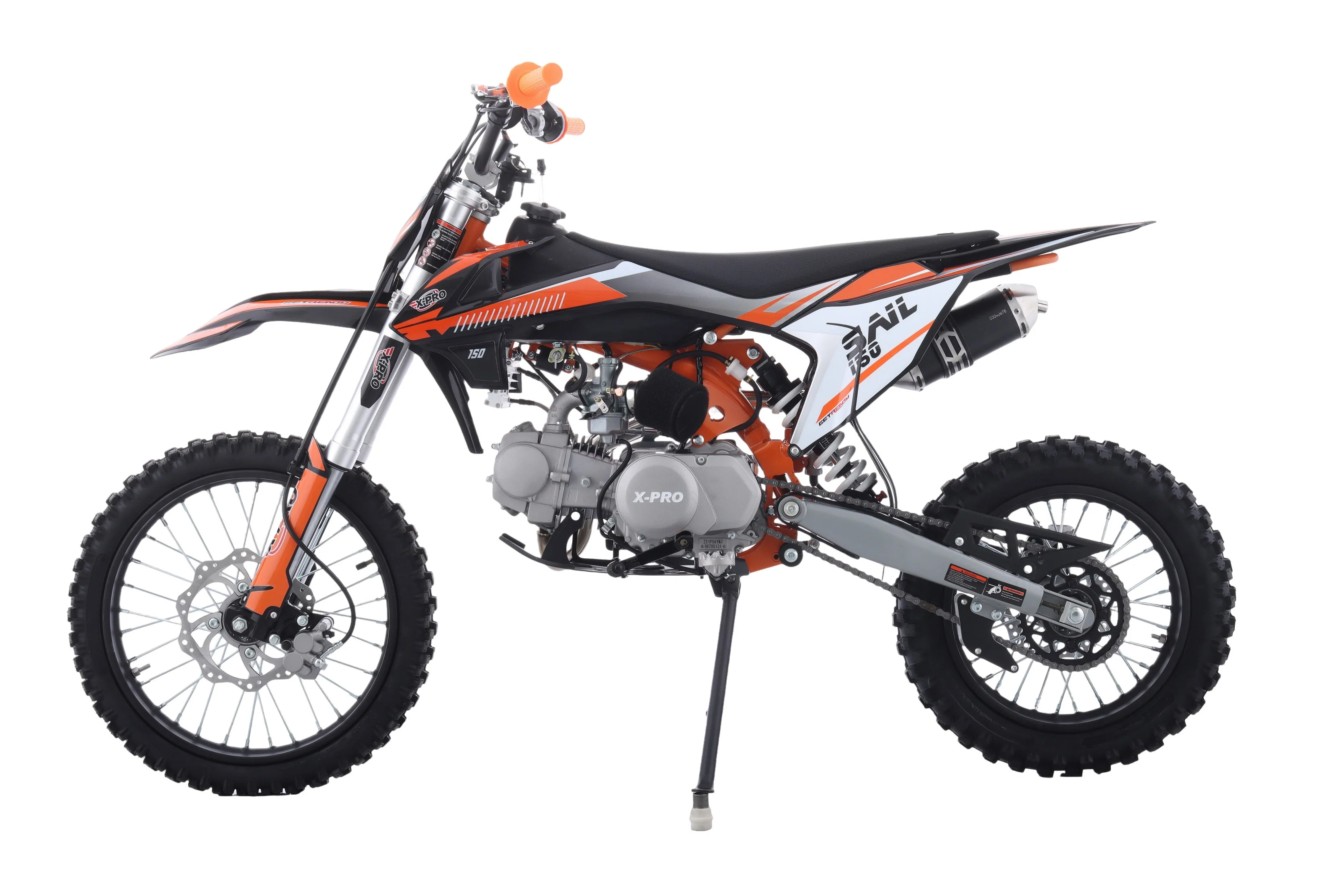

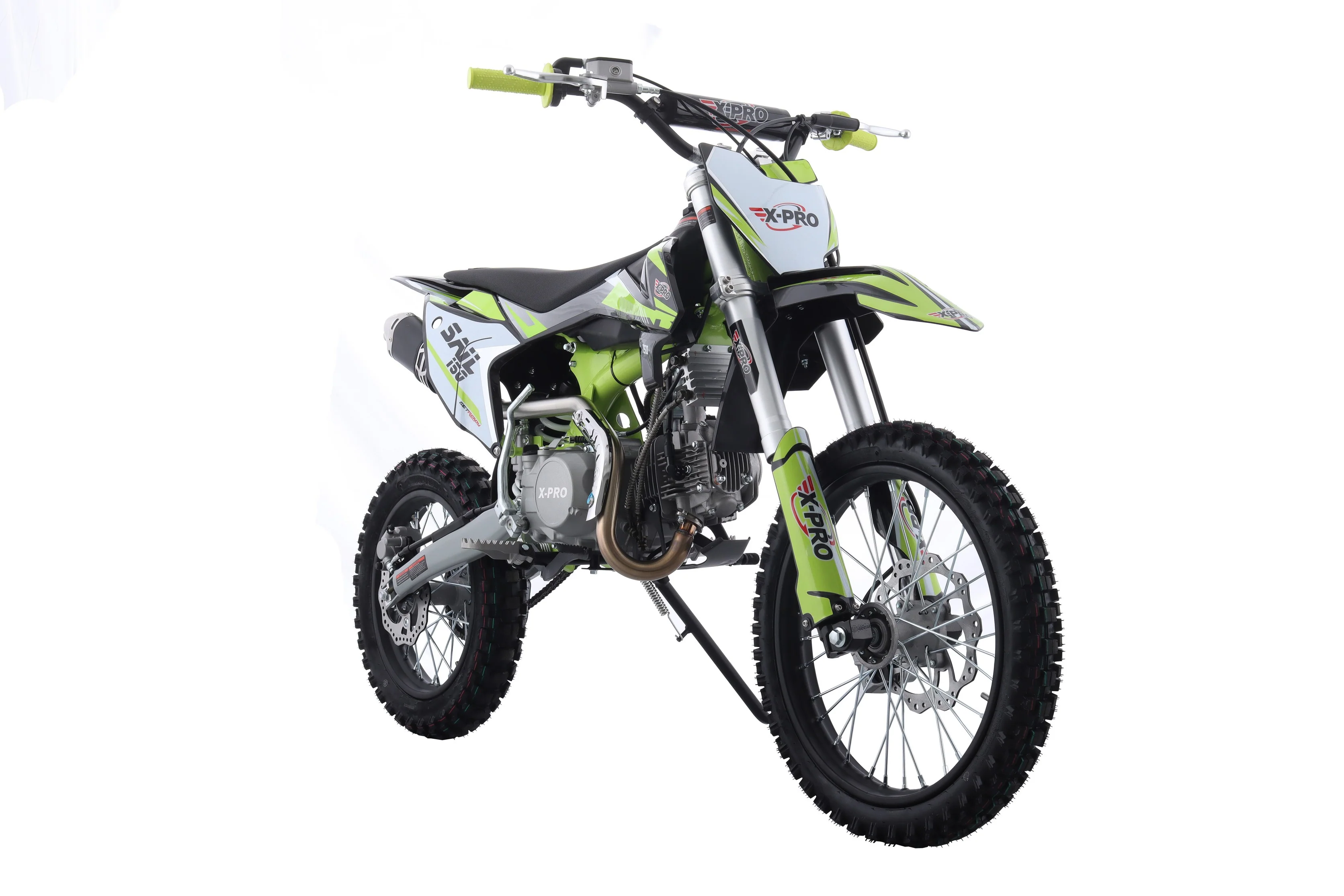

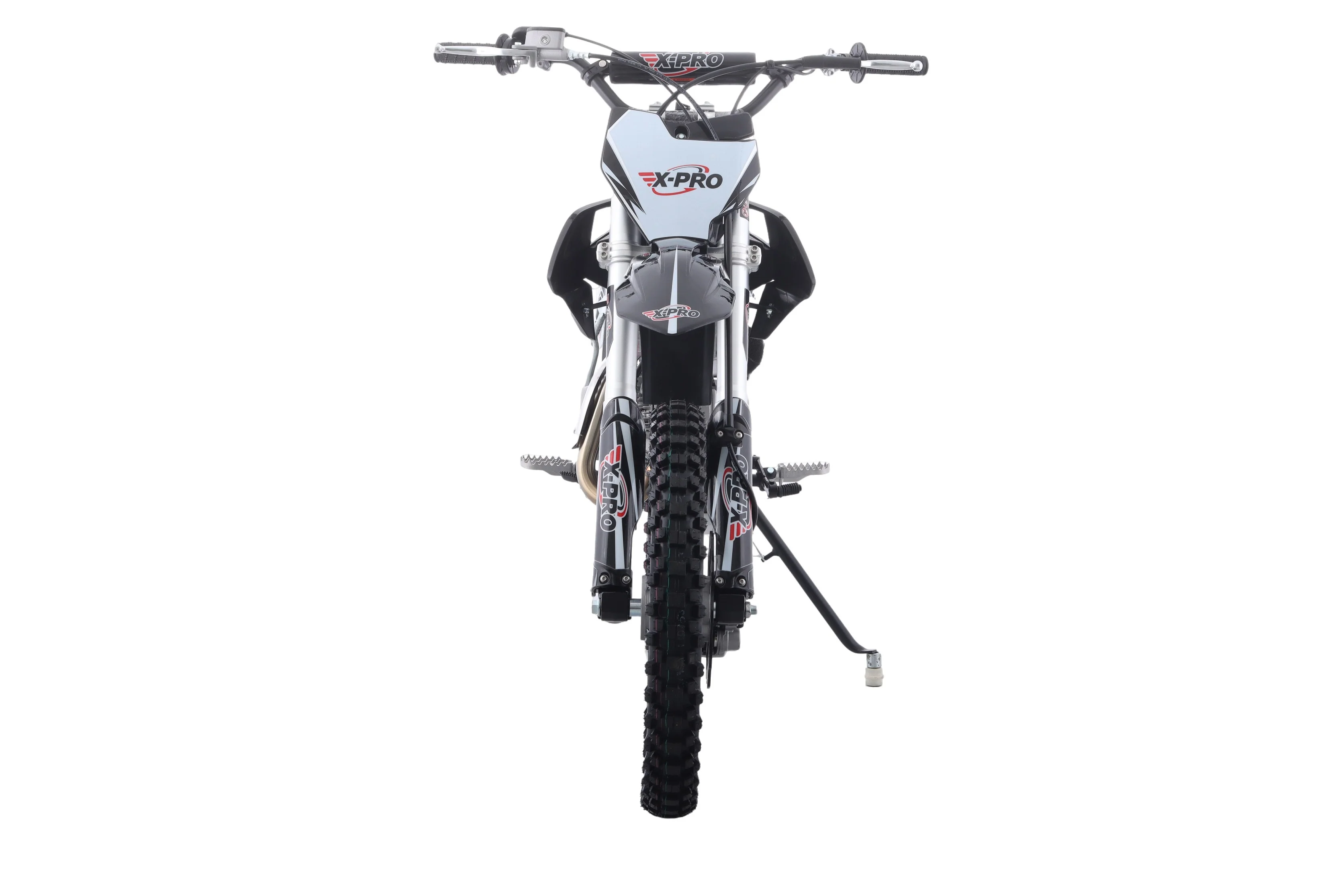

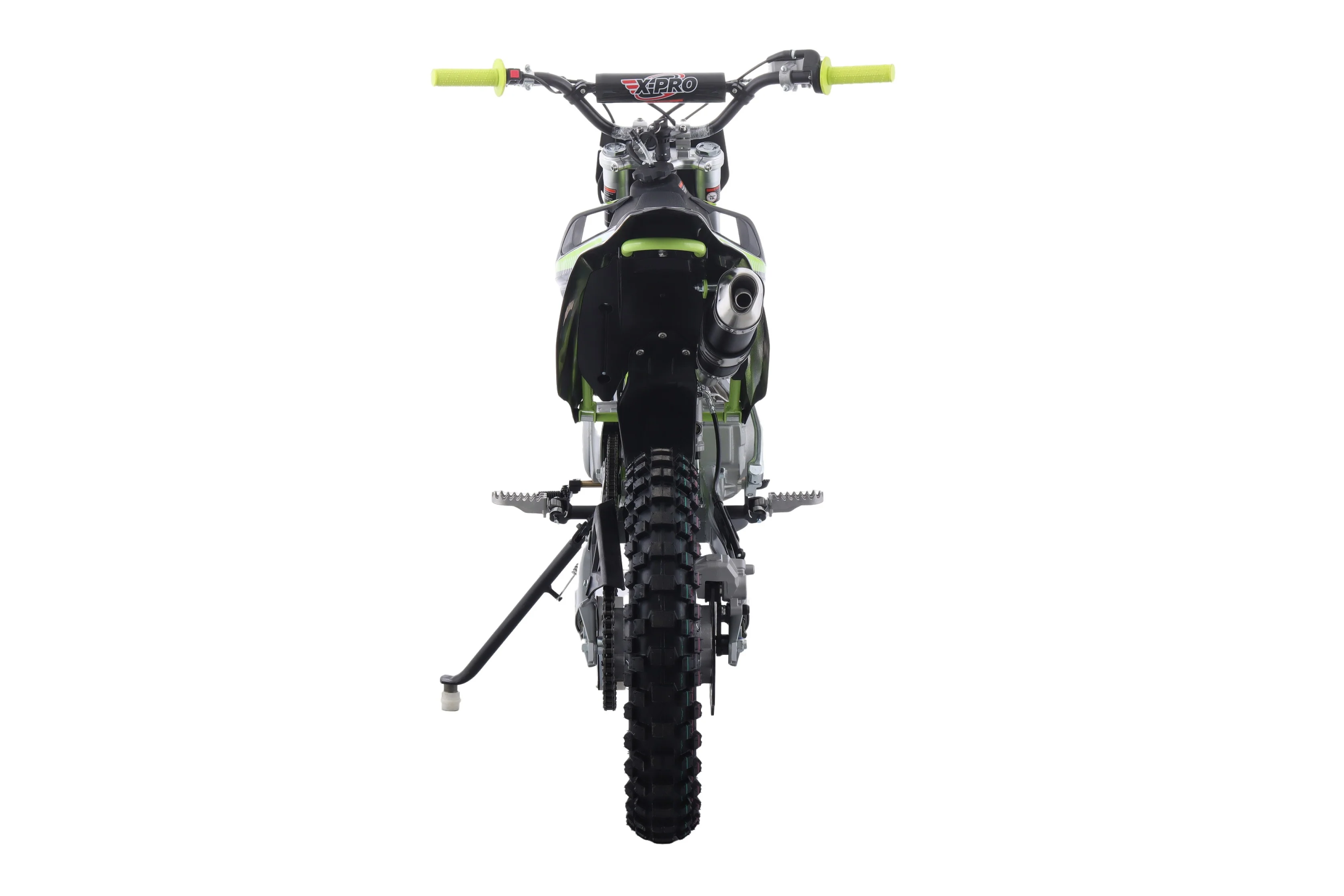

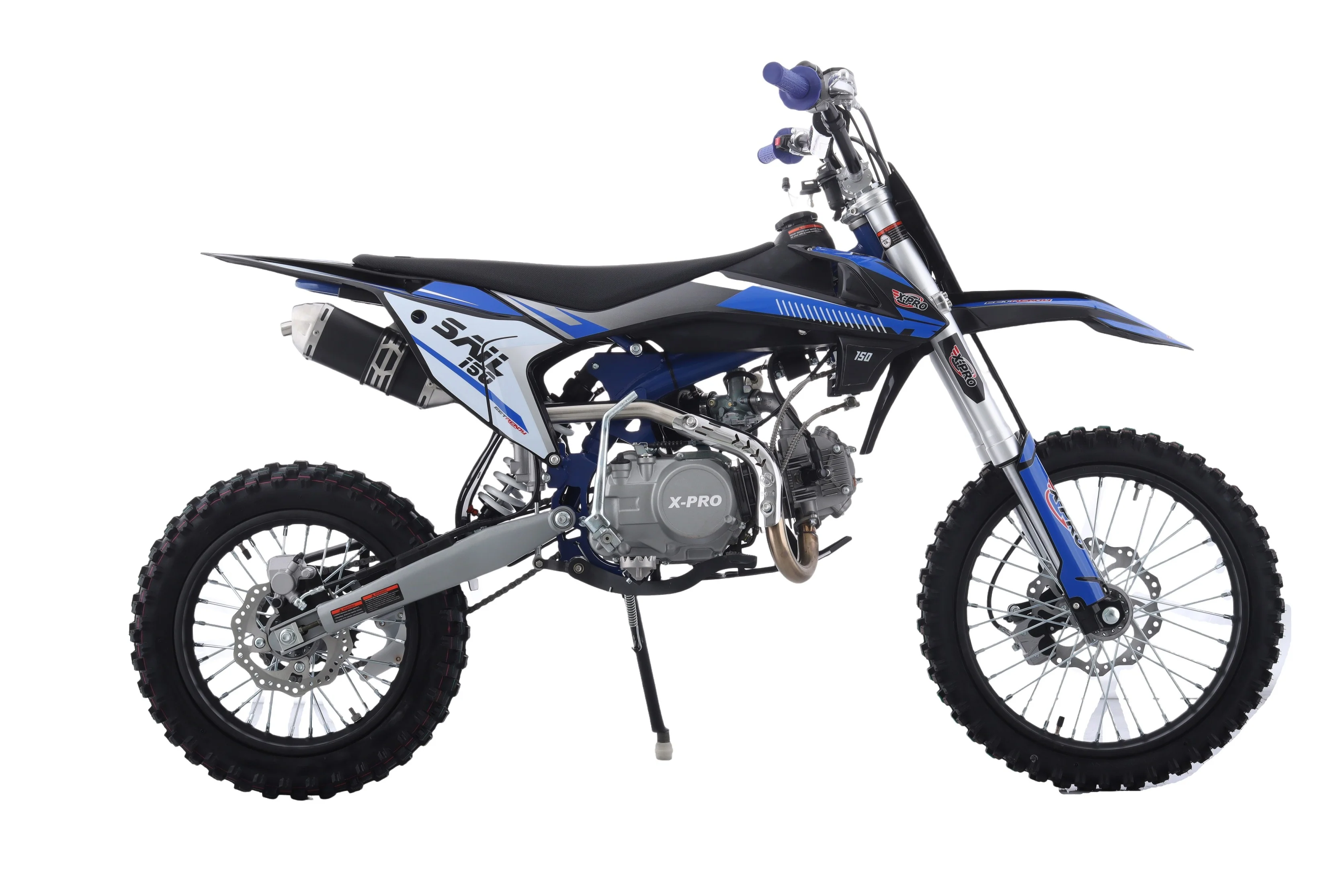

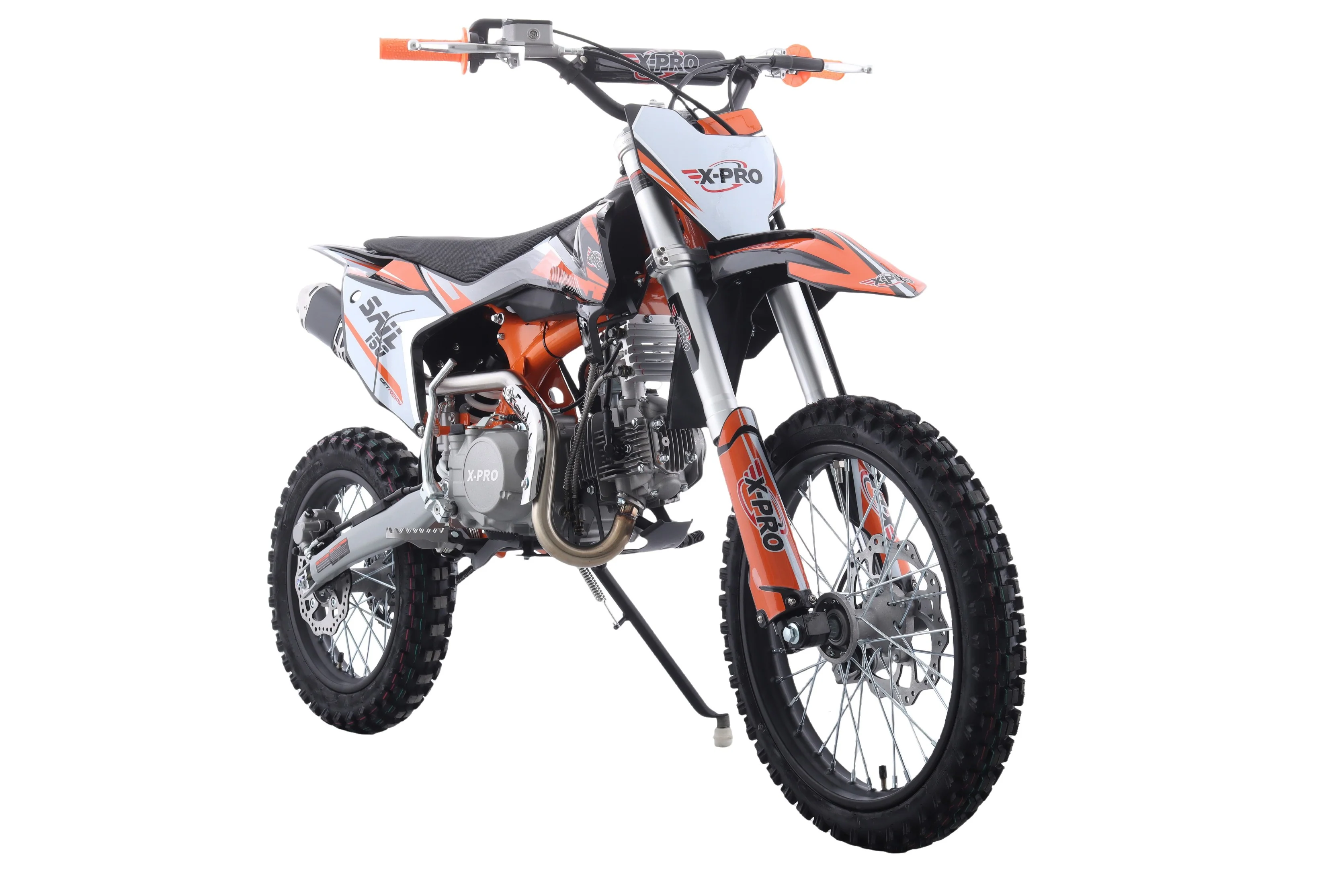

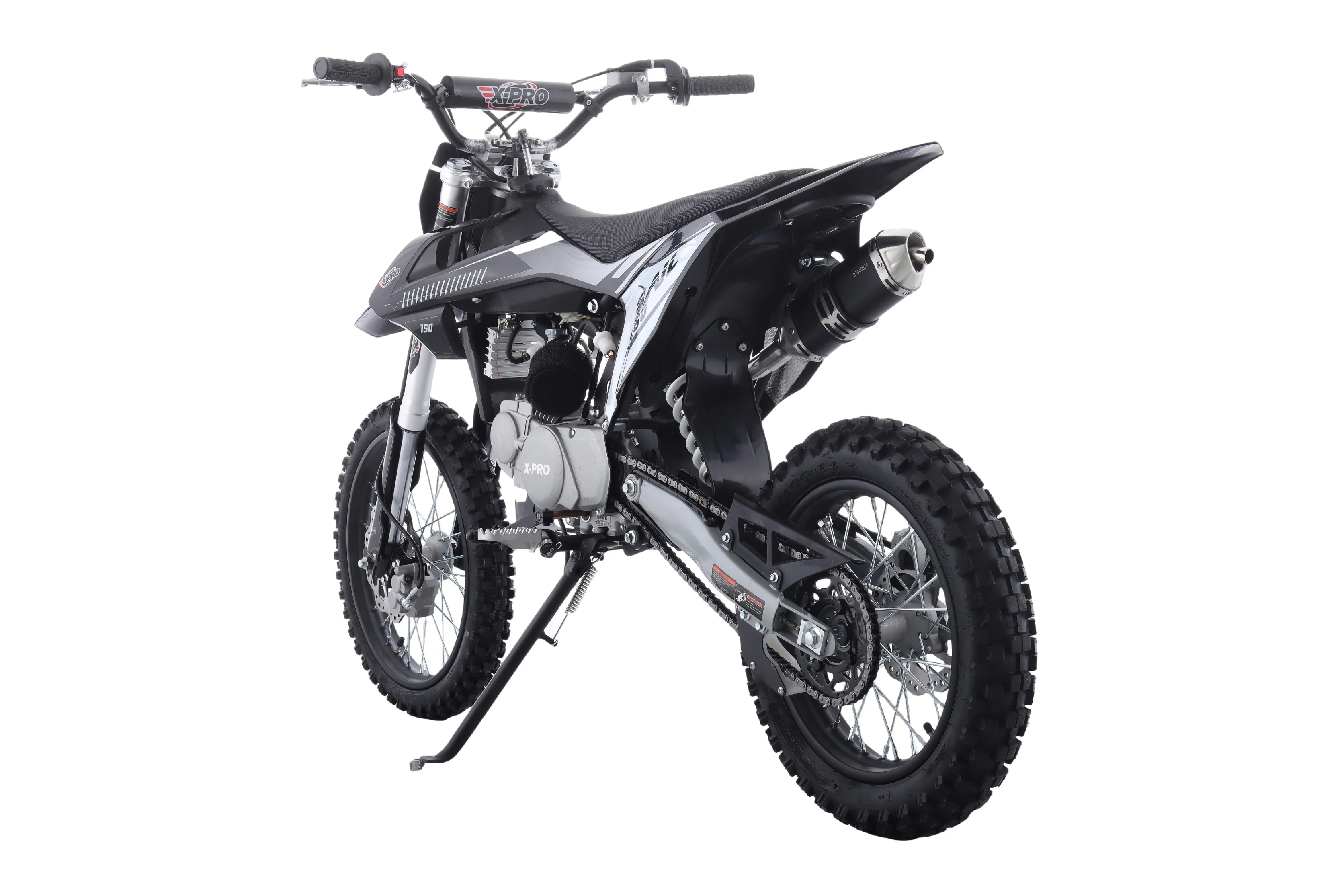

New Upgraded X-PRO Sail 140cc Dirt Bike.

• Main Features:
1. Free Upgraded Good Quality Zongshen Brand Engine($250 value): Comes with 140cc Zongshen engine, which is expensive, reliable, powerful and long life span.
2. Free Upgraded Inverted Front Shock Absorption($100 value): Has the advantages of favorable shock insulating effect, long service life, safety and better stability.
3. Free Upgraded Rear Suspension with Adjustable Airbag ($100 value): with its inbuilt airbag and adjustable settings, it guarantees a comfortable and stable ride like no other.
4. Free Upgraded Perimeter Cradle Type Steel Frame($150 value): enhances its structural integrity and durability, providing high resistance to torsion, bending and overall rigidity.
5. Free Upgraded Stainless Steel Header Pipe & Silencer($100 value): The stainless-steel and black aluminum design guarantees durability and reliability while remaining lightweight!

• FAST!! 140cc 4 Stroke, Single Cylinder, Oil Cooled Engine, keeps engine temperatures reliably under control, even while idling at stoplights--for maximum efficiency and longer engine life.
• 17"/14" Big Front/Rear Wheels, Fits for Adults and Big Boys!
• 4-Speed Manual Transmission Take fully control of the dirt bike, Pro's Choice!
• High Quality Zongshen Brand Engine: which is expensive, reliable, powerful and long life span.
• Front and Rear Disc Brake Powerful and durable disc provides excellent braking at any speed; giving you the safety you need.
• Kick start Start your dirt bike easily and conveniently without worrying about your battery.
• #428 chain, 13T/41T: Heavy Duty Chain and Performance Sprocket
• Perimeter Cradle Type Steel Frame: enhances its structural integrity and durability, providing high resistance to torsion, bending and overall rigidity.
• New Feature: Rear Suspension with Adjustable Airbag.
• The CDI Ignition Better performance and easier to start for optimal use.
• Oversized Foot Pegs
• Off Road Use Only
• Some assembly required





Specifications

Model Number	DB-K030
Engine/Drive Train
Engine	Zongshen Brand ZS1P56YMJ，140cc 4-stroke
Cylinder Arrangement	Single
Cooling System	Oil cooled
Compression Ratio	9.0:1
Bore x Stroke	Ф56×57mm
Max. Power(KW)	6.6/7500±500 kw/r/min
Max Torque	10.2/5500±500 N.m/r/min
Transmission	4-UP Manual Clutch, 4 Speeds
Final Drive	#428 chain, 13T/41T
Start System	Kick
Ignition	CDI
Carburetor	YOUALL PZ27
Max Speed (MPH)	50 Mph (Depending on Riders Weight and Road Conditions)
Frame /Body/ Suspension / Brakes
Frame	Perimeter Cradle Type Steel Frame
Front Suspension	Φ45*Φ48-735mm Inverted Hydraulic Forks
Rear Suspension	10*11*310mm Adjustable Shock
Front Brakes	Hydraulic Dual Piston Caliper, 220mm Disc
Rear Brakes	Hydraulic Single Piston Caliper, 190mm Disc
Front Tires	70/100-17"
Rear Tires	90/100-14"
Exhaust/Pipe	Stainless Steel Header Pipe & Silencer
Capacities / Dimensions
Weight Capacity(lbs)	209
Net Weight (lbs)	172
Gross Weight (lbs)	205
Overall Length	66.5"
Overall Width	28.5"
Overall Height	41.3"
Package Size	63x15x30"
Wheelbase	47.2"
Seat Height	33"
Min Ground Clearance	11.8"
Fuel Capacity	1.2 Gal
Safety / Control
Engine Kill Switch	Yes
Foot Brake	Yes
Others
EPA Approved	Yes
CARB Information	This bike is not legal for sale in California.
