A tip on how to charge correctly:

• When charging, align this groove with the protrusion on the charging port. Please refer to the video below for specific operation.

• Comparison of X-PRO Rambler Electric Kart and other electric karts on the market.

Model Type	X-PRO Rambler Electric Go Kart	Ordinary Electric Go Kart
Body	Full Carbon Steel Body, more sturdy and durable	Simple Steel Tube Body
Motor	350W*2 Brushless Motor	Balance Bike Motor
Battery	Lead-acid 24V20AH Battery, more stable and safe, fixed rear position for easy and quick replacement.	12V Battery
Mileage at full charge	28km (inclusive) - 35km (exclusive)	25km (inclusive) - 35km (exclusive)
Braking system	Double-hub Mechanical Disc Brake Calipers and Perforated Brake Discs, make the braking distance shorter and the braking stability higher.	Electronic Brake
Tires	Rear 80/60-6 Off-road Pattern Tubeless Tire, has stronger grip and is suitable for off-road conditions.	Flat tires, suitable for road driving.

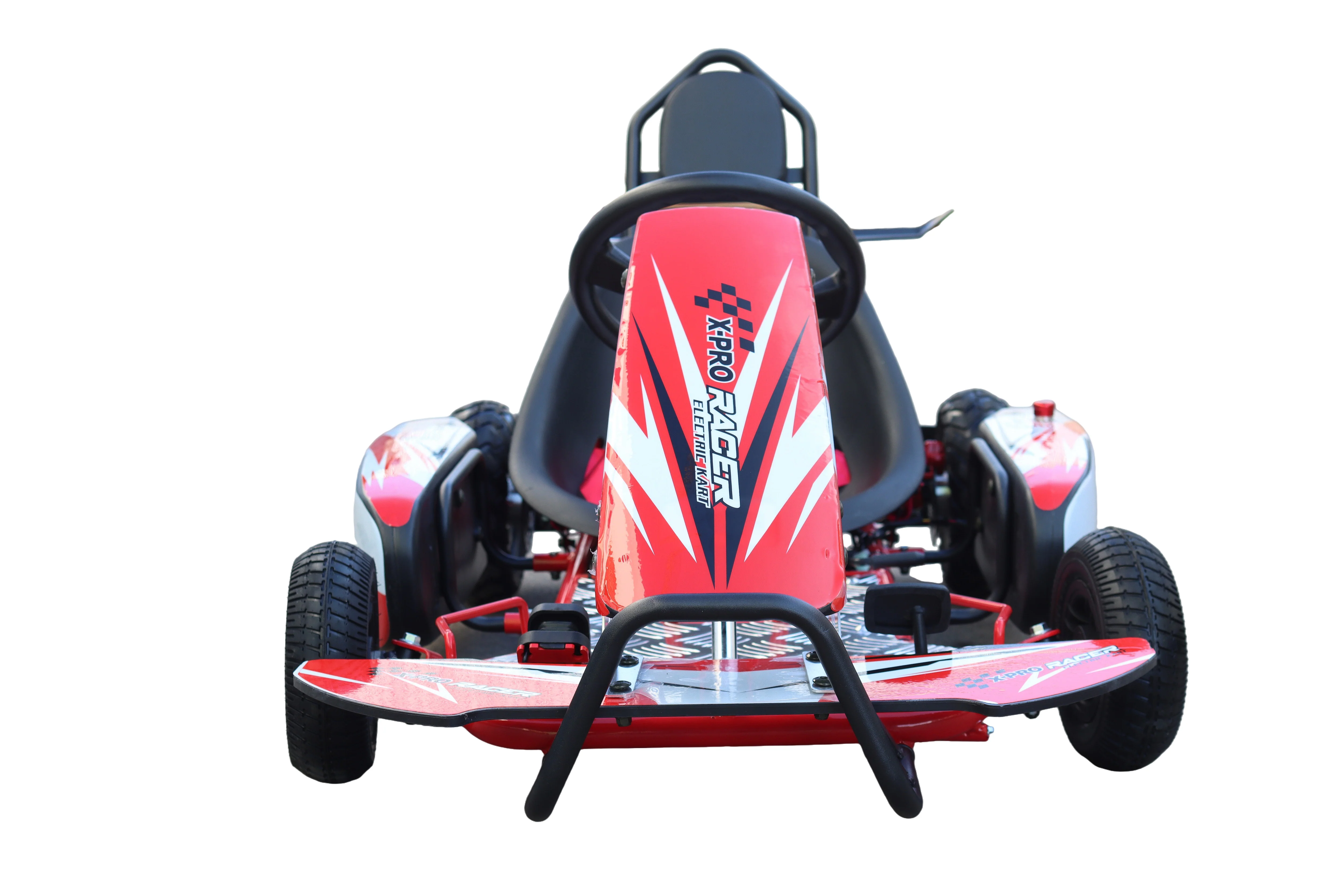

Front anti-collision bumper	HDPE High-strength Plate + Outer Steel Pipe Anti-collision Bumper Structure, safe and reliable.	ABS Plastic Plus Inner Steel Tube Structure, easy to damage.

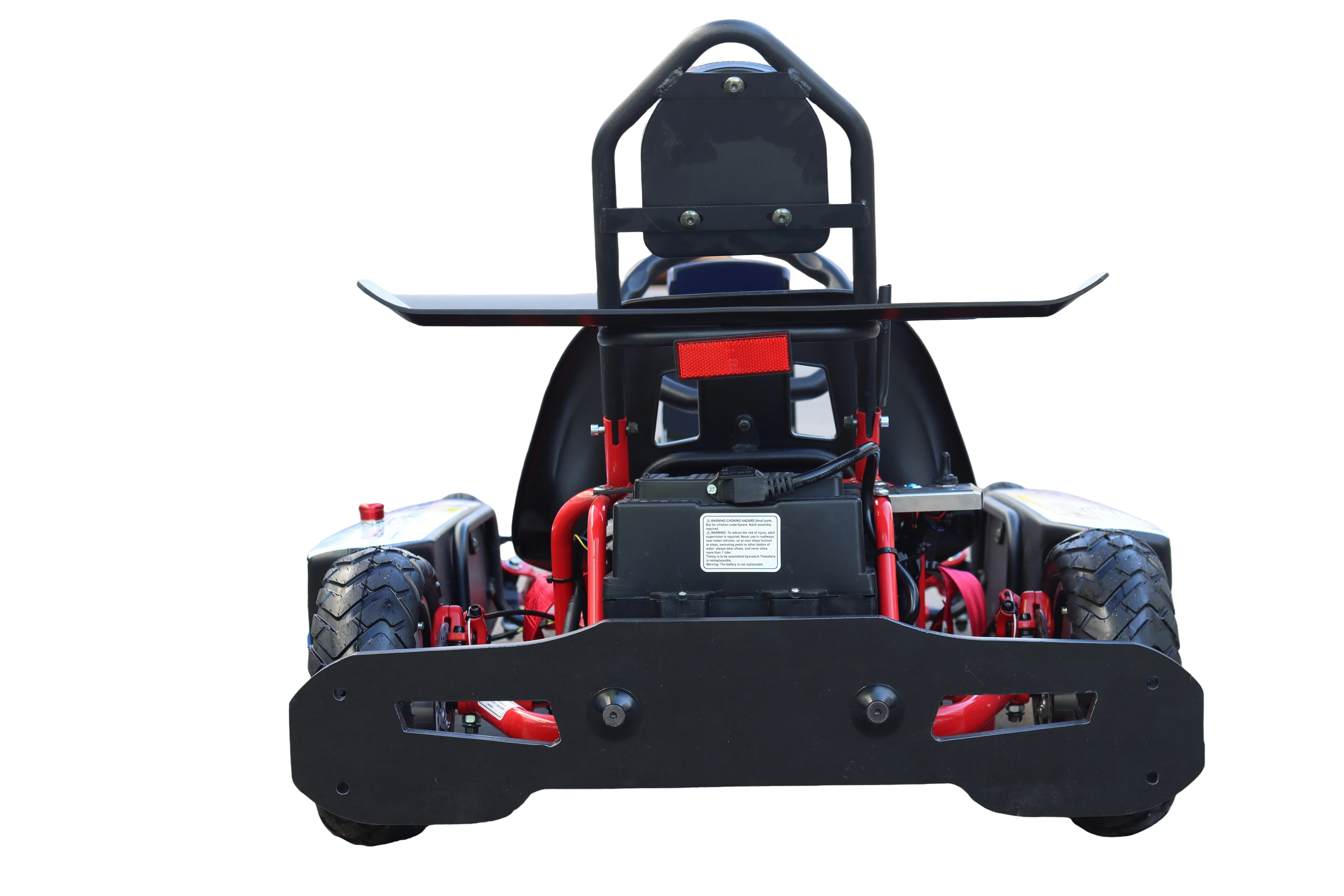

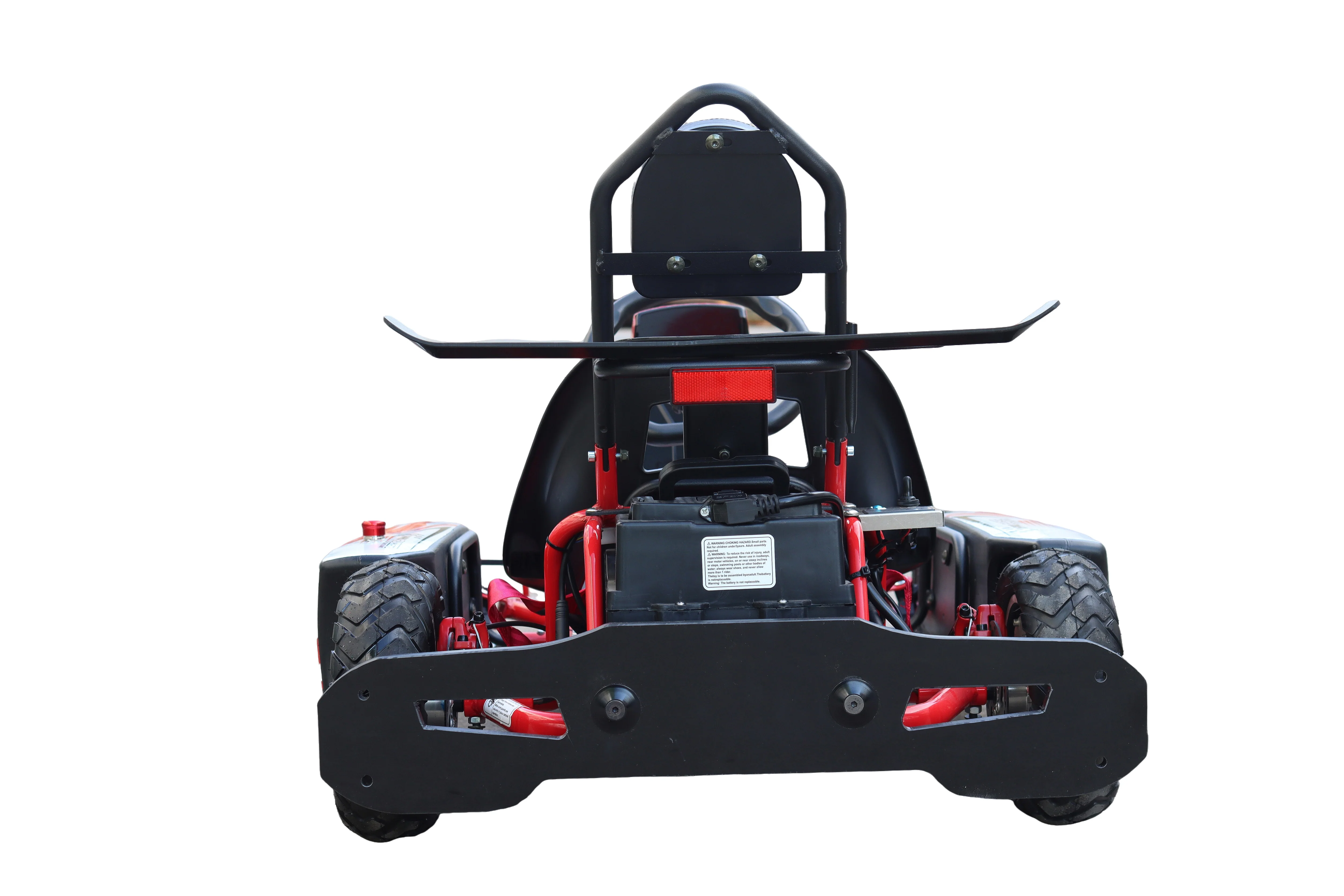

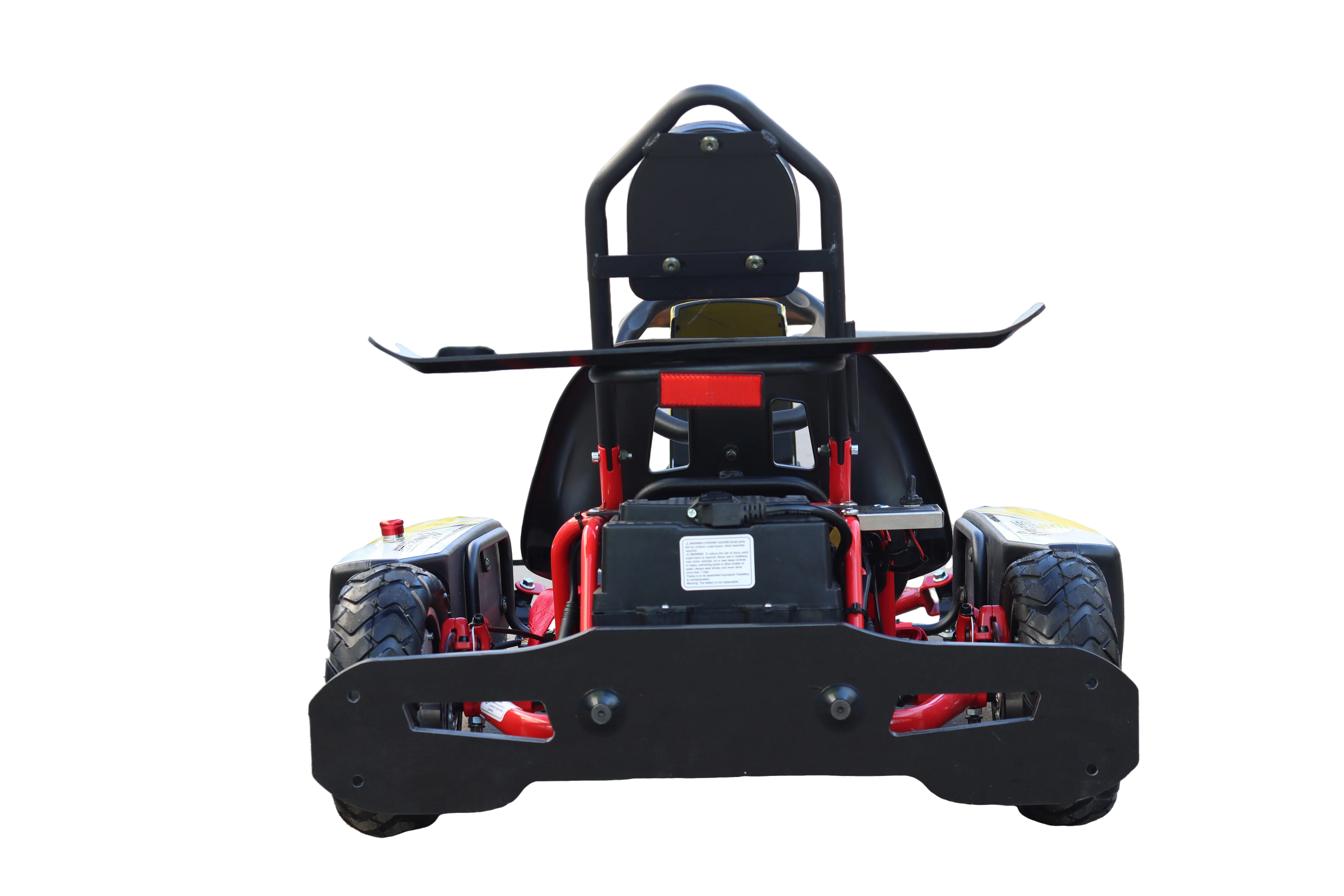

Rear anti-collision bumper	HDPE high-strength Board with 2 Built-in Circular Impact Cushions, safe and reliable.	Simple Steel Tube, after a crash, the repair and the replacement cost will be high.

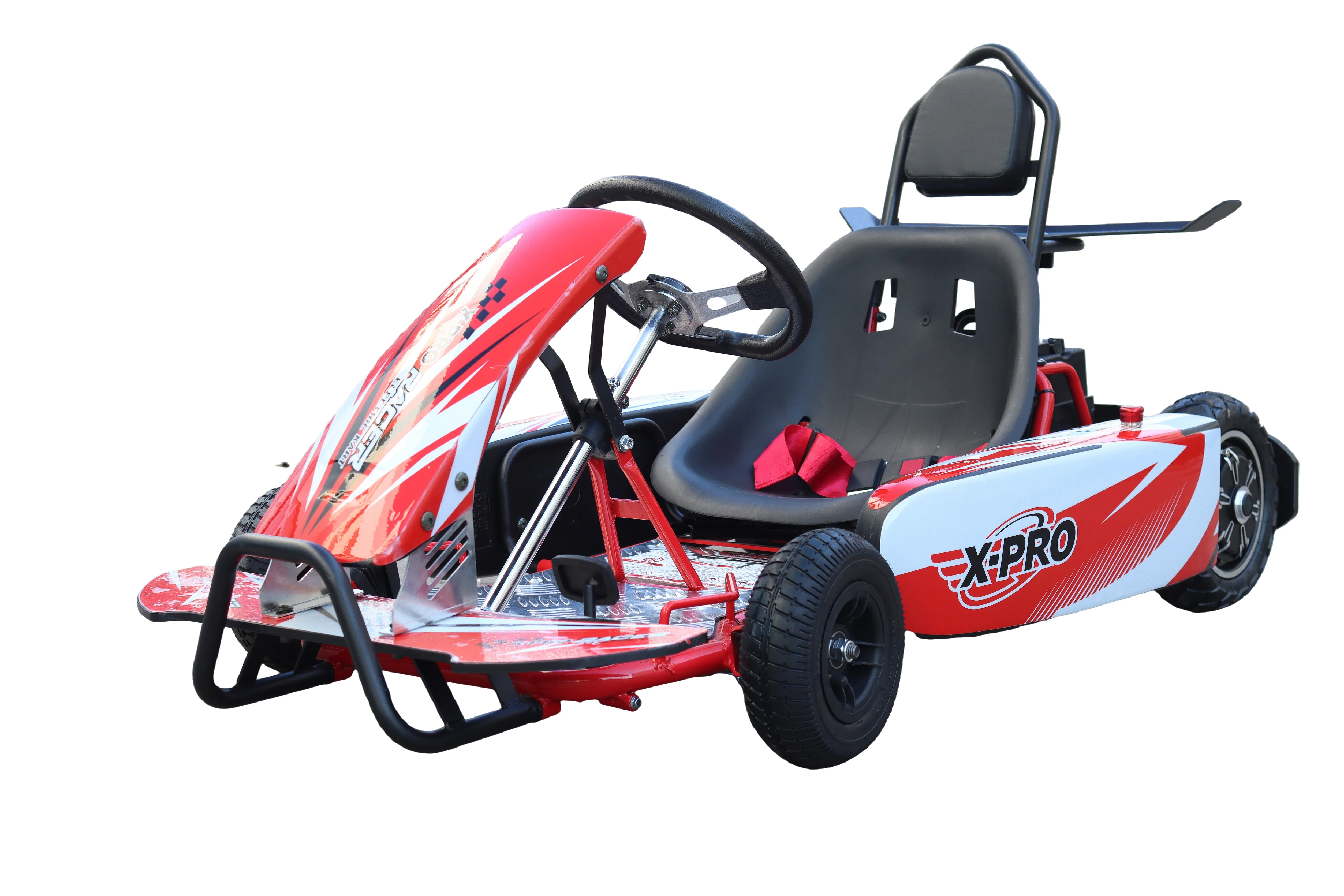

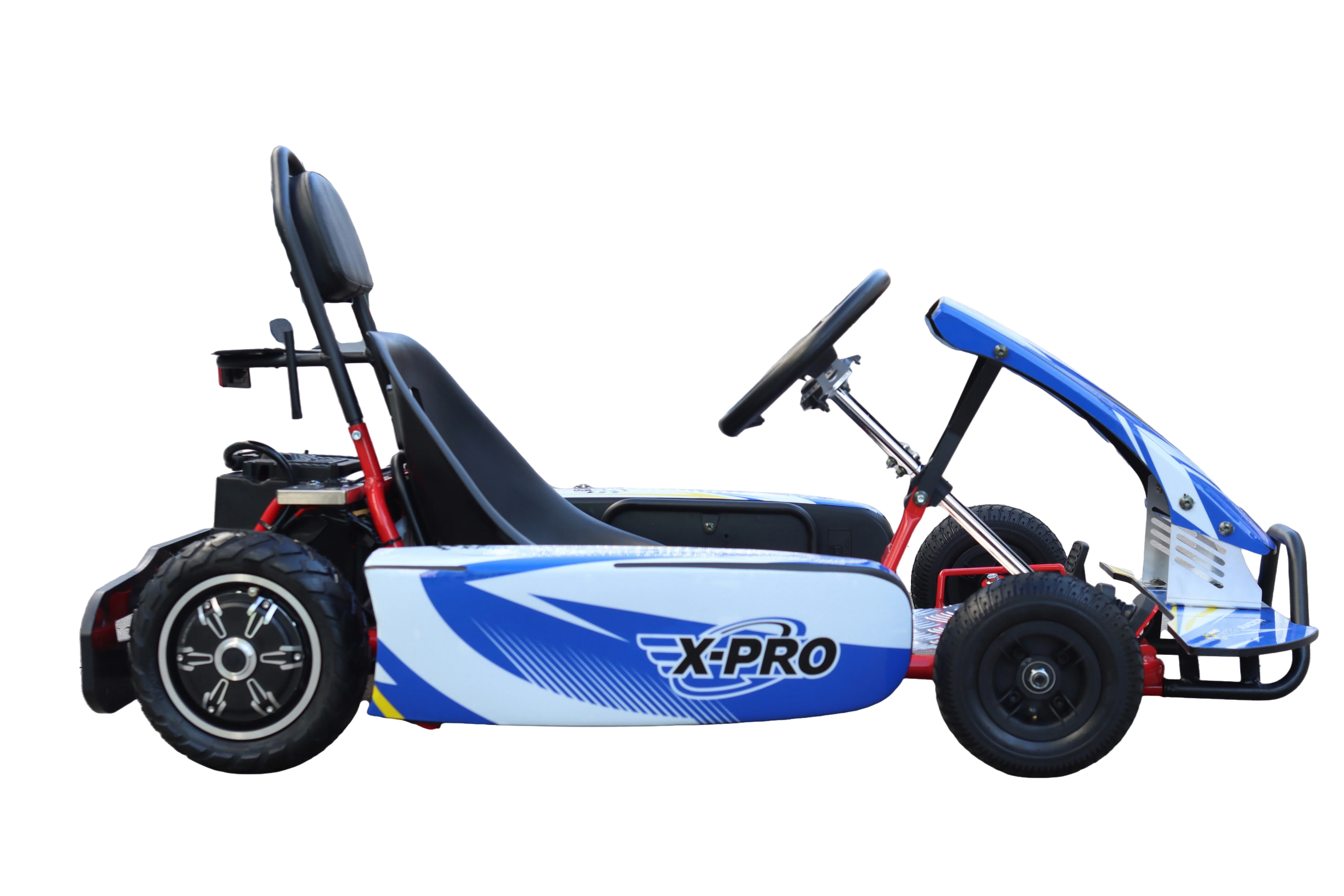

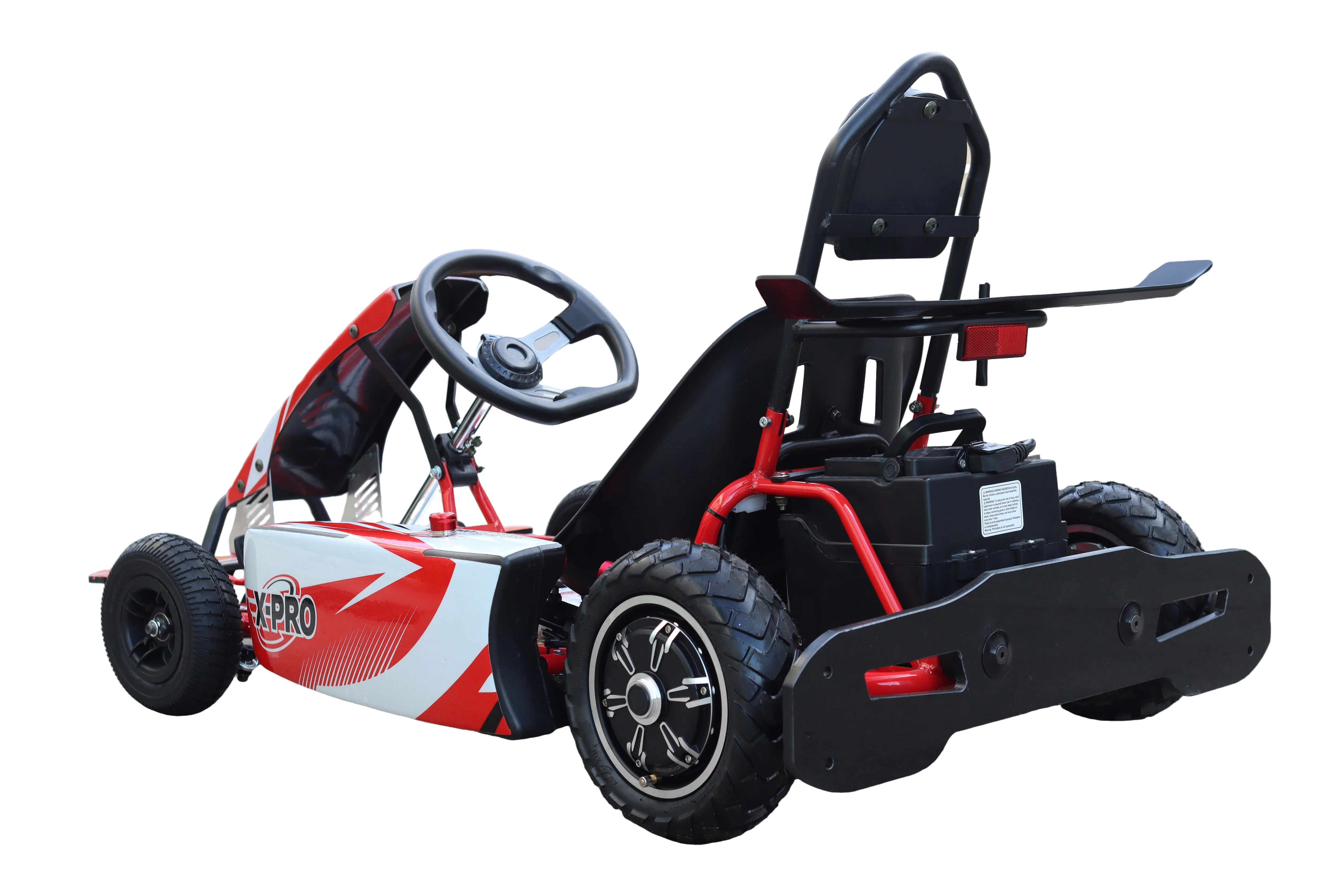

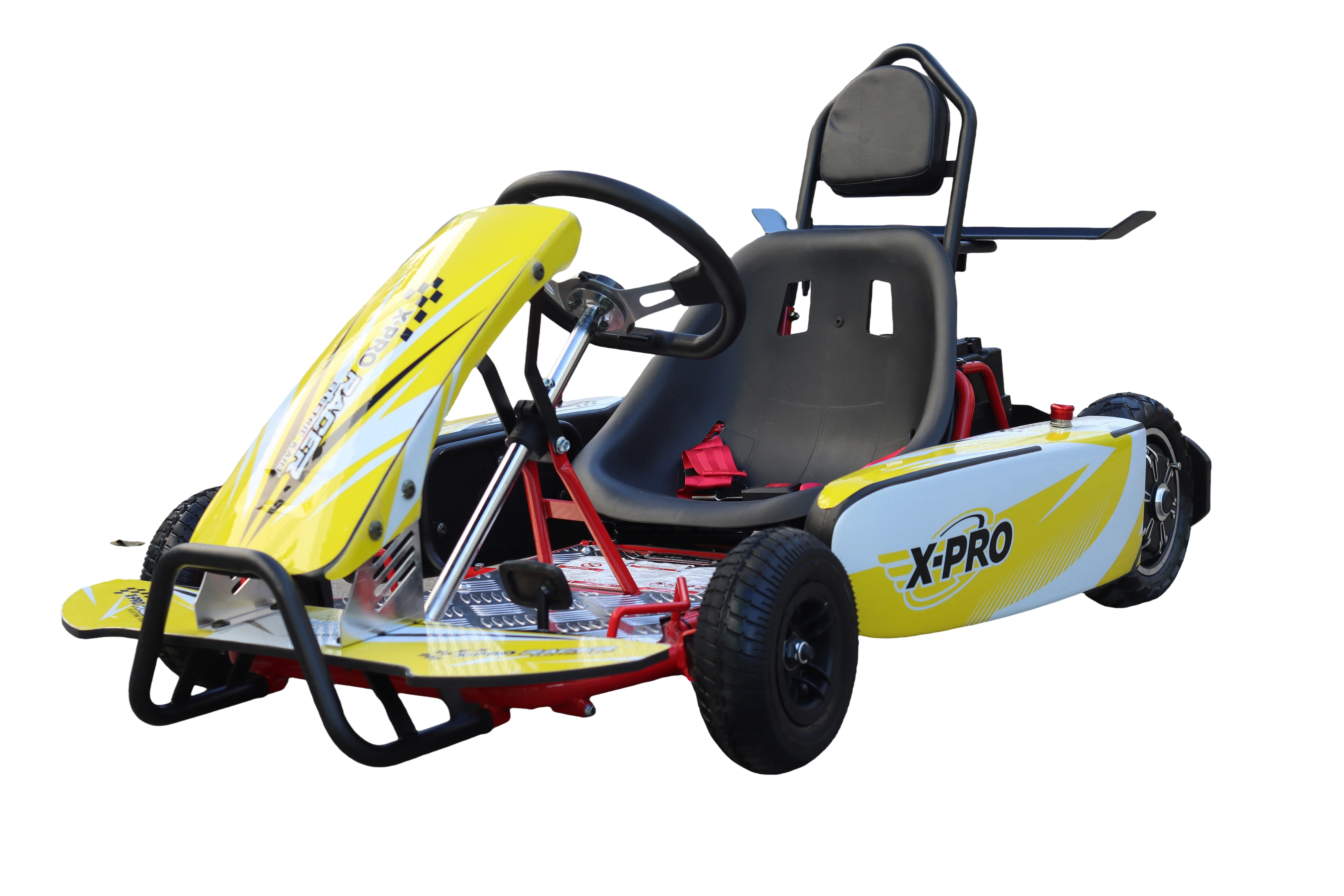

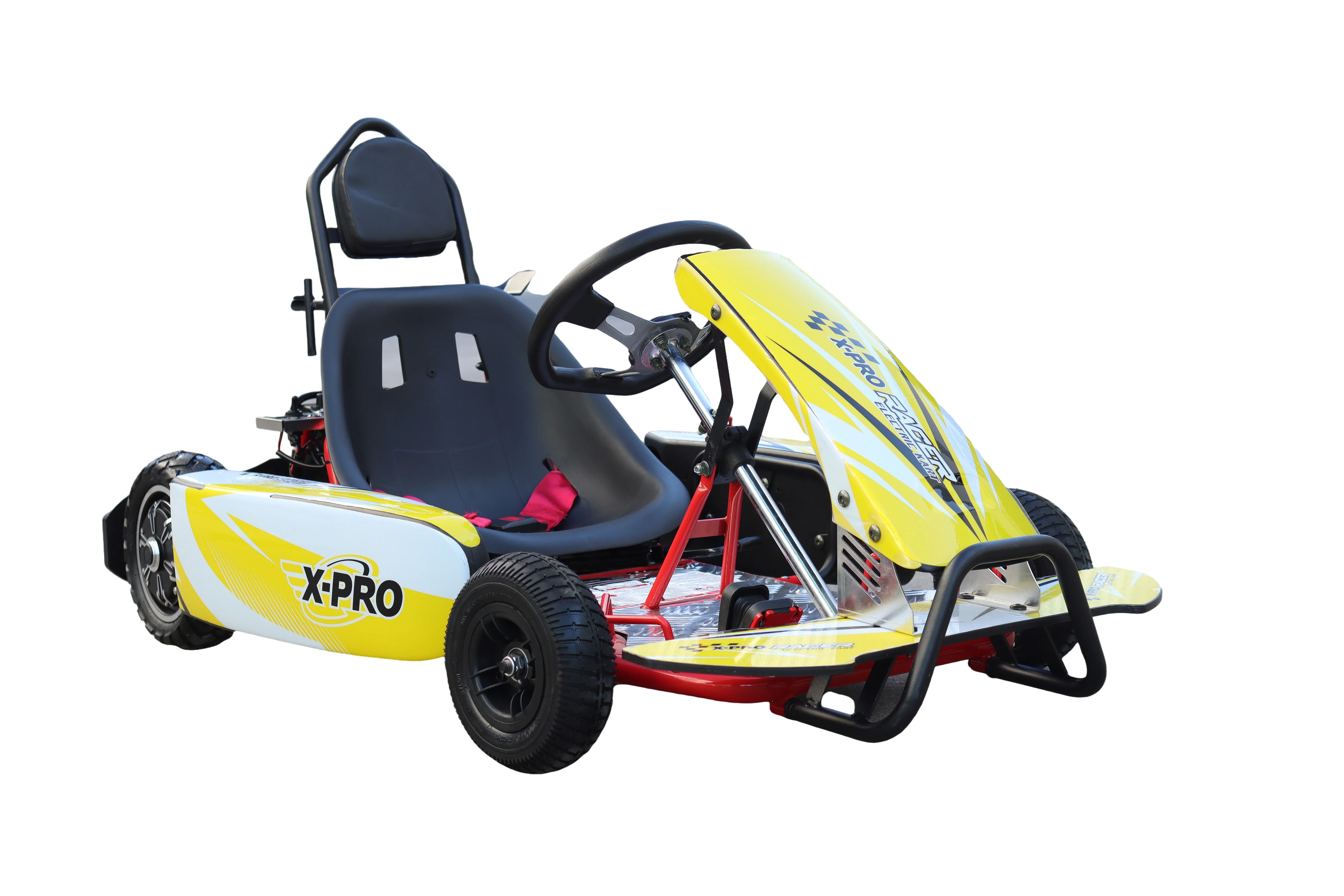

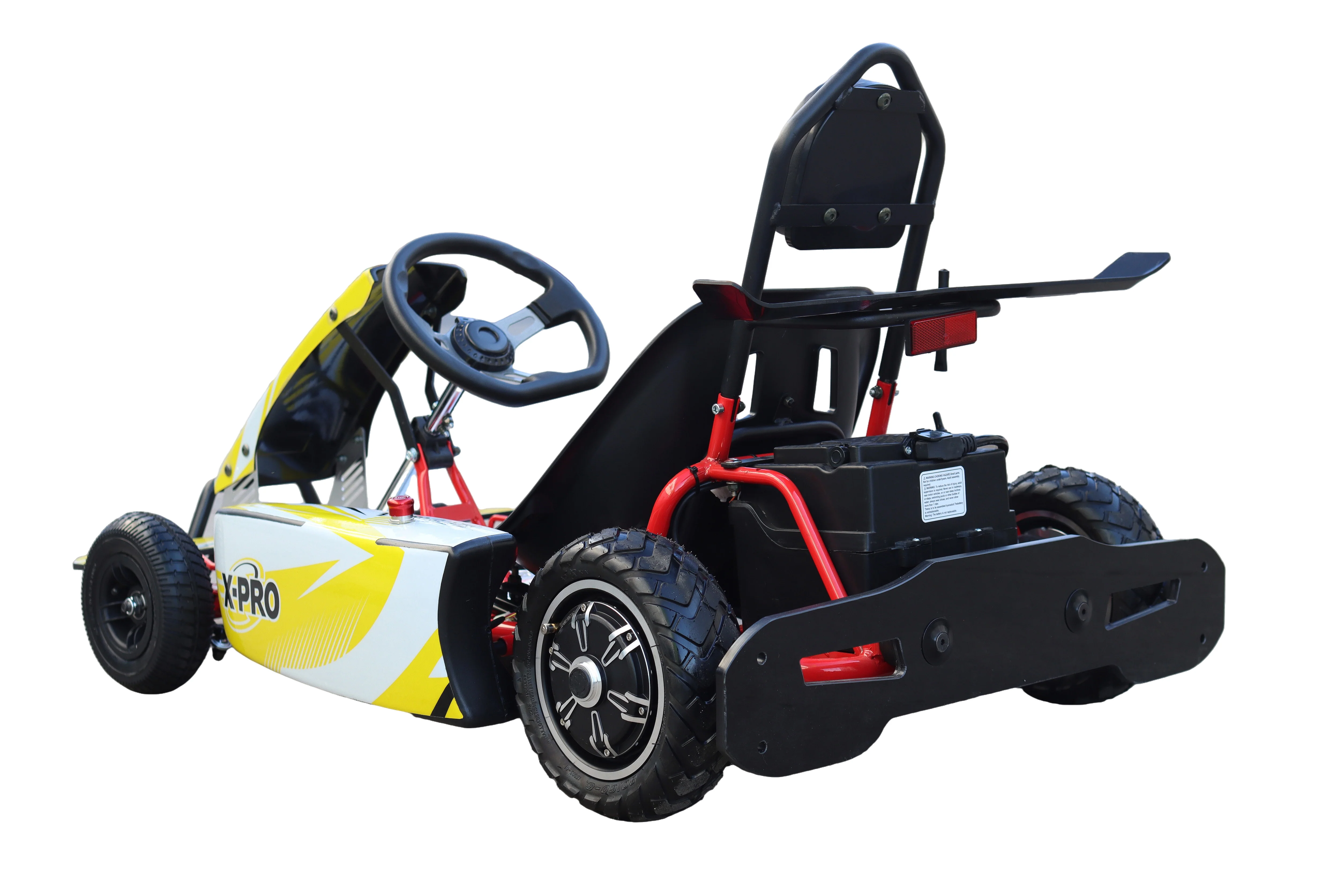

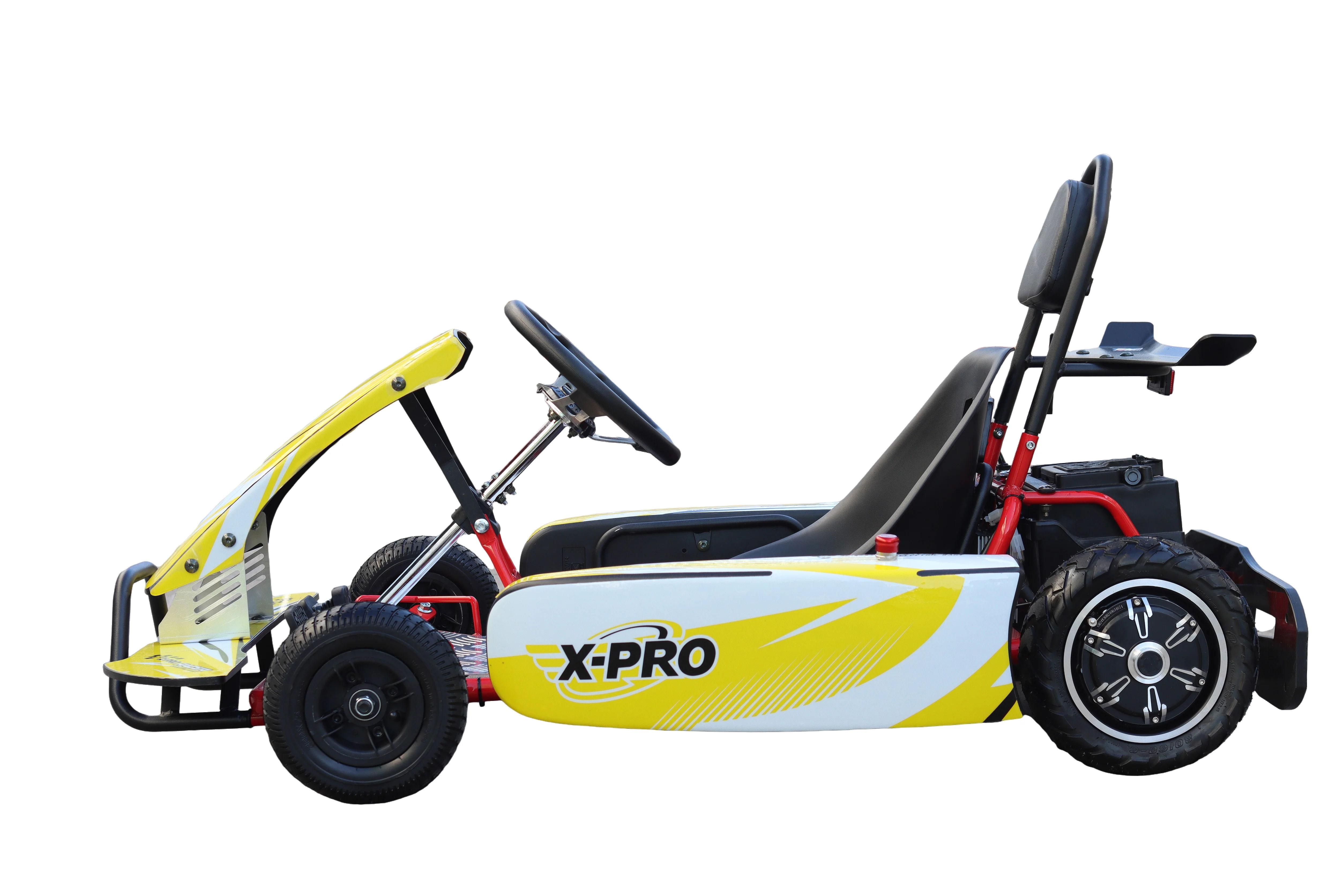

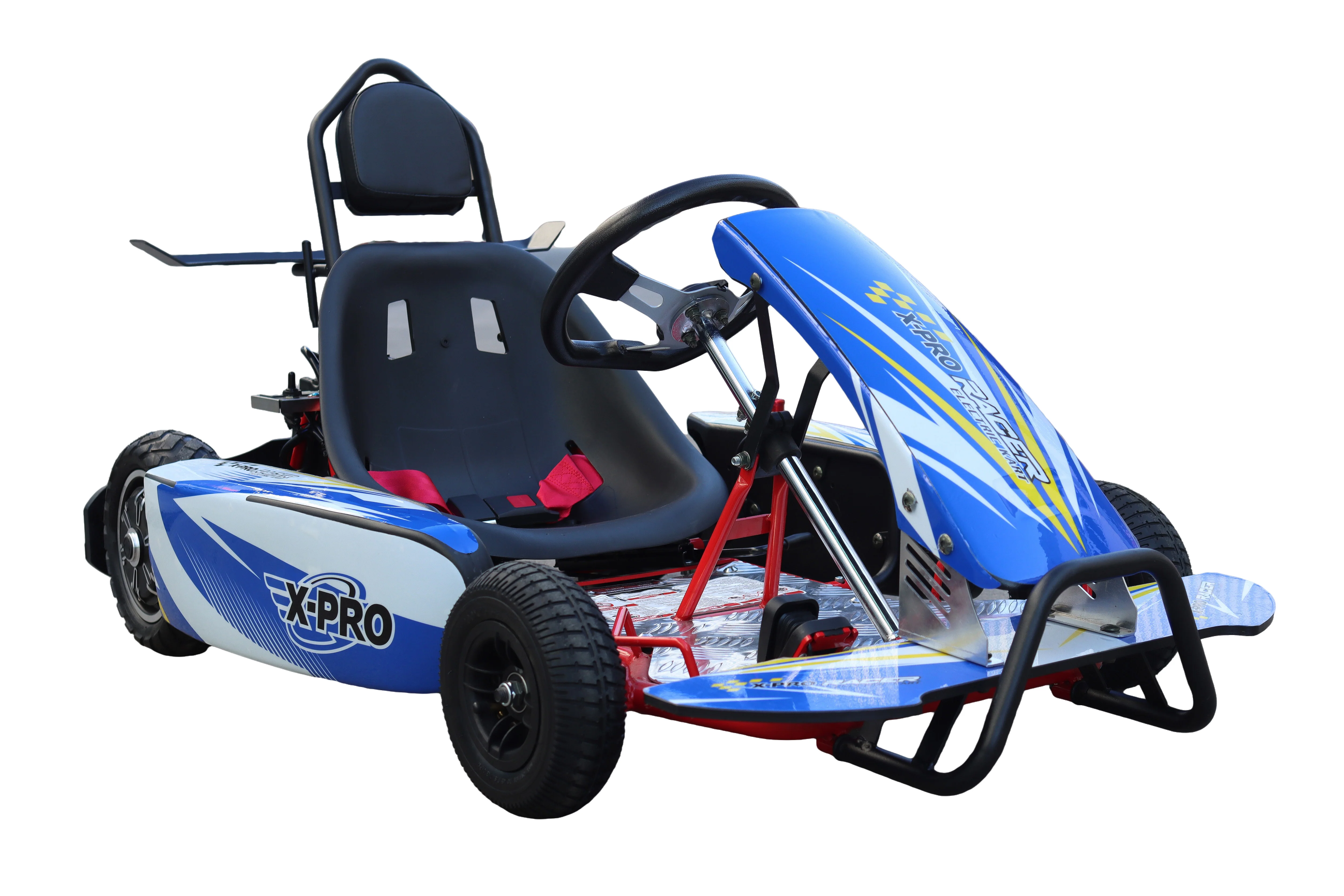

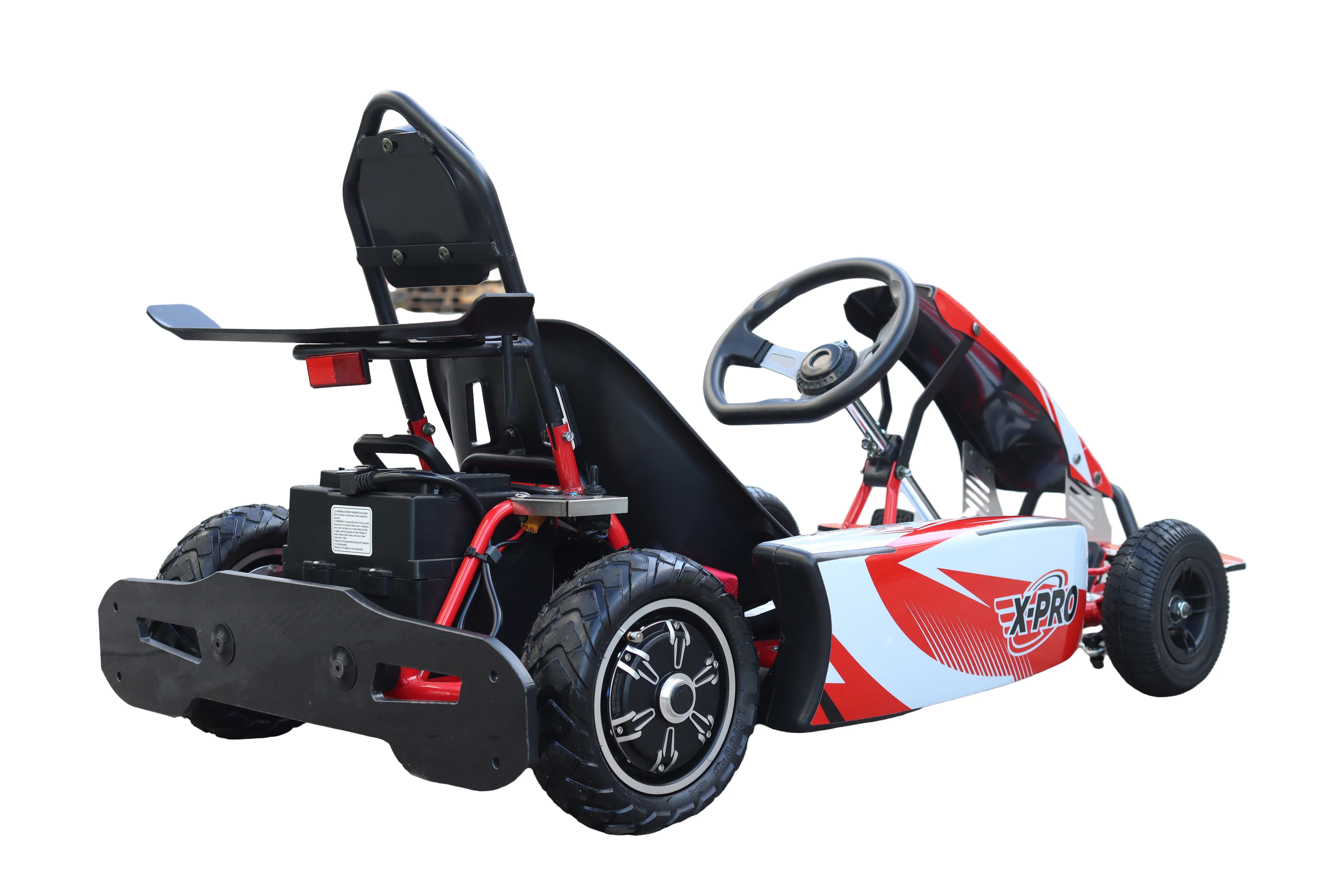

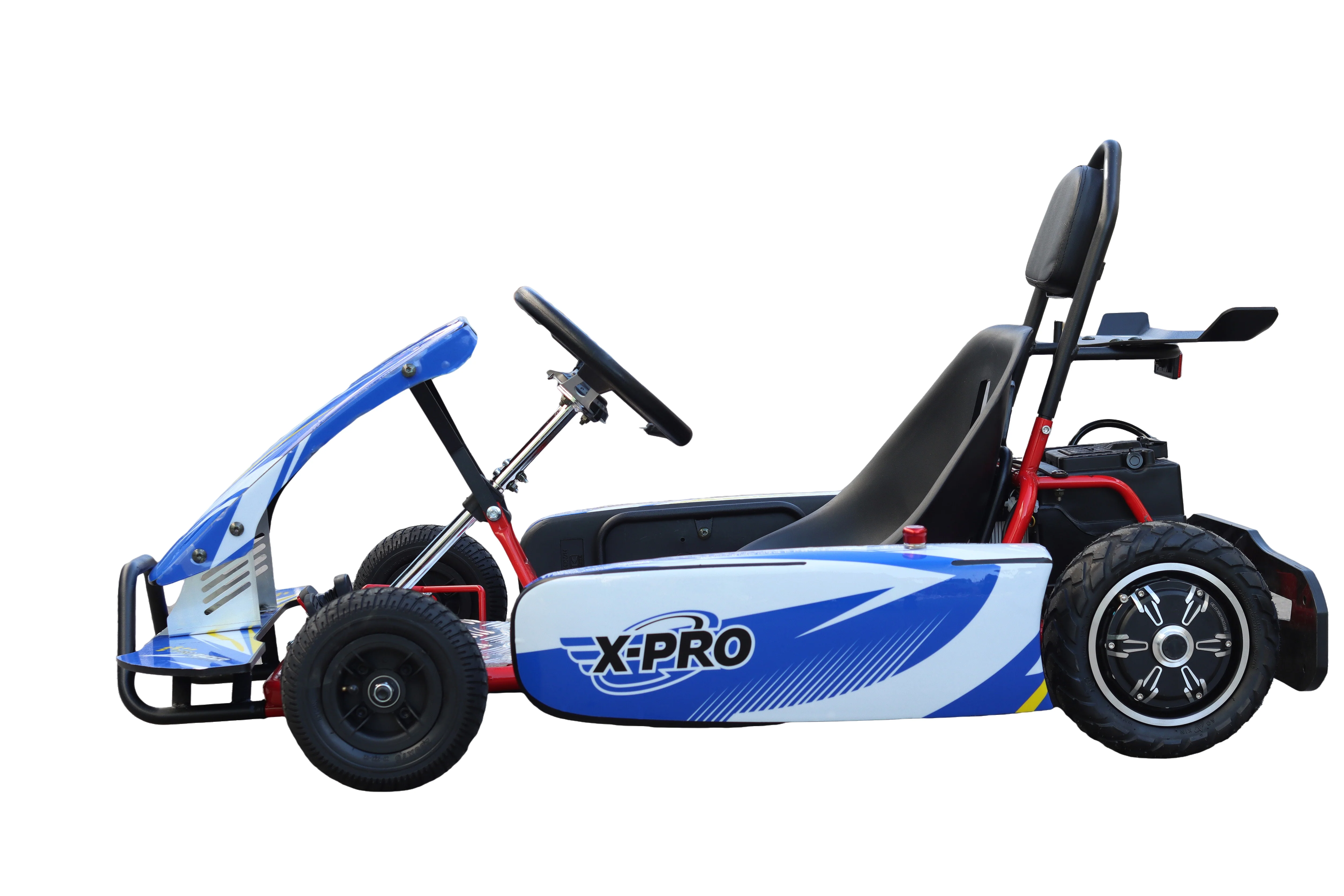

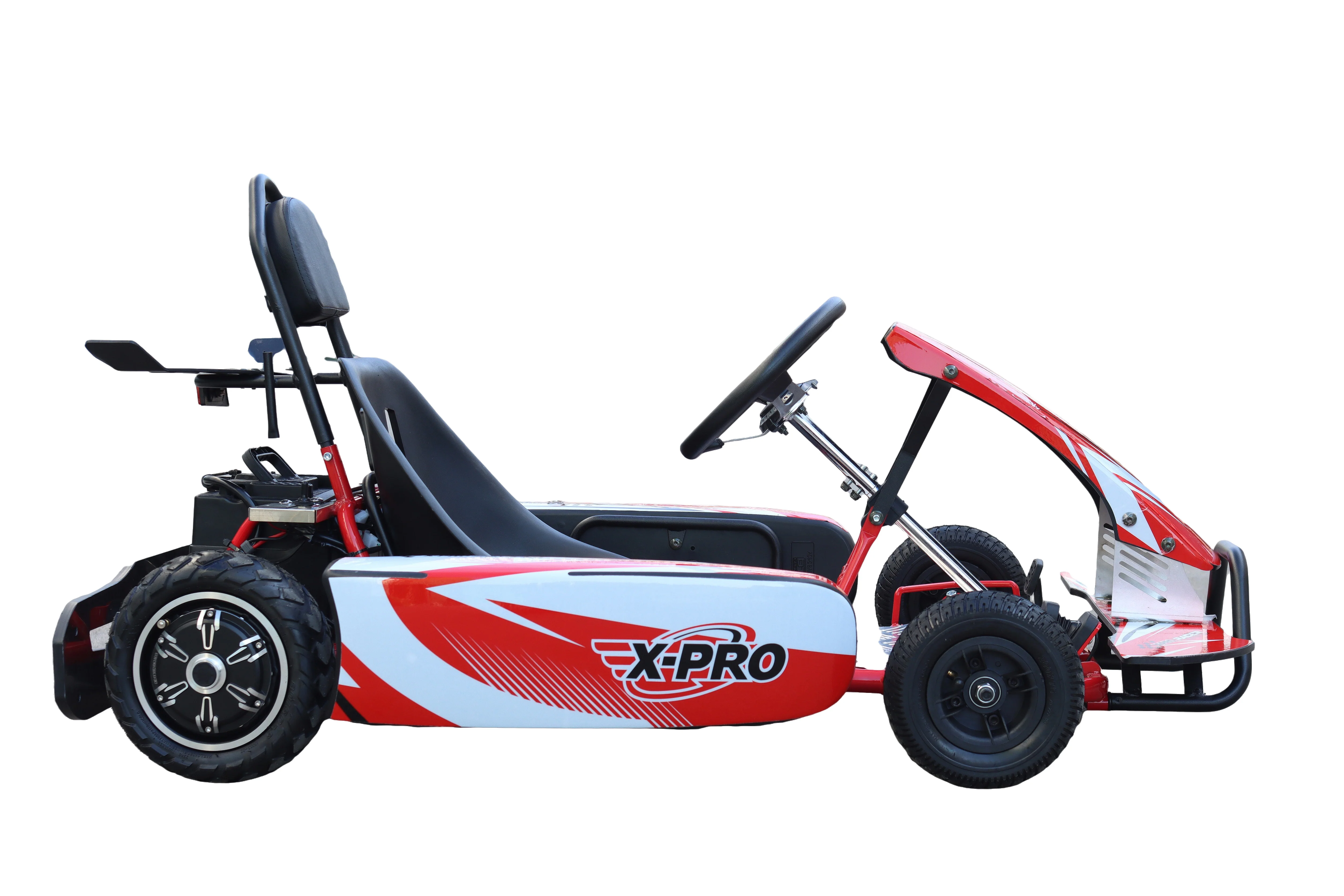

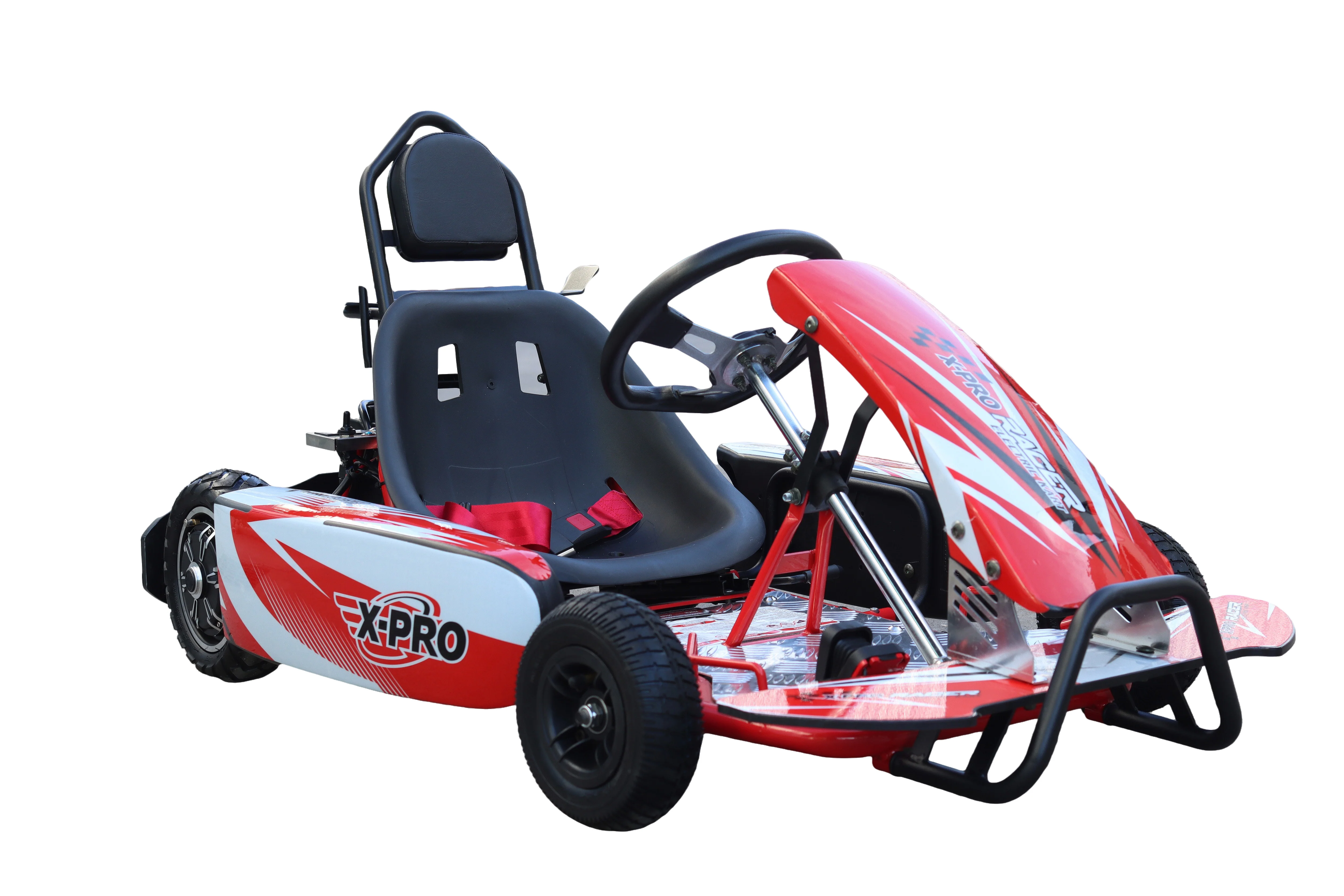

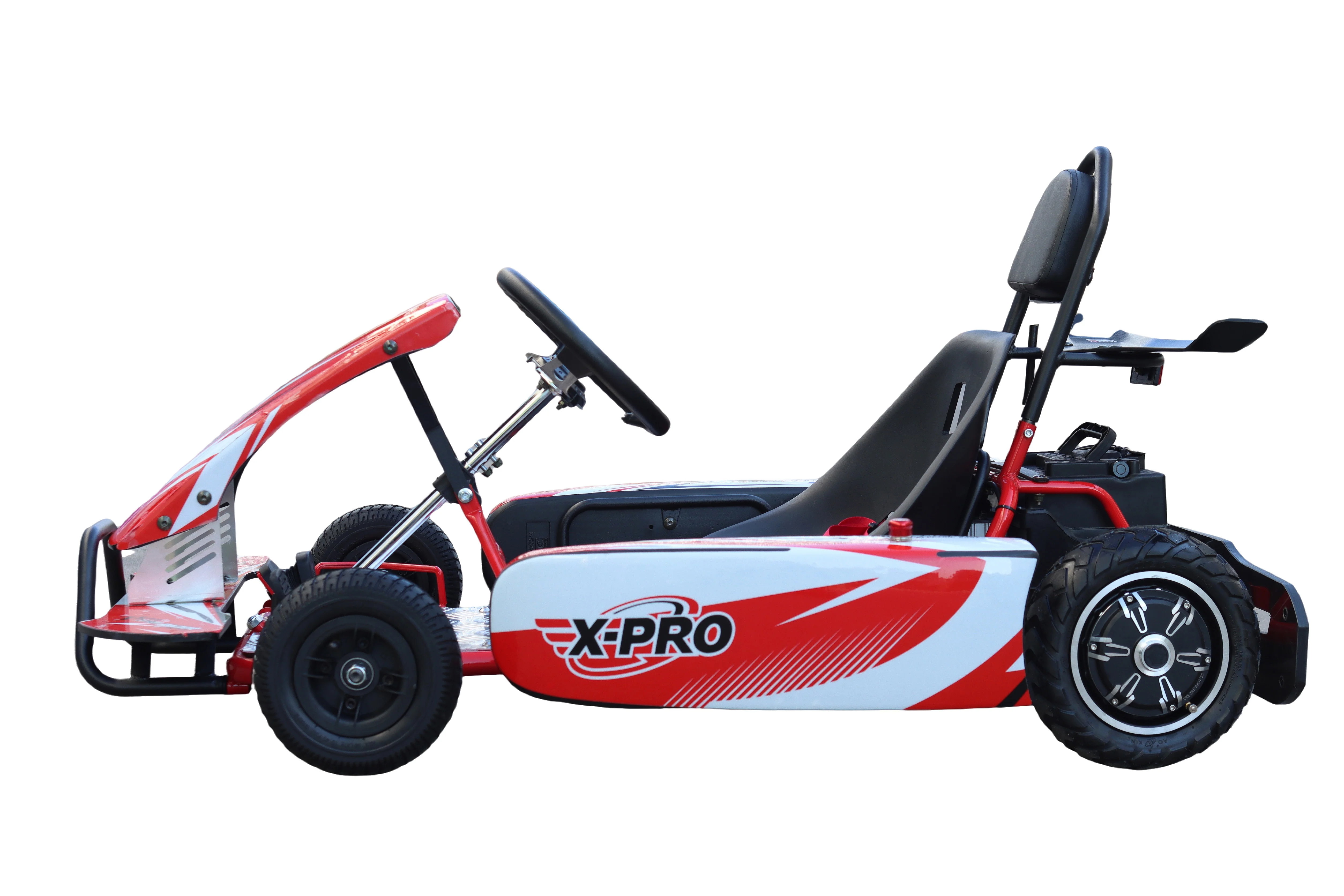

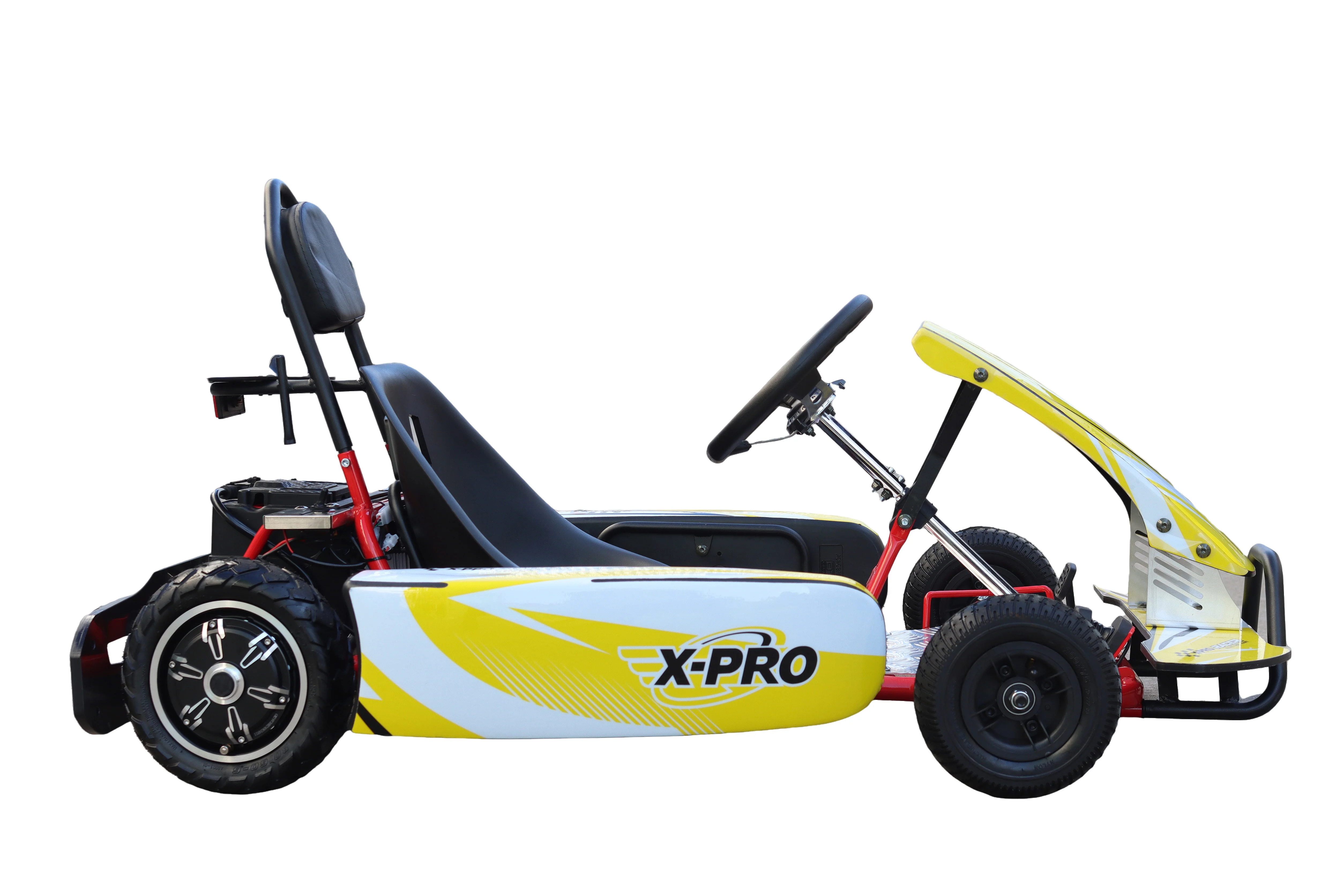

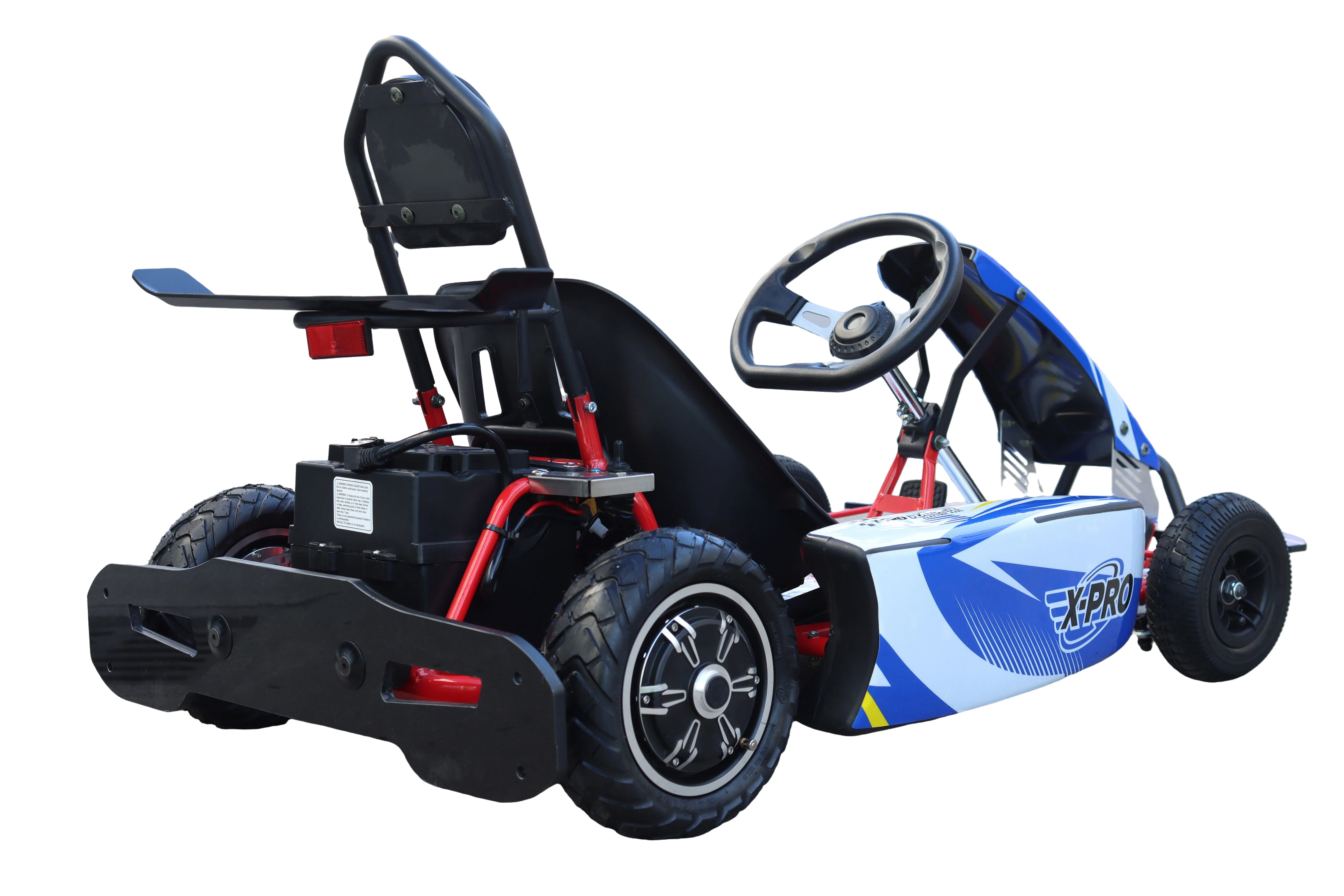

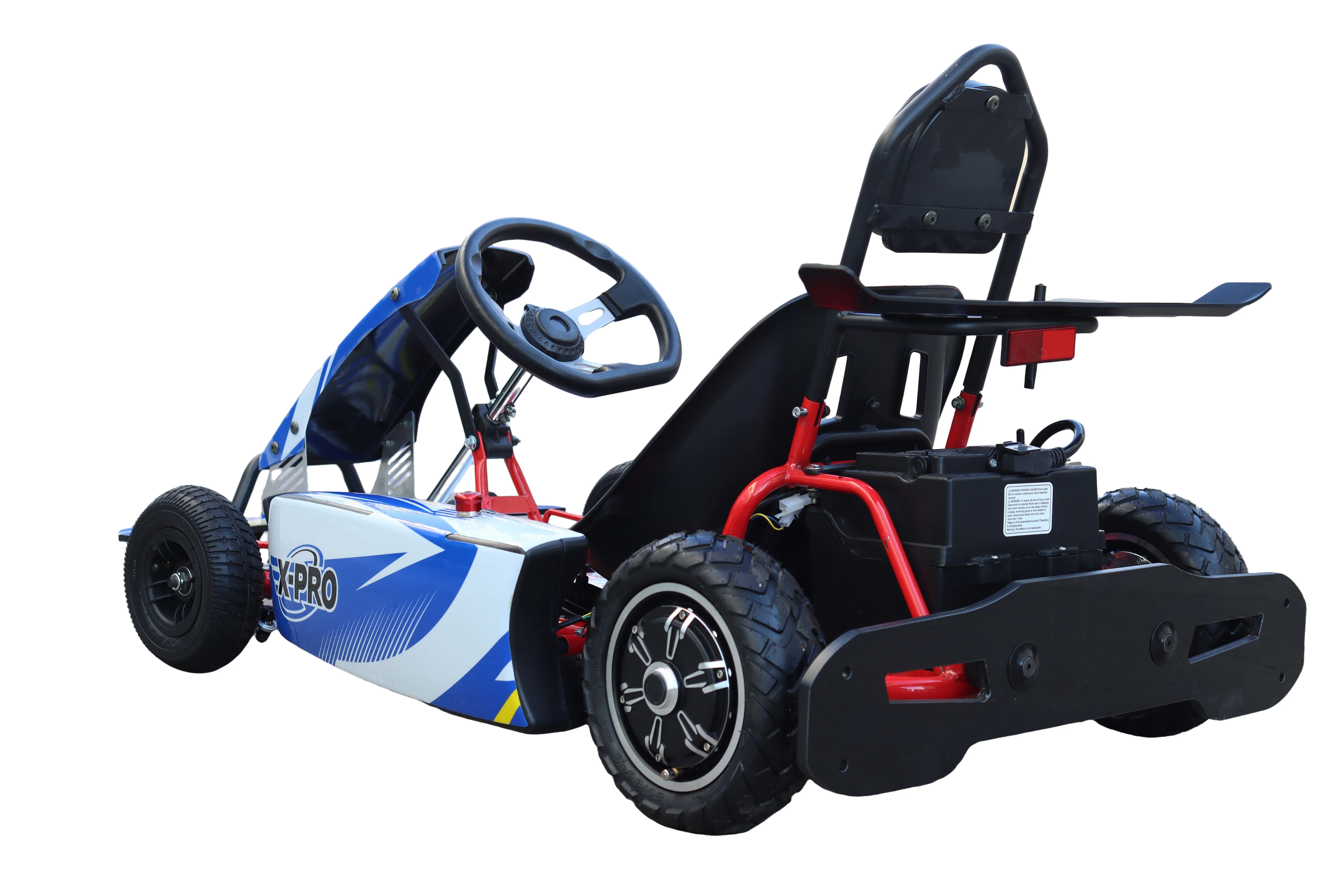

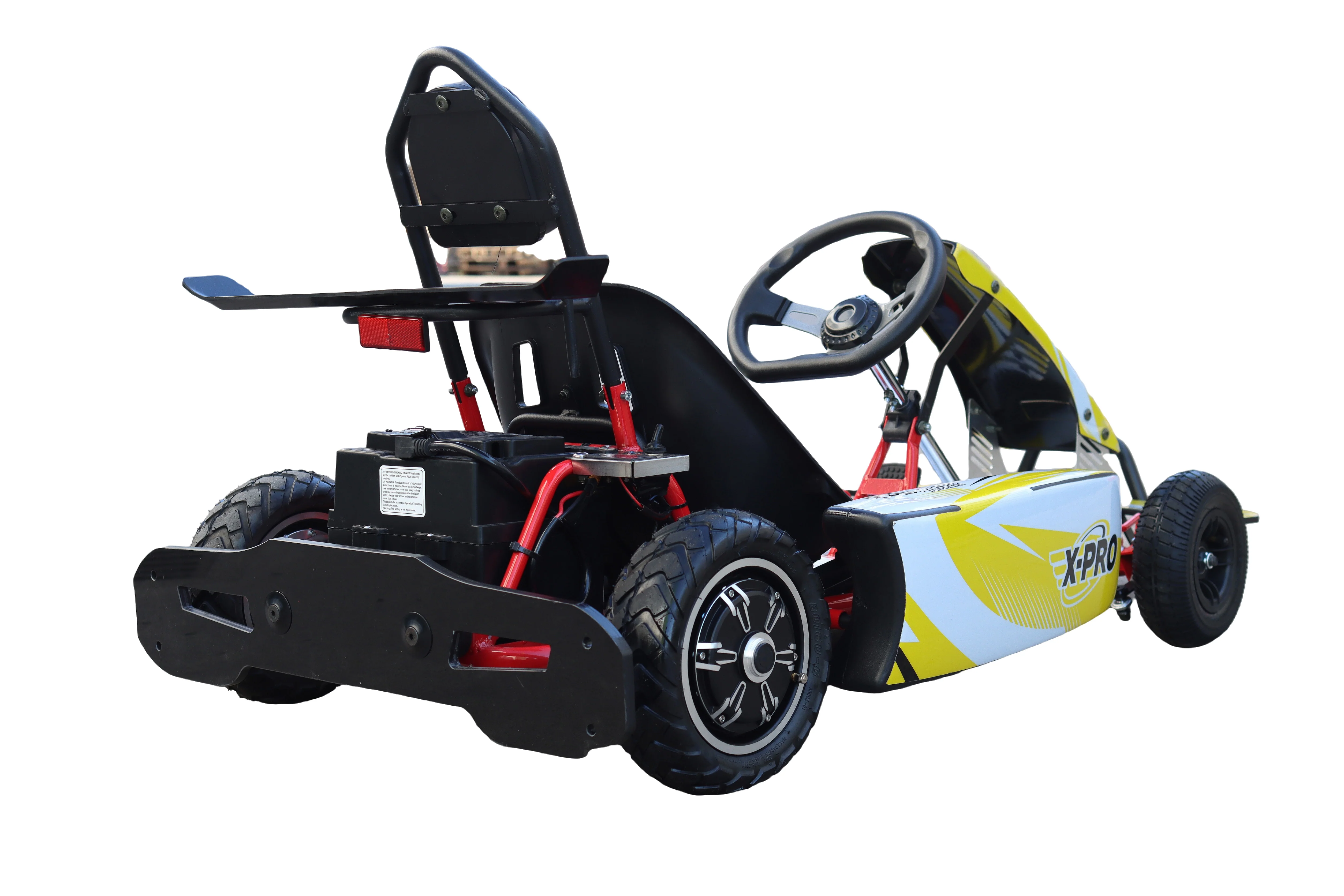

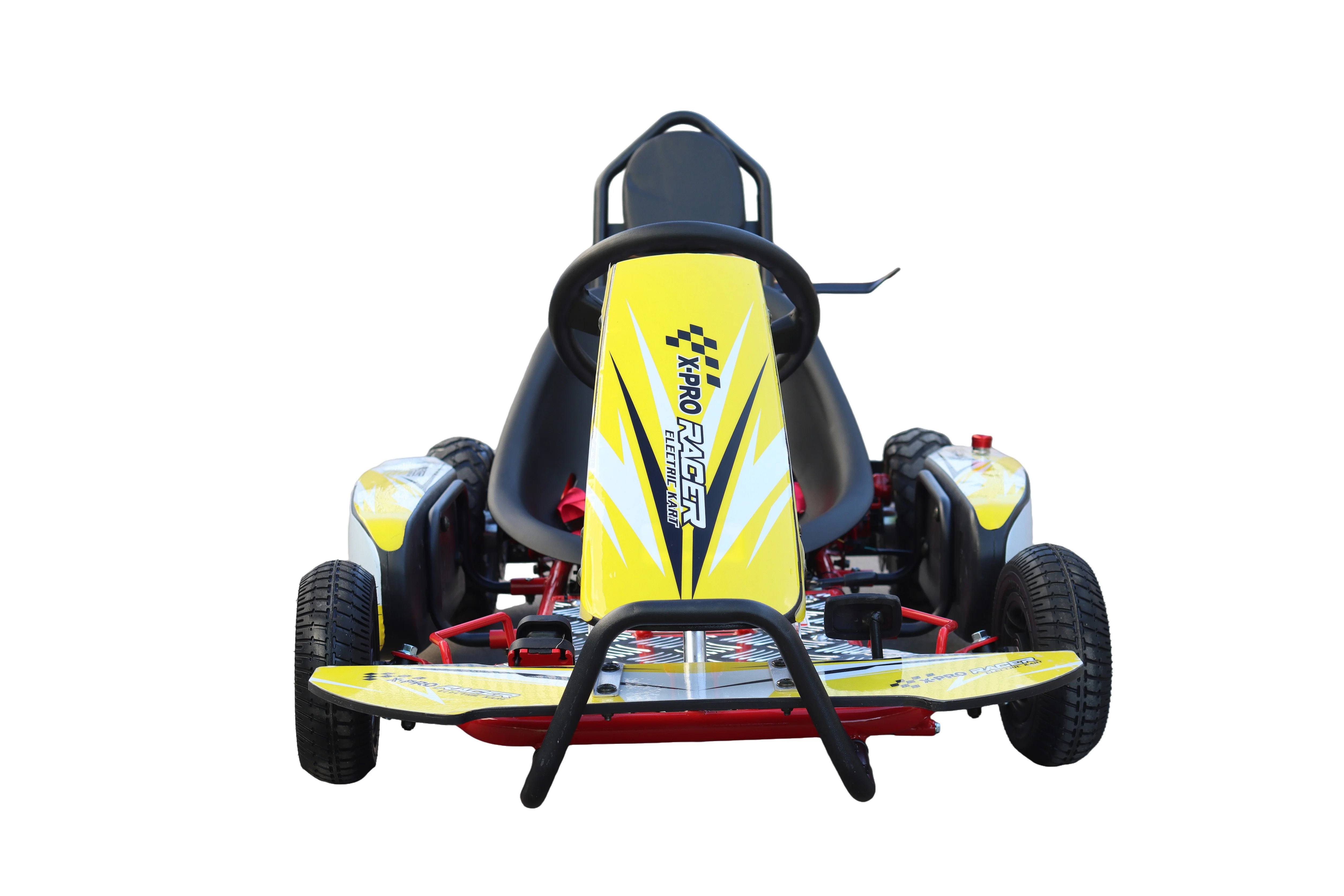

X-PRO Rambler Two 350W Kids Electric Go Kart with Reverse.

• Main Features:
1. 2*12V 20A Lead-acid Batteries: 2*12V 20A battery offers a solid power output,ensuring sufficient energy for powering the motoland other electrical components of the go-kart.
2. Front Bumper: Help to reduce the impact of small obstacles orrough patches on the track, providing a smoothe!and more enjoyable ride for the driver.
3. Disc Brakes: Disc brakes on the go-kart enhance safety control, and overall performance, making them apreferred choice for serious racing andrecreational use.
4. Inflatable Tubeless Tires: Provide superior performance, comfort, andversatility, making them a popular choice for bothrecreational and competitive karting.

• Powerful 350W*2 Motor puts out strong, predictable power! Not need gasoline, no air pollution!
• Battery Type: 12V/20Ax2 Lead-acid battery.
• Max Speed: 10mph.
• Front and Rear Disc brakes supply strong, reliable stopping power.
• Front 200x75 and Rear 80/60-6" wheels offer great traction.
• Kindly Notice: If storing your bike for long periods, charge the battery every 10 days to avoid battery dead.
• Some Assembly Required.

Specifications

Model Number	GK-U05
Engine/Drive Train
Motor	350W*2
Battery	12V/20Ax2 Lead-acid battery
Max Speed	10mph(Depending on Riders Weight and Road Conditions)
Reverse	Yes
Mileage at full charge	28-35km
Charging Time	4h
Start type	Power Switch
Drive Mode	Hub motor
Turning Radius	≥5M
Climbing Ability	≥15°
Frame /Body/ Suspension / Brakes
Front Brake	Disc
Rear Brake	Disc
Front Tire	200x75
Rear Tire	80/60-6
Capacities / Dimensions
Weight Capacity(lbs)	143
Net Weight (lbs)	99
Gross Weight (lbs)	150
Overall Length	51.18"
Overall Width	29.5"
Overall Height	27.6"
Carton dimension (L*W*H/in)	42 x 28 x 14"
Seat Height	4.72"
Ground Clearance	1.57"
Wheelbase	31.1"
Safety / Control
Engine Kill Switch	Yes
Speed Limiter	Yes
Foot Brake	Yes
